maserati bora clutch parts diagram

010 - clutch

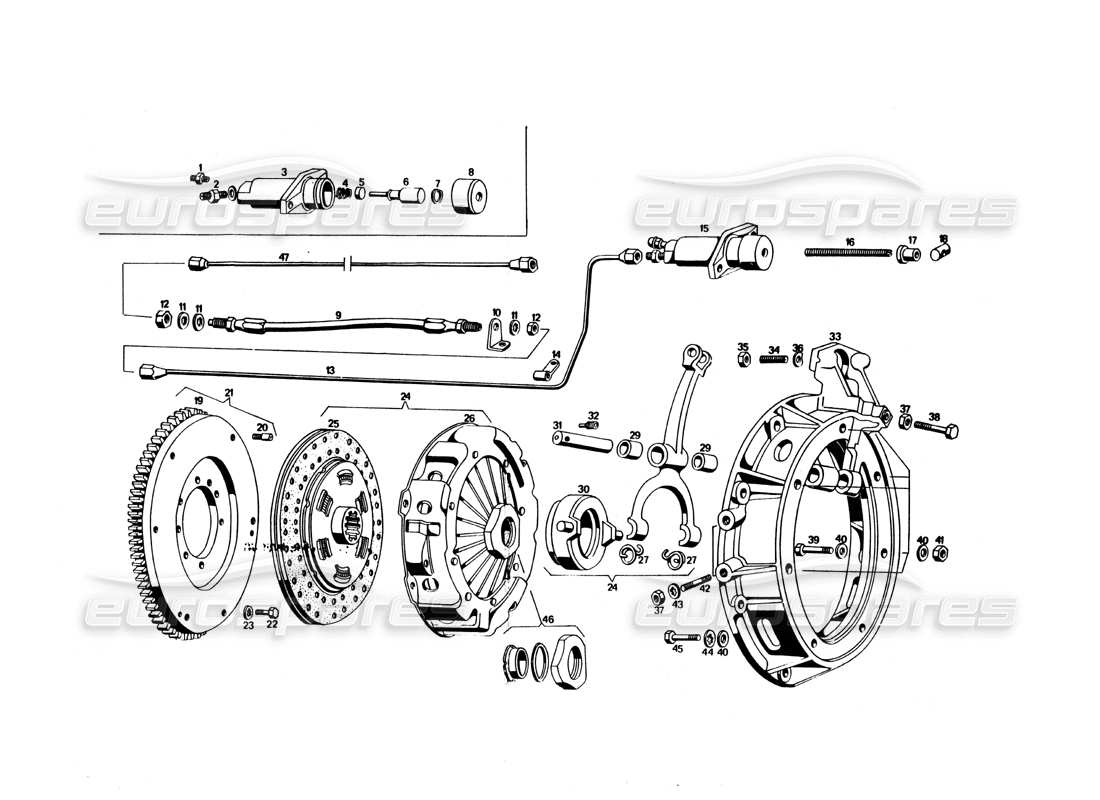

Maserati Bora Clutch Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                  #
                                                                                                  Part number
                                                                                                  Description
                                                                                                  Key
                                                                                                  Price
                                                                                                  # 000
                                                                                                  MPN: TF 62335
                                                                                                  CLUTCH KIT 10.½
                                                                                                  from £1,267.35
                                                                                                  from £1,267.35
                                                                                                  CLUTCH KIT 10.½ Genuine Maserati Part - New (to order)
                                                                                                  CLUTCH KIT 10.½ Original Equipment - New In stock
                                                                                                  # 001
                                                                                                  MPN: 107FA58418
                                                                                                  Air vent cap on the secondary pump
                                                                                                  Air vent cap on the secondary pump Genuine Maserati Part - New (to order)
                                                                                                  # 002
                                                                                                  MPN: VRN 58047
                                                                                                  SCREW
                                                                                                  UNION Genuine Maserati Part - New (to order)
                                                                                                  # 003
                                                                                                  MPN: 101/9TF58731
                                                                                                  SECONDARY PUMP BODY CLUTCH CONTROL
                                                                                                  Corpo pompa secondaria corn. frizione (con bussola) Genuine Maserati Part - New (to order)
                                                                                                  # 004
                                                                                                  MPN: 101/9 TF 58732
                                                                                                  SPRING
                                                                                                  SPRING Genuine Maserati Part - New (to order)
                                                                                                  # 005
                                                                                                  MPN: 101/9TF58733
                                                                                                  Rubber for secondary clutch pump piston
                                                                                                  Rubber for secondary clutch pump piston Genuine Maserati Part - New (to order)
                                                                                                  # 007
                                                                                                  MPN: ART 47043
                                                                                                  ANELLA DI FERMO
                                                                                                  RING Genuine Maserati Part - New (to order)
                                                                                                  # 008
                                                                                                  MPN: 101/9 - TF 58735
                                                                                                  Parapolvere sulla pompa frizione
                                                                                                  Parapolvere sulla pompa frizione Genuine Maserati Part - New (to order)
                                                                                                  # 009
                                                                                                  MPN: 117 Fl 72280
                                                                                                  FLEXIBLE PIPE
                                                                                                  FLEXIBLE PIPE Genuine Maserati Part - New (to order)
                                                                                                  # 010
                                                                                                  MPN: 117 Fl 73371
                                                                                                  SUPPORT TO HOLD BUNDY HOSE AND CLUTCH PUMP HOSE.
                                                                                                  BUNDY PIPE SEAL SUPPORT AND CLUTCH PUMP FLEXIBLE Genuine Maserati Part - New (to order)
                                                                                                  # 011
                                                                                                  MPN: RDI 55639
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 012
                                                                                                  MPN: DN 73372
                                                                                                  NUT
                                                                                                  NUT Genuine Maserati Part - New (to order)
                                                                                                  # 013
                                                                                                  MPN: 112 FC 62801
                                                                                                  Bundy hose on the engine for clutch master cylinder
                                                                                                  Bundy hose on the engine for clutch master cylinder Genuine Maserati Part - New (to order)
                                                                                                  # 014
                                                                                                  MPN: FRN 44674
                                                                                                  CLAMP FOR FIXING BUNDY CLUTCH HOSE ON THE COLUMN
                                                                                                  Fascetta per detto Genuine Maserati Part - New (to order)
                                                                                                  # 015
                                                                                                  MPN: 117 TF 74201
                                                                                                  SECONDARY CLUTCH PUMP
                                                                                                  from £469.56
                                                                                                  from £469.56
                                                                                                  SECONDARY CLUTCH PUMP Genuine Maserati Part - New (to order)
                                                                                                  # 016
                                                                                                  MPN: 117 TF 73427
                                                                                                  PUNTALINO COMANDO FRIZIONE
                                                                                                  PUNTALINO COMANDO FRIZIONE Genuine Maserati Part - New (to order)
                                                                                                  # 017
                                                                                                  MPN: DN/46474
                                                                                                  NUT
                                                                                                  from £27.39
                                                                                                  from £27.39
                                                                                                  NUT Genuine Maserati Part - New (to order)
                                                                                                  # 018
                                                                                                  MPN: 101 8310 48111
                                                                                                  PIVOT
                                                                                                  PIVOT Genuine Maserati Part - New (to order)
                                                                                                  # 019
                                                                                                  MPN: 107/2 MM 65984
                                                                                                  ENGINE FLYWHEEL FOR CLUTCH
                                                                                                  ENGINE FLYWHEEL FOR CLUTCH Genuine Maserati Part - New (to order)
                                                                                                  # 020
                                                                                                  MPN: GRN 62551
                                                                                                  WHEAT 0 8 X 7 X 23 CENTRE99IO CLUTCH ON THE FLYWHEEL
                                                                                                  Grub screw Ø 8 x 7 x 23 centering clutch on flywheel Genuine Maserati Part - New (to order)
                                                                                                  # 021
                                                                                                  MPN: 116 MM 116007
                                                                                                  ENGINE FLYWHEEL COMPLETE WITH GRIN
                                                                                                  ENGINE FLYWHEEL COMPLETE WITH GRIN Genuine Maserati Part - New (to order)
                                                                                                  # 022
                                                                                                  MPN: BNT. 65421
                                                                                                  BOLT
                                                                                                  BOLT Genuine Maserati Part - New (to order)
                                                                                                  # 024
                                                                                                  MPN: TF 62335
                                                                                                  CLUTCH KIT 10.½
                                                                                                  from £1,267.35
                                                                                                  from £1,267.35
                                                                                                  CLUTCH KIT 10.½ Genuine Maserati Part - New (to order)
                                                                                                  CLUTCH KIT 10.½ Original Equipment - New In stock
                                                                                                  # 025
                                                                                                  MPN: TF 67819
                                                                                                  CLUTCH DISC 10.5''
                                                                                                  from £251.36
                                                                                                  from £251.36
                                                                                                  CLUTCH DISC 10.5'' Genuine Maserati Part - New (to order)
                                                                                                  CLUTCH DISC 10.5'' Eurospares Approved Part - New (to order)
                                                                                                  # 026
                                                                                                  MPN: TF 67154
                                                                                                  PRESSURE PLATE 10.5
                                                                                                  PRESSURE PLATE 10.5 Genuine Maserati Part - New (to order)
                                                                                                  # 027
                                                                                                  MPN: 101/A 8604 51171
                                                                                                  SPRING
                                                                                                  SPRING Genuine Maserati Part - New (to order)
                                                                                                  # 028
                                                                                                  MPN: 117 TF 72498
                                                                                                  TOTAL OF MONTA99IO CLUTCH CONTROL WASHER
                                                                                                  TOTAL OF MONTA99IO CLUTCH CONTROL WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 029
                                                                                                  MPN: 117 TF 72489
                                                                                                  BUSH
                                                                                                  BUSH Genuine Maserati Part - New (to order)
                                                                                                  # 030
                                                                                                  MPN: TF 67032
                                                                                                  Clutch Bearing
                                                                                                  from £147.00
                                                                                                  from £147.00
                                                                                                  Clutch Bearing Genuine Maserati Part - New In stock
                                                                                                  # 031
                                                                                                  MPN: 117 TF 68098
                                                                                                  SHAFT FOR CLUTCH CONTROL LEVER
                                                                                                  SHAFT FOR CLUTCH CONTROL LEVER Genuine Maserati Part - New (to order)
                                                                                                  # 032
                                                                                                  MPN: GRN 72496
                                                                                                  GRAIN FOR FIXING THE CLUTCH CONTROL SHAFT
                                                                                                  GRAIN FOR FIXING THE CLUTCH CONTROL SHAFT Genuine Maserati Part - New (to order)
                                                                                                  # 033
                                                                                                  MPN: 117 TF 117007
                                                                                                  CLUTCH BELL ASSEMBLY WITH STUDS
                                                                                                  from £658.26
                                                                                                  from £658.26
                                                                                                  Clutch bell assembly Genuine Maserati Part - New (to order)
                                                                                                  # 034
                                                                                                  MPN: PN/45832
                                                                                                  PRI9IONIERO CLUTCH PUMP FIXING 0 8 X 1,25 X 31
                                                                                                  THREADED STUD Genuine Maserati Part - New (to order)
                                                                                                  # 035
                                                                                                  MPN: DNT/47064
                                                                                                  NUT
                                                                                                  NUT Genuine Maserati Part - New (to order)
                                                                                                  # 036
                                                                                                  MPN: RAT/45680
                                                                                                  WASHER
                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                  # 037
                                                                                                  MPN: DNT. 47031
                                                                                                  NUT
                                                                                                  NUT Genuine Maserati Part - New (to order)
                                                                                                  # 039
                                                                                                  MPN: BNT 60724
                                                                                                  BOLT
                                                                                                  BOLT Genuine Maserati Part - New (to order)
                                                                                                  # 041
                                                                                                  MPN: DST 68047
                                                                                                  NUT
                                                                                                  NUT Genuine Maserati Part - New (to order)
                                                                                                  # 042
                                                                                                  MPN: PN 63910
                                                                                                  STUD
                                                                                                  STUD Genuine Maserati Part - New (to order)
                                                                                                  # 046
                                                                                                  MPN: TF 116176
                                                                                                  RELEASE DISC ON CLUTCH COVER SPRING
                                                                                                  RELEASE DISC ON CLUTCH COVER SPRING Genuine Maserati Part - New (to order)
                                                                                                  # 047
                                                                                                  MPN: 117 FC 74237
                                                                                                  BUNDY HOSE FROM MAIN CLUTCH PUMP TO HOSE TO CYLINDER HEAD
                                                                                                  BUNDY HOSE FROM MAIN CLUTCH PUMP TO HOSE TO CYLINDER HEAD Genuine Maserati Part - New (to order)
                                                                                                  # 047
                                                                                                  MPN: 117 FC 76341
                                                                                                  TUBO BUNDY DAL FLESSIBILE POMPA PRIMARIA FRIZIONE ALLA GIUNZIONE 4 VIE (GUIDA DESTRA)
                                                                                                  TUBO BUNDY DAL FLESSIBILE POMPA PRIMARIA FRIZIONE ALLA GIUNZIONE 4 VIE (GUIDA DESTRA) Genuine Maserati Part - New (to order)
                                                                                                  # 047
                                                                                                  MPN: 117 FC 76342
                                                                                                  TUBA BUNDY DALLA GIUNZIONE 4 VIE AL FLESSIBILE POMPA SECONDARIA FRIZIONE (GUIDA DESTRA)
                                                                                                  TUBA BUNDY DALLA GIUNZIONE 4 VIE AL FLESSIBILE POMPA SECONDARIA FRIZIONE (GUIDA DESTRA) Genuine Maserati Part - New (to order)
