018 - Rear Suspension

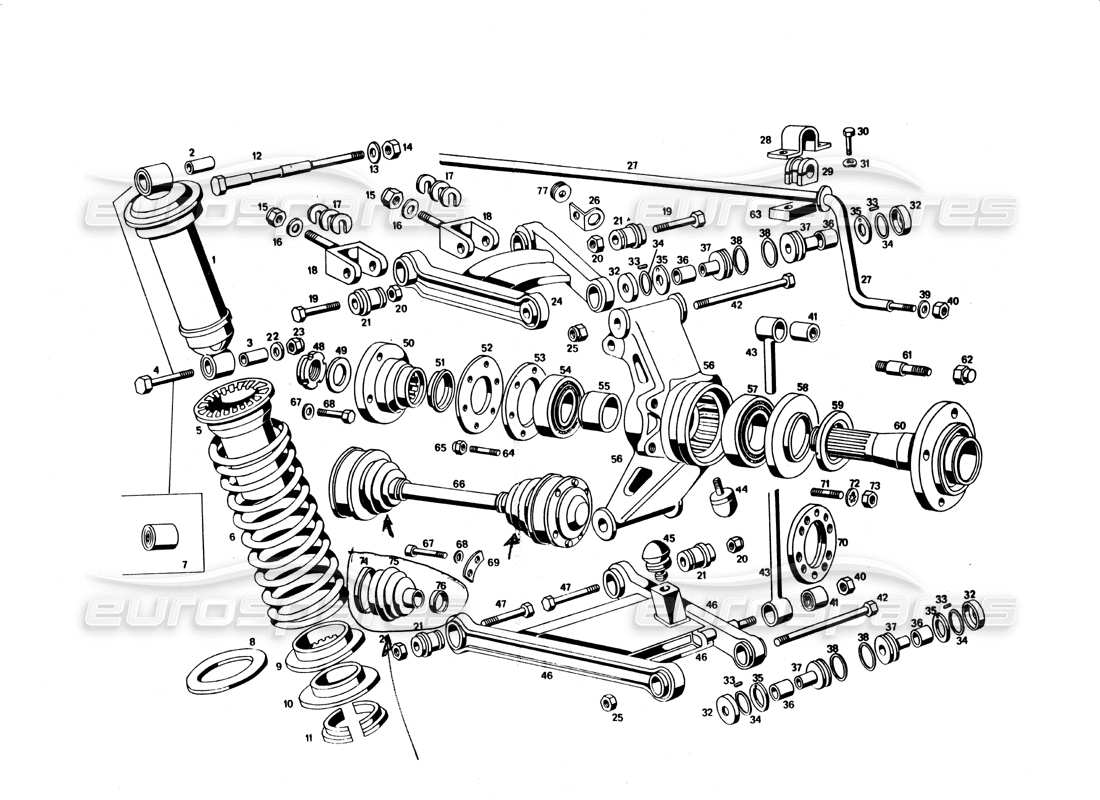

Maserati Bora Rear suspension Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 117 SP 71197
REAR SHOCK ABSORBERS
# 002
MPN: 107 SP 55230
BOCCOLE DI RIDUZIONE PER SILENTBLOC SULL'AMMORTIZZATORE POSTERIORE (PARTE SUPERIORE)
from £26.78
from £26.78
# 003
MPN: 117 SP 68419
BUSH
from £26.78
from £26.78
# 004
MPN: BNT 65419
BOLT
# 005
MPN: 117 SP 67884
APPOGGIO SUPERIORE MOLLA
# 006
MPN: 117 SP 75751
Molls per sospensioni posteriori Ø 14 Hess 0,311
# 008
MPN: 117 SP 75069
Distanziale per molla ammortizzatore posteriore destro
# 009
MPN: 117 SP 67887
Appoggto inferiore molla
# 010
MPN: 117 SP 67883
RING
# 011
MPN: 117 SP 67882
SEMIANELLO PER BLOCCAGGIO MOLLA
# 012
MPN: 117 CT 69063
BOLT
# 013
MPN: ANT 47091
WASHER
# 014
MPN: DST 54897
NUT
# 015
MPN: DST 54896
NUT
# 016
MPN: RNT53869
WASHER
# 017
MPN: 117 SP 67886
SPACER FOR UPPER ARM ATTACHMENT FORK
# 018
MPN: 117 SP 69039
FORK
# 019
MPN: BNT 65644
BOLT
# 020
MPN: DST 68049
NUT
Supersession
Supersession
# 021
MPN: 163038
Suspension Bushes
from £38.54
from £38.54
# 022
MPN: RNT 71349
WASHER
# 023
MPN: DST 68049
NUT
Supersession
Supersession
# 024
MPN: 117 SP 73502
PARTIAL WELDING ASSEMBLY OF THE RIGHT REAR SUSPENSION UPPER ARM
# 024
MPN: 117 SP 73503
PARTIAL WELDING ASSEMBLY OF THE LEFT SUSPENSION UPPER ARM
# 025
MPN: DST 54846
NUT
# 026
MPN: 117 Fl 74170
SHELF TO SUPPORT POSTER CALIPER FLEXIBLE HOSE. RIGHT
# 026
MPN: 117 Fl 74171
MENSOLA PER SOSTEGNO TUBO FLESSIB. CALIPER POSTER. SINISTRO
# 027
MPN: 117 SP 72338
Barra stabilizzatrice posteriore Ø 20
# 028
MPN: A6.G 54.12572.44117
SUPPORT
# 029
MPN: 107/A SA 62830
ELASTIC PLUSH FOR REAR STABILIZER BAR SUPPORT.
# 030
MPN: BNT 75353
BOLT
# 031
MPN: RAT. 45681
WASHER
This part replaces part number 45681
# 032
MPN: 117 SP 67762
WASHER
# 033
MPN: GRN 48095
Grano Ø 3 X 5 tenuta anello reggispinta
Supersession
Supersession
# 034
MPN: GOM 75774
Rubber Ø 33,5 X 28,25 X 2,62 for external seal on the upper and lower arm
# 035
MPN: 117 SP 67772
RING
# 036
MPN: 117 SP 75281
DRY BEARING FOR UPPER AND LOWER ARM
# 037
MPN: 117 SP 67763
BUSH
# 038
MPN: GOM 67775
RUBBER Ø 40 X 32,95 X 3,53 FOR INTERNAL SEAL ON THE UPPER AND LOWER REAR SUSPENSION ARM
# 039
MPN: RNT 71349
WASHER
# 040
MPN: DST 65851
NUT
This part replaces part number DST 68049
# 041
MPN: SLN 73679
Silentbloc per bielletta barra stabilizzatrice
# 042
MPN: BNT 68407
BOLT
# 043
MPN: 117 SP 68342
BIELLETTA PER BARRA STABILIZZATRICE POSTERIORE
# 044
MPN: SLN 73524
LIMIT SWITCH BUFFER FOR LOWER SHAKING
# 045
MPN: SLN 73511
Tampone finecorsa per scuotimento superiore
# 046
MPN: 117 SP 68366
REAR SUSPENSION RIGHT LOWER ARM WELDING ASSEMBLY
# 046
MPN: 117 SP 68367
WELDING ASSEMBLY LEFT LOWER ARM REAR SUSPENSION
# 047
MPN: BNT 65443
BOLT
# 048
MPN: GH 68278
Ring nut Ø 35 X 1,5 X 13 right fixing sleeve to hub
# 048
MPN: GH 68279
Ring nut Ø 35X1,5X13 left fixing the sleeve to the hub
# 049
MPN: 117 TP 68440
RING
# 050
MPN: 117 TP 67803
SLEEVE ON THE HUB FOR HALF-AXLE CONNECTION
# 051
MPN: 117 TP 68690
SHEET METAL ON THE SLEEVE TO PROTECT THE INTERNAL BEARING, ON THE REAR WHEELS
# 052
MPN: 117 TP 68689
REAR WHEEL HUB INTERNAL BEARING PROTECTION PLATE
# 053
MPN: 117 TP 67592
BEARING SEALING DISC TO THE HUB HOLDER ARM
# 054
MPN: CSC 68678
Cuscinetto Ø 40 X 80 X 18 X 2 sul mozzo posteriure a tenuta stagna
# 055
MPN: 117 TP 67581
SPACER BETWEEN BEARING ON REAR WHEEL HUB
# 056
MPN: 117 TP 75370
SUPPORT
# 056
MPN: 117 TP 75371
SUPPORT
# 057
MPN: CSC 68677
CUSCINETTO Ø 50 X 90 X 20 A TENUTA STAGNA
# 058
MPN: 117 TP 75385
Lamiera protezione cuscinetto esterno mozzo uota posteriori
# 059
MPN: 117 TP 75384
SPACER BETWEEN BEARING AND HUB FOR REAR WHEELS
# 060
MPN: 117 TP 72284
RIGHT REAR WHEEL HUB
# 060
MPN: 117 TP 72285
LEFT REAR WHEEL HUB
# 061
MPN: 117 TP 72902
COLONETTA FISSAGGLO RUOTE POSTERIORI
# 062
MPN: DN/46440
NUT
# 063
MPN: 117 SP 72346
SPACER ON THE FRAME FOR REAR STABILIZER BAR
# 064
MPN: PN 45850
PRIBIONIERO Ø 6 X 1 X 23 FISSAPPIO DISCO TENUTA CUSCINETTO AL PRACCIO
# 065
MPN: DST 51417
NUT
# 066
MPN: 117 TP 68498
Complessivo semiasse tp. LOBRO
from £309.75
from £309.75
# 067
MPN: VNT 71131
SCREW
# 069
MPN: 117 TP 76258
PLATE FOR HALF-AXLE FIXING SCREW
# 070
MPN: 117 TP 68542
REDUCTION COUNTER FLANGE FOR HALF-AXLE ATTACHMENT TO THE DIFFERENTIAL
# 070
MPN: 117 TP 72332
COMPLESSIVO CONTROFLANGIA CON PRIGIONIERI
# 071
MPN: PN 75083
STUD
# 072
MPN: RDI55938
WASHER
# 073
MPN: DNT 64309
NUT
# 074
MPN: FRN 76261
Fascetta Ø 73 tenuta soffietto semiasse
# 075
MPN: 117 TP 76259
SOFFIETTO SEMIASSE
from £33.48
from £33.48
# 076
MPN: FRN 76262
FASCETTA TENUTA SOFFIETTO SEMIASSE
# 077
MPN: PFN/50304
GROMMET
