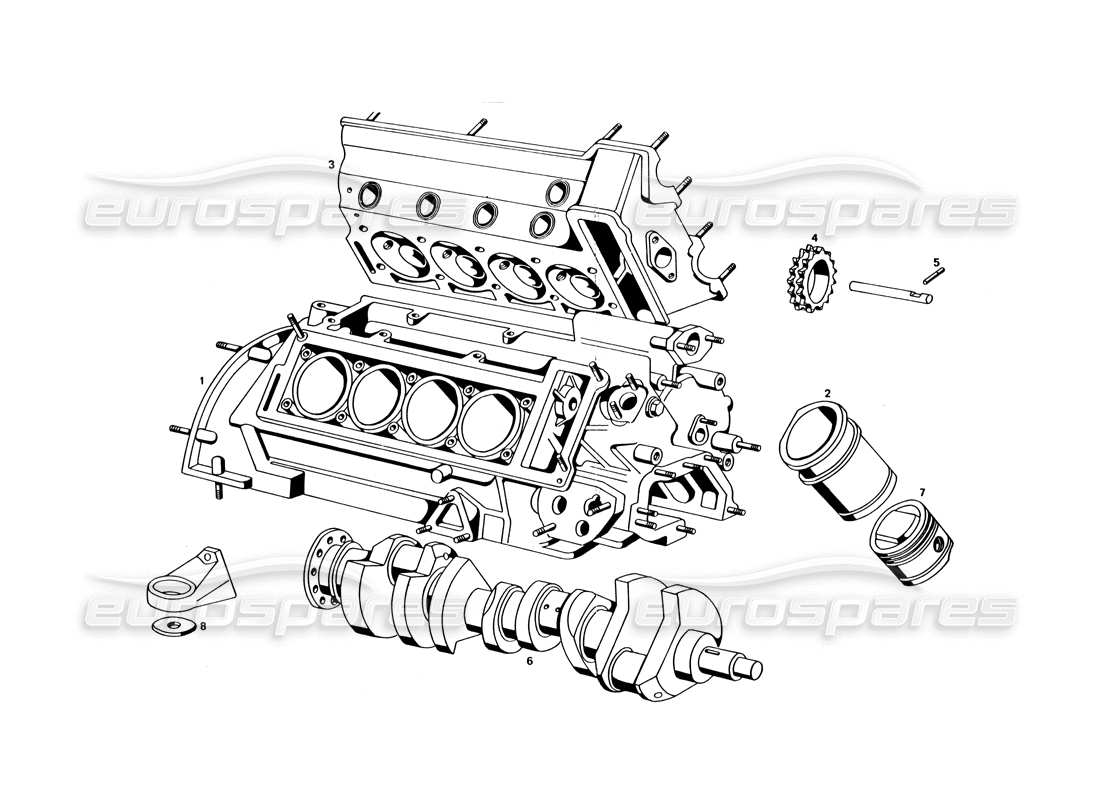

Maserati Bora (USA Variants) Engine Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 116/A MB 116.108
CYLINDER BASE COMPLETE WITH LINES, STUDS AND CUP
# 001
MPN: 117 CP 117.667
Motore completo tlpo 107.11.49
# 002
MPN: 115.03.49 MB 66542
CANNA PER CILINDRI INTERN{
# 002
MPN: 115.03.49 MB 66543
BARREL FOR EXTERNAL CYLINDERS
# 003
MPN: 116/A MT 116.148
CYLINDER HEAD RH
# 003
MPN: 117 MT 117.678
CYLINDER HEAD LH
# 004
MPN: 115 MD 115.045
COMPLETE CHAIN TENSIONER PINION.
# 005
MPN: SN 67536
PIN
# 006
MPN: 115/A MN 115.264
CRANKSHAFT BALANCED
# 007
MPN: 115.05 MM 70448
Pistone per canna Ø 93.9
from £739.40
from £739.40
# 008
MPN: 117 CT 76181
DISTANZIALE SOTTO ZANNA ANTERIORE MOTORO
