003 - Air Pollution 1972

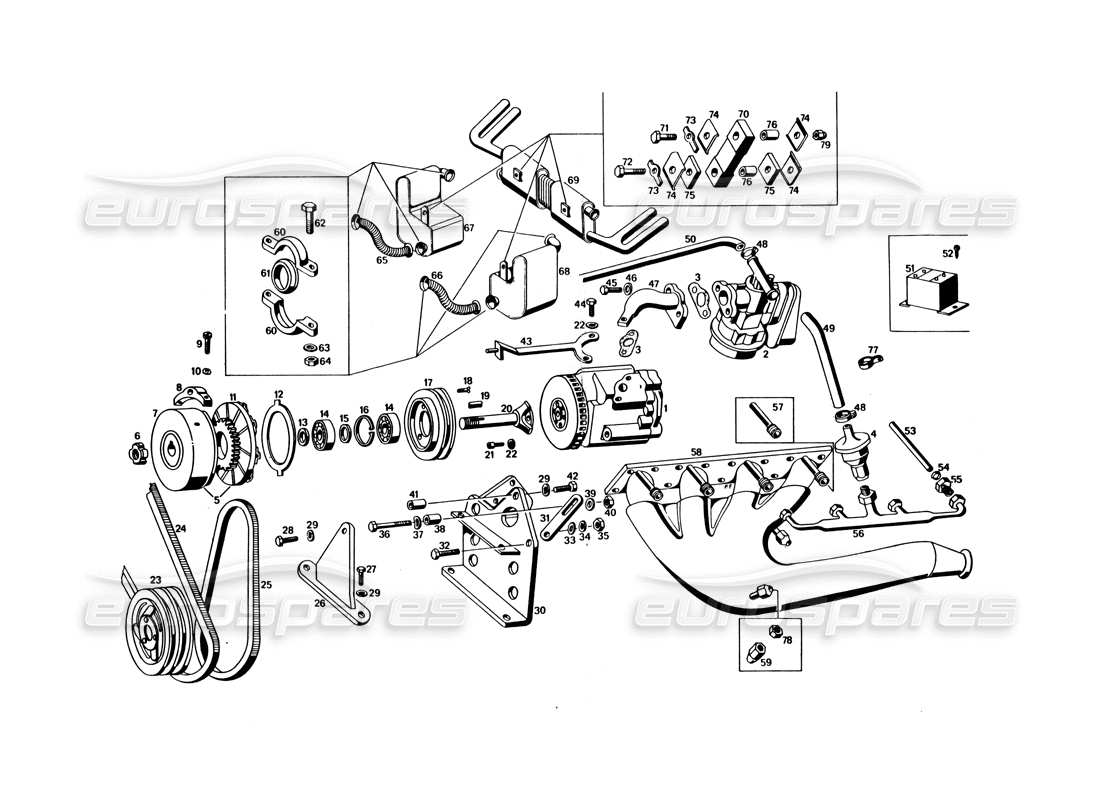

Maserati Bora (USA Variants) Air Pollution 1972 Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 115/A CP 67903
Pompa aria
# 002
MPN: 115/A CP 67905
DIVERTER VALVE ON THE AIR PUMP
# 003
MPN: 115/A CP 67906
GASKET OR SEAL
# 004
MPN: 115/A CP 67907
FLAME NON-RETURN VALVE
# 005
MPN: 115/A CP 74522
ELECTROMAGNETIC CLUTCH ON THE COMPLETE AIR PUMP
# 006
MPN: GN 72288
Ghiera elastica Ø 17 X 1/M fiss. frizione elettromagnetica
# 007
MPN: 115/A CP 74150
WINDING FOR ELECTROMAGNETIC CLUTCH
# 008
MPN: 115/A CP 79712
SUPPORT
# 009
MPN: VNT 79713
SCREW
# 010
MPN: RDE 61865
WASHER
# 011
MPN: 115/A CP 74151
ANCORA PER FRIZIONE EELTTROMAGNETICA
# 012
MPN: 115/A CP 74152
RING
# 013
MPN: 115/A CP 72289
RASAMENTO FRIZIONE ELETTROMAGNETICA
# 014
MPN: CSC 72283
Cuscinetto Ø 17 X 35 X 10 per frizione elettromagnetica
# 015
MPN: 115/A CP 72810
WASHER
# 016
MPN: ART 42960
RING
# 017
MPN: 117 CP 75810
AIR PUMP TOW PULLEY ON ELECTROMAGNETIC CLUTCH
# 018
MPN: VNT 72812
SCREW
# 019
MPN: LN 72292
Key Ø 5 X 5 X 25 driving electromagnetic clutch shaft air pump
# 020
MPN: 115/A CP 72281
SHAFT FOR ELECTROMAGNETIC CLUTCH
# 022
MPN: RDI 72811
WASHER
# 023
MPN: 117 BR 78299
Pulley for electromagnetic clutch for air conditioner and air pump
# 024
MPN: CTR 72619
COMPRESSOR PULLEY DRIVING BELT
from £152.30
from £152.30
# 025
MPN: CTR 68473
AIR PUMP DRIVING BELT
from £145.60
from £145.60
# 026
MPN: 117 CB 75811
SUPPORT
# 027
MPN: BNT 60984
BOLT
# 028
MPN: BNT 56976
BOLT
# 030
MPN: 107.07.47 MB 70659
SUPPORT
# 031
MPN: 117 CP 75851
PUNTALINO POMPA ARIA
# 032
MPN: BNT 47011
BOLT
# 033
MPN: RNT 55379
WASHER
# 034
MPN: RDI55990
WASHER
# 035
MPN: DNT 76120
NUT 8 X 1.25
# 036
MPN: BNT 75852
BOLT
# 037
MPN: RAT 68720
WASHER
# 038
MPN: 117 CP 75813
SPACER BETWEEN FUEL AND AIR PUMP
# 039
MPN: RN 75853
WASHER
# 040
MPN: DNT 68093
NUT
# 041
MPN: 117 CP 75812
Spacer between support and air pump
# 042
MPN: ANT 55118
BOLT
# 043
MPN: 115/A CP 74517
Puntalino antistrappo completo
# 044
MPN: BNT 49955
BOLT
# 045
MPN: BNT 47019
BOLT
# 046
MPN: RNT 6701,1
WASHER
# 047
MPN: 117 CP 78069
DUCT FOR AIR PUMP DIVERTER VALVE
# 048
MPN: FRN/37825
CLAMP Ø 16 X 25 FIXING Tubi AIR DELIVERY TO THE EXHAUST MANIFOLDS
# 049
MPN: 117 CP 76177
AIR DELIVERY PIPE TO THE LEFT EXHAUST MANIFOLD
# 050
MPN: MN 48324
Pipe Ø 14 X 22 X 1100 air delivery to the right exhaust manifold
# 051
MPN: 115/A 8L 72606
RELAY FOR ELECTROMAGNETIC CLUTCH AIR PUMP
# 052
MPN: VAT 49513
SCREW
# 053
MPN: 115/A CP 67927
AIR INJECTION PIPE TO THE EXHAUST MANIFOLDS
# 054
MPN: RCN 66611
UNION
# 055
MPN: DRN 66612
NUT
# 056
MPN: 117 CP 73926
AIR MANIFOLD TO RIGHT EXHAUST MANIFOLD
# 056
MPN: 117 CP 73927
AIR MANIFOLD TO SLNLSTRO EXHAUST MANIFOLD
# 057
MPN: 115/A CP 66621
SUPPORT
# 058
MPN: 117 CP 73924
Collettore di scarico destro completo di rivestimeo to .
# 058
MPN: 117 CP 73925
LEFT EXHAUST DL MANIFOLD COMPLETE WITH COVERING
# 059
MPN: DRN 69934
FITTING NUT ON EXHAUST MANIFOLDS Ø 10 X 1,25X 15,5
# 060
MPN: 107 CM 56658
COLLECTOR AND EXHAUST Tubi FIXING CLAMP
# 061
MPN: 107 CM 56644
SEAL
# 063
MPN: RNT 55379
WASHER
# 064
MPN: DST/48101
NUT
# 065
MPN: 117 CP 74391
TUBO COLLEG. COLLECT. DI SCARICO DESTRO COMPLETO DI RIVESTIM.
# 066
MPN: 117 CP 74392
LEFT EXHAUST MANIFOLD CONNECTING PIPE COMPLETE WITH COVERING
# 067
MPN: 117 CP 74393
SILENZIATORE LATERALE DESTRO
# 068
MPN: 117 CP 74394
SILENZIATORE LATERALE SINISTRO
# 069
MPN: 117 CP 78979
COVERED REAR MUFFLER
# 070
MPN: SLN 72711
SUPPORT
# 071
MPN: BNT 54081
BOLT
# 072
MPN: BNT 55366
BOLT
# 073
MPN: RDL54240
WASHER
# 074
MPN: 101/91656054086
PIASTRINI SOSTEGNO SUPPORTI ANTIVIBRATORI
from £4.36
from £4.36
# 075
MPN: GN 70805
Guarnizioni protezione supporti antivibratori
from £2.52
from £2.52
# 076
MPN: GN54089
GUARNIZIONI Ø 9 X 11 X 15 PROTEZIONE SUPPORTI ANTIVIBRATORI
# 077
MPN: FRN 76015
Clamp holding Tubi air delivery to the exhaust manifolds
# 078
MPN: DN 78490
NUT
# 079
MPN: DNT. 47031
NUT
