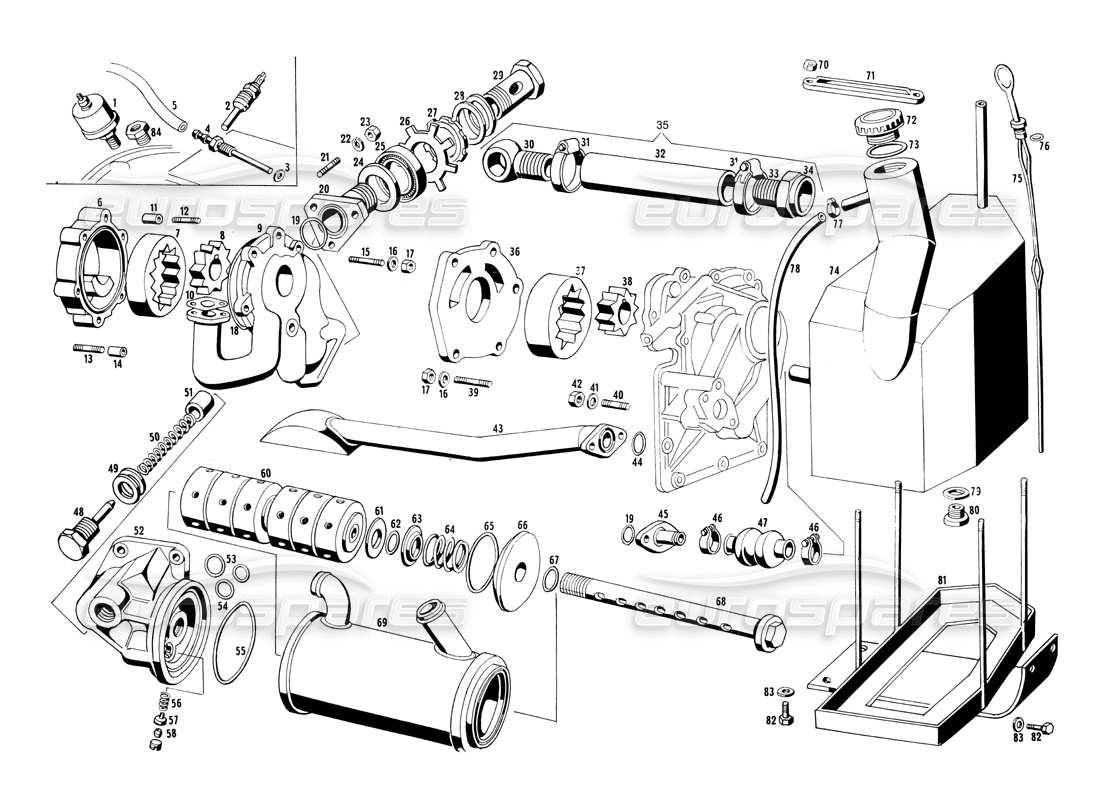

005 - oil pump and filter
Maserati Ghibli 4.7 / 4.9 Oil Pump and Filter Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 115 ML 65220
TRASMETTITORE PRESSIONE OLIO TP. BORLETTI
# 001
MPN: ML54801
TRASMETTITORE DI PRESSIONE OLIO (SMITH)
# 002
MPN: 107 - ML 5481 1
TERMOCOPPIA TERMOMETRO OLIO TP. SMITHS
# 002
MPN: 115 ML 65219
TERMOCOPPIA TERMOMETRO OLIO TP. BORLETTI .
# 003
MPN: GN 47207
GASKET OR SEAL
This part replaces part number 47207
# 004
MPN: 107 ML 58386
OIL VENT HOSE ASSEMBLY FROM THE CRANKCASE
# 005
MPN: MN 57698
MANICOTTO Ø 10X 16X 980 PER DETTO
# 006
MPN: 103.4002.51374
OIL PUMP BODY .
# 007
MPN: 103 - 4024 51377
OIL PUMP DRIVEN GEAR.
from £556.04
from £556.04
# 008
MPN: 103402251376
INGRANAGGIO CONDUTTORE POMPA OLIO .
# 009
MPN: 115 ML 63064
COVER
# 010
MPN: GN55099
GASKET OR SEAL
from £4.32
from £4.32
# 011
MPN: PN53067
THREADED STUD
from £4.32
from £4.32
# 012
MPN: GRN49454
GRIN Ø 10 X 8 X 8 ON THE OIL PUMP BODY.
from £6.04
from £6.04
# 013
MPN: PN 53525
RIGIONIERO P. 10 X 1,5 X 80 FIXING THE PUMP BODY AND COVER
# 014
MPN: GRN 55499
GRANO Ø 14 X 11 X34 PER DETTO .
from £10.34
from £10.34
# 015
MPN: PN 45843
THREADED STUD
from £10.34
from £10.34
# 016
MPN: RNT47075
WASHER
This part replaces part number 47075
# 017
MPN: DST 53397
NUT
This part replaces part number 53397
# 018
MPN: GOM 50315.
RUBBER 70X 1,2 BETWEEN BODY AND OIL PUMP COVER
# 019
MPN: GOM45899
RUBBER 30 X 36 X3 SEAL BETWEEN DELIVERY AND OIL RECOVERY PIPE ON THE PAMPA
from £4.32
from £4.32
# 020
MPN: 115 ML 63196
SUCTION SEAT FOR DELIVERY OIL PUMP
from £137.06
from £137.06
# 021
MPN: PN 56475
THREADED STUD
from £10.34
from £10.34
# 022
MPN: RDI53899
WASHER
# 023
MPN: DNT 47047
NUT
# 024
MPN: 115 MB 63200
RING
from £109.48
from £109.48
# 025
MPN: ANT 63198
SEALING RING
# 026
MPN: RDL 63199
WASHER
# 027
MPN: G H 63201
Ghiera Ø 8 X 1,5 X 6 per detto
from £85.34
from £85.34
# 028
MPN: GN 63204
GASKET OR SEAL
from £8.62
from £8.62
# 029
MPN: 115 ML 64722
SCREW
# 030
MPN: 115 ML 64718
UNION
# 031
MPN: FRN 62541
FASCETTA 25 ÷ 40 PER DETTO .
# 032
MPN: MN 64720
Manicotto Ø 11/8 X 40 X 200 per detto
# 033
MPN: 115 ML 64719
UNION
# 034
MPN: 115 ML 65584
NUT
# 035
MPN: 115 ML 64717
FULL TUBE FOR SAID
# 036
MPN: 115 ML 63193
COVER
# 037
MPN: 151/2 ML 55846
RECOVERY OIL PUMP DRIVEN GEAR.
from £505.18
from £505.18
# 038
MPN: 151/2 ML 55845
RECOVERY OIL PUMP DRIVE GEAR
from £545.68
from £545.68
# 039
MPN: PN 33921
THREADED STUD
# 040
MPN: PN 56475
THREADED STUD
from £10.34
from £10.34
# 041
MPN: RDI53899
WASHER
# 042
MPN: DNT 47047
NUT
# 043
MPN: 115 ML 63253
HOSE WITH FILTER FOR SUCTION OF OIL FROM THE SUMP
# 044
MPN: GOM 54022
RUBBER 34,6 X 39,7 X 3,65 ON THE FAN PIPE FLANGE
# 045
MPN: 115 ML 64316
CONNECTOR FOR DELIVERY OF OIL FROM THE RECOVERY PUMP TO THE TANK.
# 046
MPN: FRN 64861
Fascetta Ø 27 fissaggio tubo per detto
# 047
MPN: 115 ML 64847
BELLOWS HOSE FOR SAID .
# 048
MPN: 115 ML 63315
COMPLETE CAP WITH GUIDE FOR OIL PRESSURE ADJUSTMENT VALVE
Supersession
Supersession
# 049
MPN: GN46637
GASKET OR SEAL
from £2.16
from £2.16
# 050
MPN: 115 ML 63312
SPRING
from £18.96
from £18.96
# 051
MPN: 115 ML 63311
VALVOLINA REGOLAZIONE PRESSIONE OLIO
from £157.76
from £157.76
# 052
MPN: 115 ML 63309
CORPO FILTRO OLIO
# 053
MPN: GOM42693
RUBBER Ø 28 X 34 X 3, FOR OIL FILTER BODY
from £6.04
from £6.04
# 054
MPN: GOM 42866
GOMMINO Ø 22 X 28 X 3 PER DETTO .
from £4.32
from £4.32
# 055
MPN: GOM 61489
RUBBER Ø 77,8 X 83,8 X 3 BETWEEN FILTER BODY AND COVER
from £10.34
from £10.34
# 056
MPN: 101/7 ML 54546
SPRING
# 057
MPN: 250F 4206 42910
GUIDA SFERA VALVOLINA DI SICUREZZA .
# 058
MPN: SFN/42391
SFERA PER VALVOLINA DI SICUREZZA
# 059
MPN: 250F421042909
BALL BUSH SAFETY VALVE OIL FILTER BODY
# 060
MPN: 001501188
OIL FILTER
In Line Type
from £27.16
from £27.16
# 060
MPN: 107/3 ML 66523
Oli Filter
Screw on Type
from £20.21
from £20.21
# 061
MPN: 101 4204 53268
GASKET OR SEAL
# 062
MPN: GOM 55510
RUBBER 25 X 28 X 1,5 ON THE EXCHANGER SEALING ROD.
# 063
MPN: 101/9406753269
RING
# 064
MPN: 101/9421453267
SPRING
# 065
MPN: GOM54376
GOMMINO Ø 78,97 X 86,03 X 3,53 SUL CORPO SCAMBIATORE
# 066
MPN: 101/9 4070 54375
COVER
# 067
MPN: GOM45899
RUBBER 36 X 30 X3 ON THE LOWER SIDE EXCHANGER ROD.
from £4.32
from £4.32
# 068
MPN: 101/9406353266
TIE ROD
# 069
MPN: 106 ML 60166
SCAMBIATORE DI CALORE
# 070
MPN: DNT. 47031
NUT Ø 8X 1,25 TANK SEAL BAND FIXING
# 071
MPN: 115 CT 64625
BRACKET / SUPPORT
# 071
MPN: 115 CT 64626
BRACKET / SUPPORT
# 072
MPN: TN 33811
NORMAL CAP Ø 50 X 2,5 FOR OIL FILLER FILLER
# 073
MPN: GOM 50656
RUBBER FOR FILLER CAP
# 074
MPN: CS 0071324
OIL TANK
from £3,195.68
from £3,195.68
# 075
MPN: 115 CS 64633
ASTA LIVELLO OLIO COMPLETA
# 076
MPN: GOM 63446
Rubber on the oil dipstick
# 077
MPN: FRN/37825
FASCETTA Ø 20 PER TUBO SFIATO .
# 078
MPN: MN 52424
SLEEVE Ø 19,05 X 12,75 X 500 FOR OIL TANK VENT.
# 079
MPN: GN 63204
GASKET OR SEAL
from £8.62
from £8.62
# 079
MPN: GN48059
GASKET OR SEAL
# 080
MPN: TN 50677
TAPPO Ø 30 X 1,5 SUL SERBATOIO PER SCARICO OLIO DALLA VETT. N. 302
# 080
MPN: TN 57589
TAPPO Ø 24 X 1,5 SUL SERBATOIO PER SCARICO OLIO FINO VETT. N. 300
# 081
MPN: 115 CT 64052
SUPPORT
# 082
MPN: BNT 47018
BOLT
# 083
MPN: RSN 3 2 6 3 5
WASHER
# 084
MPN: VRN 65939
SCREW
