006 - engine cooling

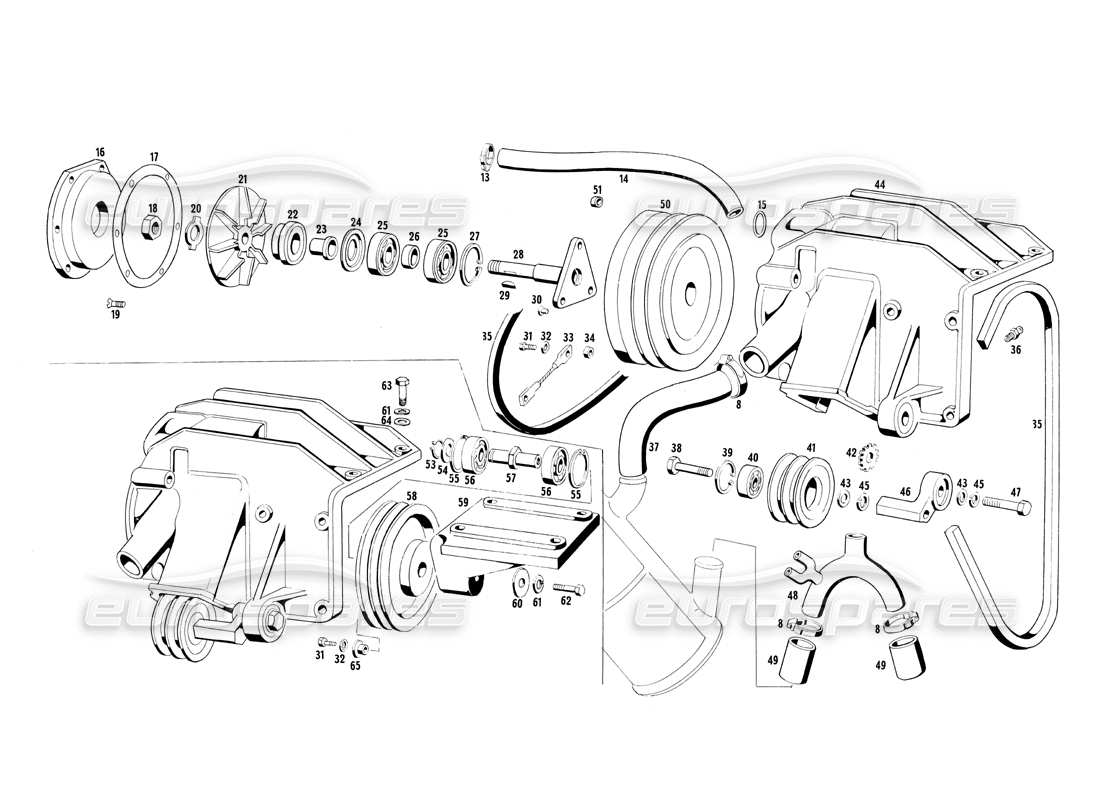

Maserati Ghibli 4.7 / 4.9 Engine Cooling Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Key
                                                                                                            Price
                                                                                                            # 008
                                                                                                            MPN: FRN 62541
                                                                                                            MT CLAMP 1 X FOR RADIATOR EXCHANGER SLEEVES
                                                                                                            Securing band Genuine Maserati Part - New (to order)
                                                                                                            # 013
                                                                                                            MPN: FRN 62541
                                                                                                            CLAMP FOR SLEEVE BETWEEN EXCHANGER AND ENGINE.
                                                                                                            Securing band Genuine Maserati Part - New (to order)
                                                                                                            # 014
                                                                                                            MPN: MN 54411
                                                                                                            SLEEVE 32 X 40 X 500 FOR CONNECTION BETWEEN THE EXCHANGER AND THE ENGINE
                                                                                                            SLEEVE 32 X 40 X 500 FOR CONNECTION BETWEEN THE EXCHANGER AND THE ENGINE Genuine Maserati Part - New (to order)
                                                                                                            # 015
                                                                                                            MPN: GOM 41462
                                                                                                            RUBBER 38 X 44 X 3 FOR SEAL BETWEEN WATER PUMP BODY AND BASE
                                                                                                            Rubber between water pump body and cylinder block Ø 38x44x3 Genuine Maserati Part - New (to order)
                                                                                                            # 016
                                                                                                            MPN: 107 4522 53905
                                                                                                            COVER
                                                                                                            COVER Genuine Maserati Part - New (to order)
                                                                                                            # 017
                                                                                                            MPN: 103 4523 50524
                                                                                                            GASKET OR SEAL
                                                                                                            GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                            # 019
                                                                                                            MPN: VNT 47051
                                                                                                            SCREW
                                                                                                            SCREW Genuine Maserati Part - New (to order)
                                                                                                            # 021
                                                                                                            MPN: 107 4542 53913
                                                                                                            GIRANTE POMPA ACQUA
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            Genuine Maserati Part (no longer available to order)
                                                                                                            # 022
                                                                                                            MPN: ANT 53928
                                                                                                            SEALING RING
                                                                                                            SEALING RING Genuine Maserati Part - New (to order)
                                                                                                            # 023
                                                                                                            MPN: 107MA54692
                                                                                                            BUSH ON THE WATER PUMP CONTROL SHAFT.
                                                                                                            Bush on the water pump control shaft Genuine Maserati Part - New (to order)
                                                                                                            # 024
                                                                                                            MPN: 107 MA 54693
                                                                                                            RING
                                                                                                            RING Genuine Maserati Part - New (to order)
                                                                                                            # 025
                                                                                                            MPN: CSC52079
                                                                                                            BEARING 17 X 40 X 12 ON THE WATER PUMP DRIVE SHAFT
                                                                                                            Bearing 17x40x12 on the water pump control shaft Genuine Maserati Part - New (to order)
                                                                                                            # 026
                                                                                                            MPN: 107MA53930
                                                                                                            Spacer on the water pump shaft
                                                                                                            Spacer on the water pump shaft Genuine Maserati Part - New (to order)
                                                                                                            # 027
                                                                                                            MPN: ART. 43191
                                                                                                            RING
                                                                                                            RING Genuine Maserati Part - New (to order)
                                                                                                            # 028
                                                                                                            MPN: 107/2 MA 64368
                                                                                                            Water pump control shaft
                                                                                                            Complete water pump control shaft Genuine Maserati Part - New (to order)
                                                                                                            # 029
                                                                                                            MPN: LN40155
                                                                                                            TAB 3 X 5 FOR DRIVING THE WATER PUMP
                                                                                                            Tab 3x5 for water pump drive Genuine Maserati Part - New (to order)
                                                                                                            # 030
                                                                                                            MPN: CHN 53204
                                                                                                            NAIL FOR WATER PUMP TOW CABLE
                                                                                                            NAIL FOR WATER PUMP TOW CABLE Genuine Maserati Part - New (to order)
                                                                                                            # 031
                                                                                                            MPN: BN 49603
                                                                                                            BOLT
                                                                                                            BOLT Genuine Maserati Part - New (to order)
                                                                                                            # 033
                                                                                                            MPN: MA 0064373
                                                                                                            Water Pump Cord
                                                                                                            from £112.18
                                                                                                            from £112.18
                                                                                                            Water Pump Cord Genuine Maserati Part - New In stock
                                                                                                            # 034
                                                                                                            MPN: 107 MA 57789
                                                                                                            SPACER FOR WATER PUMP TOW ROPE.
                                                                                                            SPACER FOR WATER PUMP TOW ROPE Genuine Maserati Part - New (to order)
                                                                                                            # 035
                                                                                                            MPN: CTR52941
                                                                                                            BELT TO DRAG PAMPA WATER VERSION WITHOUT COMPRESSOR
                                                                                                            from £27.82
                                                                                                            from £27.82
                                                                                                            Belt for driving water pump and compressor Genuine Maserati Part - New (to order)
                                                                                                            # 035
                                                                                                            MPN: CTR52941
                                                                                                            BELT FOR DRIVING WATER PUMP AND COMPRESSOR.
                                                                                                            from £27.82
                                                                                                            from £27.82
                                                                                                            Belt for driving water pump and compressor Genuine Maserati Part - New (to order)
                                                                                                            # 036
                                                                                                            MPN: IN/48089
                                                                                                            GREASE GREASE ON THE WATER PUMP BODY FOR BEARING LUBRICATION
                                                                                                            Grease nipple on the brake and clutch pump support Genuine Maserati Part - New (to order)
                                                                                                            # 037
                                                                                                            MPN: 107 MA 56001
                                                                                                            UNION
                                                                                                            UNION Genuine Maserati Part - New (to order)
                                                                                                            # 040
                                                                                                            MPN: CSC49764
                                                                                                            BEARING 20 X 47 X 14 ON THE BELT TENSIONER PULLEY.
                                                                                                            Bearing for water pump control pulley Genuine Maserati Part - New (to order)
                                                                                                            # 041
                                                                                                            MPN: 107MM55650
                                                                                                            BELT TENSIONER PULLEY
                                                                                                            BELT TENSIONER PULLEY Genuine Maserati Part - New (to order)
                                                                                                            # 043
                                                                                                            MPN: RNT47101
                                                                                                            WASHER
                                                                                                            This part replaces part number 47101
                                                                                                            Rondella Ø 14x26x3 per bullone tenuta antivibratore Genuine Maserati Part - New (to order)
                                                                                                            # 044
                                                                                                            MPN: 450253901
                                                                                                            WATER PUMP ASSY
                                                                                                            from £3,260.86
                                                                                                            from £3,260.86
                                                                                                            WATER PUMP ASSEMBLY Genuine Maserati Part - New (to order)
                                                                                                            WATER PUMP ASSEMBLY Eurospares Approved Part - New In stock
                                                                                                            # 046
                                                                                                            MPN: 107MM55649
                                                                                                            ECCENTRIC FOR BELT TENSIONER PULLEY
                                                                                                            ECCENTRIC FOR BELT TENSIONER PULLEY Genuine Maserati Part - New (to order)
                                                                                                            # 047
                                                                                                            MPN: BNT 55653
                                                                                                            BOLT
                                                                                                            BOLT Genuine Maserati Part - New (to order)
                                                                                                            # 048
                                                                                                            MPN: 115 CR 64651
                                                                                                            UNION
                                                                                                            UNION Genuine Maserati Part - New (to order)
                                                                                                            # 048
                                                                                                            MPN: MN 55230
                                                                                                            Manicotto 38 X 47 dal radiatore al scambiatore fino 100ª vett.
                                                                                                            MANICOTTO 38 X 47 DAL RADIATORE AL SCAMBIATORE FINO 100ª VETT Genuine Maserati Part - New (to order)
                                                                                                            # 049
                                                                                                            MPN: MN 57230
                                                                                                            SLEEVE 38 X 47 X 150 FROM THE HEAT EXCHANGER TO THE FITTING
                                                                                                            Manicotto Ø 38x47x135 dailo scambiatore al tubo entrata e uscita scabiatore Genuine Maserati Part - New (to order)
                                                                                                            # 050
                                                                                                            MPN: 107 BR 54534
                                                                                                            CLUTCH FOR AIR CONDITIONING COMPRESSOR
                                                                                                            CLUTCH FOR AIR CONDITIONING COMPRESSOR Genuine Maserati Part - New (to order)
                                                                                                            # 051
                                                                                                            MPN: 107/2 MA 64374
                                                                                                            GRAIN ON THE WATER PUMP SHAFT DRIVE PULLEY.
                                                                                                            WHEAT ON THE WATER PUMP SHAFT DRIVE PULLEY Genuine Maserati Part - New (to order)
                                                                                                            # 054
                                                                                                            MPN: 107 MA 57629
                                                                                                            RING
                                                                                                            RING Genuine Maserati Part - New (to order)
                                                                                                            # 056
                                                                                                            MPN: CSC49764
                                                                                                            Bearing for water pump control pulley
                                                                                                            Bearing for water pump control pulley Genuine Maserati Part - New (to order)
                                                                                                            # 057
                                                                                                            MPN: 107 MA 56942
                                                                                                            SHAFT FOR WATER PUMP CONTROL PULLEY.
                                                                                                            SHAFT FOR WATER PUMP CONTROL PULLEY Genuine Maserati Part - New (to order)
                                                                                                            # 058
                                                                                                            MPN: 107 MA 56941
                                                                                                            PULEGGIA COMANDO POMPA ACQUA
                                                                                                            PULEGGIA COMANDO POMPA ACQUA Genuine Maserati Part - New (to order)
                                                                                                            # 059
                                                                                                            MPN: 107 MA 56940
                                                                                                            SUPPORT
                                                                                                            SUPPORT Genuine Maserati Part - New (to order)
                                                                                                            # 060
                                                                                                            MPN: RN 56943
                                                                                                            WASHER
                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                            # 061
                                                                                                            MPN: RSN/33112
                                                                                                            WASHER
                                                                                                            from £1.74
                                                                                                            from £1.74
                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                            # 065
                                                                                                            MPN: 107 MA 57788
                                                                                                            WATER PUMP TOWING SAFETY COLUMN
                                                                                                            WATER PUMP TOWING SAFETY COLUMN Genuine Maserati Part - New (to order)
