008 - electrical equipment

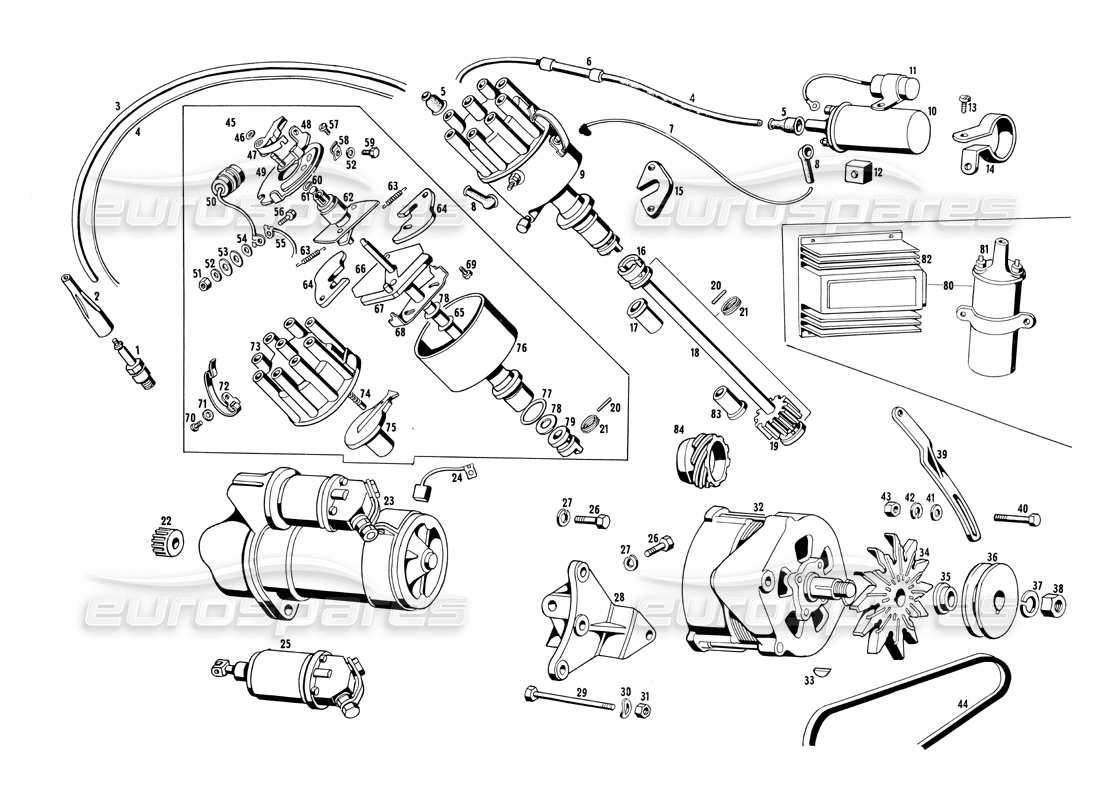

Maserati Ghibli 4.7 / 4.9 Electrical Equipment Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
000
MPN:
MHT003
Complete HT Lead Set
from
£252.00
from
£252.00
#
001
MPN:
107 ME 57677
Candela d'accensione Bosch
#
002
MPN:
107/2 ME 65902
Shielded socket for spark plugs
#
002
MPN:
107/2 ME 65903
REDUCTION FOR SPARK PLUG CABLE ON THE PLUG
#
003
MPN:
TVN 47035
VIPLA TUBE FOR CANDALE CABLE PROTECTION
#
004
MPN:
CSN 47374
CAVO STERLINGATO COLLEGAM. CANDELE D'ACCENSIONE E BOBINA
from
£99.75
from
£99.75
#
005
MPN:
CPN32926
Spark plug cable connection protection cap
#
006
MPN:
107/2 ME 65905
COIL SHIELDING RESISTOR.
#
007
MPN:
CSN 54976
Sterling cable connecting low voltage coil and voltage
#
008
MPN:
CPN 32934
PROTECTIVE CAP FOR LOW VOLTAGE CONNECTIONS
#
009
MPN:
107/2 ME 61438
Spinterogeno tp. Bosch Z V2/30 V2 .
from
£1,044.75
from
£1,044.75
#
010
MPN:
107 ME 58441
Bobina d'accensione tp. Bosch .
from
£200.00
from
£200.00
#
011
MPN:
101/7 ME-52898
LOW VOLTAGE SHIELDING CAPACITOR ON THE COIL
#
012
MPN:
107ME54442
RESISTENZA BOBINA BOSCH
#
013
MPN:
VAT 47371
SCREW
#
014
MPN:
107 ME 66181
COIL CLAMP
#
015
MPN:
101/9 ME 53510
BRACKET / SUPPORT
#
016
MPN:
107/2 ME 59604
FEMALE JOINT FOR GENERATOR TOWING
#
017
MPN:
107/2 ME 59606
BUSH
#
018
MPN:
107/2 ME 59603
GENERATOR CONTROL SHAFT
#
019
MPN:
107/2 ME 59599
INGRANAGGIO CONDOTTO COMANDO SPINTEROGENO
#
020
MPN:
SN 59613
PIN
#
021
MPN:
ART 56514
RING
#
022
MPN:
107 ME 58776
STARTER MOTOR PINION.
#
023
MPN:
107ME57879
MOTORINO D'AVVIAMENTO TP. BOSCH
#
024
MPN:
107 ME 58774
BRUSH FOR STARTER MOTOR
#
025
MPN:
107 ME 58778
INTERRUTTORE ELETTROMAGNETICO INNESTO MOTORINO AVVIAM.
#
026
MPN:
BNT 47017
BOLT
#
027
MPN:
RAT/45680
WASHER
#
028
MPN:
115 ME 63072
SUPPORT FOR ALTERNATOR.
#
029
MPN:
BNT 58749
BOLT
#
030
MPN:
RAT/45680
WASHER
#
031
MPN:
DN/32634
NUT
#
032
MPN:
107/2 ME 65079
ALTERNATORE TP. BOSCH
from
£729.75
from
£729.75
ALTERNATOR BOSCH COMPLETE WITH FAN
Genuine Maserati Part - Used
In stock
PULLEY IS MISSING - REPLACEMENT BRUSHES FITTED
PULLEY IS MISSING - REPLACEMENT BRUSHES FITTED
#
033
MPN:
LN49771
AMERICAN TAB 4 X 6 ON THE SHIELDED ALTERNATOR
#
034
MPN:
107/2 ME 65080
Fan for alternator.
#
035
MPN:
107/2 ,ME 65084
Spacer for alternator control pulley
#
036
MPN:
107 ME 59675
Puleggia comando alternatore Ø 70
#
038
MPN:
DN 32721
NUT
#
039
MPN:
115 ME 65852
PUNTALINO PER ALTERNATORE
#
040
MPN:
BNT 54081
BOLT
#
041
MPN:
RNT47075
WASHER
This part replaces part number 47075
#
042
MPN:
RSN 3 2 6 3 5
WASHER
#
043
MPN:
DN/32634
NUT 8 X 1.25
#
044
MPN:
CTR 52901
CINGHIA TRASCINAMENTO ALTERNATORE (SVILUPPO 736)
#
045
MPN:
ART 66217
RING
#
046
MPN:
RNT54507
WASHER
#
047
MPN:
ME66182
GENERATOR ROTOR CONNECTION
from
£39.90
from
£39.90
#
048
MPN:
107/2 ME 66183
Plate with contact
#
049
MPN:
107/2 ME 66184
Spacer between connections and cams.
#
050
MPN:
ME66185

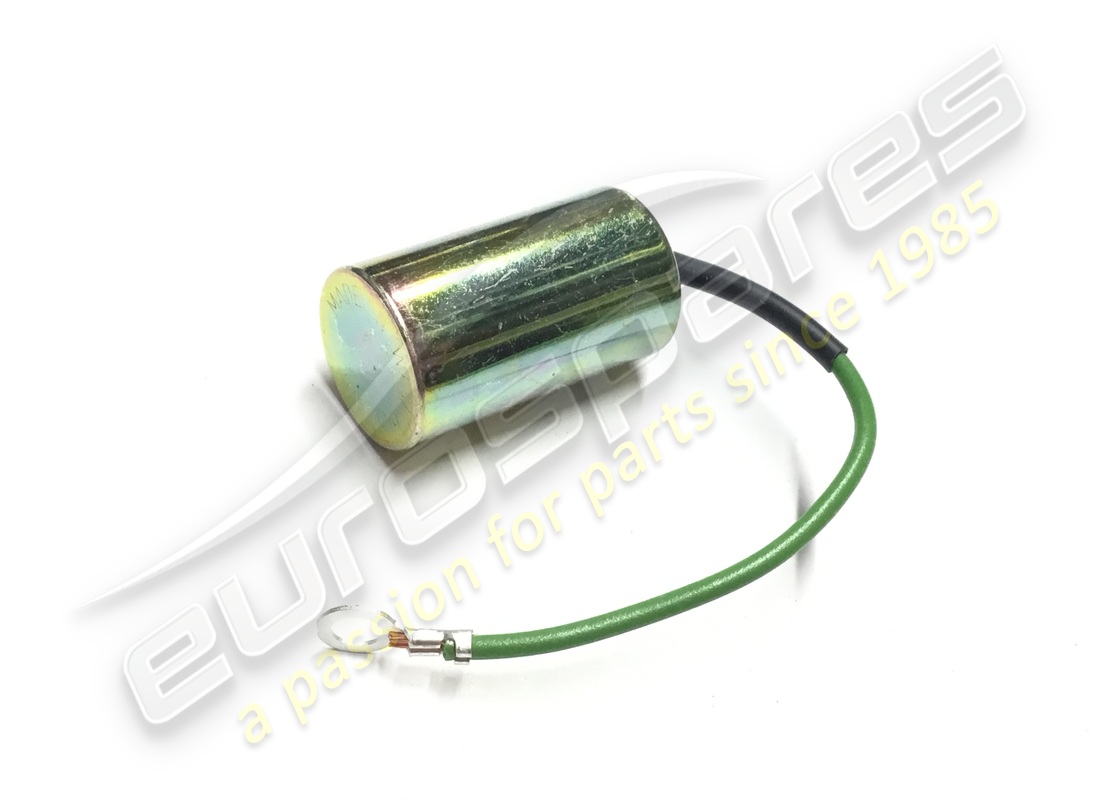

CONDENSOR
from
£29.93
from
£29.93
#
051
MPN:
DNT/62557
NUT
#
053
MPN:
G N 66216
GASKET OR SEAL
#
054
MPN:
RNT54507
WASHER
#
055
MPN:
107/2 ME 66186
WIRE COMPLETE WITH CONNECTION TERMINALS. CONNECTIONS
#
056
MPN:
BNT 48820
BOLT
#
057
MPN:
VNT 61862
SCREW
#
058
MPN:
107/2 ME 66187
LOCKING PLATE FOR CABLE TERMINALS
#
059
MPN:
BNT 61985
BOLT
#
060
MPN:
ART 57614
RING
#
061
MPN:
107/2 ME 66188
Cam shaft felt
#
062
MPN:
107/2 ME 66189
PARAGRAPH WITH FORK
#
063
MPN:
107/2 ME 66190
MASS RETURN SPRINGS.
#
064
MPN:
107/2 ME 66191
Mass for automatic advance.
#
065
MPN:
107/2 ME 66192
THICKNESS BETWEEN SHAFT AND GENERATOR BODY
#
066
MPN:
107/2 ME 66193
GASKET OR SEAL
#
067
MPN:
107/2 ME 66194
Alberino comando spintetrogeno
#
068
MPN:
107/2 ME 66195
MASS RECOVERY SPRING FLANGE
#
069
MPN:
VNT 66218
Screws Ø 3,5 X 0,6 X 6 flange fixing for said .
#
070
MPN:
VNT 61861
SCREW
#
071
MPN:
RNT54507
WASHER
#
072
MPN:
107/2 ME 66196
SPRING
#
072
MPN:
107/2 ME 66197
SPRING
#
073
MPN:
ME 66198
DISTRIBUTOR CAP
from
£194.25
from
£194.25
#
074
MPN:
107/2M E 66199
Carboncino con molla ,per calotta spinterogeno
#
075
MPN:
ME66200
ROTOR ARM
from
£53.72
from
£53.72
#
076
MPN:
107/2 M E 66201
GENERATOR BODY
#
077
MPN:
Gom. 51396
Rubber Ø 21 X 27 X 3 on the distributor body base
#
078
MPN:
101/9 ME 54651
SPACER BETWEEN JOINT AND DISTRIBUTOR AND SHAFT.
#
079
MPN:
107/2 ME 59605
GIUNTO MASCHIO SULL'ALBERINO SPINTETROGENO
#
080
MPN:
115 ME 67095
GRUPPO COMPLETO ACCENS. ELETTRONICA CAPACITATIVA TP. BOSCH
from
£462.72
from
£462.72
#
081
MPN:
115 ME 67096
BOBINA PER ACCENSIONE ELETTRONICA CAPACITATIVA TP. BOSCH .
from
£152.25
from
£152.25
#
082
MPN:
115 ME 67097
AMPLIFICATORE TRANSISTORIZZATO PER ACCENSIONE ELLETRONICA CAPACITATIVA P. BOSCH
#
083
MPN:
107/2 ME 66754
BUSH
#
084
MPN:
107/2 MM 59600
Distributor control gear on the crankshaft.
