maserati ghibli 4.7 / 4.9 clutch parts diagram

011 - clutch

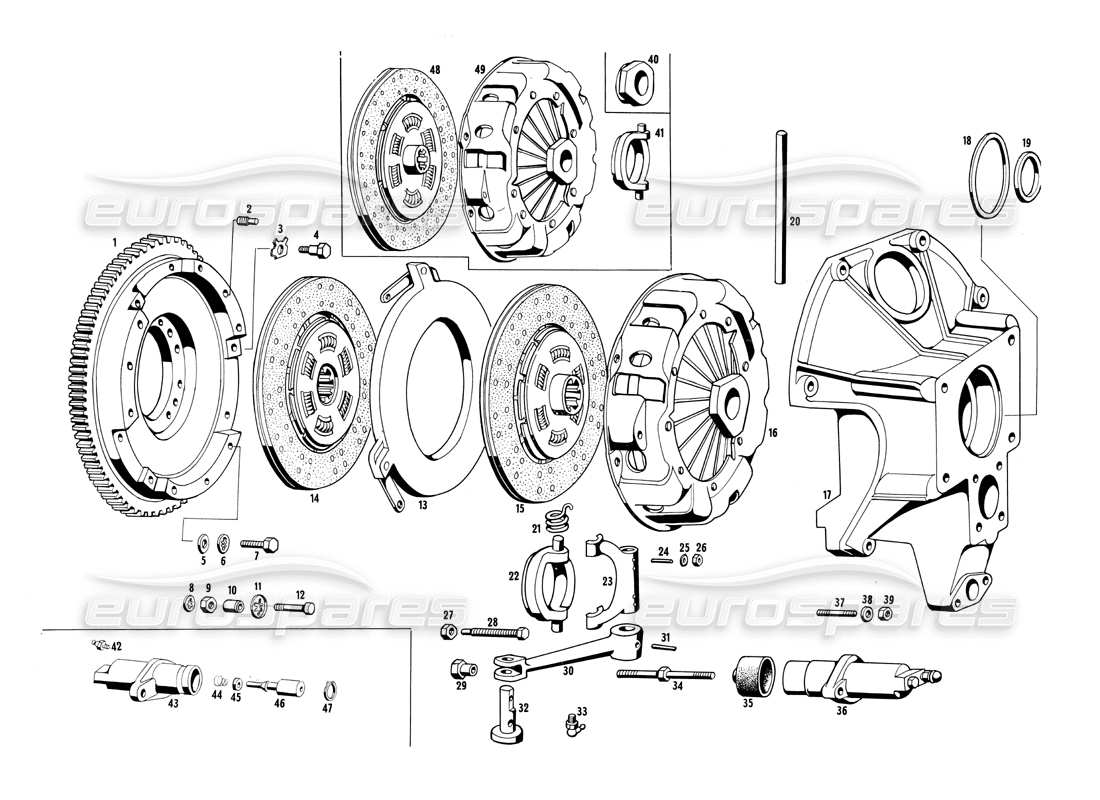

Maserati Ghibli 4.7 / 4.9 Clutch Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 107/1 M ,M 65984
VOLANO MOTORE PER FRIZIONE 10½ CON ANGUS SULL'ALBERO MANOVELLA INTERO - DALLA VETTURA N°
Supersession
Supersession
# 001
MPN: 107/1 MM 60309
VOLANO MOTORE PER FRIZIONE BIDISCO 9½ - FINO AL 10-8-68
Supersession
Supersession
# 001
MPN: 107/1 MM 62549
VOLANO MOTORE PER FRIZIONE 10½ CON ANGUS SULL'ALBERO MANOVELLA TAGLIATO - DAL 12-8-68
# 002
MPN: GRN 61848
GRANO 6 X 8 X 23 CENTRAGGIO FRIZIONE 9½ BIDISCO
# 002
MPN: GRN 62551
GRANO 8 X 7 X 23 CENTRAGGIO FRIZIONE 10½ NORMALE
# 003
MPN: RDL 61461
WASHER
# 004
MPN: BNT 61457
BOLT
# 007
MPN: BNT 47017
BOLT
# 007
MPN: BNT. 65421
BOLT
# 008
MPN: RDI 58544
WASHER
# 009
MPN: DNT 61459
NUT
# 010
MPN: 107/2 TF 65739
BUSH
# 011
MPN: 107 TF 65065
SPRING
# 012
MPN: VNT 61458
SCREW
# 013
MPN: 107/2 TF 65139
Piatto di pressione intermedio completo di lamierini per 9½ bidisco
# 014
MPN: TF 65145
CLUTCH DISC 9.5 (TWIN VERSION)
# 015
MPN: TF 65145
CLUTCH DISC 9.5 (TWIN VERSION)
# 016
MPN: TF 65143
Clutch Cover 9.5''
# 017
MPN: 115 TF 63403
SUPPORT
# 017
MPN: 115 TF 63571
SUPPORT
# 018
MPN: 107 TF 57422
RING
# 019
MPN: ANT 50239
SEALING RING
from £56.78
from £56.78
# 020
MPN: 115 TF 64245
ALBERO PORTS FORCELLA COMANDO FRIZIONE
from £1,086.51
from £1,086.51
# 021
MPN: 101/4 TF 51171
SPRING
from £423.72
from £423.72
# 022
MPN: TF 67032
Clutch Bearing
from £147.00
from £147.00
# 023
MPN: 101 8302 48050
LEVER
from £423.72
from £423.72
# 024
MPN: SN46652
PIN
from £25.41
from £25.41
# 025
MPN: RAT/45678
WASHER
from £0.84
from £0.84
This part replaces part number 45678
# 026
MPN: DNT 47046
NUT
from £0.84
from £0.84
This part replaces part number 47046
# 027
MPN: DNT. 47031
NUT 8 X 1.25
# 028
MPN: BN 60132
BOLT
# 028
MPN: BN 64248
BOLT
# 029
MPN: DN/46474
NUT
from £26.70
from £26.70
# 030
MPN: 109 TF 57407
LEVER
from £180.50
from £180.50
# 031
MPN: SN/46473
PIN
from £25.92
from £25.92
# 032
MPN: 107 TF 57684
PIVOT
from £71.18
from £71.18
# 033
MPN: IN 58389
GREASE GREASE 12 X 1,5 ON THE FORK SHAFT
from £10.16
from £10.16
# 034
MPN: 101/9 TF 57425
Puntalino sulla pompa secondaria comando frizione da 9½ bidisco
from £114.42
from £114.42
# 034
MPN: 107 TF 57380
Puntalino sulla pompa secondaria comando friz. 10½ norm
# 035
MPN: 101/9 TF 5873h
PARAPOLVERE SULLA POMPA SECONDARIA CORN. FRIZIONE
# 036
MPN: TF 74201

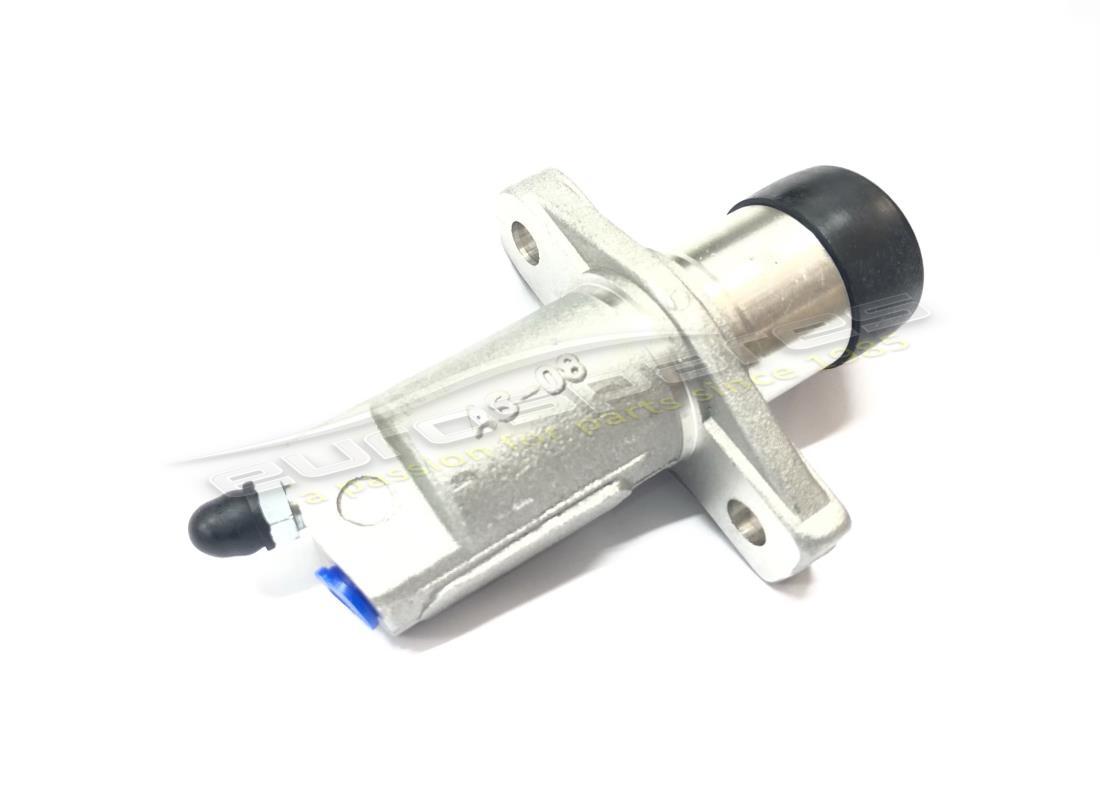

CLUTCH SLAVE CYLINDER
from £131.25
from £131.25
This part replaces part number MT48335 - and 1 more. Click to view details
# 036A
MPN: TM 78201

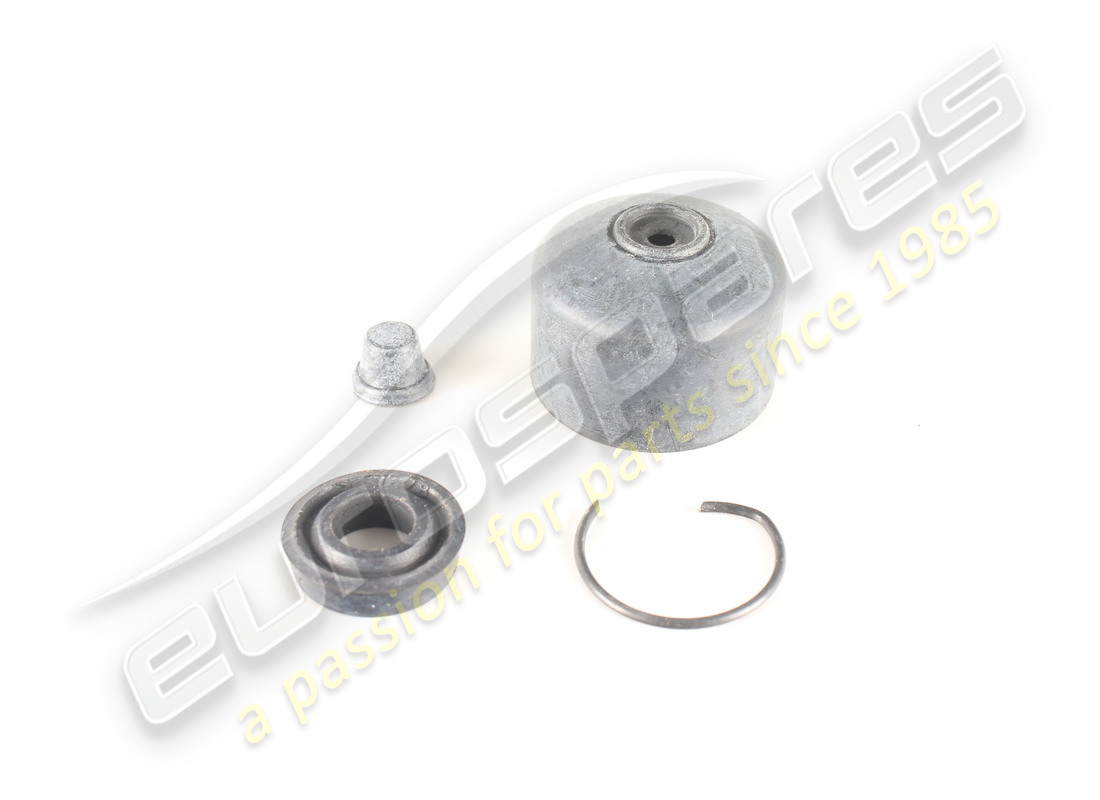

CLUTCH SLAVE CYLINDER REPAIR KIT
from £41.95
from £41.95
# 037
MPN: PN/45832
THREADED STUD
# 038
MPN: RAT/45680
WASHER
# 039
MPN: DNT. 47031
NUT
# 040
MPN: 107 TF 65152
Disco di rilascio sulla molla coperchio frizione 9½ bidisco
# 040
MPN: TF 116176
DISCO DI RILASCIO SULLA MOLLA COPERCHIO FRIZ. 10½ NORMALE
# 041
MPN: TF 67032
Clutch Bearing
from £147.00
from £147.00
# 042
MPN: 107FA58418
AIR VENT CAP ON SECONDARY PUMP CORN. CLUTCH
# 043
MPN: 101/9TF58731
CORPO POMPA SECONDARIA (CON BUSSOLA)
# 044
MPN: 101/9 TF 58732
SPRING
# 045
MPN: 101/9TF58733
RUBBER ON THE PUMP PISTON
# 047
MPN: Seeger47043
RING
# 048
MPN: TF 62335
CLUTCH KIT 10.½
from £1,187.42
from £1,187.42
# 049
MPN: TF 67154
PRESSURE PLATE 10.5
