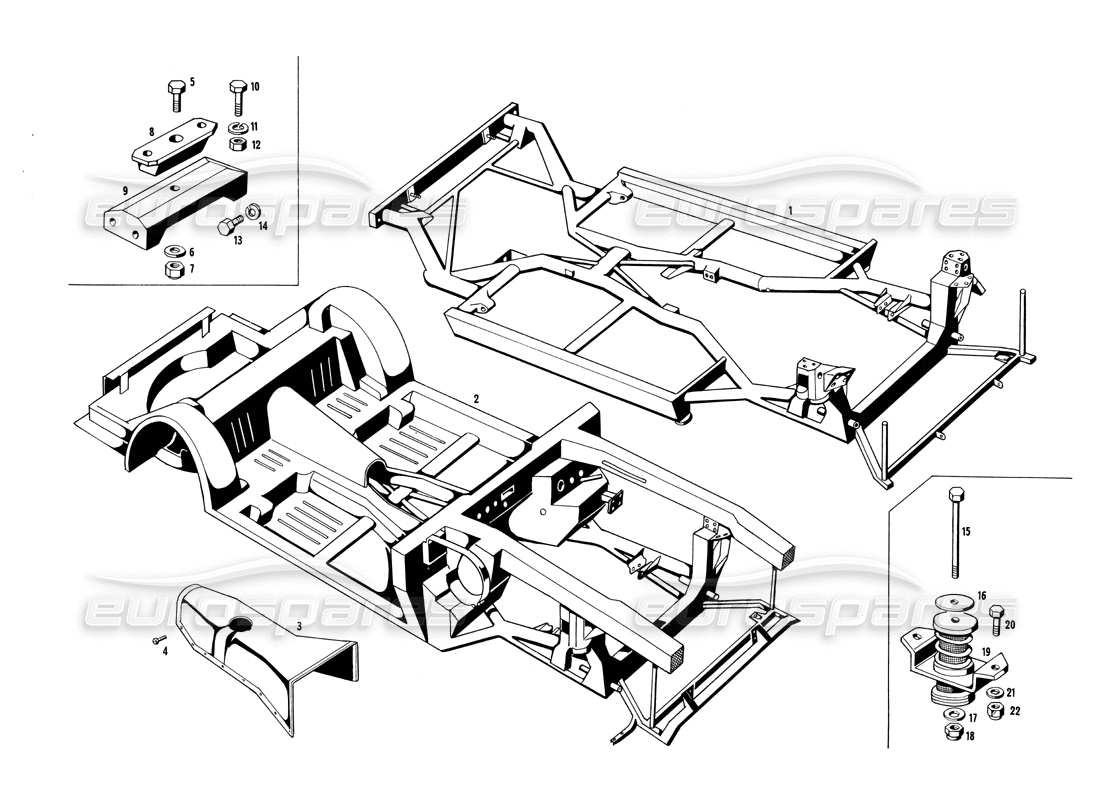

017 - Frame
Maserati Ghibli 4.7 / 4.9 Frame Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 115 CT 63766
OVERALL FRAME TUBULAR PART.
# 002
MPN: 115 CT 65920
COMPLESSIVO TELAIO INLAMIERATO
# 003
MPN: 115 CT 63051
COVER
# 004
MPN: VNT 54062
SCREW
# 005
MPN: BNT 33631
BOLT
# 006
MPN: RNT 55375
WASHER
# 007
MPN: DST 55222
DATO Ø 12 X 1,75 PER DETTO .
# 008
MPN: SLN 55531
SUPPORT
Supersession
Supersession
# 009
MPN: 115 CT 63579
SUPPORT
# 009
MPN: 115 CT 64467
SUPPORT
# 010
MPN: BN 55558
BOLT
# 011
MPN: RDI 55639
WASHER
# 012
MPN: D N 33540
NUT
# 013
MPN: BNT 55554
BOLT
# 014
MPN: RAT/46736
WASHER
# 015
MPN: BNT 55644
BOLT
# 016
MPN: RN 65683
WASHER
# 017
MPN: RNT 47087
WASHER
# 018
MPN: DST 51421
NUT
# 019
MPN: SLN 65686
SUPPORT
# 019
MPN: SLN 65687
SUPPORT
# 019
MPN: SLN 67157
SUPPORT
# 019
MPN: SLN 67158
SUPPORT
# 020
MPN: BNT 55554
BOLT
# 021
MPN: RNT 55375
WASHER
# 022
MPN: DST 55222
DATO STOP Ø 12 X 1,75 PER DETTO .
