maserati ghibli 4.7 / 4.9 front suspension parts diagram

018 - Front Suspension

Maserati Ghibli 4.7 / 4.9 Front Suspension Parts Diagram

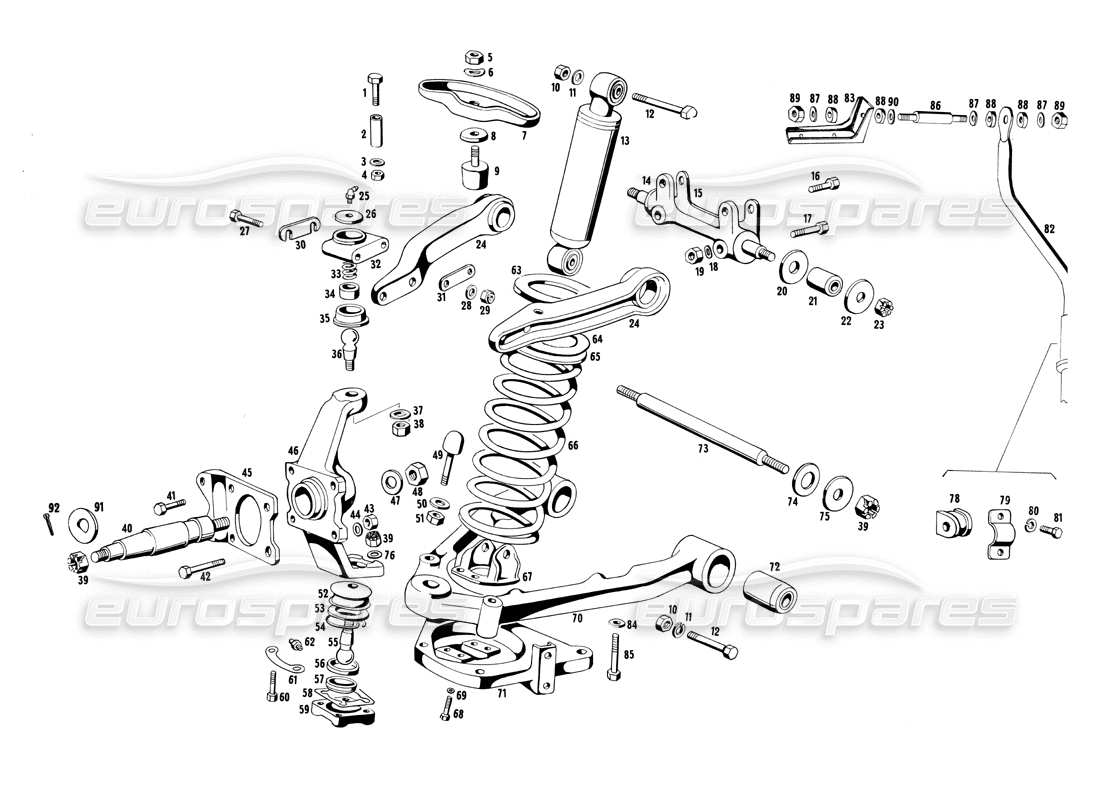

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                                                        #
                                                                                                                                                                                        Part number
                                                                                                                                                                                        Description
                                                                                                                                                                                        Price
                                                                                                                                                                                        # 000
                                                                                                                                                                                        MPN: MH19563
                                                                                                                                                                                        LH COMPLETE SUSPENSION
                                                                                                                                                                                        Upper and Lower Levers, Upright and Stub Axle
                                                                                                                                                                                        # 000
                                                                                                                                                                                        MPN: MH19564
                                                                                                                                                                                        RH COMPLETE SUSPENSION
                                                                                                                                                                                        Upper and Lower Levers, Upright and Stub Axle
                                                                                                                                                                                        # 001
                                                                                                                                                                                        MPN: BN 48206
                                                                                                                                                                                        BOLT
                                                                                                                                                                                        # 003
                                                                                                                                                                                        MPN: RN 48207
                                                                                                                                                                                        WASHER
                                                                                                                                                                                        # 004
                                                                                                                                                                                        MPN: DN 48204
                                                                                                                                                                                        NUT
                                                                                                                                                                                        # 005
                                                                                                                                                                                        MPN: DNT. 47031
                                                                                                                                                                                        NUT
                                                                                                                                                                                        # 006
                                                                                                                                                                                        MPN: RN 45680
                                                                                                                                                                                        WASHER
                                                                                                                                                                                        # 009
                                                                                                                                                                                        MPN: 107SA55252
                                                                                                                                                                                        UPPER LIMIT SWITCH BUFFER
                                                                                                                                                                                        from £41.02
                                                                                                                                                                                        from £41.02
                                                                                                                                                                                        # 010
                                                                                                                                                                                        MPN: D N 33540
                                                                                                                                                                                        NUT
                                                                                                                                                                                        # 011
                                                                                                                                                                                        MPN: RSN 46672
                                                                                                                                                                                        WASHER
                                                                                                                                                                                        # 012
                                                                                                                                                                                        MPN: BN 55537
                                                                                                                                                                                        BOLT
                                                                                                                                                                                        # 013
                                                                                                                                                                                        MPN: SA 57214
                                                                                                                                                                                        AMMORTIZZATORE ANTERIORE
                                                                                                                                                                                        from £589.74
                                                                                                                                                                                        from £589.74
                                                                                                                                                                                        # 014
                                                                                                                                                                                        MPN: 1208147097
                                                                                                                                                                                        SUPERIOR FULCRO
                                                                                                                                                                                        # 015
                                                                                                                                                                                        MPN: 1204153581
                                                                                                                                                                                        SPACER FOR UPPER ARM
                                                                                                                                                                                        # 017
                                                                                                                                                                                        MPN: BNT/50321
                                                                                                                                                                                        BOLT
                                                                                                                                                                                        # 019
                                                                                                                                                                                        MPN: DN 48923
                                                                                                                                                                                        NUT
                                                                                                                                                                                        # 020
                                                                                                                                                                                        MPN: 12052 48189
                                                                                                                                                                                        WASHER
                                                                                                                                                                                        # 021
                                                                                                                                                                                        MPN: 12124/48190
                                                                                                                                                                                        BUSH
                                                                                                                                                                                        from £61.54
                                                                                                                                                                                        from £61.54
                                                                                                                                                                                        # 022
                                                                                                                                                                                        MPN: RN 48193
                                                                                                                                                                                        WASHER
                                                                                                                                                                                        # 023
                                                                                                                                                                                        MPN: DCN 48194
                                                                                                                                                                                        NUT
                                                                                                                                                                                        # 024

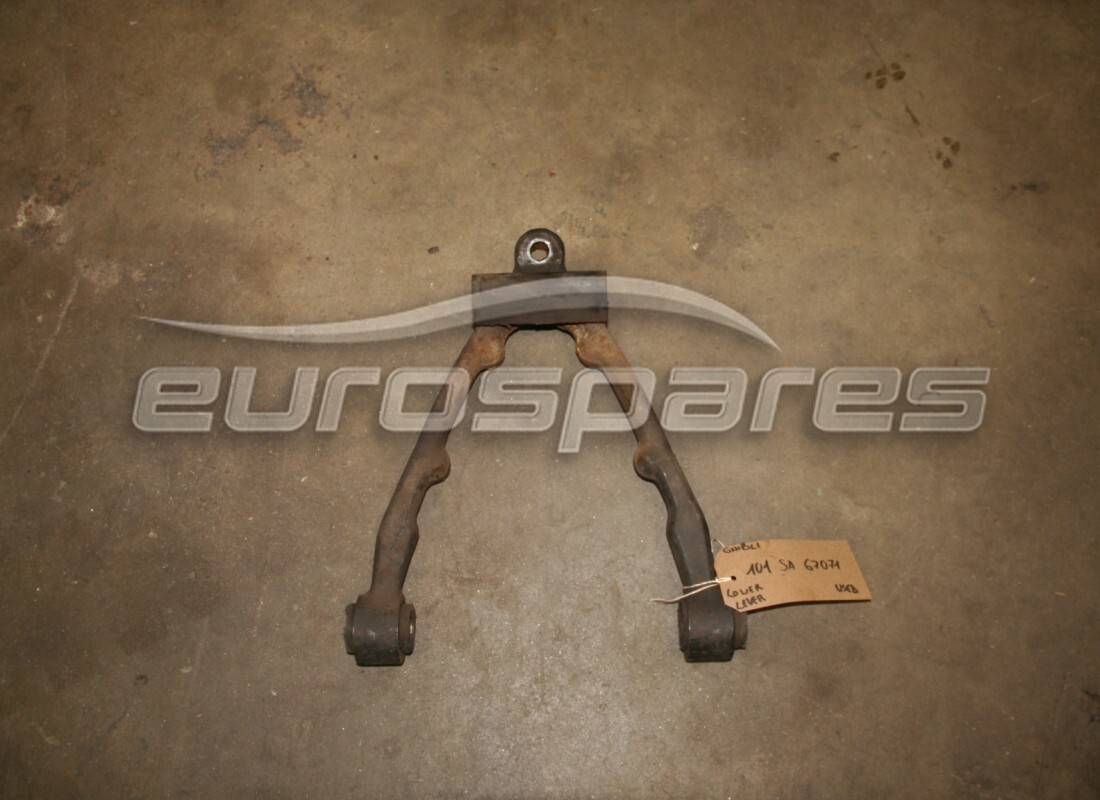

                                                                                                                                                                                        MPN: 101 SA 67072
                                                                                                                                                                                        LEVER
                                                                                                                                                                                        # 024
                                                                                                                                                                                        MPN: 12032 48192
                                                                                                                                                                                        LEVER
                                                                                                                                                                                        # 025
                                                                                                                                                                                        MPN: IN/48242
                                                                                                                                                                                        GREASE GREASE FOR TOP JOINT
                                                                                                                                                                                        # 028
                                                                                                                                                                                        MPN: RN 48207
                                                                                                                                                                                        WASHER
                                                                                                                                                                                        # 029
                                                                                                                                                                                        MPN: DN 48204
                                                                                                                                                                                        NUT
                                                                                                                                                                                        # 030
                                                                                                                                                                                        MPN: 12107/48210
                                                                                                                                                                                        UPPER JOINT SEAT PACKAGE SPACER
                                                                                                                                                                                        # 031
                                                                                                                                                                                        MPN: 12101 48209
                                                                                                                                                                                        SPACER FOR UPPER JOINT SEAT
                                                                                                                                                                                        # 032
                                                                                                                                                                                        MPN: 101 SA 67069
                                                                                                                                                                                        COMPLETE UPPER JOINT SEAT
                                                                                                                                                                                        # 032
                                                                                                                                                                                        MPN: 1228748238
                                                                                                                                                                                        SEAT FOR UPPER JOINT
                                                                                                                                                                                        # 033
                                                                                                                                                                                        MPN: 12288 48239
                                                                                                                                                                                        SPRING
                                                                                                                                                                                        # 034
                                                                                                                                                                                        MPN: 12286 48237
                                                                                                                                                                                        NUT FOR TOP JOINT
                                                                                                                                                                                        # 035
                                                                                                                                                                                        MPN: 12291 48241
                                                                                                                                                                                        COPRIPOLVERE SNODO SUPERIORE
                                                                                                                                                                                        # 037
                                                                                                                                                                                        MPN: RN 48244
                                                                                                                                                                                        WASHER
                                                                                                                                                                                        # 039
                                                                                                                                                                                        MPN: DCN 48200
                                                                                                                                                                                        NUT
                                                                                                                                                                                        # 039
                                                                                                                                                                                        MPN: DCN 48200
                                                                                                                                                                                        NUT
                                                                                                                                                                                        # 039
                                                                                                                                                                                        MPN: DCN 48200
                                                                                                                                                                                        NUT

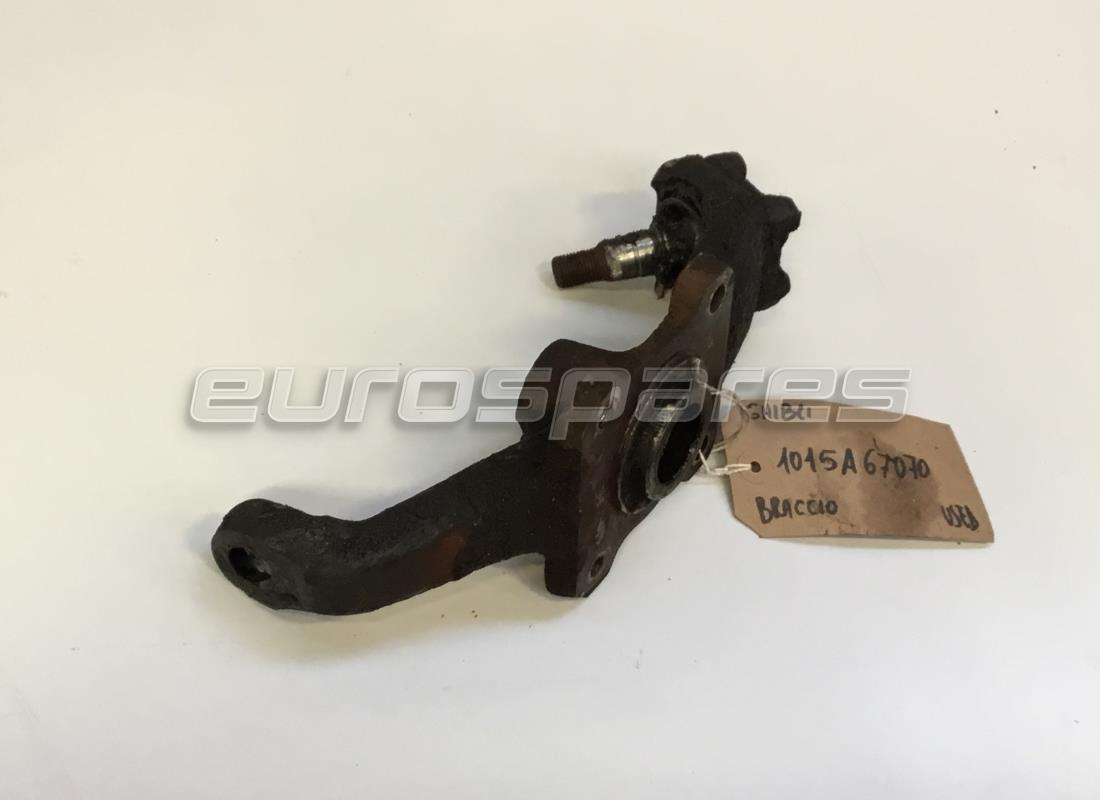

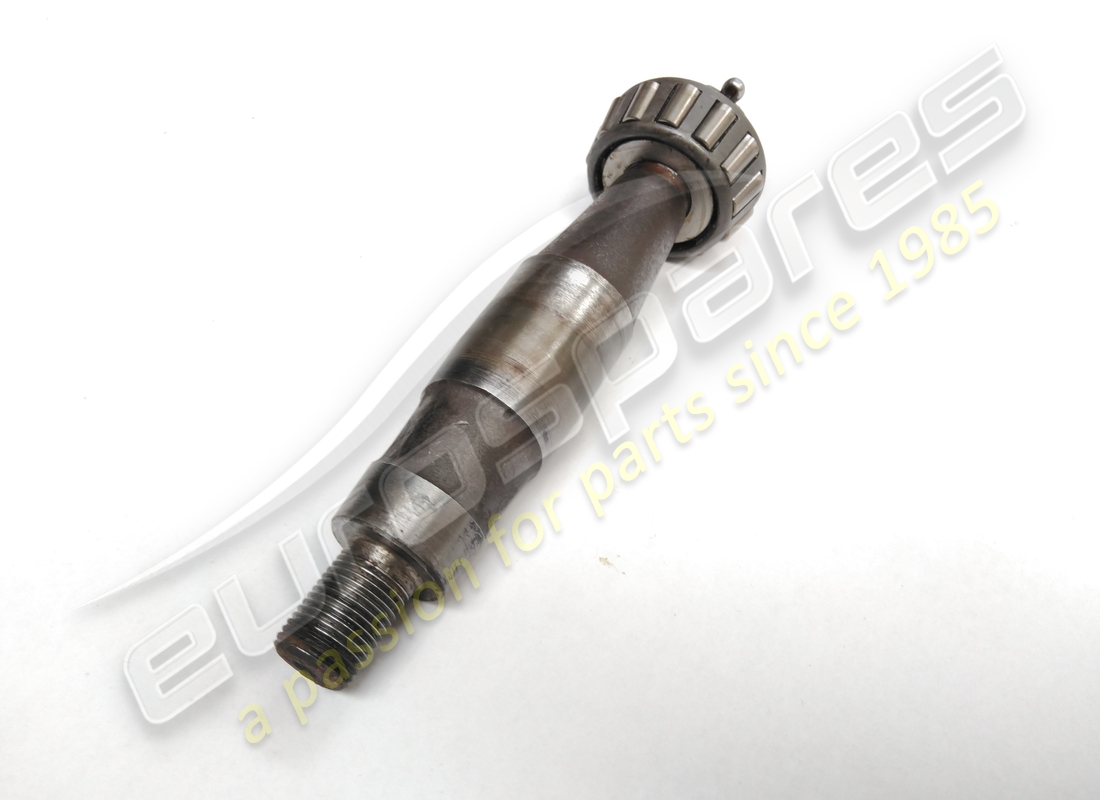

                                                                                                                                                                                        # 040
                                                                                                                                                                                        MPN: 12100 48227
                                                                                                                                                                                        KNEE
                                                                                                                                                                                        from £168.00
                                                                                                                                                                                        from £168.00
                                                                                                                                                                                        # 041
                                                                                                                                                                                        MPN: BN 48246
                                                                                                                                                                                        BOLT
                                                                                                                                                                                        # 043
                                                                                                                                                                                        MPN: DN 48250
                                                                                                                                                                                        NUT
                                                                                                                                                                                        # 044
                                                                                                                                                                                        MPN: RNT/52064
                                                                                                                                                                                        WASHER
                                                                                                                                                                                        # 045
                                                                                                                                                                                        -
                                                                                                                                                                                        VEDERE TAY. 23 E 25
                                                                                                                                                                                        # 046
                                                                                                                                                                                        MPN: 101 SA 67070
                                                                                                                                                                                        LEVER ARM COMPLETE WITH LOWER JOINT
                                                                                                                                                                                        from £414.75
                                                                                                                                                                                        from £414.75
                                                                                                                                                                                        # 046
                                                                                                                                                                                        MPN: 101 SA 67073
                                                                                                                                                                                        LEVER ARM COMPLETE WITH LOWER JOINT WITH SEAT FOR ANGUS
                                                                                                                                                                                        # 046
                                                                                                                                                                                        MPN: 107/A SA 66131
                                                                                                                                                                                        BRACCIO PORTA !EVE PER MOZZI CON ANGUA DALLA VETT. N
                                                                                                                                                                                        # 046
                                                                                                                                                                                        MPN: 12097 48226
                                                                                                                                                                                        !EVE CARRIER ARM FOR HUBS WITH FELT UP TO VETT N
                                                                                                                                                                                        # 048
                                                                                                                                                                                        MPN: DN/48229
                                                                                                                                                                                        NUT
                                                                                                                                                                                        # 049
                                                                                                                                                                                        MPN: 12008/46436
                                                                                                                                                                                        LOWER LIMIT SWITCH BUFFER
                                                                                                                                                                                        # 050
                                                                                                                                                                                        MPN: RN 45680
                                                                                                                                                                                        WASHER
                                                                                                                                                                                        # 051
                                                                                                                                                                                        MPN: DNT/47064
                                                                                                                                                                                        NUT
                                                                                                                                                                                        # 052
                                                                                                                                                                                        MPN: 12306/48223
                                                                                                                                                                                        COPRISNODO INFERIORE
                                                                                                                                                                                        # 053
                                                                                                                                                                                        MPN: 12309 48224
                                                                                                                                                                                        LAMIERINO SOSTEGNO COPRISNODO
                                                                                                                                                                                        # 055
                                                                                                                                                                                        MPN: 1230448219
                                                                                                                                                                                        LOWER JOINT
                                                                                                                                                                                        # 056
                                                                                                                                                                                        MPN: 12119 48221
                                                                                                                                                                                        RING
                                                                                                                                                                                        # 057
                                                                                                                                                                                        MPN: 12296 48218
                                                                                                                                                                                        NUT FOR LOWER JOINT
                                                                                                                                                                                        # 059
                                                                                                                                                                                        MPN: 1229848217
                                                                                                                                                                                        COPERCHIETTO SNODO INFERIORE SUL BRACCIO
                                                                                                                                                                                        # 060
                                                                                                                                                                                        MPN: BN/48214
                                                                                                                                                                                        BOLT
                                                                                                                                                                                        # 061
                                                                                                                                                                                        MPN: RDL 48215
                                                                                                                                                                                        WASHER
                                                                                                                                                                                        # 063
                                                                                                                                                                                        MPN: 1201047997
                                                                                                                                                                                        UPPER SPRING HOLDER CAP
                                                                                                                                                                                        # 068
                                                                                                                                                                                        MPN: BN 47122
                                                                                                                                                                                        BOLT
                                                                                                                                                                                        # 069
                                                                                                                                                                                        MPN: RSN 3 2 6 3 5
                                                                                                                                                                                        WASHER
                                                                                                                                                                                        # 070
                                                                                                                                                                                        MPN: 101 SA 67071
                                                                                                                                                                                        LOWER ARM COMPLETE WITH RUBBER BUSHINGS
                                                                                                                                                                                        from £252.00
                                                                                                                                                                                        from £252.00
                                                                                                                                                                                        # 070
                                                                                                                                                                                        MPN: 12038 48198
                                                                                                                                                                                        BRACCIO INFERIORE
                                                                                                                                                                                        # 071
                                                                                                                                                                                        MPN: 12060 49741
                                                                                                                                                                                        Spring holder cup on the lower arm
                                                                                                                                                                                        # 072
                                                                                                                                                                                        MPN: 12126 48197
                                                                                                                                                                                        BUSH
                                                                                                                                                                                        from £62.91
                                                                                                                                                                                        from £62.91
                                                                                                                                                                                        # 073
                                                                                                                                                                                        MPN: 107 SA 55195
                                                                                                                                                                                        PIVOT
                                                                                                                                                                                        # 074
                                                                                                                                                                                        MPN: 12042 46456
                                                                                                                                                                                        WASHER
                                                                                                                                                                                        # 075
                                                                                                                                                                                        MPN: RN/48199
                                                                                                                                                                                        WASHER
                                                                                                                                                                                        # 076
                                                                                                                                                                                        MPN: RN/48225
                                                                                                                                                                                        WASHER
                                                                                                                                                                                        # 078
                                                                                                                                                                                        MPN: 12574 44118
                                                                                                                                                                                        ELASTIC PLUSH FOR STABILIZER BAR SUPPORT
                                                                                                                                                                                        # 080
                                                                                                                                                                                        MPN: RSN/33112
                                                                                                                                                                                        WASHER
                                                                                                                                                                                        from £1.70
                                                                                                                                                                                        from £1.70
                                                                                                                                                                                        # 082

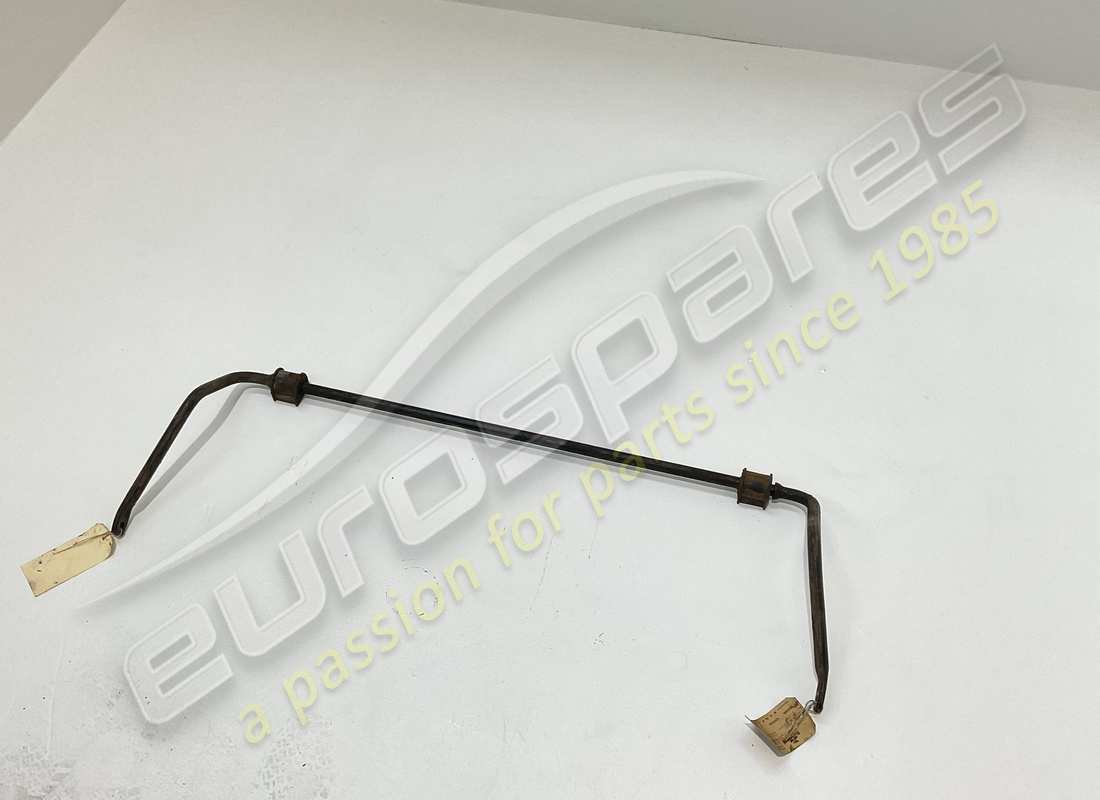

                                                                                                                                                                                        MPN: 115 SA 63290
                                                                                                                                                                                        FRONT STABILIZER BAR
                                                                                                                                                                                        from £450.00
                                                                                                                                                                                        from £450.00
                                                                                                                                                                                        # 083
                                                                                                                                                                                        MPN: 107 - SA 56295
                                                                                                                                                                                        SUPPORT
                                                                                                                                                                                        from £141.02
                                                                                                                                                                                        from £141.02
                                                                                                                                                                                        # 084
                                                                                                                                                                                        MPN: RN 48253
                                                                                                                                                                                        WASHER
                                                                                                                                                                                        # 086
                                                                                                                                                                                        MPN: 107 - SA 56294
                                                                                                                                                                                        PIVOT
                                                                                                                                                                                        # 087
                                                                                                                                                                                        MPN: RN 61533
                                                                                                                                                                                        WASHER
                                                                                                                                                                                        # 088
                                                                                                                                                                                        MPN: GOM 58835
                                                                                                                                                                                        GOMMINO Ø 12,5 X 35 X 15 PER DETTO
                                                                                                                                                                                        from £20.51
                                                                                                                                                                                        from £20.51
                                                                                                                                                                                        # 089
                                                                                                                                                                                        MPN: DST 46472
                                                                                                                                                                                        NUT
                                                                                                                                                                                        # 090
                                                                                                                                                                                        MPN: RN 38551
                                                                                                                                                                                        WASHER
                                                                                                                                                                                        from £4.28
                                                                                                                                                                                        from £4.28
                                                                                                                                                                                        # 091
                                                                                                                                                                                        MPN: 12176 48231
                                                                                                                                                                                        WASHER
                                                                                                                                                                                        # 092
                                                                                                                                                                                        MPN: CN 48195
                                                                                                                                                                                        COPIGLIA PER DETTO Ø 1/8X 1
                                                                                                                                                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
