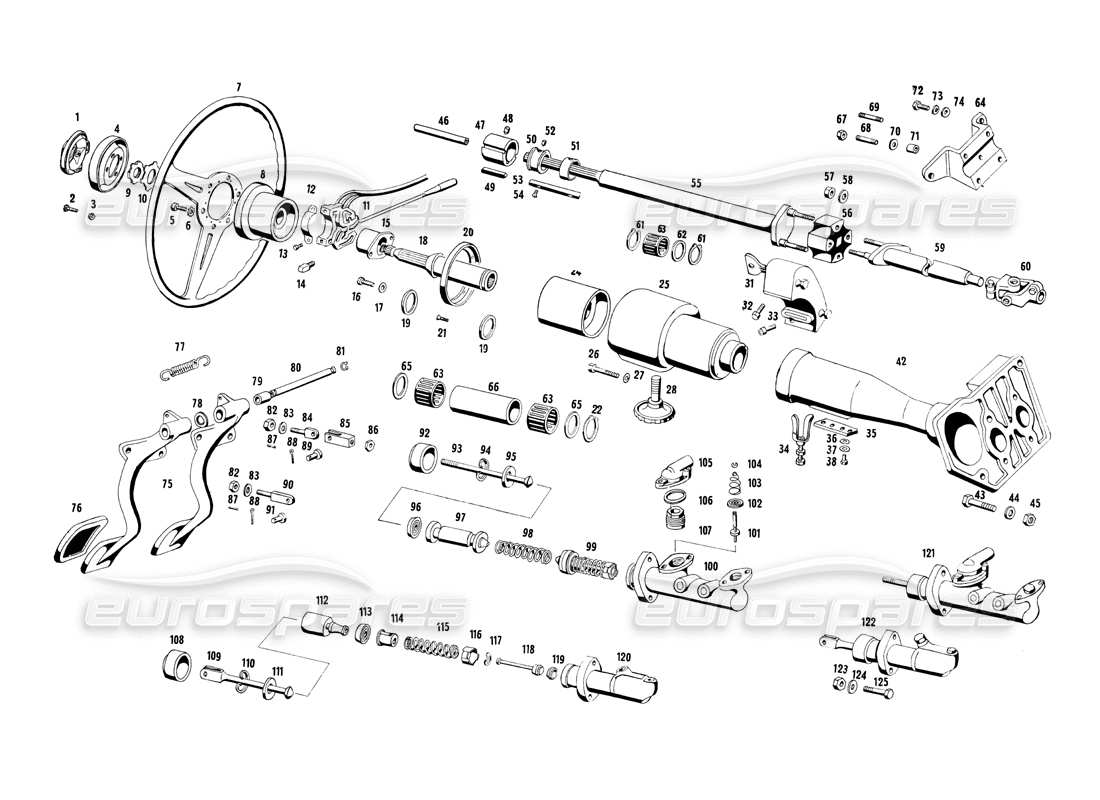

Maserati Ghibli 4.7 / 4.9 Steering Parts and Pedals Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 107 - GS 57952
STEERING WHEEL WARNER CONTROL BUTTON
# 003
MPN: DN/33200
NUT
# 004
MPN: 107GS57953
Socket for steering wheel warning button
from £250.00
from £250.00
# 005
MPN: BNT 59794
BOLT
# 006
MPN: RDI53899
WASHER
# 007

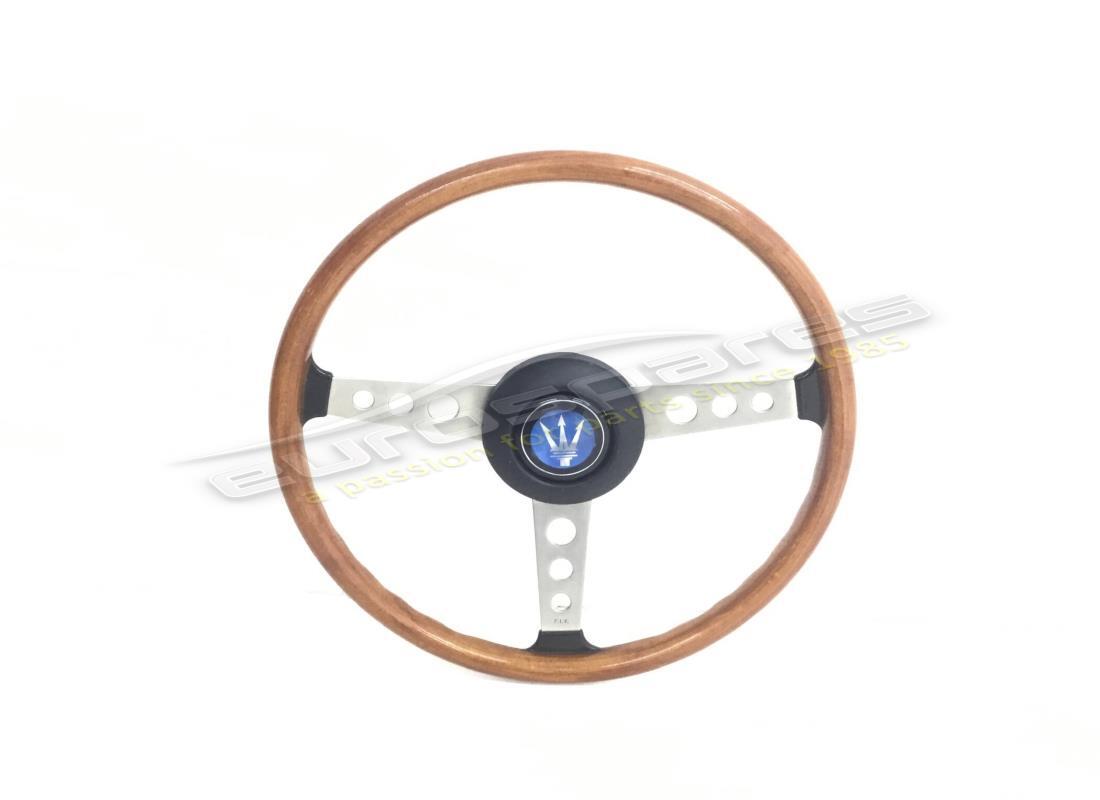

MPN: 115 GS 63815
DRIVER'S STEERING WHEEL WITH LIGHT CONTROL
from £2,500.00
from £2,500.00
# 008
MPN: 107GS57930
ADJUSTABLE GUIDE STEERING WHEEL HUB
# 009
MPN: GH 53874
RING Ø 16 X 1 X 7 FOR FIXING THE STEERING WHEEL TO THE COLUMN
# 010
MPN: RL53873
WASHER
# 011
MPN: 107 GS 55030
LIGHT CONTROL GROUP
# 012
MPN: 107 GS 59104
CAVALLOTTO FISSAGGIO GRUPPO COMANDO LUCI
# 013
MPN: 107GS59106
SCREW
# 014
MPN: 107 GS 55318
NOSE ON THE STEERING COLUMN FOR THE LIGHT CONTROL UNIT
# 015
MPN: 107 GS 55027
BUSH
# 015
MPN: 107 GS 57541
BUSH
# 016
MPN: VN 33275
SCREW
# 017
MPN: RN 45678
WASHER
# 018
MPN: 107 - GS 59163
STEERING COLUMN ON THE STEERING WHEEL
from £315.00
from £315.00
# 019
MPN: 107 GS 59166
WASHER
# 020
MPN: 107 GS 55464
COVER
from £52.50
from £52.50
# 021
MPN: VN 43690
SCREW
# 024
MPN: 107 - GS 59159
MANICOTTO SCORREVOLE PORTA COMANDO LUCI AL VOLANTE (GUIDA DESTRA)
# 024
MPN: 107 GS 59158
SLIDING SLEEVE FOR STEERING WHEEL LIGHT CONTROL
# 025
MPN: 107 GS 59795
TOP PART OF STEERING COLUMN WITH RIGHT-HAND DRIVE
# 025
MPN: 107 GS 59796
TOP PART OF STEERING COLUMN
# 026
MPN: VNT 53866
SCREW
# 027
MPN: RN 51581
WASHER
# 028
MPN: 107 - GS 57210

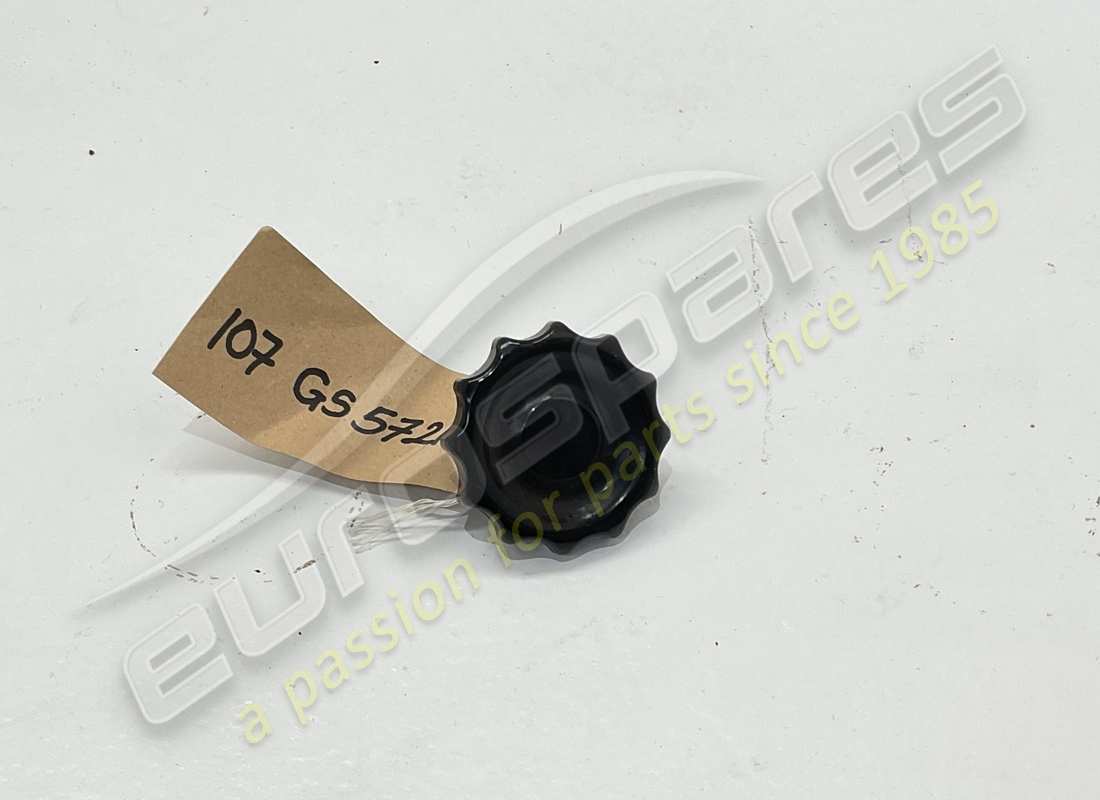

STEERING WHEEL LOCKING KNOB
from £100.00
from £100.00
# 031
MPN: 107 GS 53919
ANTIFURTO
# 032
MPN: BNT 47018
BOLT
# 033
MPN: VNT 53916
SCREW
# 034
MPN: 107GS59106
CREEPING CONTACT FOR SIGNAL
# 035
MPN: 107GS59107
PLATE FOR SLIDING CONTACT
# 036
MPN: RNT 52530
WASHER
# 037
MPN: RSN 3 2 4 9 7
WASHER
# 042
MPN: 107 - FC 59728
SUPPORT
# 042
MPN: 107 FC 59727
SUPPORT
# 043
MPN: BNT 47475
BOLT
# 044
MPN: RNT 55379
WASHER
# 045
MPN: DST/48101
NUT 8 X 1.25
# 046
MPN: 107 - GS 55685
CABLE CONDUIT FOR LIGHT CONTROL
# 047
MPN: 107 GS 61455
ANTI-THEFT SLEEVE ON THE STEERING COLUMN
# 048
MPN: GRN 56554
GRIN Ø 6 X 1 X 8 SLEEVE FIXING FOR ANTI-THEFT
# 049
MPN: LN 54292
TAB 6 X 5 X 26 SLEEVE SEAL FOR ANTI-THEFT
# 050
MPN: 107 GS 59423
RUBBER COLLECTOR FOR HORN ON THE STEERING COLUMN
# 051
MPN: 107 GS 59424
BUSH
# 052
MPN: GRN54303
SCREW Ø 5 X 0,8 X 6 TO FIX THE HORN MANIFOLD ON THE STEERING SYSTEM
# 053
MPN: LN56547
TAB 4,5 X 5,2 X 61 ON THE STEERING COLUMN TERMINAL
# 054
MPN: VNT 56553
SCREW
# 055
MPN: 107 GS 59160
STEERING COLUMN BETWEEN LIGHT CONTROL SUPPORT AND JOINTS
# 056
MPN: 1011353148119
GIUNTO ELASTICO SUL PIANTONE STERZO
# 057
MPN: DST 48038
NUT
# 058
MPN: RNT 47078
WASHER
# 059
MPN: 115 GS 63515
GUIDE COLUMN BETWEEN THE JOINTS
# 060
MPN: 101 13652 47083
Joint for guide column
# 061
MPN: ART. 59169
RING
# 062
MPN: ANT 59168
SEALING RING
# 063
MPN: RUL 59167
BUSH
# 064
MPN: 107 FC 53741
COVER ON THE STEERING COLUMN SUPPORT WITH PEDAL LIMIT SWITCH
# 065
MPN: 107 GS 59166
WASHER
# 066
MPN: 107 GS 59718
BUSH
# 067
MPN: DNT 47047
NUT
# 068
MPN: PN35771
THREADED STUD
# 069
MPN: PN 56993
PRLGLONIERO 6 X 1 X 28 FISSAGGIO COPERCHIETTO
# 071
MPN: GRN 42575
GRANO = 6,25 X 8 X 7 PER CENTRAGGIO COPERCHIETTO SUL SUPP. PIANTONE STERZO
# 072
MPN: BNT 47019
BOLT
# 073
MPN: RSN/32690
WASHER
# 074
MPN: RNT 47074
WASHER
# 075
MPN: 115 FC 64290
BRAKE PEDALS
# 075
MPN: 115 FC 64291
PEDALE FRIZIONE - FINO AL 1-7-68
# 075
MPN: 115 FC 64856
CLUTCH BRAKE PEDAL RIGHT DRIVE
# 075
MPN: 115 FC 64918
BRAKE PEDAL FOR CAR WITH AUTOMATIC GEARBOX
# 076
MPN: 107 15279 48084
CALOTTA COPRIPEDALE FRENO A FRIZIONE
# 076
MPN: 15300290
Pedal Rubber set
PEDAL COVER SET CLUTCH, BRAKE & ACCELERATOR
# 077
MPN: 101/3 15352 58388
SPRING
# 079
MPN: 107 FC 54283
BUSH
# 080
MPN: 107FC53341
CLUTCH BRAKE PEDAL SHAFT - UP TO 31-7-68
# 081
MPN: Seeger51653
RING
# 082
MPN: DN 48101
NUT
# 083
MPN: RNT 55379
WASHER
# 084
MPN: 107FC57810
PIVOT
# 085
MPN: 115 FC 63073
EYELET FOR BRAKE PEDAL
# 086
MPN: DN/47354
NUT
# 087
MPN: RUL 45571
ROLLER 2,5 X 9,8 ON THE BRAKE AND CLUTCH PEDAL PINS
# 088
MPN: CN33539
PIN 2 X 25 ON THE BRAKE AND CLUTCH PEDAL JOINT PIN
# 089
MPN: 107FC53911
PIVOT
# 090
MPN: 107FC57811
PIVOT
# 091
MPN: 1011529148081
PIVOT
# 092
MPN: 107 - FC 59765
CAPUCCIO PER PROTEZIONE POMPA FRENO
# 093
MPN: 107 FC 59766
BRAKE PEDAL PISTON CONTROL SHAFT
# 094
MPN: 107 FC 59767
RING
# 095
MPN: 107 - FC 59768
WASHER
# 096
MPN: 107FC59769
RUBBER FOR ENTER CIRCUIT PISTON. BRAKE PUMP
# 097
MPN: 107 FC 59770
FRONT BRAKE CIRCUIT PISTON
# 098
MPN: 107 FC 59771
SPRING
# 099
MPN: 107FC59772
COMPLETE PISTON FOR REAR BRAKE CIRCUIT
# 100
MPN: 107 - FC 59773
TANDEM PUMP BODY FOR BRAKES
from £595.00
from £595.00
# 101
MPN: 107 - FC 59774
BRAKE PUMP FRONT SUPPLY CIRCUIT VALVE
# 102
MPN: 107 FC 59775
SEALING RING
# 103
MPN: 107 FC 59776
SPRING
# 104
MPN: 107 FC 59777
RING
# 105
MPN: 107 FC 59778
BRAKE PUMP SUPPLY OIL INLET COVER
# 106
MPN: 107 - FC 59779
RUBBER ON THE OIL INLET COVER INTO THE BRAKE PUMP
# 107
MPN: 107 FC 59780
BUSH ON THE BRAKE PUMP OIL INLET VALVE
# 108
MPN: 107 FC 59781
CLUTCH PUMP PROTECTION CAP - UP TO 31-7-68
# 109
MPN: 107FC59782
PISTON CONTROL SHAFT FROM CLUTCH PEDAL - UP TO 31-7-68
# 110
MPN: 107FC59783
RING
# 111
MPN: 107FC59784
WASHER
# 112
MPN: 107FC59785
CLUTCH PUMP PISTON - UP TO 31-7-68
# 113
MPN: 107 - FC 59786
GOMMNO PER STAUTUFFO POMPA FRIZIONE - FINO AL 31-7-68
# 114
MPN: 107 FC 59787
CLUTCH PUMP SPRING GUIDE CUP - UP TO 31-7-68
# 115
MPN: 107 FC 59788
SPRING
# 116
MPN: 107FC59789
CLUTCH PUMP VALVE SEAT CUP - UP TO 31-7-68
# 117
MPN: 107FC59790
WASHER
# 118
MPN: 107 FC 59791
PIVOT
# 119
MPN: 107 FC 59792
GOMMINO PER VALVOLA CILINDRO POMPA FRIZIONE - FINO AT 31-7-68
# 120
MPN: 107 FC 59793
COFPO POMPA FRIZIONE - FINO AL 31-7-68
from £115.50
from £115.50
# 121
MPN: 107 - FC 59773
POMPA TANDEM DA 1
from £595.00
from £595.00
# 122
MPN: FC 54747

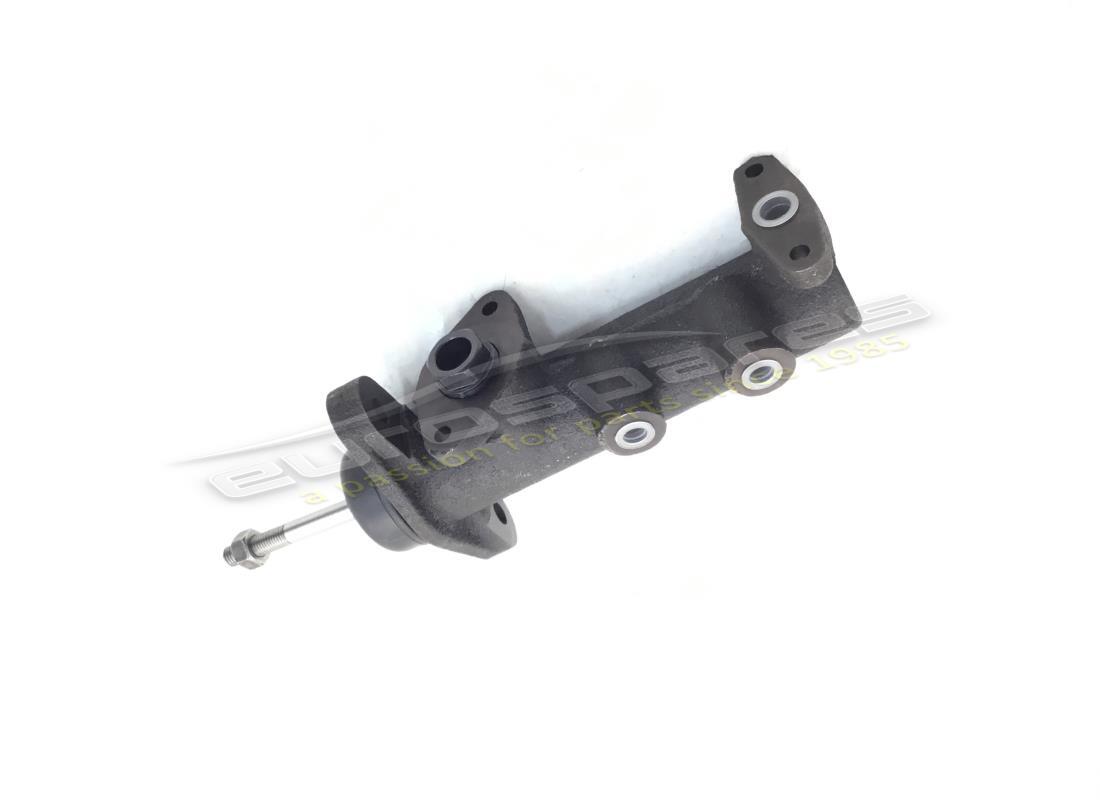

POMPA FRIZIONE DA 3 PER COMANDO IDRAULICO FRIZIONE - FINO AT 31-7-68
from £295.00
from £295.00
# 123
MPN: DNT. 47031
NUT 8 X 1.25
# 124
MPN: RDI55990
WASHER
# 125
MPN: BNT 54081
BOLT
