021 - Tie Rods

Maserati Ghibli 4.7 / 4.9 Tie Rods Parts Diagram

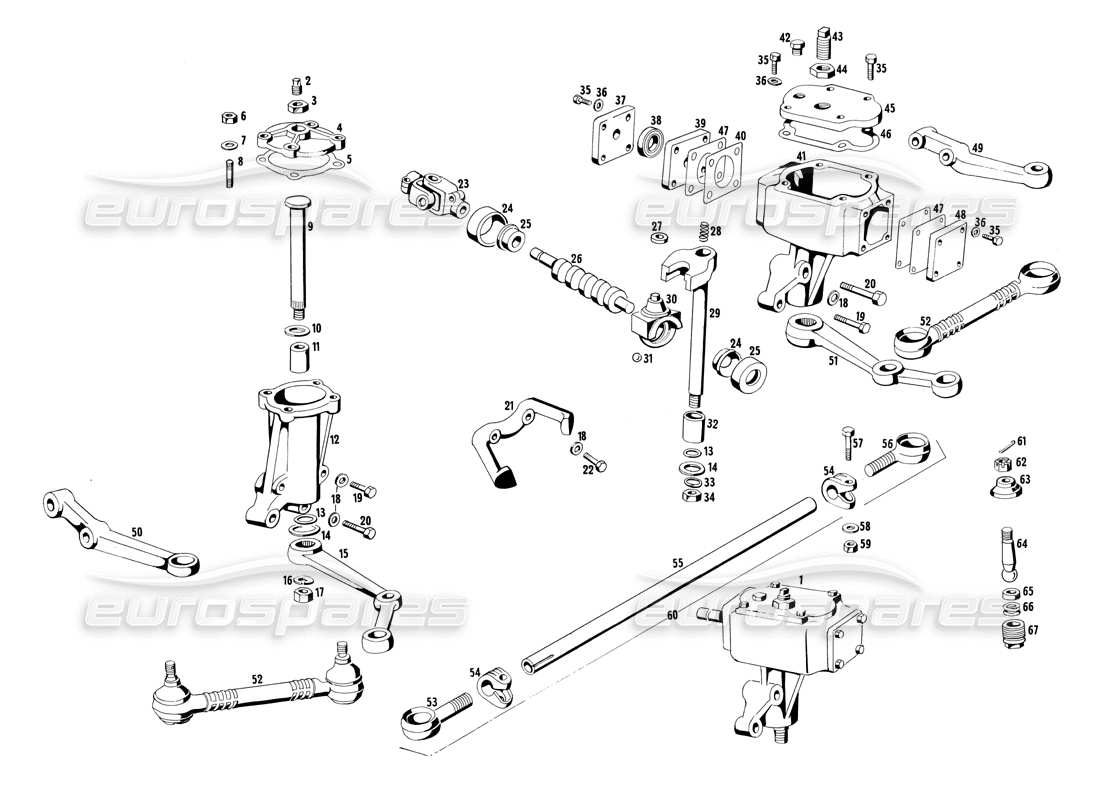

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                          #
                                                                                                                          Part number
                                                                                                                          Description
                                                                                                                          Price
                                                                                                                          # 001
                                                                                                                          MPN: 107GS57240
                                                                                                                          COMPLETE STEERING BOX FOR LEFT DRIVE
                                                                                                                          # 001
                                                                                                                          MPN: 107GS57632
                                                                                                                          COMPLETE STEERING BOX FOR RIGHT DRIVE
                                                                                                                          from £4,194.75
                                                                                                                          from £4,194.75
                                                                                                                          # 002
                                                                                                                          MPN: 1418748097
                                                                                                                          LOG LIFE ON THE LAVA TREE REFERENCE
                                                                                                                          # 003
                                                                                                                          MPN: DN/43588
                                                                                                                          NUT
                                                                                                                          # 004
                                                                                                                          MPN: 14131 48091
                                                                                                                          COVER
                                                                                                                          # 005
                                                                                                                          MPN: 14133/48098
                                                                                                                          CRANKSET FOR TRANSFER BOX COVER
                                                                                                                          # 006
                                                                                                                          MPN: DNT/47064
                                                                                                                          NUT
                                                                                                                          # 007
                                                                                                                          MPN: RN 45680
                                                                                                                          WASHER
                                                                                                                          # 008
                                                                                                                          MPN: PN/45832
                                                                                                                          THREADED STUD
                                                                                                                          # 009
                                                                                                                          MPN: 14129/48092
                                                                                                                          RETURN LAVA HOLDER SHAFT
                                                                                                                          # 010
                                                                                                                          MPN: 14185/48094
                                                                                                                          WASHER
                                                                                                                          # 012
                                                                                                                          MPN: 14127/46429
                                                                                                                          TRANSFER BOXES
                                                                                                                          # 013
                                                                                                                          MPN: GOM/48096
                                                                                                                          RUBBER 25 X 32 X 3,5 ON THE TRANSFER BOX AND STEERING BOX
                                                                                                                          # 015
                                                                                                                          MPN: 107 CS 53744
                                                                                                                          LEVER
                                                                                                                          # 017
                                                                                                                          MPN: DN/47199
                                                                                                                          NUT

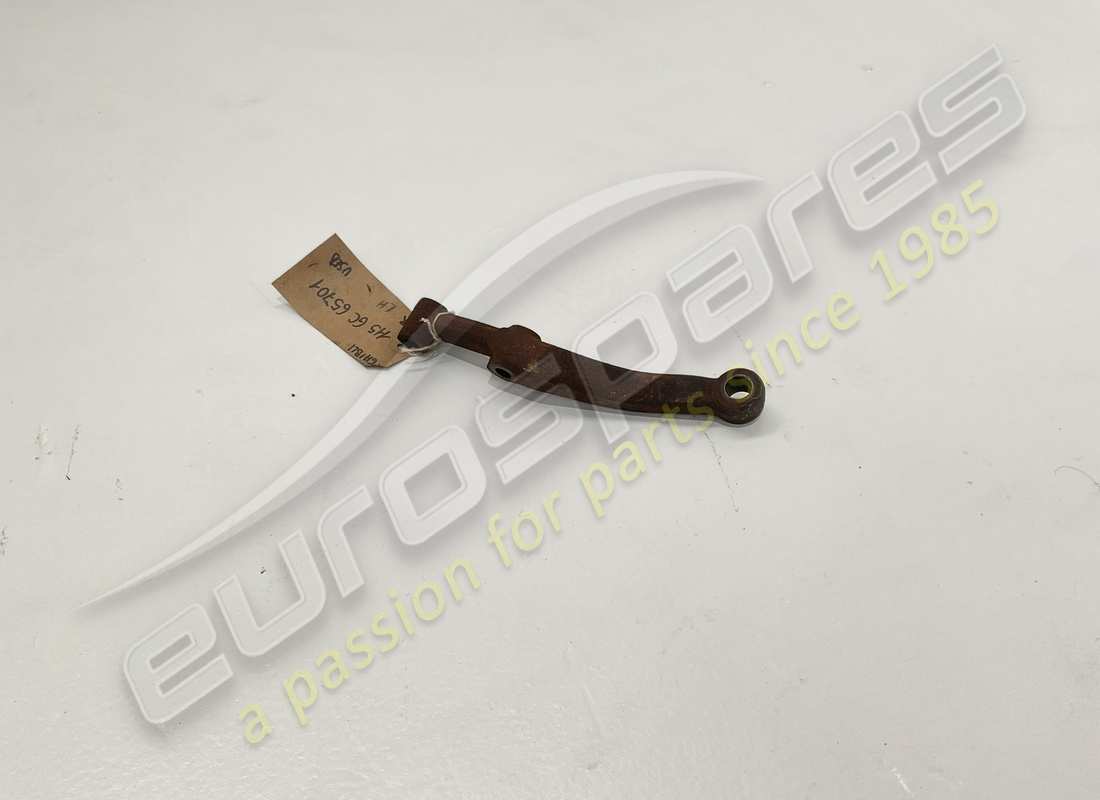

                                                                                                                          # 021
                                                                                                                          MPN: 115G C 65129
                                                                                                                          STEERING LIMITER
                                                                                                                          # 022
                                                                                                                          MPN: BNT/47484
                                                                                                                          BOLT
                                                                                                                          # 023
                                                                                                                          MPN: 13652 47083
                                                                                                                          JOINT FOR GUIDE COLUMN AND SHAFT ON THE BOX
                                                                                                                          # 025
                                                                                                                          MPN: 101/9 - GS 59133
                                                                                                                          WASHER
                                                                                                                          # 026
                                                                                                                          MPN: 107 GS 59134
                                                                                                                          LIFE WITHOUT END
                                                                                                                          # 028
                                                                                                                          MPN: 101/9-GS-59136
                                                                                                                          SPRING
                                                                                                                          # 029
                                                                                                                          MPN: 101/9 GS-59137
                                                                                                                          STEERING BOX LAVA CARRIER SHAFT
                                                                                                                          # 030
                                                                                                                          MPN: 101/9 GS-59138
                                                                                                                          SNAIL FOR ENDLESS LIFE
                                                                                                                          # 031
                                                                                                                          MPN: SFN36593
                                                                                                                          BALL.FOR STEERING BOX
                                                                                                                          # 032
                                                                                                                          MPN: 101/9 GS-59139
                                                                                                                          BUSH
                                                                                                                          # 033
                                                                                                                          MPN: RSN/59128
                                                                                                                          WASHER
                                                                                                                          # 035
                                                                                                                          MPN: BN 59130
                                                                                                                          BOLT
                                                                                                                          # 036
                                                                                                                          MPN: RSN 3 2 6 3 5
                                                                                                                          WASHER
                                                                                                                          # 037
                                                                                                                          MPN: 1362851000
                                                                                                                          ANGUS SEALING FLANGE JOINT SIDE STEERING BOX
                                                                                                                          # 038
                                                                                                                          MPN: ANT/57431
                                                                                                                          SEALING RING
                                                                                                                          # 039
                                                                                                                          MPN: 101/9 - GS 59140
                                                                                                                          COVER
                                                                                                                          # 040
                                                                                                                          MPN: 101 /9 GS 59141
                                                                                                                          GASKET OR SEAL
                                                                                                                          from £5.10
                                                                                                                          from £5.10
                                                                                                                          # 041
                                                                                                                          MPN: 101/9GS59142
                                                                                                                          STEERING BOX BODY FOR RIGHT DRIVE
                                                                                                                          # 041
                                                                                                                          MPN: 101/9GS59143
                                                                                                                          STEERING BOX BODY FOR LEFT-HAND DRIVE
                                                                                                                          # 042
                                                                                                                          MPN: 101/9 - GS 59144
                                                                                                                          OIL INTRODUCTION CAP INTO THE BOX
                                                                                                                          # 043
                                                                                                                          MPN: 101/9 GS 59145
                                                                                                                          STEERING BOX REGISTRATION LIFE
                                                                                                                          # 044
                                                                                                                          MPN: DN/59131
                                                                                                                          NUT
                                                                                                                          # 045
                                                                                                                          MPN: 101/9-GS-59146
                                                                                                                          COVER
                                                                                                                          # 046
                                                                                                                          MPN: 101/9-GS-59147
                                                                                                                          GASKET OR SEAL
                                                                                                                          # 047
                                                                                                                          MPN: 101/9GS59148
                                                                                                                          SLIM FLANGE FOR SIDE COVER
                                                                                                                          from £9.36
                                                                                                                          from £9.36
                                                                                                                          # 050
                                                                                                                          MPN: 115 GC 64479
                                                                                                                          LEVER
                                                                                                                          # 050
                                                                                                                          MPN: 115 GC 65700
                                                                                                                          LEVER
                                                                                                                          from £168.00
                                                                                                                          from £168.00

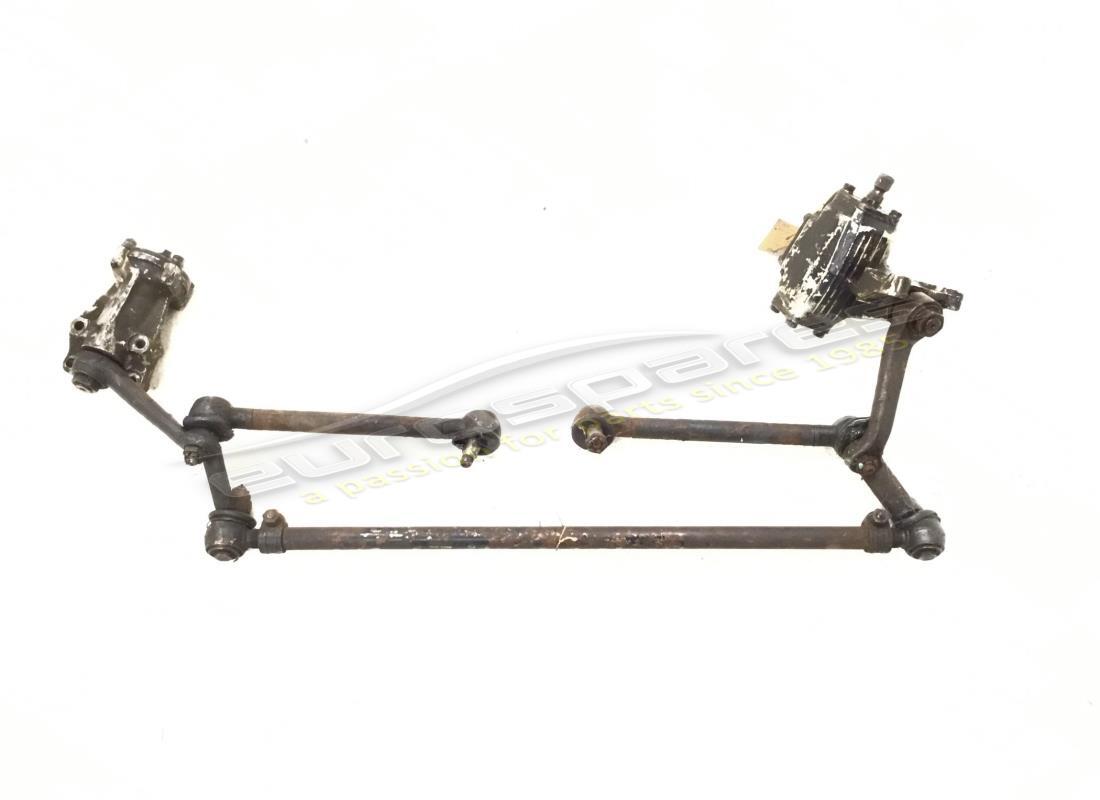

                                                                                                                          # 052
                                                                                                                          MPN: 107 - GC 56199
                                                                                                                          TIE ROD
                                                                                                                          from £560.00
                                                                                                                          from £560.00
                                                                                                                          # 053
                                                                                                                          MPN: 101/9-GC-59150
                                                                                                                          RIGHT BODY FOR CENTRAL TIE ROD JOINT
                                                                                                                          from £142.98
                                                                                                                          from £142.98
                                                                                                                          # 054
                                                                                                                          MPN: 101/9 GC 59151
                                                                                                                          CLAMP ON THE CENTRAL TIE ROD
                                                                                                                          from £63.84
                                                                                                                          from £63.84
                                                                                                                          # 055
                                                                                                                          MPN: 107GC59152
                                                                                                                          ROD FOR CENTRAL TIE ROD
                                                                                                                          # 056
                                                                                                                          MPN: 101/9 GC 59153
                                                                                                                          LEFT BODY FOR CENTRAL TIE ROD JOINT
                                                                                                                          from £142.98
                                                                                                                          from £142.98
                                                                                                                          # 058
                                                                                                                          MPN: RSN/33112
                                                                                                                          WASHER
                                                                                                                          from £1.70
                                                                                                                          from £1.70
                                                                                                                          # 060
                                                                                                                          MPN: 107 - GC 56200
                                                                                                                          TIE ROD
                                                                                                                          # 061
                                                                                                                          MPN: CN33539
                                                                                                                          PIN 2 X 25 FOR TIE ROD JOINT FIXING NUT
                                                                                                                          Items from 61 to 67 cannot be supplied loose.
                                                                                                                          # 062
                                                                                                                          MPN: DCNT50998
                                                                                                                          NUT
                                                                                                                          Items from 61 to 67 cannot be supplied loose.
                                                                                                                          # 063
                                                                                                                          MPN: 101/9 GC 59154
                                                                                                                          PARAPOLVERE TESTINE SNODO TIRANTI
                                                                                                                          Items from 61 to 67 cannot be supplied loose.
                                                                                                                          # 064
                                                                                                                          MPN: 101/9 GC 59155
                                                                                                                          BALL FOR TIE ROD JOINT HEADS
                                                                                                                          Items from 61 to 67 cannot be supplied loose.
                                                                                                                          # 065
                                                                                                                          MPN: 101/9 GC 59156
                                                                                                                          RING
                                                                                                                          Items from 61 to 67 cannot be supplied loose.
                                                                                                                          # 066
                                                                                                                          MPN: 101/9GC59170
                                                                                                                          SPRING
                                                                                                                          Items from 61 to 67 cannot be supplied loose.
                                                                                                                          # 067
                                                                                                                          MPN: 101/9 - GC 59171
                                                                                                                          NUT FOR STEERING TIE ROD HEAD JOINT
                                                                                                                          Items from 61 to 67 cannot be supplied loose.
