023 - Front Brakes Two Calipers

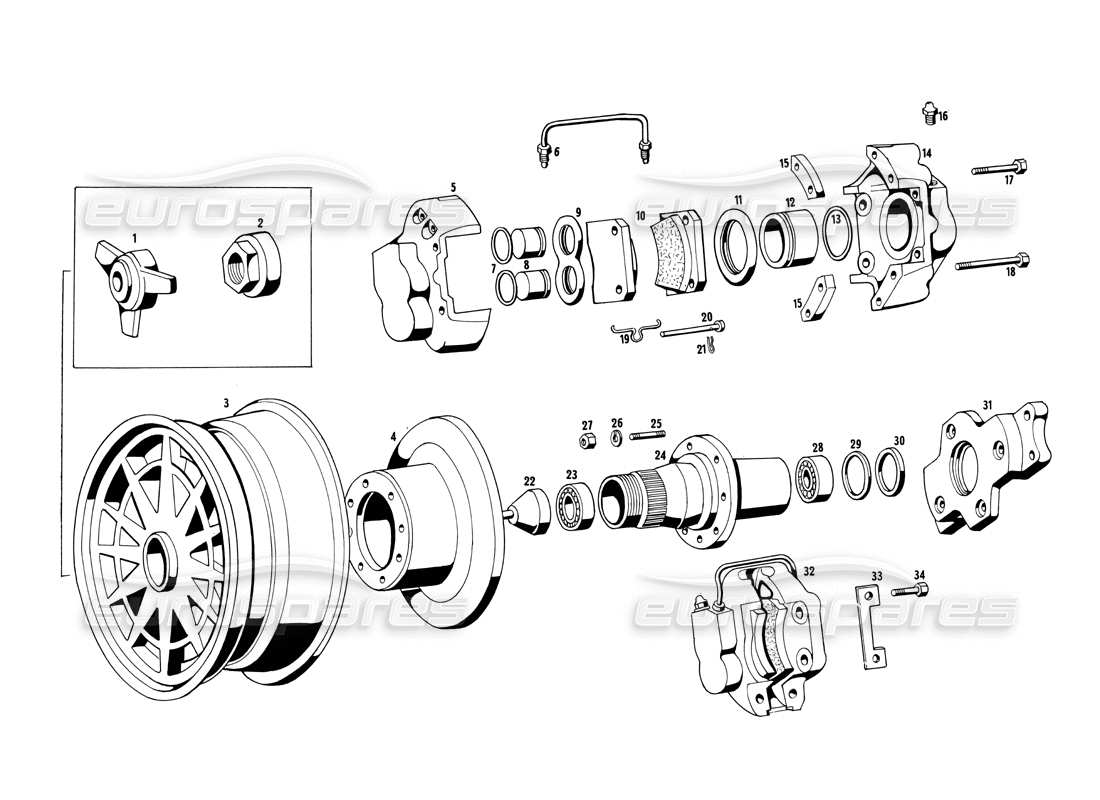

Maserati Ghibli 4.7 / 4.9 Front Brakes Two Calipers Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 101/3 13024 51022
NUT
# 001
MPN: 101/3 13026 51023
NUT
# 002
MPN: 101/5 13024 51657
NUT
from £350.00
from £350.00
# 002
MPN: 101/5 13026 51658
NUT
from £350.00
from £350.00
# 003
MPN: 115 SR 63466
CAST WHEEL 7 L X 15 FOR 42 HUB
# 003
MPN: 115 SR 64841
SPOKED WHEEL 7 L X 15 FOR 42 HUB
# 004
MPN: 115 FA 64647
DISC FOR FRONT BRAKES AND DOUBLE CALIPERS
# 005
MPN: 101/10 FP 61085
SEMIPINZA ESTERNA SINISTRA PER CALIPER 12/3
# 005
MPN: 101/10 FP 61086
SEMIPINZA ESTERNA DESTRA PER CALIPER 12/3
# 006
MPN: 107 FP 58452
HOSE COMPLETE WITH HALF-CALIPER CONNECTION FITTINGS
# 007
MPN: GOM58457
SEAL RUBBER ON THE PISTON OF 30,18
# 008
MPN: 107 FP 58456
PISTONE Ø 30,18 PER CALIPER 12/3
from £126.96
from £126.96
# 009
MPN: FP 58455
REAR CALIPER REPAIR KIT (42 MM)
from £64.34
from £64.34
# 010
MPN: FP 51926
REAR BRAKE PADS SET
# 011
MPN: 101/9 FA 58695
GOMMINO PARAPOLVERE PER PISTONE DA 42,82
from £84.00
from £84.00
# 012
MPN: 107 FP 58450
PISTONE Ø 42,82 PER CALIPER 12/3
from £120.00
from £120.00
# 013
MPN: GOM58449
SEAL RUBBER ON THE PISTON OF 42,82
# 014
MPN: 101/10 - FP 61688
SEMIPINZA INTERNA DESTRA PER CALIPER 12/3
# 014
MPN: 101/10 FP 61086
SEMIPINZA INTERNA SINISTRA PER CALIPER 12/3
# 015
MPN: 107/A FA 64630
DISTANZIALE FRA LE SEMIPINZE
# 016
MPN: 107 FP 58458
AIR VENT CAP
# 017
MPN: BN 64655
BOLT
# 018
MPN: BN 64654
BOLT
# 019
MPN: 101/9 - FP 55469
SPRING
# 020
MPN: 107/A FA 64639
PIN
# 021
MPN: CN58454
PIN ON THE PINS HOLDING THE BUSHINGS
from £2.14
from £2.14
# 022

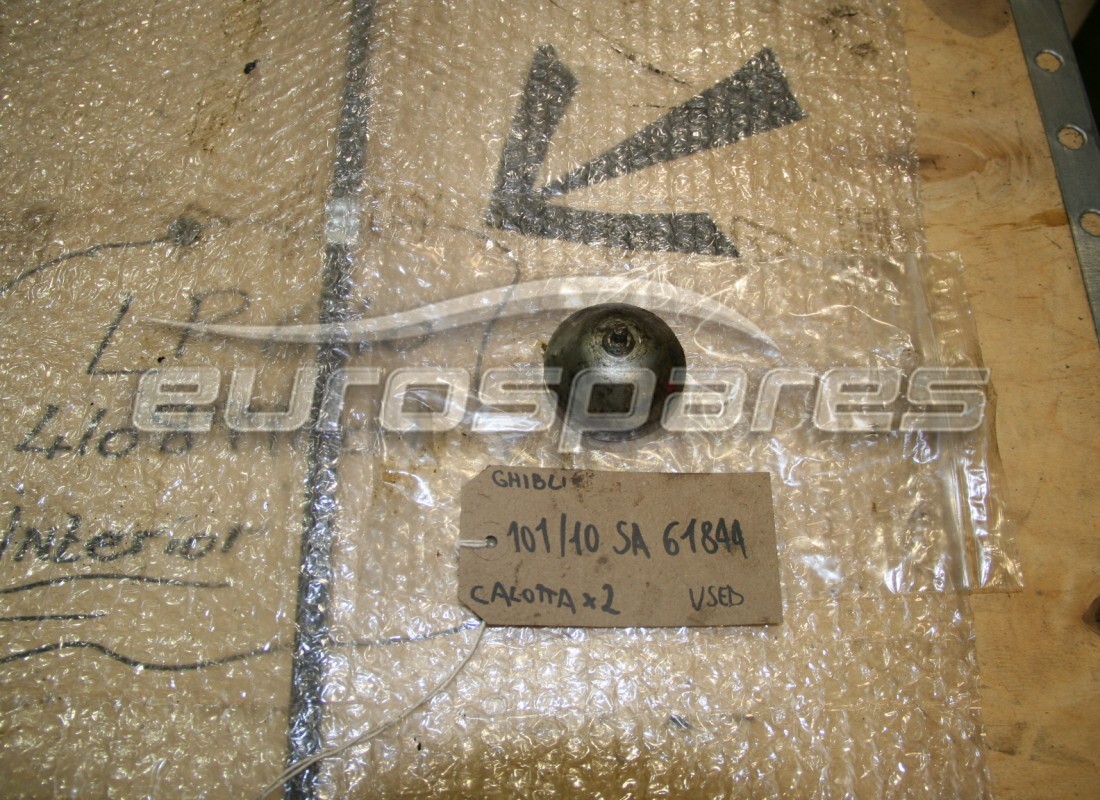

MPN: 101/10 SA 61844
GREASE SEAL CAP ON THE FRONT HUBS
from £28.70
from £28.70
# 023
MPN: CSC 48232
TAPERED ROLLER BEARING ON THE OUTER SIDE OF THE FRONT HUB
Supersession
Supersession
# 024

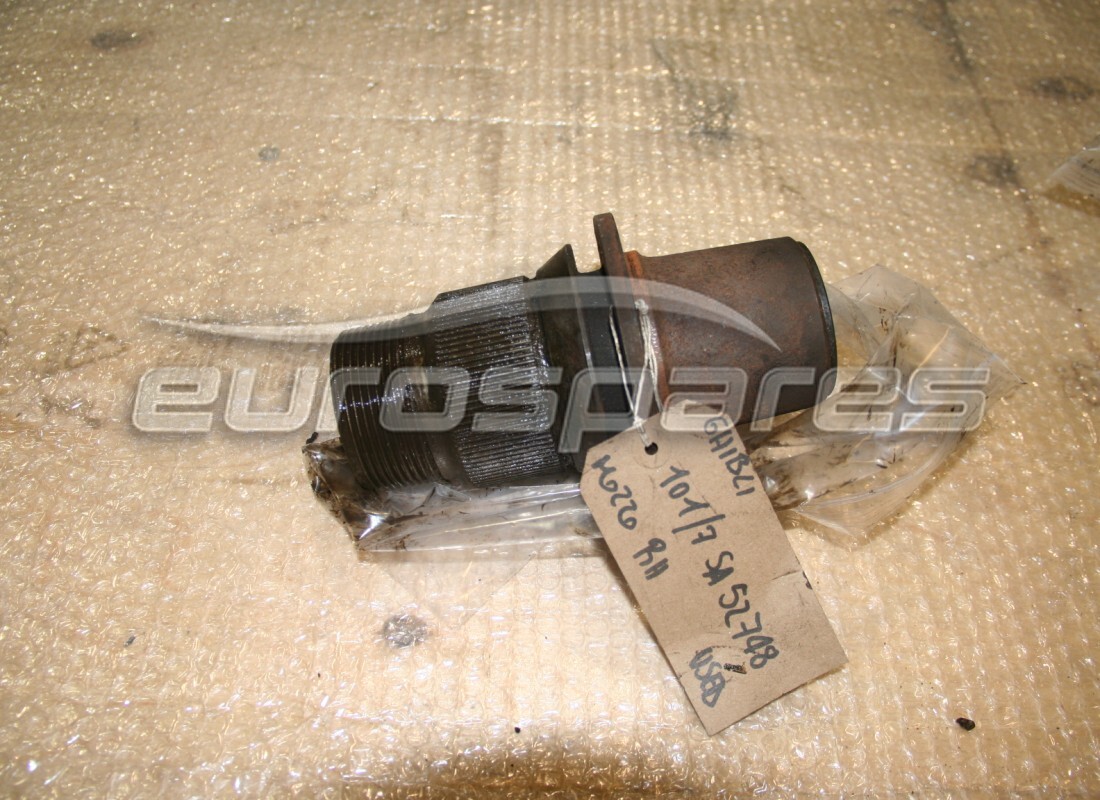

MPN: 101/7 SA 52748
HUB FOR RIGHT FRONT WHEEL
from £414.75
from £414.75
# 024

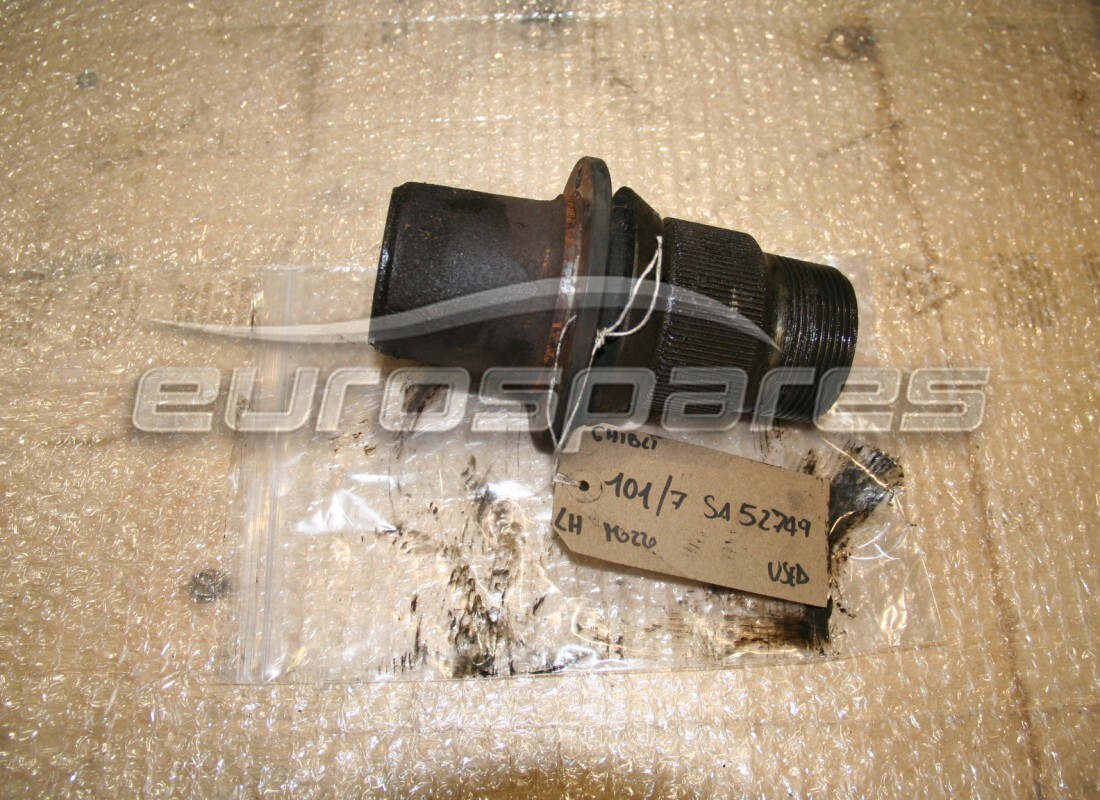

MPN: 101/7 SA 52749
HUB FOR LEFT FRONT WHEEL
from £414.75
from £414.75
# 025
MPN: PN 47217
THREADED STUD
# 026
MPN: RN 33564
WASHER
# 027
MPN: DN 45670
NUT
# 028
MPN: CSC/48233
TAPERED ROLLER BEARING ON THE INSIDE OF THE FRONT HUB
# 029
MPN: 101 12219 48235
SEAL HOLDER CAP ON THE FRONT HUB
# 030
MPN: G N 48234
GASKET OR SEAL
# 031
MPN: 107/A FA 64556
SUPPORT
# 031
MPN: 107/A FA 64557
SUPPORT
# 032
MPN: 107/A FA 64640
CALIPER ANTER. DESTRI TP. 12/3
# 032
MPN: 107/A FA 64641
CALIPER ANTER. SINISTRI TO. 12/3
# 033
MPN: 101/6 14554 51501
PIASTRINO DI FERMO PER BULLONI FISSAGGIO CALIPER AL SUPP
# 034
MPN: BN 64506
BOLT
