maserati ghibli 4.7 / 4.9 front brakes and handbrake parts diagram

024 - Front Brakes and Handbrake

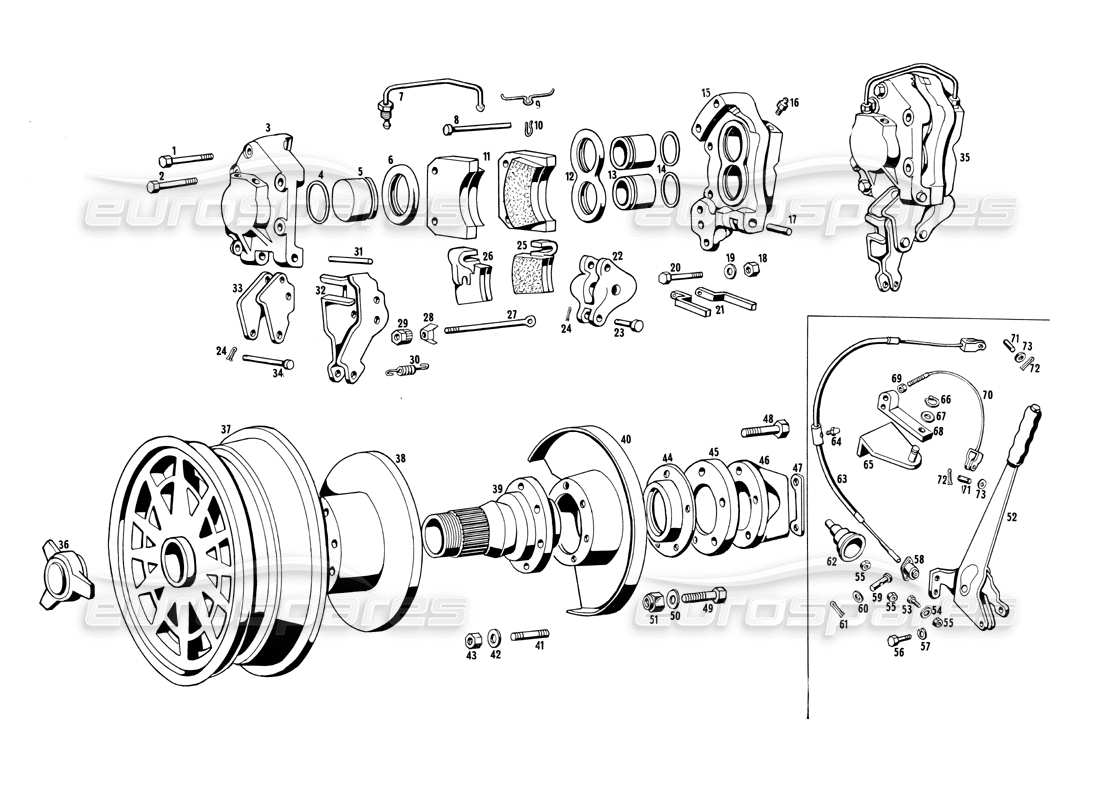

Maserati Ghibli 4.7 / 4.9 Front Brakes and Handbrake Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                    #
                                                                                                                                                    Part number
                                                                                                                                                    Description
                                                                                                                                                    Key
                                                                                                                                                    Price
                                                                                                                                                    # 003
                                                                                                                                                    MPN: 101/10 - FP 61688
                                                                                                                                                    SEMIPINZA POSTERIORE INTERNA DESTRA CALIPER 12/3
                                                                                                                                                    Semipinza posteriore interna destra per caliper tp. 12/3 Genuine Maserati Part - New (to order)
                                                                                                                                                    # 003
                                                                                                                                                    MPN: 101/10 FP 61687
                                                                                                                                                    SEMIPINZA POSTERIORE INTERNA SINISTRA CALIPER 12/3
                                                                                                                                                    SEMIPINZA POSTERIORE INTERNA SINISTRA PER CALIPER 12/3 Genuine Maserati Part - New (to order)
                                                                                                                                                    # 004
                                                                                                                                                    MPN: Gom. 55449
                                                                                                                                                    Seal on piston Ø 42,82
                                                                                                                                                    Seal on piston Ø 42,82 Genuine Maserati Part - New (to order)
                                                                                                                                                    # 005
                                                                                                                                                    MPN: 107 FP 58450
                                                                                                                                                    PISTONE Ø 42,82 PER CALIPER POSTERIORE 12/3
                                                                                                                                                    from £120.00
                                                                                                                                                    from £120.00
                                                                                                                                                    Pistone Ø 42,82 per semipinze interne Genuine Maserati Part - New (to order)
                                                                                                                                                    # 006
                                                                                                                                                    MPN: 101/9 FA 58695
                                                                                                                                                    Gommino parapolvere per pistone Ø 42,82
                                                                                                                                                    from £84.00
                                                                                                                                                    from £84.00
                                                                                                                                                    Gommino parapolvere per pistone Ø 42,82 Genuine Maserati Part - New (to order)
                                                                                                                                                    FRONT CALIPER REPAIR KIT Eurospares Approved Part - New (to order)
                                                                                                                                                    # 007
                                                                                                                                                    MPN: 107 FP 58452
                                                                                                                                                    HOSE COMPLETE WITH FITTINGS FOR CONNECTING HALF-CALIPERS
                                                                                                                                                    Oil delivery pipe on the rear calipers Genuine Maserati Part - New (to order)
                                                                                                                                                    # 009
                                                                                                                                                    MPN: 101/9 - FP 55469
                                                                                                                                                    SPRING
                                                                                                                                                    SPRING Genuine Maserati Part - New (to order)
                                                                                                                                                    # 010
                                                                                                                                                    MPN: CN58454
                                                                                                                                                    CPL ON THE PINS HOLDING THE REAR BRAKING BLOCKS
                                                                                                                                                    from £2.14
                                                                                                                                                    from £2.14
                                                                                                                                                    Split pin on the dowel holding pin Genuine Maserati Part - New (to order)
                                                                                                                                                    # 012
                                                                                                                                                    MPN: FP 58455
                                                                                                                                                    REAR CALIPER REPAIR KIT (42 MM)
                                                                                                                                                    from £64.34
                                                                                                                                                    from £64.34
                                                                                                                                                    REAR CALIPER REPAIR KIT (42 MM) Genuine Maserati Part - New (to order)
                                                                                                                                                    # 013
                                                                                                                                                    MPN: 107 FP 58456
                                                                                                                                                    PISTONE Ø 30,18 PER CALIPER POSTERIORE 12/3
                                                                                                                                                    from £126.96
                                                                                                                                                    from £126.96
                                                                                                                                                    Small pistons poster calipers Genuine Maserati Part - New (to order)
                                                                                                                                                    # 015
                                                                                                                                                    MPN: 101/10 FP 61085
                                                                                                                                                    Semipinza posteriore esterna sinistra per caliper 12/3
                                                                                                                                                    Semipinza posteriore esterna sinistra per caliper tp. 12/3 Genuine Maserati Part - New (to order)
                                                                                                                                                    # 015
                                                                                                                                                    MPN: 101/10 FP 61086
                                                                                                                                                    SEMIPINZA POSTERIORE ESTERNA DESTRA PER CALIPER 12/3
                                                                                                                                                    Semipinza posteriore esterna sinistra per caliper 12/3 Genuine Maserati Part - New (to order)
                                                                                                                                                    # 017
                                                                                                                                                    MPN: 107 FP 58459
                                                                                                                                                    PIN
                                                                                                                                                    PIVOT Genuine Maserati Part - New (to order)
                                                                                                                                                    # 019
                                                                                                                                                    MPN: RSN 58467
                                                                                                                                                    WASHER
                                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                    # 021
                                                                                                                                                    MPN: 107FP58473
                                                                                                                                                    Handbrake block holding plate
                                                                                                                                                    Handbrake block holding plate Genuine Maserati Part - New (to order)
                                                                                                                                                    # 022
                                                                                                                                                    MPN: 107 FP 58462
                                                                                                                                                    LEVER
                                                                                                                                                    LEVER Genuine Maserati Part - New (to order)
                                                                                                                                                    # 023
                                                                                                                                                    MPN: 107 FP 58465
                                                                                                                                                    PIN
                                                                                                                                                    PIN Genuine Maserati Part - New (to order)
                                                                                                                                                    # 024
                                                                                                                                                    MPN: CN. 43776
                                                                                                                                                    PIN FOR SAID AND FOR LEVER CONTROL LEVER PIN
                                                                                                                                                    from £1.74
                                                                                                                                                    from £1.74
                                                                                                                                                    Copiglia Ø 2 x 15 Genuine Maserati Part - New (to order)
                                                                                                                                                    # 025
                                                                                                                                                    MPN: 107FP58460
                                                                                                                                                    RIGHT HANDBRAKE PLUSH
                                                                                                                                                    Right handbrake block Genuine Maserati Part - New (to order)
                                                                                                                                                    # 026
                                                                                                                                                    MPN: 107 FP 58461
                                                                                                                                                    LEFT HANDBRAKE PLUSH
                                                                                                                                                    Left handbrake block Genuine Maserati Part - New (to order)
                                                                                                                                                    # 027
                                                                                                                                                    MPN: 107 FP 58464
                                                                                                                                                    WASHER
                                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                    # 028
                                                                                                                                                    MPN: 107 - FP 58470
                                                                                                                                                    NUT
                                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                    # 029
                                                                                                                                                    MPN: 107 FP 58469
                                                                                                                                                    NUT
                                                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                                                    # 031
                                                                                                                                                    MPN: 107 FP 58459
                                                                                                                                                    PIN
                                                                                                                                                    PIVOT Genuine Maserati Part - New (to order)
                                                                                                                                                    # 032
                                                                                                                                                    MPN: 101/9 - FP 61020
                                                                                                                                                    LEVER
                                                                                                                                                    LEVER Genuine Maserati Part - New (to order)
                                                                                                                                                    # 034
                                                                                                                                                    MPN: 107 - FP 58471
                                                                                                                                                    PIN
                                                                                                                                                    PIN Genuine Maserati Part - New (to order)
                                                                                                                                                    # 035
                                                                                                                                                    MPN: FP 58268

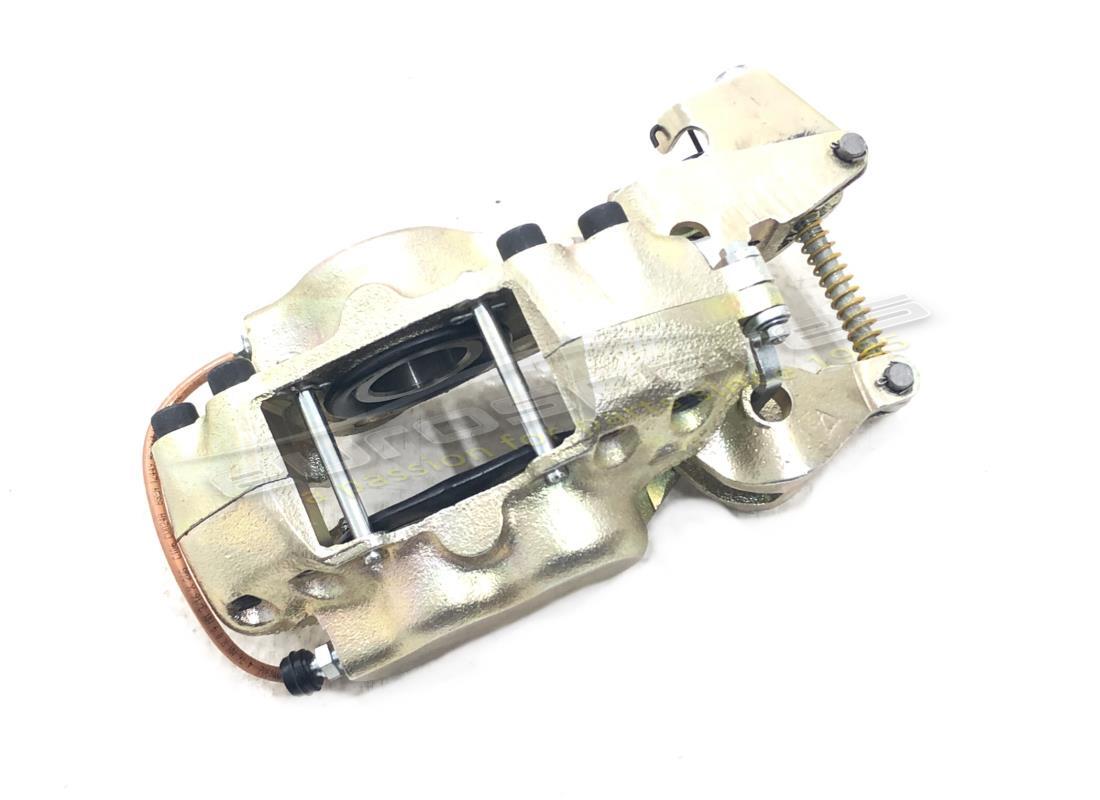

                                                                                                                                                    RH REAR CALIPER
                                                                                                                                                    from £1,254.75
                                                                                                                                                    from £1,254.75
                                                                                                                                                    RH REAR CALIPER Genuine Maserati Part - New (to order)
                                                                                                                                                    RH REAR CALIPER Genuine Maserati Part - Reconditioned In stock
                                                                                                                                                    Exchange only
                                                                                                                                                    # 035
                                                                                                                                                    MPN: FP 58269

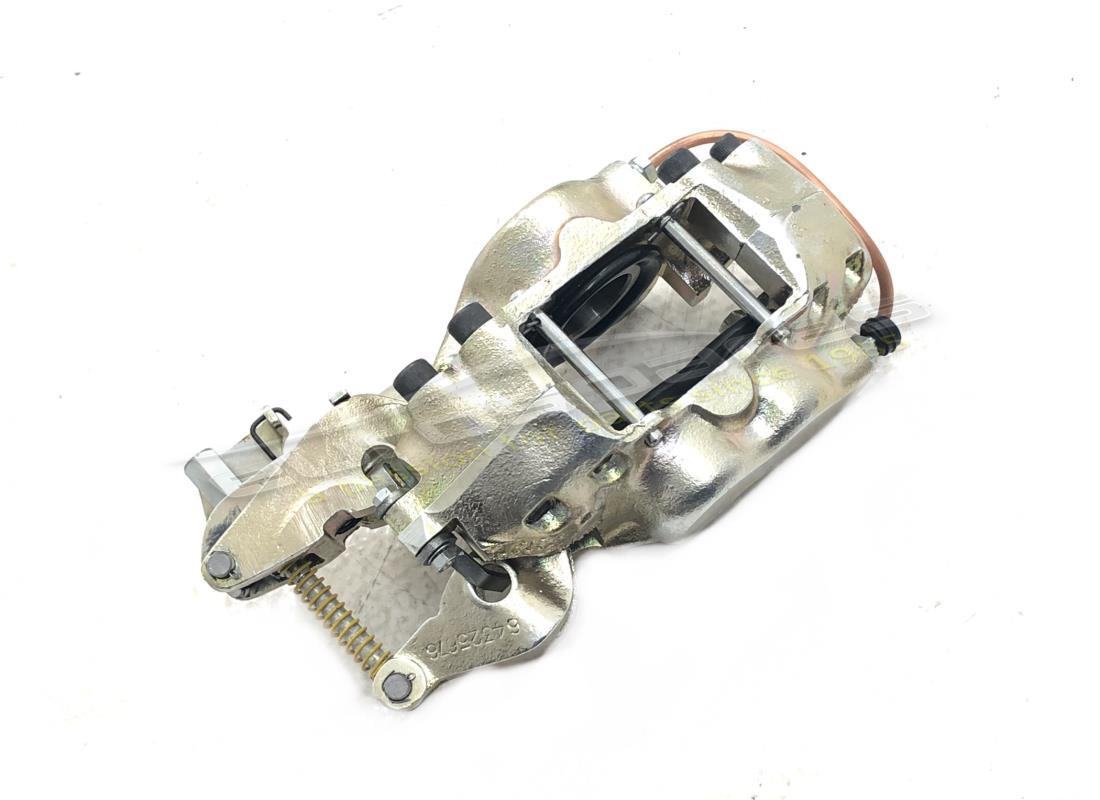

                                                                                                                                                    LH REAR CALIPER
                                                                                                                                                    from £1,254.75
                                                                                                                                                    from £1,254.75
                                                                                                                                                    LH REAR CALIPER Genuine Maserati Part - New (to order)
                                                                                                                                                    LH REAR CALIPER Genuine Maserati Part - Reconditioned In stock
                                                                                                                                                    Exchange only
                                                                                                                                                    # 036
                                                                                                                                                    MPN: 101 13024 51022
                                                                                                                                                    NUT
                                                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                                                    # 036
                                                                                                                                                    MPN: 101 13026 51023
                                                                                                                                                    NUT
                                                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                                                    # 037
                                                                                                                                                    MPN: 115 SR 63466
                                                                                                                                                    CAST WHEEL 7 L X 15 FOR 42 HUB
                                                                                                                                                    Ruota fusa 7 Lx15 can mozzo da 42 - fino dicembre ' 67 Genuine Maserati Part - New (to order)
                                                                                                                                                    # 037
                                                                                                                                                    MPN: 115 SR 64841
                                                                                                                                                    SPOKED WHEEL 7 L X 15 FOR 42 HUB
                                                                                                                                                    SPOKED WHEEL 7 L X 15 FOR 42 HUB Genuine Maserati Part - New (to order)
                                                                                                                                                    # 038
                                                                                                                                                    MPN: 107/A :FP 63029
                                                                                                                                                    Rear brake disc
                                                                                                                                                    Rear brake disc Genuine Maserati Part - New (to order)
                                                                                                                                                    # 039
                                                                                                                                                    MPN: 107/A TP 63030

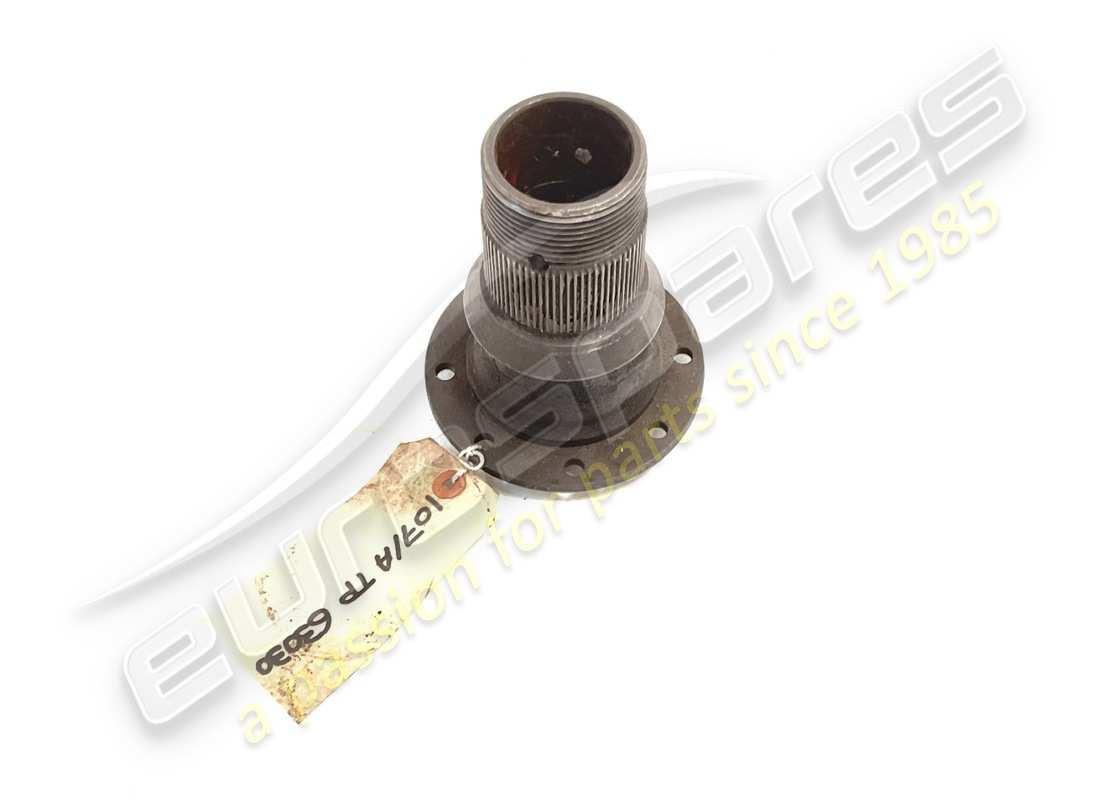

                                                                                                                                                    RIGHT REAR WHEEL HUB
                                                                                                                                                    from £210.00
                                                                                                                                                    from £210.00
                                                                                                                                                    RH REAR SPLINED HUB Genuine Maserati Part - New (to order)
                                                                                                                                                    RH REAR SPLINED HUB Genuine Maserati Part - Used In stock
                                                                                                                                                    # 039
                                                                                                                                                    MPN: 107/A TP 63031

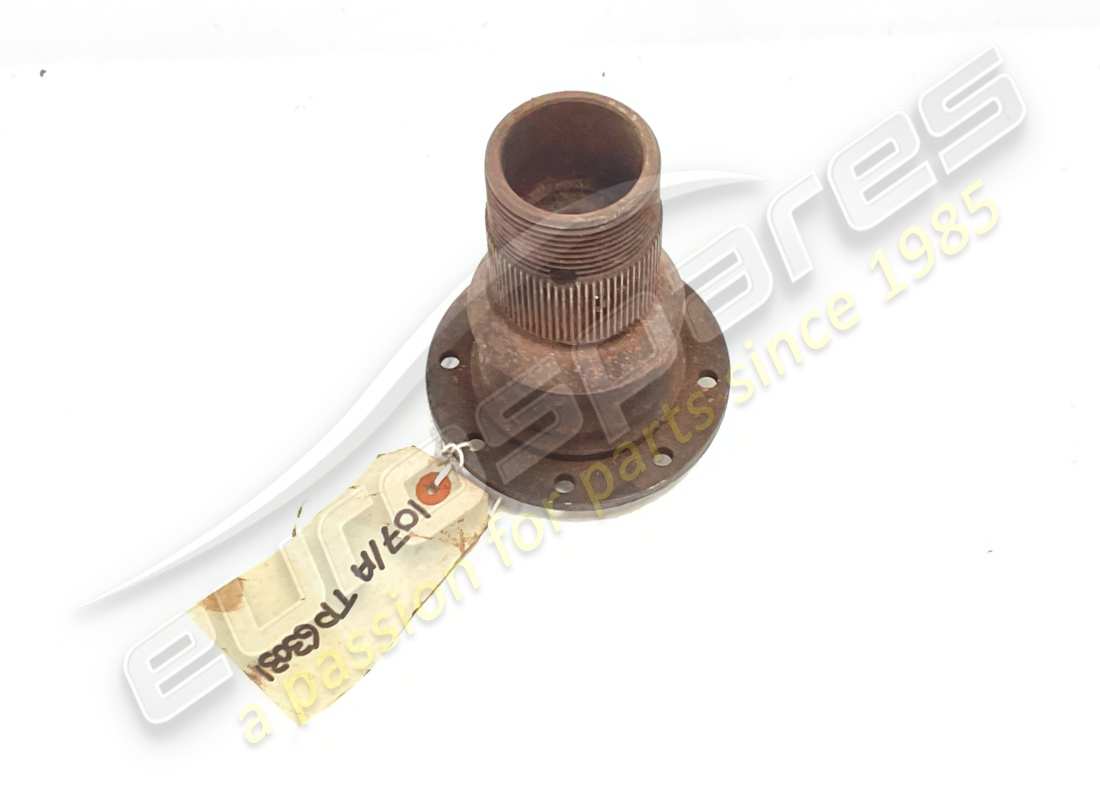

                                                                                                                                                    LEFT REAR WHEEL HUB
                                                                                                                                                    from £210.00
                                                                                                                                                    from £210.00
                                                                                                                                                    MOZZO POSTERIORE SINISTRO TP. 42 Genuine Maserati Part - New (to order)
                                                                                                                                                    MOZZO POSTERIORE SINISTRO TP. 42 Genuine Maserati Part - Used In stock
                                                                                                                                                    # 040
                                                                                                                                                    MPN: 107/A FP 62410
                                                                                                                                                    RIGHT REAR BRAKE DISC PROTECTION PLATE
                                                                                                                                                    RIGHT REAR BRAKE DISC PROTECTION PLATE Genuine Maserati Part - New (to order)
                                                                                                                                                    # 040
                                                                                                                                                    MPN: 107/A FP 62411
                                                                                                                                                    Rear left brake disc protection sheet
                                                                                                                                                    Rear left brake disc protection sheet Genuine Maserati Part - New (to order)
                                                                                                                                                    # 041
                                                                                                                                                    MPN: PN 47217
                                                                                                                                                    THREADED STUD
                                                                                                                                                    THREADED STUD Genuine Maserati Part - New (to order)
                                                                                                                                                    # 042
                                                                                                                                                    MPN: RAT/45680
                                                                                                                                                    WASHER
                                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                    # 043
                                                                                                                                                    MPN: DST 45670
                                                                                                                                                    NUT
                                                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                                                    # 044
                                                                                                                                                    MPN: 101 10127 48279
                                                                                                                                                    ANGUS SEAL REDUCTION BUSH FOR REAR HUB
                                                                                                                                                    REDUCTION BUSH ANGUS SEAL ON THE HUB Genuine Maserati Part - New (to order)
                                                                                                                                                    # 045
                                                                                                                                                    MPN: 101 10128 48280
                                                                                                                                                    SPACER FOR SAID
                                                                                                                                                    RING Genuine Maserati Part - New (to order)
                                                                                                                                                    # 046
                                                                                                                                                    MPN: 107/A FP 62333
                                                                                                                                                    SUPPORT
                                                                                                                                                    SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                                                    # 046
                                                                                                                                                    MPN: 107/A FP 62334
                                                                                                                                                    SUPPORT
                                                                                                                                                    SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                                                    # 047
                                                                                                                                                    MPN: 101/6 14554 51501
                                                                                                                                                    LOCKING PLATE FOR CALIPER FIXING BOLTS
                                                                                                                                                    Stop plate for said Genuine Maserati Part - New (to order)
                                                                                                                                                    # 049
                                                                                                                                                    MPN: BN 48285
                                                                                                                                                    BOLT
                                                                                                                                                    BOLT Genuine Maserati Part - New (to order)
                                                                                                                                                    # 050
                                                                                                                                                    MPN: RN 48286
                                                                                                                                                    WASHER
                                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                    # 051
                                                                                                                                                    MPN: DN 48287
                                                                                                                                                    NUT
                                                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                                                    # 052
                                                                                                                                                    MPN: 101 15501 51082

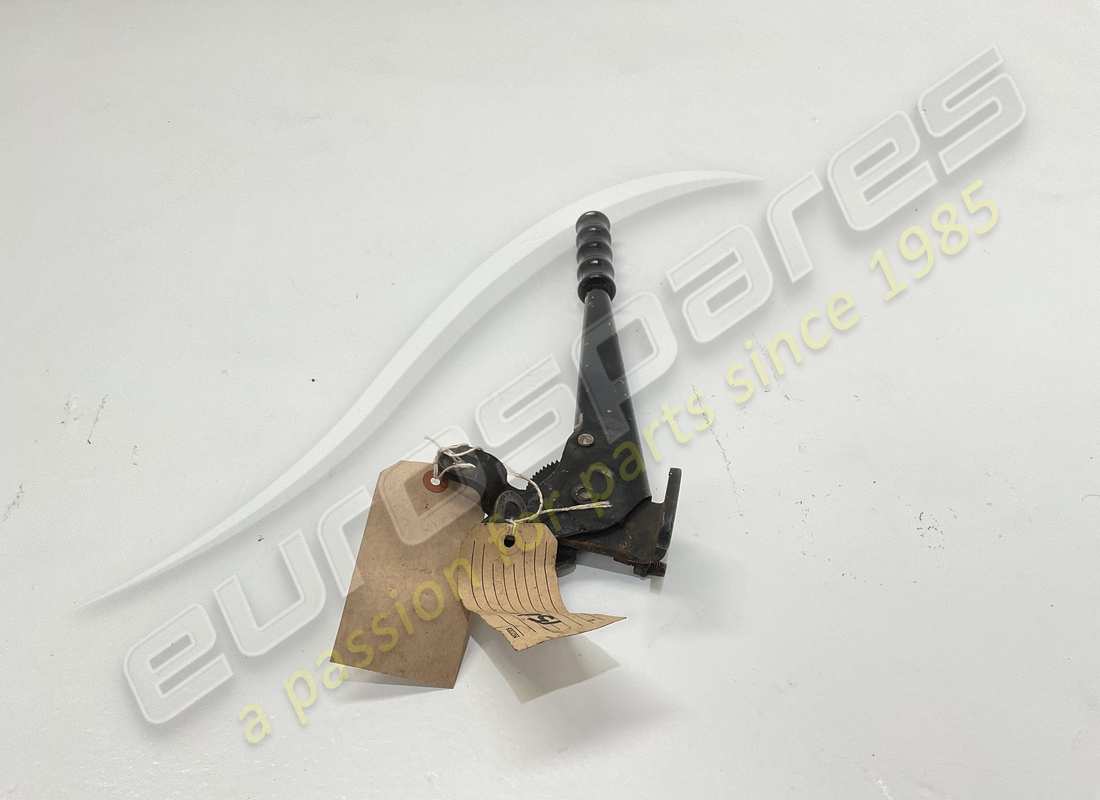

                                                                                                                                                    LEVER
                                                                                                                                                    from £350.00
                                                                                                                                                    from £350.00
                                                                                                                                                    LEVER Genuine Maserati Part - New (to order)
                                                                                                                                                    LEVER Genuine Maserati Part - Used In stock
                                                                                                                                                    # 053
                                                                                                                                                    MPN: BNT47021
                                                                                                                                                    BOLT
                                                                                                                                                    from £1.80
                                                                                                                                                    from £1.80
                                                                                                                                                    This part replaces part number 47021
                                                                                                                                                    Bullone 6x1x18 per detto Genuine Maserati Part - New (to order)
                                                                                                                                                    # 054
                                                                                                                                                    MPN: RSN/32690
                                                                                                                                                    WASHER
                                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                    # 055
                                                                                                                                                    MPN: DNT 47047
                                                                                                                                                    NUT
                                                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                                                    # 056
                                                                                                                                                    MPN: BNT. 47015
                                                                                                                                                    BOLT
                                                                                                                                                    BOLT Genuine Maserati Part - New (to order)
                                                                                                                                                    # 057
                                                                                                                                                    MPN: RSN 3 2 6 3 5
                                                                                                                                                    WASHER
                                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                    # 059
                                                                                                                                                    MPN: 109 FM 55602
                                                                                                                                                    PIVOT
                                                                                                                                                    PIVOT Genuine Maserati Part - New (to order)
                                                                                                                                                    # 060
                                                                                                                                                    MPN: RN 35806
                                                                                                                                                    WASHER
                                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                    # 061
                                                                                                                                                    MPN: CN 63373
                                                                                                                                                    COPIGLIA Ø 3 X 25 PER DETTO
                                                                                                                                                    Cotter pin Ø 3,25 for pin on the lever Genuine Maserati Part - New (to order)
                                                                                                                                                    # 062
                                                                                                                                                    MPN: PFN 59817
                                                                                                                                                    GROMMET
                                                                                                                                                    GROMMET Genuine Maserati Part - New (to order)
                                                                                                                                                    # 063
                                                                                                                                                    MPN: 115 FM 64267
                                                                                                                                                    Complete handbrake cable from rear brake lever. right for left-hand drive
                                                                                                                                                    Complete handbrake cable from rear brake lever. right for left-hand drive Genuine Maserati Part - New (to order)
                                                                                                                                                    # 063
                                                                                                                                                    MPN: 115 FM 65602
                                                                                                                                                    Complete handbrake cable from lever to rear brake. right for right-hand drive
                                                                                                                                                    Complete handbrake cable from lever to rear brake. right for right-hand drive Genuine Maserati Part - New (to order)
                                                                                                                                                    # 064
                                                                                                                                                    MPN: IN/48089
                                                                                                                                                    GREASE GREASE Ø 8 X 1,25 ON THE HANDBRAKE CABLE
                                                                                                                                                    Grease nipple on the brake and clutch pump support Genuine Maserati Part - New (to order)
                                                                                                                                                    # 065
                                                                                                                                                    MPN: 101/9 FM 54728
                                                                                                                                                    BRACKET / SUPPORT
                                                                                                                                                    BRACKET / SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                                                    # 065
                                                                                                                                                    MPN: 109/A - FM 62072
                                                                                                                                                    BRACKET / SUPPORT
                                                                                                                                                    BRACKET / SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                                                    # 066
                                                                                                                                                    MPN: ART 55631
                                                                                                                                                    RING
                                                                                                                                                    RING Genuine Maserati Part - New (to order)
                                                                                                                                                    # 067
                                                                                                                                                    MPN: RN 38721
                                                                                                                                                    WASHER
                                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                    # 068
                                                                                                                                                    MPN: 109/A - FM 61248
                                                                                                                                                    ARM ON THE BRACKET FOR HAND BRAKE FOCUS RIGHT DRIVE
                                                                                                                                                    Braccio fulcro cavo freno a mano guida a destra dal telaio coupe' N° 632 telaio Spyder N° 609 in poi Genuine Maserati Part - New (to order)
                                                                                                                                                    # 068
                                                                                                                                                    MPN: 109/A FM 61531
                                                                                                                                                    Sulfa arm bracket for handbrake fulcrum
                                                                                                                                                    Sulfa arm bracket for handbrake fulcrum Genuine Maserati Part - New (to order)
                                                                                                                                                    # 069
                                                                                                                                                    MPN: DNT. 47031
                                                                                                                                                    NUT
                                                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                                                    # 070
                                                                                                                                                    MPN: 115 FM 65063
                                                                                                                                                    Complete cable from the joint to the rear brake. left left hand drive
                                                                                                                                                    Complete cable from the joint to the rear brake. left left hand drive Genuine Maserati Part - New (to order)
                                                                                                                                                    # 070
                                                                                                                                                    MPN: 115 FM 65603
                                                                                                                                                    Complete cable from the joint to the right rear brake, right-hand drive
                                                                                                                                                    Complete cable from the joint to the right rear brake, right-hand drive Genuine Maserati Part - New (to order)
                                                                                                                                                    # 071
                                                                                                                                                    MPN: SN 48692
                                                                                                                                                    PIN
                                                                                                                                                    from £19.14
                                                                                                                                                    from £19.14
                                                                                                                                                    PIN Genuine Maserati Part - New (to order)
                                                                                                                                                    # 073
                                                                                                                                                    MPN: RN/43855
                                                                                                                                                    WASHER
                                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
