025 - Front Cooled Brakes

Maserati Ghibli 4.7 / 4.9 Front Cooled Brakes Parts Diagram

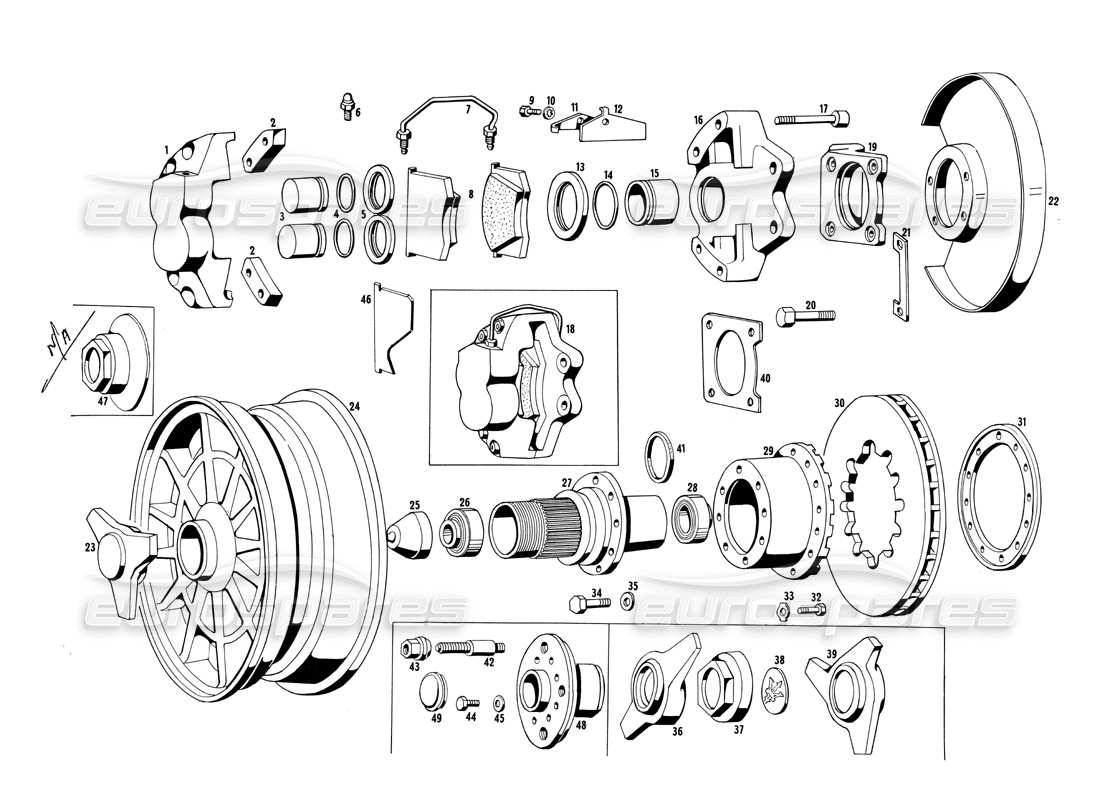

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                    #
                                                                                                    Part number
                                                                                                    Description
                                                                                                    Key
                                                                                                    Price
                                                                                                    # 001
                                                                                                    MPN: 101/9 FA 58690
                                                                                                    SEMIPINZA ANTERIORE ESTERNA DESTRA
                                                                                                    SEMIPINZA ANTERIORE ESTERNA DESTRA Genuine Maserati Part - New (to order)
                                                                                                    # 001
                                                                                                    MPN: 101/9FA58691
                                                                                                    SEMIPINZA ANTERIORE ESTERNA SINISTRA
                                                                                                    SEMIPINZA ANTERIORE ESTERNA SINISTRA Genuine Maserati Part - New (to order)
                                                                                                    # 002
                                                                                                    MPN: 107 FA 61487
                                                                                                    DISTANZIALE SEMIPINZE
                                                                                                    DISTANZIALE SEMIPINZE Genuine Maserati Part - New (to order)
                                                                                                    # 003
                                                                                                    MPN: 101/9 - FA 58694
                                                                                                    PISTONE Ø 42,82 PER SEMIPINZE ANTER. ESTERNE
                                                                                                    Pistone Ø 42,82 per caliper anteriore Genuine Maserati Part - New (to order)
                                                                                                    # 005
                                                                                                    MPN: 101/9 FA 58695
                                                                                                    GOMMINO PARAPOLVERE PER DETTO
                                                                                                    from £84.00
                                                                                                    from £84.00
                                                                                                    Gommino parapolvere per pistone Ø 42,82 Genuine Maserati Part - New (to order)
                                                                                                    FRONT CALIPER REPAIR KIT Eurospares Approved Part - New (to order)
                                                                                                    # 007
                                                                                                    MPN: 107 FC 61491
                                                                                                    TUBO COMPLETO DI RACCORDI COLLEGAMENTO SEMIPINZE ANTER.
                                                                                                    TUBO COMPLETO DI RACCORDI COLLEGAMENTO SEMIPINZE ANTER Genuine Maserati Part - New (to order)
                                                                                                    # 008
                                                                                                    MPN: FA 51184
                                                                                                    FRONT BRAKING BLOCKS
                                                                                                    FRONT BRAKING BLOCKS Genuine Maserati Part - New (to order)
                                                                                                    # 009
                                                                                                    MPN: BNT/58614
                                                                                                    BOLT
                                                                                                    BOLT Genuine Maserati Part - New (to order)
                                                                                                    # 010
                                                                                                    MPN: RSN/32690
                                                                                                    WASHER
                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                    # 011
                                                                                                    MPN: 101/9 - FA 58698
                                                                                                    PLATE FOR SEALING THE FRONT BRAKING BLOCKS
                                                                                                    Plate for front block holding plate Genuine Maserati Part - New (to order)
                                                                                                    # 012
                                                                                                    MPN: 101/9 FA 58699
                                                                                                    Front braking block holding plate
                                                                                                    Front braking block holding plate Genuine Maserati Part - New (to order)
                                                                                                    # 013
                                                                                                    MPN: 101 /9 FA 58696
                                                                                                    GOMMINO PARAPOLVERE PISTONE SEMIPINZA INTERNA
                                                                                                    GOMMINO PARAPOLVERE PER PISTONCINO GRANDE Genuine Maserati Part - New (to order)
                                                                                                    # 014
                                                                                                    MPN: Gom. 55094
                                                                                                    Internal half-caliper piston sealing rubber
                                                                                                    Internal half-caliper piston sealing rubber Genuine Maserati Part - New (to order)
                                                                                                    # 015
                                                                                                    MPN: 101/9-FA-58697
                                                                                                    PISTONE Ø 59,92 PER SEMIPINZE ANTERIORI INTERNE
                                                                                                    Pistone interno (caliper) Genuine Maserati Part - New (to order)
                                                                                                    # 016
                                                                                                    MPN: 101/9 - FA 58692
                                                                                                    SEMIPINZA ANTERIORE INTERNA DESTRA
                                                                                                    SEMIPINZA ANTERIORE INTERNA DESTRA Genuine Maserati Part - New (to order)
                                                                                                    # 016
                                                                                                    MPN: 101/9FA58693
                                                                                                    SEMIPINZA ANTERIORE INTERNA SINISTRA
                                                                                                    SEMIPINZA ANTERIORE INTERNA SINISTRA Genuine Maserati Part - New (to order)
                                                                                                    # 017
                                                                                                    MPN: BN 61493
                                                                                                    BOLT
                                                                                                    BOLT Genuine Maserati Part - New (to order)
                                                                                                    # 018
                                                                                                    MPN: 115 FA 65068
                                                                                                    Caliper anteriore destro completo tp. 3C
                                                                                                    Caliper anteriore destro completo tp. 3C Genuine Maserati Part - New (to order)
                                                                                                    # 018
                                                                                                    MPN: 115 FA 65069
                                                                                                    CALIPER ANTERIORE SINISTRO COMPLETO TP. 3C
                                                                                                    CALIPER ANTERIORE SINISTRO COMPLETO TP. 3C Genuine Maserati Part - New (to order)
                                                                                                    # 019
                                                                                                    MPN: 101/7 FA 54319
                                                                                                    SUPPORT
                                                                                                    SUPPORT Genuine Maserati Part - New (to order)
                                                                                                    # 019
                                                                                                    MPN: 101/7-FA/54318
                                                                                                    SUPPORT
                                                                                                    from £168.00
                                                                                                    from £168.00
                                                                                                    SUPPORT Genuine Maserati Part - New (to order)
                                                                                                    SUPPORT Genuine Maserati Part - Used In stock
                                                                                                    # 019
                                                                                                    MPN: 115 FA 65656
                                                                                                    SUPPORT
                                                                                                    SUPPORT Genuine Maserati Part - New (to order)
                                                                                                    # 019
                                                                                                    MPN: 115 FA 65657
                                                                                                    SUPPORT
                                                                                                    SUPPORT Genuine Maserati Part - New (to order)
                                                                                                    # 019
                                                                                                    MPN: 115 FA 66136
                                                                                                    SUPPORT
                                                                                                    SUPPORT Genuine Maserati Part - New (to order)
                                                                                                    # 019
                                                                                                    MPN: 115 FA 66137
                                                                                                    SUPPORT
                                                                                                    SUPPORT Genuine Maserati Part - New (to order)
                                                                                                    # 020
                                                                                                    MPN: BN 65720
                                                                                                    BOLT
                                                                                                    BOLT Genuine Maserati Part - New (to order)
                                                                                                    # 021
                                                                                                    MPN: 101/2 14554 49514
                                                                                                    Stop plate for said bolts
                                                                                                    Stop plate for said bolts Genuine Maserati Part - New (to order)
                                                                                                    # 022
                                                                                                    MPN: 115 FA 65474
                                                                                                    RIGHT FRONT BRAKE DISC PROTECTION SHEET
                                                                                                    Left front brake disc protection sheet Genuine Maserati Part - New (to order)
                                                                                                    # 022
                                                                                                    MPN: 115 FA 65474
                                                                                                    Left front brake disc protection sheet
                                                                                                    Left front brake disc protection sheet Genuine Maserati Part - New (to order)
                                                                                                    # 023
                                                                                                    MPN: 101/3 13024 51022
                                                                                                    NUT
                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                    # 023
                                                                                                    MPN: 101/3 13026 51023
                                                                                                    NUT
                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                    # 023
                                                                                                    MPN: 115 SR 65964
                                                                                                    NUT
                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                    # 023
                                                                                                    MPN: 115 SR 65965
                                                                                                    Dada a 3 alette fissaggio ruote sinistre can mozzi tp. 52 - dal gennaio ' 68
                                                                                                    Dada a 3 alette fissaggio ruote sinistre can mozzi tp. 52 - dal gennaio ' 68 Genuine Maserati Part - New (to order)
                                                                                                    # 024
                                                                                                    MPN: 115 SR 63466
                                                                                                    Ruota fusa 7 LX15 can mozzo da 42 - fino dicembre ' 67
                                                                                                    Ruota fusa 7 LX15 can mozzo da 42 - fino dicembre ' 67 Genuine Maserati Part - New (to order)
                                                                                                    # 024
                                                                                                    MPN: 115 SR 65621
                                                                                                    Ruota fusa 71/2X15 con mozzo da 52 - dal gennaio ' 68 fino alla 300' vettura
                                                                                                    Ruota fusa 71/2X15 con mozzo da 52 - dal gennaio ' 68 fino alla 300' vettura Genuine Maserati Part - New (to order)
                                                                                                    # 024
                                                                                                    MPN: 115 SR 67110
                                                                                                    Ruota fusa 71/2X15 can mozzo a colonnette dalla 301' vett.
                                                                                                    Ruota fusa 71/2X15 can mozzo a colonnette dalla 301' vett. Genuine Maserati Part - New (to order)
                                                                                                    # 025
                                                                                                    MPN: 101/10 SA 61844
                                                                                                    Grease cap on front hubs from 42 - until December '67
                                                                                                    from £28.70
                                                                                                    from £28.70
                                                                                                    Grease cap on front hubs from 42 - until December '67 Genuine Maserati Part - New (to order)
                                                                                                    Grease cap on front hubs from 42 - until December '67 Genuine Maserati Part - Used In stock
                                                                                                    # 025
                                                                                                    MPN: 115 SA 65675
                                                                                                    Grease cap on the front hubs from 52 - from January 1968 to the 300' car.
                                                                                                    from £34.78
                                                                                                    from £34.78
                                                                                                    GREASE SEAL CAP ON FRONT HUBS FROM 52 - FROM JANUARY 1968 UNTIL 300' CAR Genuine Maserati Part - New (to order)
                                                                                                    # 026
                                                                                                    MPN: CSC 48232
                                                                                                    Bearing on hub tp. 42 and a column on the external side
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    Genuine Maserati Part (no longer available to order)
                                                                                                    # 026
                                                                                                    MPN: CSC 65633
                                                                                                    BEARING ON TP HUB. 52 EXTERNAL SIDE
                                                                                                    BEARING ON TP HUB. 52 EXTERNAL SIDE Genuine Maserati Part - New (to order)
                                                                                                    # 027
                                                                                                    MPN: 115 SA 65628
                                                                                                    MOZZO ANTER. DESTRO TP. 52 CON FELTRO E FRENI NORMALI
                                                                                                    MOZZO ANTER. DESTRO TP. 52 CON FELTRO E FRENI NORMALI Genuine Maserati Part - New (to order)
                                                                                                    # 027
                                                                                                    MPN: 115 SA 65629
                                                                                                    MOZZO ANTER. SINISTRO TP. 52 CON FELTRO E FRENI NORMALI
                                                                                                    MOZZO ANTER. SINISTRO TP. 52 CON FELTRO E FRENI NORMALI Genuine Maserati Part - New (to order)
                                                                                                    # 027
                                                                                                    MPN: 115 SA 65812
                                                                                                    MOZZO ANTERIORE DESTRO TP. 42
                                                                                                    MOZZO ANTERIORE DESTRO TP. 42 Genuine Maserati Part - New (to order)
                                                                                                    # 027
                                                                                                    MPN: 115 SA 65813
                                                                                                    MOZZO ANTERIORE SINISTRO TP. 42
                                                                                                    MOZZO ANTERIORE SINISTRO TP. 42 Genuine Maserati Part - New (to order)
                                                                                                    # 027
                                                                                                    MPN: 115 SA 66138
                                                                                                    MOZZO ANTER. DESTRO TP. 52 CON SEDE ANGUS E FRENI VENTIL.
                                                                                                    MOZZO ANTER. DESTRO TP. 52 CON SEDE ANGUS E FRENI VENTIL Genuine Maserati Part - New (to order)
                                                                                                    # 027
                                                                                                    MPN: 115 SA 66139
                                                                                                    Mozzo anter sinistro tp. 52 con 'sede angus e freni ventil.
                                                                                                    MOZZO ANTER SINISTRO TP. 52 CON 'SEDE ANGUS E FRENI VENTIL Genuine Maserati Part - New (to order)
                                                                                                    # 028
                                                                                                    MPN: CSC/48233
                                                                                                    BEARING ON THE INNER SIDE SPINDLE FOR TP HUBS. 42 AND 52
                                                                                                    Cuscinetto sul fuso e snodo (lato braccio porte leve) Genuine Maserati Part - New (to order)
                                                                                                    # 029
                                                                                                    MPN: 107/A FA 66133
                                                                                                    BELL FOR FRONT BRAKE DISC WITH COLUMN HUBS FROM 301TH CAR
                                                                                                    CAMPANA PER DISCO FRENI ANTERIORI VENTILATI Genuine Maserati Part - New (to order)
                                                                                                    # 029
                                                                                                    MPN: 115 FA 64453
                                                                                                    Bell for front brake disc with tp wheel hubs. 52 with felt - until December '67
                                                                                                    Bell for front brake disc with tp wheel hubs. 52 with felt - until December '67 Genuine Maserati Part - New (to order)
                                                                                                    # 029
                                                                                                    MPN: 115 FA 65809
                                                                                                    Bell for front brake disc with tp wheel hubs. 42 until December '67
                                                                                                    Bell for front brake disc with tp wheel hubs. 42 until December '67 Genuine Maserati Part - New (to order)
                                                                                                    # 029
                                                                                                    MPN: 115 FA 66140
                                                                                                    Campana per disco freni anteriori con mozzi ruote tp. 52 con angus - dal gennaio ' 68
                                                                                                    Campana per disco freni anteriori con mozzi ruote tp. 52 con angus - dal gennaio ' 68 Genuine Maserati Part - New (to order)
                                                                                                    # 030
                                                                                                    MPN: 115 FA 64464

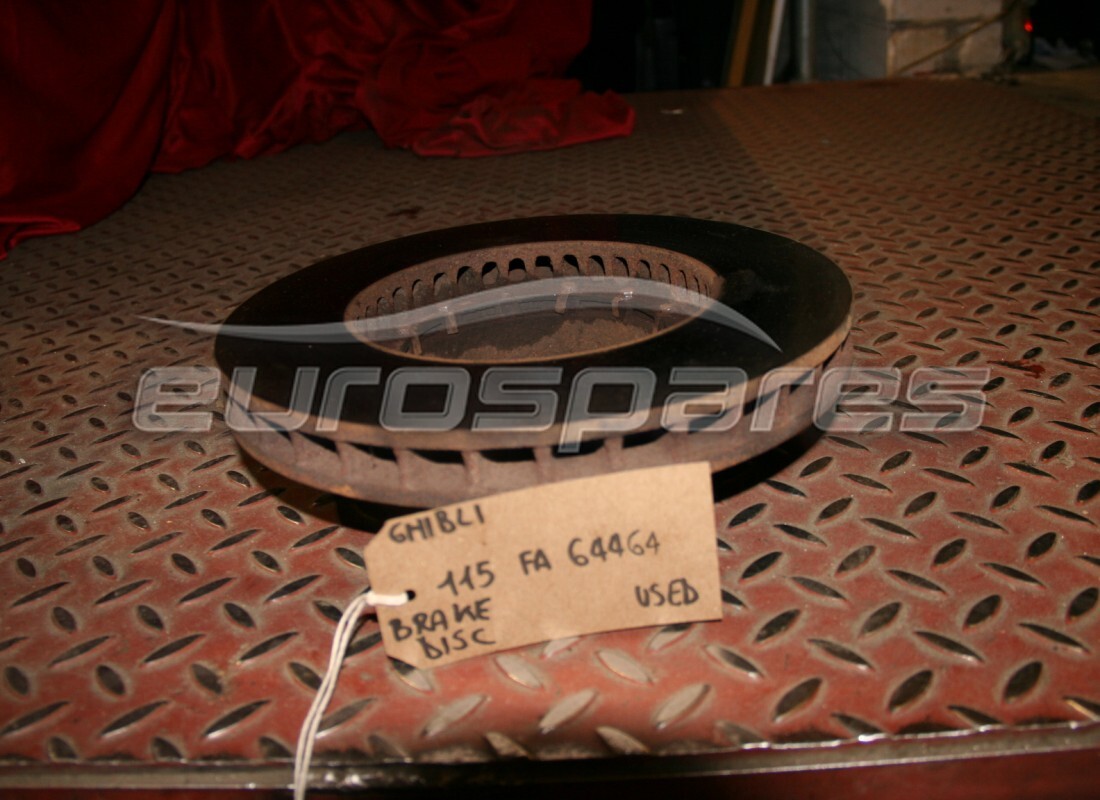

                                                                                                    Front brake disc plate
                                                                                                    from £288.75
                                                                                                    from £288.75
                                                                                                    Front brake disc plate Genuine Maserati Part - New (to order)
                                                                                                    Front brake disc plate Genuine Maserati Part - Used In stock
                                                                                                    # 032
                                                                                                    MPN: BNT/47370
                                                                                                    BOLT
                                                                                                    from £3.32
                                                                                                    from £3.32
                                                                                                    This part replaces part number 47370
                                                                                                    BOLT Genuine Maserati Part - New (to order)
                                                                                                    # 033
                                                                                                    MPN: RDL 42638
                                                                                                    WASHER
                                                                                                    from £2.56
                                                                                                    from £2.56
                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                    # 034
                                                                                                    MPN: BNT 64468
                                                                                                    BOLT
                                                                                                    BOLT Genuine Maserati Part - New (to order)
                                                                                                    # 036
                                                                                                    MPN: 115 SR 65614
                                                                                                    NUT
                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                    # 036
                                                                                                    MPN: 115 SR 65615
                                                                                                    NUT
                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                    # 037
                                                                                                    MPN: 101/5 13026 51657
                                                                                                    NUT
                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                    # 037
                                                                                                    MPN: 101/5 13026 51658
                                                                                                    NUT
                                                                                                    from £350.00
                                                                                                    from £350.00
                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                    NUT Genuine Maserati Part - Used In stock
                                                                                                    # 037
                                                                                                    MPN: 115 SR 65736
                                                                                                    NUT
                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                    # 037
                                                                                                    MPN: 115 SR 65737
                                                                                                    NUT
                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                    # 038
                                                                                                    MPN: 115 SR 65949
                                                                                                    GEM FOR 3 WING NUT
                                                                                                    GEM FOR 3 WING NUT Genuine Maserati Part - New (to order)
                                                                                                    # 039
                                                                                                    MPN: 115 SR 65952
                                                                                                    NUT
                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                    # 039
                                                                                                    MPN: 115 SR 65953
                                                                                                    NUT
                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                    # 040
                                                                                                    MPN: 101 /9 FA 58262
                                                                                                    SPACER BETWEEN CALIPER SUPPORT AND SPINDLE HOLDER ARM REPLACEMENT 115 FA 65474-5
                                                                                                    SPACER BETWEEN CALIPER SUPPORT AND FRONT CALIPER REPLACES THE PROTECTION PLATE Genuine Maserati Part - New (to order)
                                                                                                    # 041
                                                                                                    MPN: ANT 62131
                                                                                                    SEALING RING
                                                                                                    SEALING RING Genuine Maserati Part - New (to order)
                                                                                                    # 042
                                                                                                    MPN: 115 SA 66824
                                                                                                    Colonnette fissaggio ruote anteriori - dalla 301ª vettura
                                                                                                    Colonnette fissaggio ruote anteriori - dalla 301ª vettura Genuine Maserati Part - New (to order)
                                                                                                    # 043
                                                                                                    MPN: DN/46440
                                                                                                    NUT
                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                    # 044
                                                                                                    MPN: BNT 66243
                                                                                                    BOLT
                                                                                                    BOLT Genuine Maserati Part - New (to order)
                                                                                                    # 046
                                                                                                    MPN: 115 FA 66334
                                                                                                    SPACER PLATE FOR FRONT BRAKING BLOCKS
                                                                                                    SPACER PLATE FOR FRONT BRAKING BLOCKS Genuine Maserati Part - New (to order)
                                                                                                    # 047
                                                                                                    MPN: 115 SR 67111

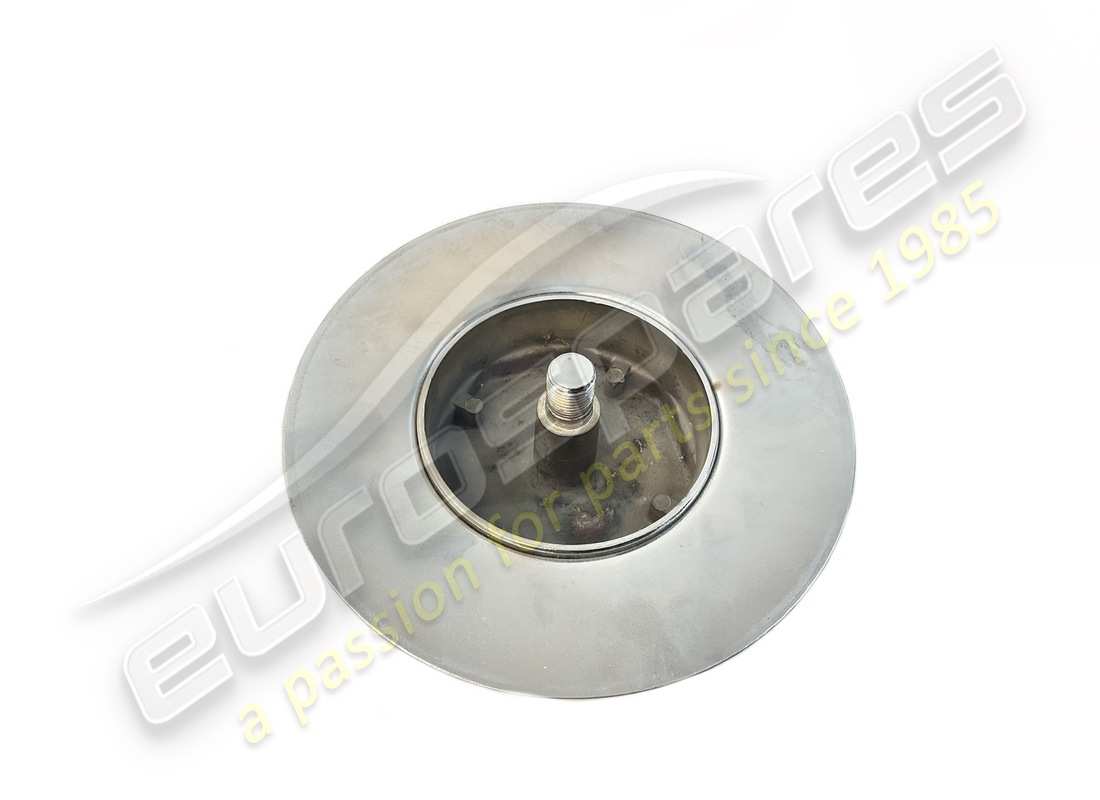

                                                                                                    COMPLETE HUB CAP FOR WHEELS WITH COLUMN FITTING - FROM 301TH VEHICLE
                                                                                                    from £550.00
                                                                                                    from £550.00
                                                                                                    WHEEL CENTER CAP Genuine Maserati Part - New (to order)
                                                                                                    WHEEL CENTER CAP Genuine Maserati Part - Used In stock
                                                                                                    # 048
                                                                                                    MPN: 107/A SA 66132
                                                                                                    Front hub for stud wheels - from the 301th car
                                                                                                    Front hub for stud wheels - from the 301th car Genuine Maserati Part - New (to order)
                                                                                                    # 049
                                                                                                    MPN: 101/12216 48230
                                                                                                    GREASE RETAINING PAN ON THE FRONT HUB FOR CAN WHEELS WITH COLUMN CONNECTION - FROM 301TH VEHICLE
                                                                                                    Grease retainer on the front hub Genuine Maserati Part - New (to order)
