026 - Rear Cooled Brakes

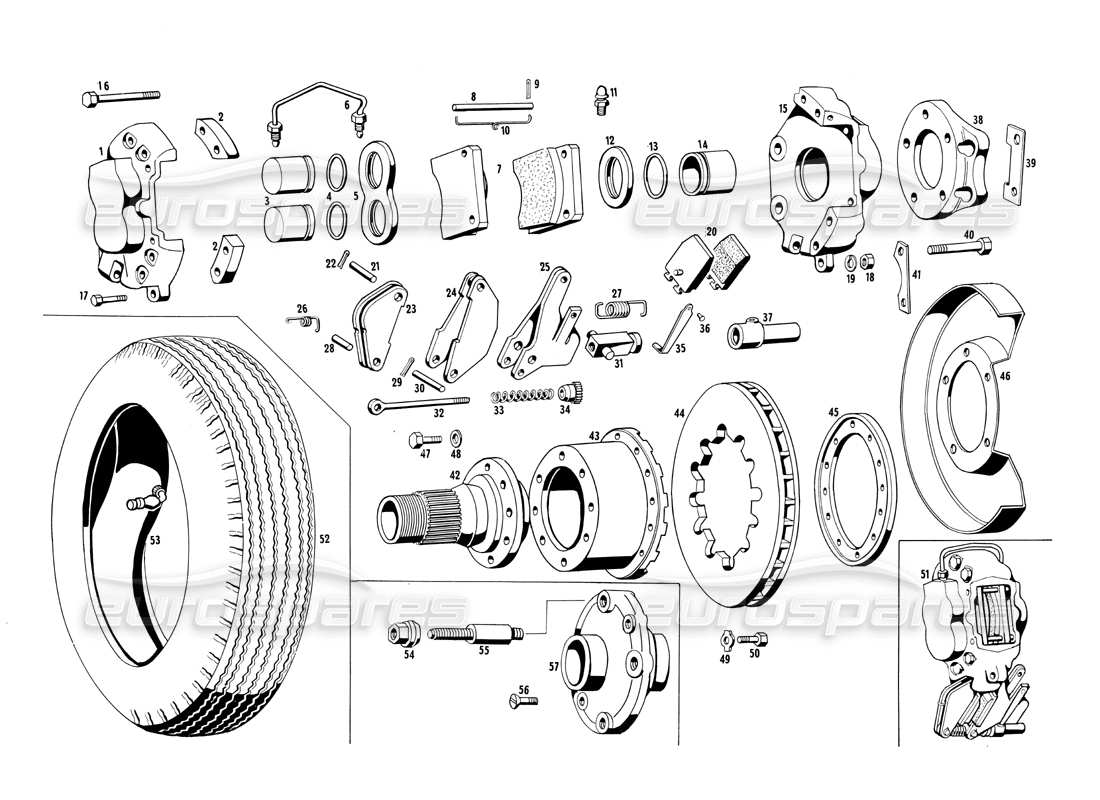

Maserati Ghibli 4.7 / 4.9 Rear Cooled Brakes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                    #
                                                                                                                    Part number
                                                                                                                    Description
                                                                                                                    Key
                                                                                                                    Price
                                                                                                                    # 001
                                                                                                                    MPN: 101/10 FP 61086
                                                                                                                    SEMIPINZA POSTERIORE ESTERNA DESTRA PER CALIPER 12/3
                                                                                                                    Semipinza posteriore esterna sinistra per caliper 12/3 Genuine Maserati Part - New (to order)
                                                                                                                    # 001
                                                                                                                    MPN: 101/10 FP 61086
                                                                                                                    Semipinza posteriore esterna sinistra per caliper 12/3
                                                                                                                    Semipinza posteriore esterna sinistra per caliper 12/3 Genuine Maserati Part - New (to order)
                                                                                                                    # 002
                                                                                                                    MPN: 115 FA 64876
                                                                                                                    Distanziale per semipinze posteriori
                                                                                                                    Distanziale per semipinze posteriori Genuine Maserati Part - New (to order)
                                                                                                                    # 003
                                                                                                                    MPN: 107 FP 58456
                                                                                                                    PISTONE Ø 30,18 PER SEMIPINZE ESTERNE
                                                                                                                    from £126.96
                                                                                                                    from £126.96
                                                                                                                    Small pistons poster calipers Genuine Maserati Part - New (to order)
                                                                                                                    # 005
                                                                                                                    MPN: FP 58455
                                                                                                                    REAR CALIPER REPAIR KIT (42 MM)
                                                                                                                    from £64.34
                                                                                                                    from £64.34
                                                                                                                    REAR CALIPER REPAIR KIT (42 MM) Genuine Maserati Part - New (to order)
                                                                                                                    # 006
                                                                                                                    MPN: 107 FP 58452
                                                                                                                    HOSE COMPLETE WITH HALF-CALIPER CONNECTION FITTINGS
                                                                                                                    Oil delivery pipe on the rear calipers Genuine Maserati Part - New (to order)
                                                                                                                    # 008
                                                                                                                    MPN: 115 FP 64882
                                                                                                                    PIN
                                                                                                                    PIN Genuine Maserati Part - New (to order)
                                                                                                                    # 009
                                                                                                                    MPN: CN58454
                                                                                                                    PIN ON THE PINS HOLDS THE ANCHORS
                                                                                                                    from £2.14
                                                                                                                    from £2.14
                                                                                                                    Split pin on the dowel holding pin Genuine Maserati Part - New (to order)
                                                                                                                    # 010
                                                                                                                    MPN: 101/9 - FP 55469
                                                                                                                    SPRING
                                                                                                                    SPRING Genuine Maserati Part - New (to order)
                                                                                                                    # 013
                                                                                                                    MPN: GOM58449
                                                                                                                    GOMMINO DI TENUTA SUL PISTONE Ø 42,82 SEMIPINZE INTERNE
                                                                                                                    Seal rubber on the large rear caliper piston Genuine Maserati Part - New (to order)
                                                                                                                    # 014
                                                                                                                    MPN: 107 FP 58450
                                                                                                                    Pistone Ø 42,82 per semipinze interne
                                                                                                                    from £120.00
                                                                                                                    from £120.00
                                                                                                                    Pistone Ø 42,82 per semipinze interne Genuine Maserati Part - New (to order)
                                                                                                                    # 015
                                                                                                                    MPN: 101/10 - FP 61688
                                                                                                                    SEMIPINZA POSTERIORE INTERNA DESTRA PER CALIPER 12/3
                                                                                                                    Semipinza posteriore interna destra per caliper tp. 12/3 Genuine Maserati Part - New (to order)
                                                                                                                    # 015
                                                                                                                    MPN: 101/10 FP 61687
                                                                                                                    SEMIPINZA POSTERIORE INTERNA SINISTRA PER CALIPER 12/3
                                                                                                                    SEMIPINZA POSTERIORE INTERNA SINISTRA PER CALIPER 12/3 Genuine Maserati Part - New (to order)
                                                                                                                    # 016
                                                                                                                    MPN: BN 64883
                                                                                                                    BOLT
                                                                                                                    BOLT Genuine Maserati Part - New (to order)
                                                                                                                    # 017
                                                                                                                    MPN: BNT 34007
                                                                                                                    BOLT
                                                                                                                    BOLT Genuine Maserati Part - New (to order)
                                                                                                                    # 018
                                                                                                                    MPN: DN 47046
                                                                                                                    NUT
                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                    # 019
                                                                                                                    MPN: RDI 58544
                                                                                                                    WASHER
                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                    # 020
                                                                                                                    MPN: 107/A FP 65987
                                                                                                                    BRAKING BLOCKS FOR HAND BRAKE.
                                                                                                                    BRAKING PADS FOR HAND BRAKE Genuine Maserati Part - New (to order)
                                                                                                                    # 021
                                                                                                                    MPN: 107 FP 58459
                                                                                                                    PIVOT
                                                                                                                    PIVOT Genuine Maserati Part - New (to order)
                                                                                                                    # 022
                                                                                                                    MPN: SN 63455
                                                                                                                    PIN
                                                                                                                    PIN Genuine Maserati Part - New (to order)
                                                                                                                    # 024
                                                                                                                    MPN: 107/A FP 65990
                                                                                                                    LEVER
                                                                                                                    LEVER Genuine Maserati Part - New (to order)
                                                                                                                    # 025
                                                                                                                    MPN: 107/A FP 65991
                                                                                                                    LEVER
                                                                                                                    LEVER Genuine Maserati Part - New (to order)
                                                                                                                    # 026
                                                                                                                    MPN: 107/A FP 65992
                                                                                                                    SPRING
                                                                                                                    SPRING Genuine Maserati Part - New (to order)
                                                                                                                    # 027
                                                                                                                    MPN: 107/A FP 65993
                                                                                                                    SPRING
                                                                                                                    SPRING Genuine Maserati Part - New (to order)
                                                                                                                    # 028
                                                                                                                    MPN: 107/A FP 65994
                                                                                                                    PIN
                                                                                                                    PIN Genuine Maserati Part - New (to order)
                                                                                                                    # 029
                                                                                                                    MPN: CN. 43776
                                                                                                                    PIN FOR SAID AND FOR SUPPORT LEVER PIN
                                                                                                                    from £1.74
                                                                                                                    from £1.74
                                                                                                                    Copiglia Ø 2 x 15 Genuine Maserati Part - New (to order)
                                                                                                                    # 030
                                                                                                                    MPN: 107/A FP 66000
                                                                                                                    PIN
                                                                                                                    PIN Genuine Maserati Part - New (to order)
                                                                                                                    # 031
                                                                                                                    MPN: 107/A FP 65995
                                                                                                                    CROCERA PER TIRANTE REGISTRO
                                                                                                                    CRUISE FOR REGISTER TIE ROD Genuine Maserati Part - New (to order)
                                                                                                                    # 032
                                                                                                                    MPN: 107 FP 58464
                                                                                                                    TIE ROD
                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                    # 033
                                                                                                                    MPN: 107/A FP 65996
                                                                                                                    SPRING
                                                                                                                    SPRING Genuine Maserati Part - New (to order)
                                                                                                                    # 034
                                                                                                                    MPN: 107/A FP 65997
                                                                                                                    NUT
                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                    # 035
                                                                                                                    MPN: 107/A FP 65998
                                                                                                                    SHEET ON THE CABLE FULCER LEVER FOR CORN. ADJUSTING NUT
                                                                                                                    SHEET ON THE CABLE FULCER LEVER FOR CORN. ADJUSTING NUT Genuine Maserati Part - New (to order)
                                                                                                                    # 036
                                                                                                                    MPN: CHN 33756
                                                                                                                    Nail 4 X 7 for said .
                                                                                                                    Nail 4 X 7 for said . Genuine Maserati Part - New (to order)
                                                                                                                    # 037
                                                                                                                    MPN: 107/A FP 65999
                                                                                                                    CAP FOR TIE ROD AND AUTOMATIC ADJUSTMENT NUT
                                                                                                                    CAP FOR TIE ROD AND AUTOMATIC ADJUSTMENT NUT Genuine Maserati Part - New (to order)
                                                                                                                    # 038
                                                                                                                    MPN: 11 FA 64436
                                                                                                                    SUPPORT
                                                                                                                    SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                    # 038
                                                                                                                    MPN: 115 FA 64437
                                                                                                                    SUPPORT
                                                                                                                    SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                    # 039
                                                                                                                    MPN: 107/FP 54774
                                                                                                                    DISTANZIALE FRA SUPPORTO CALIPER E CALIPER (A RICHIESTA)
                                                                                                                    DISTANZIALE FRA SUPPORTO CALIPER E CALIPER (A RICHIESTA) Genuine Maserati Part - New (to order)
                                                                                                                    # 041
                                                                                                                    MPN: 101/6 14554 51501
                                                                                                                    Stop plate for said
                                                                                                                    Stop plate for said Genuine Maserati Part - New (to order)
                                                                                                                    # 042
                                                                                                                    MPN: 107/A TP 63030
                                                                                                                    MOZZO POSTERIORE DESTRO TP. 42
                                                                                                                    from £210.00
                                                                                                                    from £210.00
                                                                                                                    RH REAR SPLINED HUB Genuine Maserati Part - New (to order)
                                                                                                                    RH REAR SPLINED HUB Genuine Maserati Part - Used In stock
                                                                                                                    # 042
                                                                                                                    MPN: 107/A TP 63031
                                                                                                                    MOZZO POSTERIORE SINISTRO TP. 42
                                                                                                                    from £210.00
                                                                                                                    from £210.00
                                                                                                                    MOZZO POSTERIORE SINISTRO TP. 42 Genuine Maserati Part - New (to order)
                                                                                                                    MOZZO POSTERIORE SINISTRO TP. 42 Genuine Maserati Part - Used In stock
                                                                                                                    # 042
                                                                                                                    MPN: 115 TP 65630
                                                                                                                    Mozzo posteriore destro tp. 52 fino alla 300ª vettura
                                                                                                                    Mozzo posteriore destro tp. 52 fino alla 300ª vettura Genuine Maserati Part - New (to order)
                                                                                                                    # 042
                                                                                                                    MPN: 115 TP 65631
                                                                                                                    Mozzo posteriore sinistro tp. 52 fino alla 300ª vettura
                                                                                                                    Mozzo posteriore sinistro tp. 52 fino alla 300ª vettura Genuine Maserati Part - New (to order)
                                                                                                                    # 043
                                                                                                                    MPN: 115 FP 64458
                                                                                                                    Bell for rear brake disc with hubs from 52 to 300th car
                                                                                                                    Bell for rear brake disc with hubs from 52 to 300th car Genuine Maserati Part - New (to order)
                                                                                                                    # 043
                                                                                                                    MPN: 115 FP 64460
                                                                                                                    Bell for rear brake disc with stud hubs from the 301th car onwards
                                                                                                                    Bell for rear brake disc with stud hubs from the 301th car onwards Genuine Maserati Part - New (to order)
                                                                                                                    # 043
                                                                                                                    MPN: 115 FP 65816
                                                                                                                    Bell for rear brake disc with hubs from 42 to 300th car
                                                                                                                    Bell for rear brake disc with hubs from 42 to 300th car Genuine Maserati Part - New (to order)
                                                                                                                    # 044
                                                                                                                    MPN: 115 FP 64465
                                                                                                                    PLATE FOR REAR BRAKE DISC
                                                                                                                    PLATE FOR REAR BRAKE DISC Genuine Maserati Part - New (to order)
                                                                                                                    # 045
                                                                                                                    MPN: 115 FP 64489
                                                                                                                    FLANGE SEALING DISC TO THE BELL.
                                                                                                                    Bell disc sealing flange Genuine Maserati Part - New (to order)
                                                                                                                    # 046
                                                                                                                    MPN: 115 FP 65476
                                                                                                                    RIGHT REAR DISC PROTECTION SHEET
                                                                                                                    RIGHT REAR DISC PROTECTION SHEET Genuine Maserati Part - New (to order)
                                                                                                                    # 046
                                                                                                                    MPN: 115 FP 65477
                                                                                                                    LEFT REAR DISC PROTECTION SHEET
                                                                                                                    LEFT REAR DISC PROTECTION SHEET Genuine Maserati Part - New (to order)
                                                                                                                    # 047
                                                                                                                    MPN: BNT 64468
                                                                                                                    BOLT
                                                                                                                    BOLT Genuine Maserati Part - New (to order)
                                                                                                                    # 049
                                                                                                                    MPN: RDL 42638
                                                                                                                    WASHER
                                                                                                                    from £2.56
                                                                                                                    from £2.56
                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                    # 050
                                                                                                                    MPN: BNT/47370
                                                                                                                    BOLT
                                                                                                                    from £3.32
                                                                                                                    from £3.32
                                                                                                                    This part replaces part number 47370
                                                                                                                    BOLT Genuine Maserati Part - New (to order)
                                                                                                                    # 051
                                                                                                                    MPN: 115 FP 65070
                                                                                                                    Caliper posteriore destro 12/3
                                                                                                                    Caliper posteriore destro 12/3 Genuine Maserati Part - New (to order)
                                                                                                                    # 051
                                                                                                                    MPN: 115 FP 65071
                                                                                                                    Caliper posteriore sinistro 12/3
                                                                                                                    Caliper posteriore sinistro 12/3 Genuine Maserati Part - New (to order)
                                                                                                                    # 052
                                                                                                                    MPN: PNM 54290
                                                                                                                    Pirelli tire 210 X 15 for wheels with 700 X 15 hubs 42
                                                                                                                    Pirelli tire 210 X 15 for wheels with 700 X 15 hubs 42 Genuine Maserati Part - New (to order)
                                                                                                                    # 052
                                                                                                                    MPN: PNM 65768
                                                                                                                    PIRELLI TIRE G70 VR15 FOR WHEELS WITH 71/2 X 15 HUBS 52
                                                                                                                    PIRELLI TIRE G70 VR15 FOR WHEELS WITH 71/2 X 15 HUBS 52 Genuine Maserati Part - New (to order)
                                                                                                                    # 053
                                                                                                                    MPN: PNM 54257
                                                                                                                    INNER TUBE FOR 210 X 15 TIRES
                                                                                                                    Tire inner tube 205x12 Genuine Maserati Part - New (to order)
                                                                                                                    # 053
                                                                                                                    MPN: PNM 65769
                                                                                                                    Camera d'aria per pneumatics G70 VR15
                                                                                                                    Camera d'aria per pneumatics G70 VR15 Genuine Maserati Part - New (to order)
                                                                                                                    # 054
                                                                                                                    MPN: DN/46440
                                                                                                                    NUT
                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                    # 055
                                                                                                                    MPN: 115 TP 66825
                                                                                                                    Rear wheel fixing columns. from the 301th car onwards
                                                                                                                    Rear wheel fixing columns. from the 301th car onwards Genuine Maserati Part - New (to order)
                                                                                                                    # 056
                                                                                                                    MPN: VN/46441
                                                                                                                    SCREW
                                                                                                                    SCREW Genuine Maserati Part - New (to order)
                                                                                                                    # 057
                                                                                                                    MPN: 107/A TP 62180
                                                                                                                    Rear hub with stud wheel attachment from the 301th car onwards
                                                                                                                    Rear hub with stud wheel attachment from the 301th car onwards Genuine Maserati Part - New (to order)
