029 - Fuel Tank and Pump

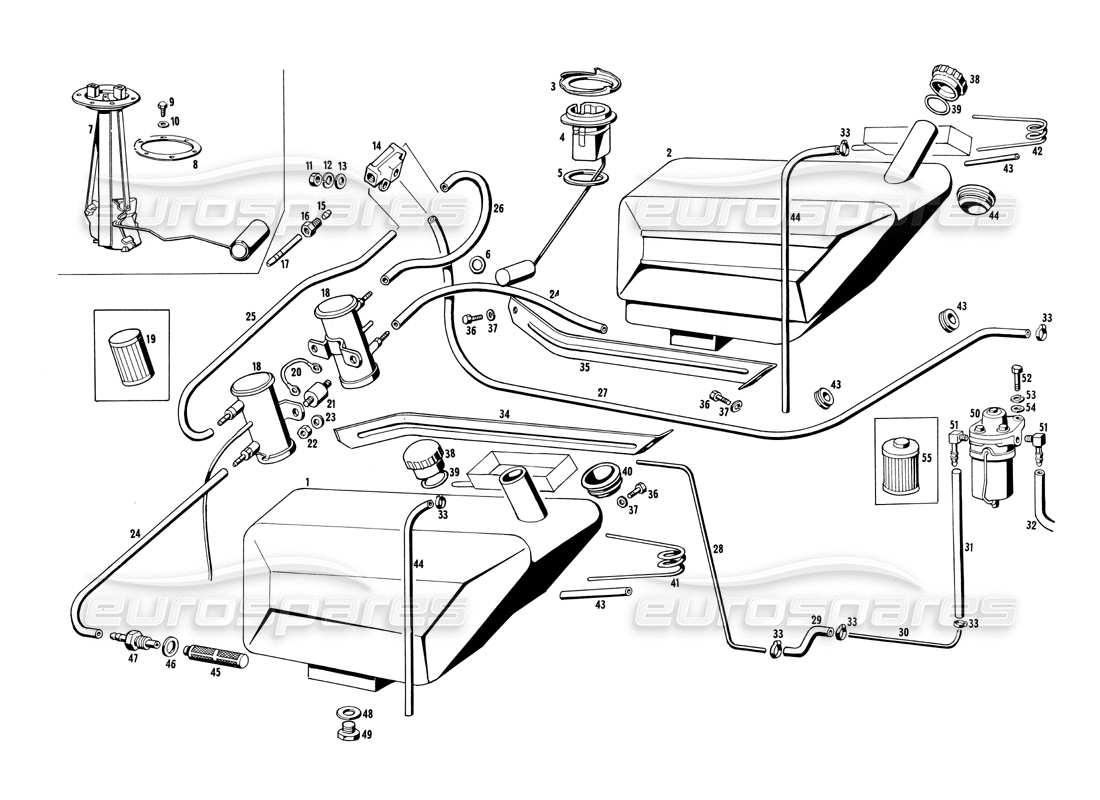

Maserati Ghibli 4.7 / 4.9 Fuel Tank and Pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Key
                                                                                                            Price
                                                                                                            # 001
                                                                                                            MPN: 115 CS 64149
                                                                                                            Serbatoio benzina destro con galleggiante tp. Smiths fino gennaio ' 68 zz
                                                                                                            Serbatoio benzina destro con galleggiante tp. Smiths fino gennaio ' 68 zz Genuine Maserati Part - New (to order)
                                                                                                            # 001
                                                                                                            MPN: 115 CS 65781
                                                                                                            Serbatoio benzina maggiorato destro con galleggiante Borletti, dal febbraio ' 68
                                                                                                            Serbatoio benzina maggiorato destro con galleggiante Borletti, dal febbraio ' 68 Genuine Maserati Part - New (to order)
                                                                                                            # 002
                                                                                                            MPN: 115 CS 64150
                                                                                                            Serbatoio benzina sinistro con galleggiante Smiths, fino gennaio ' 68
                                                                                                            Serbatoio benzina sinistro con galleggiante Smiths, fino gennaio ' 68 Genuine Maserati Part - New (to order)
                                                                                                            # 002
                                                                                                            MPN: 115 CS 65782
                                                                                                            LARGE LEFT FUEL TANK WITH FLOAT JANUARY ' 68
                                                                                                            Fuel tank ' 68 Genuine Maserati Part - New (to order)
                                                                                                            # 003
                                                                                                            MPN: 107CS58982
                                                                                                            GHIERA FISSAGGIO REOSTATO CON GALLEGGIANTE SMITHS, FINO BORLETTI, DAL FEBBRAIO ' 68
                                                                                                            Ring nut for fixing level indicator on the tank Genuine Maserati Part - New (to order)
                                                                                                            # 004
                                                                                                            MPN: 107/A CS 61744
                                                                                                            Galleggiante completo di reostato (destro) Smiths, fino gennaio ' 68
                                                                                                            Galleggiante completo di reostato (destro) Smiths, fino gennaio ' 68 Genuine Maserati Part - New (to order)
                                                                                                            # 004
                                                                                                            MPN: 107/A CS 61745
                                                                                                            Galleggiante completo di reostato (sinistro) Smiths, fino gennaio ' 68
                                                                                                            Galleggiante completo di reostato (sinistro) Smiths, fino gennaio ' 68 Genuine Maserati Part - New (to order)
                                                                                                            # 006
                                                                                                            MPN: Gom 54629
                                                                                                            Gommino Ø 24 X 27 X 32 X 3 sul gallegg. Smits, fino genn. ' 68
                                                                                                            Gommino Ø 24 X 27 X 32 X 3 sul gallegg. Smits, fino genn. ' 68 Genuine Maserati Part - New (to order)
                                                                                                            # 007
                                                                                                            MPN: 115 CS 65221
                                                                                                            Reostato con galleggiante Smiths, livello benzina Borletti, dal febbraio ' 68
                                                                                                            Reostato con galleggiante Smiths, livello benzina Borletti, dal febbraio ' 68 Genuine Maserati Part - New (to order)
                                                                                                            # 008
                                                                                                            MPN: 115 CS 66048
                                                                                                            GASKET OR SEAL
                                                                                                            GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                            # 011
                                                                                                            MPN: DNT 47047
                                                                                                            NUT
                                                                                                            NUT Genuine Maserati Part - New (to order)
                                                                                                            # 012
                                                                                                            MPN: RSN/32690
                                                                                                            WASHER
                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                            # 013
                                                                                                            MPN: RNT 47074
                                                                                                            WASHER
                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                            # 015
                                                                                                            MPN: RC 56116
                                                                                                            UNION
                                                                                                            UNION Genuine Maserati Part - New (to order)
                                                                                                            # 018
                                                                                                            MPN: 60 4950 50620
                                                                                                            POMPA ELETTRICA TP. BINDIX, COMPLETA DI RACCORDI
                                                                                                            POMPA ELETTRICA TP. BINDIX, COMPLETA DI RACCORDI Genuine Maserati Part - New (to order)
                                                                                                            # 019
                                                                                                            MPN: 107/A CS 62936
                                                                                                            FILTRO SULLE POMPE BENZINA TP. BENDIX
                                                                                                            FILTRO SUTLA POMPA BENZINA BENDIX Genuine Maserati Part - New (to order)
                                                                                                            # 020
                                                                                                            MPN: 107/A BL 62615
                                                                                                            EARTH CABLE FOR BENDIX PUMPS
                                                                                                            Cavo per massa pompa benzina Genuine Maserati Part - New (to order)
                                                                                                            # 021
                                                                                                            MPN: SLN 62135
                                                                                                            SUPPORT
                                                                                                            SUPPORT Genuine Maserati Part - New (to order)
                                                                                                            # 022
                                                                                                            MPN: DNT 47047
                                                                                                            NUT
                                                                                                            NUT Genuine Maserati Part - New (to order)
                                                                                                            # 024
                                                                                                            MPN: MN 64444
                                                                                                            SLEEVE Ø 8 X 15 X 660 FOR PETROL PIPE FROM TANKS TO PUMPS
                                                                                                            Manicotto Ø 8x15x820 dalla pompa sin. alla valvola 3 vie Genuine Maserati Part - New (to order)
                                                                                                            # 025
                                                                                                            MPN: MN 64444
                                                                                                            MANICOTTO Ø 8 X 15 X 420 DALLA POMPA DESTRA ALLA VALV. 3 VIE
                                                                                                            Manicotto Ø 8x15x820 dalla pompa sin. alla valvola 3 vie Genuine Maserati Part - New (to order)
                                                                                                            # 026
                                                                                                            MPN: MN 64444
                                                                                                            MANICOTTO Ø 8 X 15 X 820 DALLA POMPA SINISTRA ALLA VALV. 3 VIE
                                                                                                            Manicotto Ø 8x15x820 dalla pompa sin. alla valvola 3 vie Genuine Maserati Part - New (to order)
                                                                                                            # 027
                                                                                                            MPN: MN 64444
                                                                                                            MANICOTTO Ø 8 X 15 X 1180 DALLA VALVOLA 2 VIE AT TUBO DI RAME
                                                                                                            Manicotto Ø 8x15x820 dalla pompa sin. alla valvola 3 vie Genuine Maserati Part - New (to order)
                                                                                                            # 028
                                                                                                            MPN: TRN 62404
                                                                                                            COPPER TUBE Ø 6 X 8 X 1960 UNDER THE SPAR
                                                                                                            Tubo di rame Ø 6 x 8 x 715 sotto at parafango Genuine Maserati Part - New (to order)
                                                                                                            # 029
                                                                                                            MPN: MN 64444
                                                                                                            SLEEVE Ø 8 X 15 X 120 FOR COPPER JOINT Tubi
                                                                                                            Manicotto Ø 8x15x820 dalla pompa sin. alla valvola 3 vie Genuine Maserati Part - New (to order)
                                                                                                            # 030
                                                                                                            MPN: TRN 62404
                                                                                                            Tubo di rame Ø 6 x 8 x 715 sotto at parafango
                                                                                                            Tubo di rame Ø 6 x 8 x 715 sotto at parafango Genuine Maserati Part - New (to order)
                                                                                                            # 031
                                                                                                            MPN: MN 64444
                                                                                                            MANICOTTO Ø 8 X 15 X 740 DAL TUBO DI RAME AT FILTRO REQOLATORE
                                                                                                            Manicotto Ø 8x15x820 dalla pompa sin. alla valvola 3 vie Genuine Maserati Part - New (to order)
                                                                                                            # 032
                                                                                                            MPN: MN 64444
                                                                                                            SLEEVE Ø 8 X 15 X 1080 FROM FILTER REGULATOR TO CARBURETORS
                                                                                                            Manicotto Ø 8x15x820 dalla pompa sin. alla valvola 3 vie Genuine Maserati Part - New (to order)
                                                                                                            # 033
                                                                                                            MPN: FRN 63330
                                                                                                            Fascetta Ø 15 fissaggio manicotti
                                                                                                            Fascetta Ø 15 fissaggio manicotti Genuine Maserati Part - New (to order)
                                                                                                            # 034
                                                                                                            MPN: 115 CS 64176
                                                                                                            Right tank seal band, until January ' 68
                                                                                                            from £52.50
                                                                                                            from £52.50
                                                                                                            Right tank seal band, until January ' 68 Genuine Maserati Part - New (to order)
                                                                                                            Right tank seal band, until January ' 68 Genuine Maserati Part - Used In stock
                                                                                                            # 034
                                                                                                            MPN: 115 CS 65783
                                                                                                            Right tank seal band, from February ' 68
                                                                                                            Right tank seal band, from February ' 68 Genuine Maserati Part - New (to order)
                                                                                                            # 035
                                                                                                            MPN: 115 CS 63361
                                                                                                            Left tank seal band, until January ' 68
                                                                                                            from £52.50
                                                                                                            from £52.50
                                                                                                            Left tank seal band, until January ' 68 Genuine Maserati Part - New (to order)
                                                                                                            Left tank seal band, until January ' 68 Genuine Maserati Part - Used In stock
                                                                                                            # 035
                                                                                                            MPN: 115 CS 65784
                                                                                                            Left tank seal band, from February ' 68
                                                                                                            Left tank seal band, from February ' 68 Genuine Maserati Part - New (to order)
                                                                                                            # 037
                                                                                                            MPN: RSN 3 2 6 3 5
                                                                                                            WASHER
                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                            # 038
                                                                                                            MPN: TN 33811
                                                                                                            NORMAL CAP Ø 50 X 2,5 FOR FUEL TANK
                                                                                                            Normal cap for petrol filler neck Genuine Maserati Part - New (to order)
                                                                                                            # 039
                                                                                                            MPN: Corn 50656
                                                                                                            NORMAL RUBBER FOR SAID
                                                                                                            from £105.00
                                                                                                            from £105.00
                                                                                                            NORMAL RUBBER FOR SAID Genuine Maserati Part - New (to order)
                                                                                                            NORMAL RUBBER FOR SAID Genuine Maserati Part - Used In stock
                                                                                                            # 040
                                                                                                            MPN: 15317240
                                                                                                            GASKET
                                                                                                            RUBBER RING TANK FILLER (EACH)
                                                                                                            from £45.07
                                                                                                            from £45.07
                                                                                                            GASKET Genuine Maserati Part - New In stock
                                                                                                            # 040
                                                                                                            MPN: PFN56119
                                                                                                            GASKET
                                                                                                            See also 15317240
                                                                                                            GASKET Genuine Maserati Part - New (to order)
                                                                                                            # 041
                                                                                                            MPN: 115 CS 64694
                                                                                                            SPIRAL HOSE FOR RIGHT FUEL TANK VENT
                                                                                                            Spiral hose for right fuel tank vent Genuine Maserati Part - New (to order)
                                                                                                            # 042
                                                                                                            MPN: 11 CS 64695
                                                                                                            SPIRAL HOSE FOR LEFT FUEL TANK VENT
                                                                                                            SPIRAL HOSE FOR LEFT FUEL TANK VENT Genuine Maserati Part - New (to order)
                                                                                                            # 043
                                                                                                            MPN: MN 60537
                                                                                                            TUBO Ø 5 X 9 X 120 PER DETTO
                                                                                                            Tubo Ø 5x9x120 per detto Genuine Maserati Part - New (to order)
                                                                                                            # 044
                                                                                                            MPN: 15317240
                                                                                                            GASKET
                                                                                                            RUBBER RING TANK FILLER (EACH)
                                                                                                            from £45.07
                                                                                                            from £45.07
                                                                                                            GASKET Genuine Maserati Part - New In stock
                                                                                                            # 045
                                                                                                            MPN: 101/9 CS 54666
                                                                                                            FILTER IN THE FUEL TANK TANK
                                                                                                            FILTER IN THE FUEL TANK TANK Genuine Maserati Part - New (to order)
                                                                                                            # 047
                                                                                                            MPN: RMN 62949
                                                                                                            UNION
                                                                                                            UNION Genuine Maserati Part - New (to order)
                                                                                                            # 048
                                                                                                            MPN: GN 56653
                                                                                                            GASKET OR SEAL
                                                                                                            GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                            # 049
                                                                                                            MPN: TN 45851
                                                                                                            TAPPO Ø 14 X 1,5 X 5 PER SCAR. SULLA VASCHETTA PESC. BENZ.
                                                                                                            Cap Ø 14x1,5x5 for fuel sump tray Genuine Maserati Part - New (to order)
                                                                                                            # 050
                                                                                                            MPN: 122 CS 80495
                                                                                                            FUEL FILTER REGULATOR
                                                                                                            from £131.25
                                                                                                            from £131.25
                                                                                                            FUEL FILTER REGULATOR Genuine Maserati Part - New In stock
                                                                                                            # 051
                                                                                                            MPN: 107 CS 58399
                                                                                                            UNION
                                                                                                            UNION Genuine Maserati Part - New (to order)
                                                                                                            # 052
                                                                                                            MPN: BNT. 53968
                                                                                                            BOLT
                                                                                                            BOLT Genuine Maserati Part - New (to order)
                                                                                                            # 053
                                                                                                            MPN: RSN/32690
                                                                                                            WASHER
                                                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                                                            # 054
                                                                                                            MPN: RNT 47074
                                                                                                            WASHER
                                                                                                            WASHER Genuine Maserati Part - New (to order)
