Maserati Ghibli 4.7 / 4.9 Lights Parts Diagram

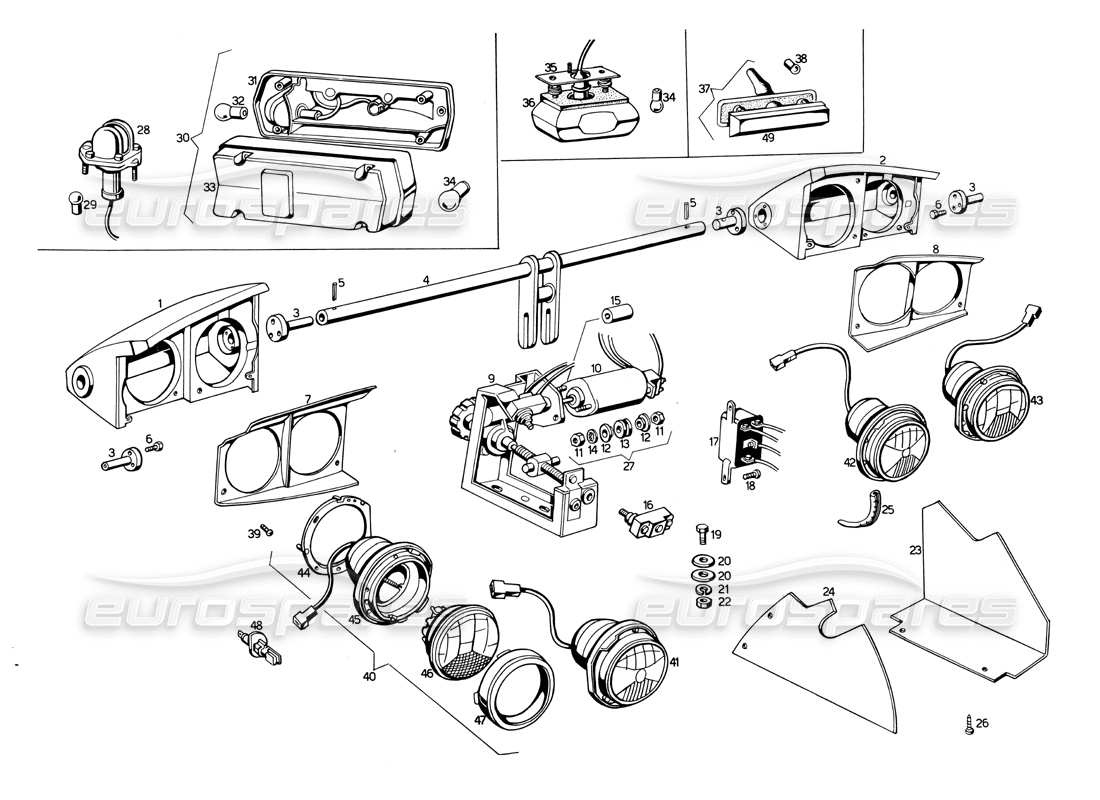

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                  #
                                                                                                  Part number
                                                                                                  Description
                                                                                                  Price
                                                                                                  # 001
                                                                                                  MPN: 115 BM 66208
                                                                                                  RIGHT EYELID, RAW HEADLIGHTS
                                                                                                  from £1,417.50
                                                                                                  from £1,417.50
                                                                                                  # 002
                                                                                                  MPN: 115 BM 66207
                                                                                                  LEFT EYELID HEADLIGHTS RAW
                                                                                                  from £1,417.50
                                                                                                  from £1,417.50
                                                                                                  # 003
                                                                                                  MPN: 115 BM 66209
                                                                                                  HEADLIGHT EYELID TOW JOINT
                                                                                                  # 004
                                                                                                  MPN: 115 BM 66210
                                                                                                  CROCERA COMANDO PALPEBRE FANALI
                                                                                                  # 005
                                                                                                  MPN: SN SN 66205
                                                                                                  PIN

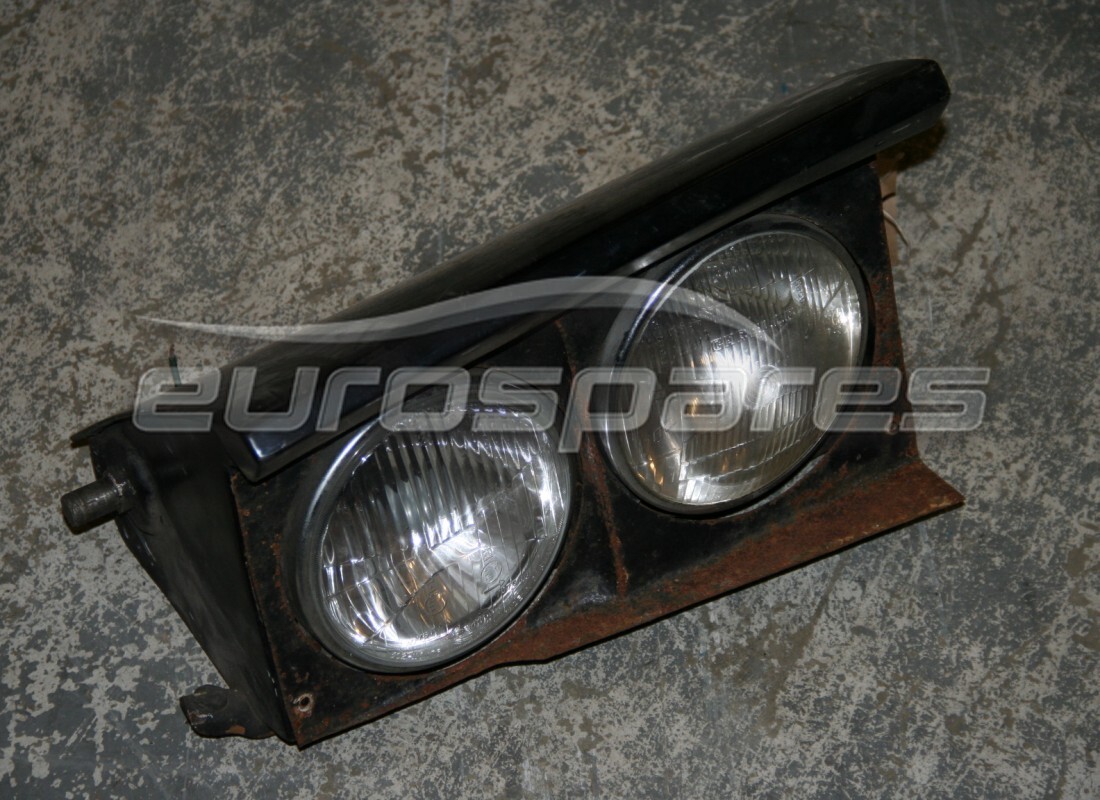

                                                                                                  # 007
                                                                                                  MPN: 115 BL 66212
                                                                                                  RIGHT HEADLIGHT FRAME
                                                                                                  from £394.88
                                                                                                  from £394.88

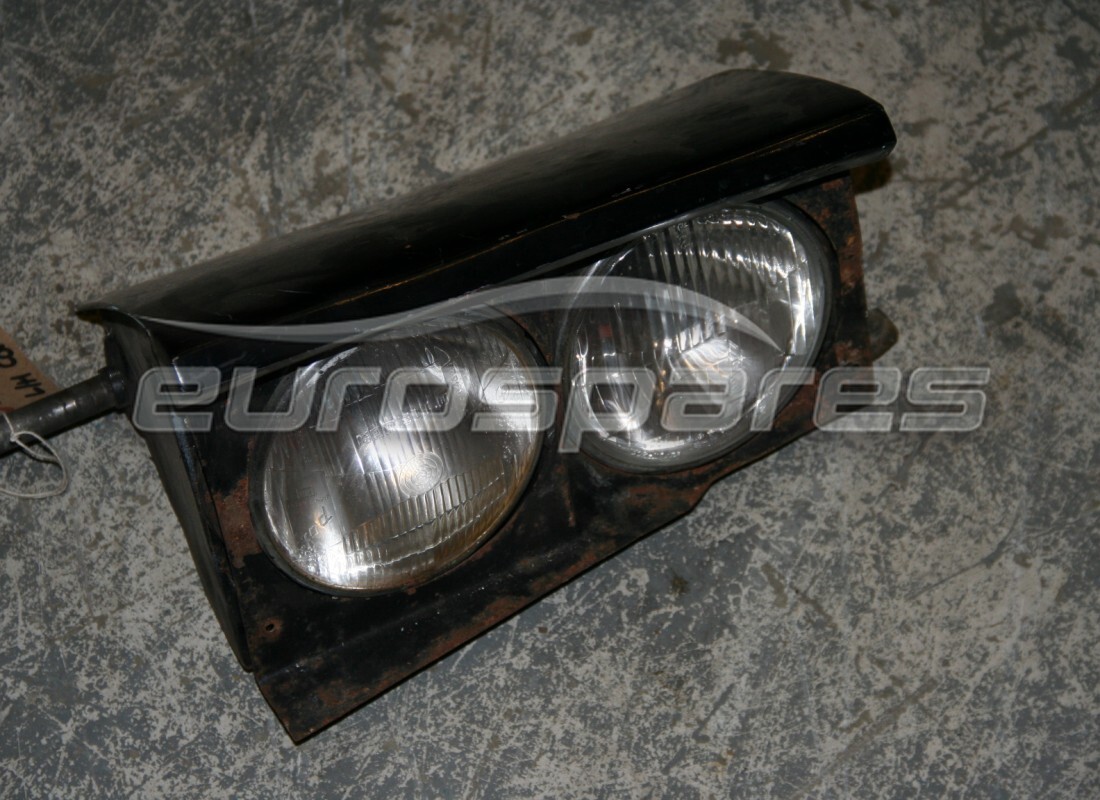

                                                                                                  # 008
                                                                                                  MPN: 115 BL 66211
                                                                                                  LEFT HEADLIGHT FRAME
                                                                                                  # 009
                                                                                                  MPN: 115 BL 66213
                                                                                                  GRUPPO ALZAFARI COMPLETO DI MOTORINO
                                                                                                  # 010
                                                                                                  MPN: 115 BL 65968
                                                                                                  MOTORINO PER ALZAFARI TP. DUCELLIER N
                                                                                                  # 011
                                                                                                  MPN: DNT 47046
                                                                                                  NUT
                                                                                                  from £0.86
                                                                                                  from £0.86
                                                                                                  This part replaces part number 47046
                                                                                                  # 012
                                                                                                  MPN: Non fornibile separato
                                                                                                  BUSSOLINA FISSAGGIO MOTORINO ALZAFARI
                                                                                                  # 014
                                                                                                  MPN: RDI 58544
                                                                                                  WASHER
                                                                                                  # 015
                                                                                                  MPN: 115 BL 66214
                                                                                                  ELASTIC HEADLIGHT TOWING JOINT
                                                                                                  # 016
                                                                                                  MPN: 115 BL 65738
                                                                                                  PULSANTE FINE CORSA ALZAFARI
                                                                                                  # 017
                                                                                                  MPN: 109/A BL 62873
                                                                                                  RELAY PER ALZAFARI
                                                                                                  from £58.98
                                                                                                  from £58.98
                                                                                                  # 018
                                                                                                  MPN: VAT 63554
                                                                                                  SCREW
                                                                                                  # 019
                                                                                                  MPN: BNT. 53968
                                                                                                  BOLT
                                                                                                  # 021
                                                                                                  MPN: RSN/32690
                                                                                                  WASHER
                                                                                                  # 022
                                                                                                  MPN: DNT 47047
                                                                                                  NUT
                                                                                                  # 023
                                                                                                  MPN: 115 BM 65639
                                                                                                  LEFT SIDE WALL PROTECTION AIZA ART
                                                                                                  # 024
                                                                                                  MPN: 115 BM 65638
                                                                                                  PARETE LATERALE DESTRA PROTEZIONE ALZAFARI
                                                                                                  # 025
                                                                                                  MPN: PRN 65632
                                                                                                  RUBBER PROFILE FOR SAID 95 MM
                                                                                                  # 027
                                                                                                  MPN: 107 - BL 62050
                                                                                                  GRUPPO PARTICOLARI FISSAGGIO MOTORINO ALZAFARI TP. DUCELLIER (RIF. DUCELLIER N. 21366)
                                                                                                  # 028
                                                                                                  MPN: 115 BL 64614
                                                                                                  LIGHT FOR LICENSE PLATE LIGHTING
                                                                                                  # 029
                                                                                                  MPN: LPN 50810
                                                                                                  LAMP 12V 5W
                                                                                                  # 030
                                                                                                  MPN: 006744064
                                                                                                  RH Rear Light Assembly
                                                                                                  (Series 2)
                                                                                                  from £936.42
                                                                                                  from £936.42
                                                                                                  # 030
                                                                                                  MPN: 006744065
                                                                                                  LH Rear Light Assembly
                                                                                                  (Series 2)
                                                                                                  from £312.14
                                                                                                  from £312.14
                                                                                                  # 030
                                                                                                  MPN: 006744072
                                                                                                  LH Rear Lens
                                                                                                  (Series 2)
                                                                                                  from £88.31
                                                                                                  from £88.31
                                                                                                  # 030
                                                                                                  MPN: 006744073
                                                                                                  RH REAR LENS
                                                                                                  (Series 2)
                                                                                                  from £183.75
                                                                                                  from £183.75
                                                                                                  # 030
                                                                                                  MPN: 115 BL 64601
                                                                                                  RH Rear Light Assembly
                                                                                                  (Series 1)
                                                                                                  # 030
                                                                                                  MPN: 115 BL 64602
                                                                                                  LH Rear Light Assembly
                                                                                                  (Series 1)
                                                                                                  from £204.75
                                                                                                  from £204.75
                                                                                                  # 030
                                                                                                  MPN: 115 BL 64605
                                                                                                  TAILLIGHT FOR FRANCE, RIGHT
                                                                                                  from £204.75
                                                                                                  from £204.75
                                                                                                  # 030
                                                                                                  MPN: 115 BL 64606
                                                                                                  LH REAR LAMP ASSY
                                                                                                  VALID FOR FRANCE
                                                                                                  from £262.50
                                                                                                  from £262.50
                                                                                                  # 030
                                                                                                  MPN: 115 BL 64609
                                                                                                  TAIL LIGHT FOR USA, RIGHT
                                                                                                  # 030
                                                                                                  MPN: 115 BL 64610
                                                                                                  TAILLIGHT FOR USA, LEFT
                                                                                                  # 031
                                                                                                  MPN: 115 BL 66274
                                                                                                  HOUSING FOR RIGHT REAR LIGHT
                                                                                                  # 032
                                                                                                  MPN: LPN 48146
                                                                                                  LAMP 12 V 20 W PER IUCI DIREZIONE POSTER.
                                                                                                  # 033
                                                                                                  MPN: 115 BL 64603
                                                                                                  RH REAR LIGHT LENS
                                                                                                  # 033
                                                                                                  MPN: 115 BL 64604
                                                                                                  LH REAR LIGHT LENS
                                                                                                  from £239.32
                                                                                                  from £239.32
                                                                                                  # 033
                                                                                                  MPN: 115 BL 64607
                                                                                                  METACRILATO PER FANALE POSTERIORE DESTRO (PER FRANCIA)
                                                                                                  # 033
                                                                                                  MPN: 115 BL 64608
                                                                                                  METACRILATO PER FANALE POSTERIORE SINISTRO (PER FRANCIA)
                                                                                                  # 033
                                                                                                  MPN: 115 BL 64611
                                                                                                  METACRILATO PER FANALE POSTERIORE DESTRO (PER USA)
                                                                                                  # 033
                                                                                                  MPN: 115 BL 64612
                                                                                                  METACRILATO PER FANALE POSTERIORE SINISTRO (PER USA)
                                                                                                  # 034
                                                                                                  MPN: LPN 48147
                                                                                                  LAMP 12V 5+20W
                                                                                                  # 034
                                                                                                  MPN: LPN 48147
                                                                                                  LAMP 12V 5+20W
                                                                                                  # 035
                                                                                                  MPN: 115 BL 66276
                                                                                                  RIGHT FRONT LIGHT FIXING BASE
                                                                                                  # 035
                                                                                                  MPN: 115 BL 66277
                                                                                                  LEFT FRONT LIGHT FIXING BASE
                                                                                                  # 036
                                                                                                  MPN: BL62600
                                                                                                  RH SIDE LAMP ASSY
                                                                                                  from £152.25
                                                                                                  from £152.25
                                                                                                  # 036
                                                                                                  MPN: BL70719
                                                                                                  LH FRONT INDICATOR LAMP
                                                                                                  from £288.47
                                                                                                  from £288.47
                                                                                                  # 037
                                                                                                  MPN: 115 BL 64599
                                                                                                  LIGHT FOR SIDE DIRECTION LIGHTS
                                                                                                  # 038
                                                                                                  MPN: LPN 48151
                                                                                                  BULBS 12 V 3W FOR SIDE DIRECTION LIGHTS
                                                                                                  # 039
                                                                                                  MPN: VAT 64813
                                                                                                  SCREW
                                                                                                  # 040
                                                                                                  MPN: 107/A BL 62991
                                                                                                  OUTER RIGHT FRONT HEADLAMP
                                                                                                  # 040
                                                                                                  MPN: 107/A BL 65716
                                                                                                  OUTER RIGHT FRONT HEADLAMP FRANCE
                                                                                                  # 041
                                                                                                  MPN: 107/A BL 65717
                                                                                                  INTERIOR RIGHT FRONT HEADLAMP FOR FRANCE
                                                                                                  # 041
                                                                                                  MPN: 107/ABL62992
                                                                                                  INTERNAL RIGHT FRONT HEADLIGHT
                                                                                                  # 042
                                                                                                  MPN: 107/A BL 62994
                                                                                                  INTERNAL LEFT FRONT HEADLAMP
                                                                                                  # 042
                                                                                                  MPN: 107/A BL 65719
                                                                                                  INTERNAL LEFT FRONT HEADLAMP FOR FRANCE
                                                                                                  # 043
                                                                                                  MPN: 107/A BL 62993
                                                                                                  OUTER LEFT FRONT HEADLAMP
                                                                                                  # 043
                                                                                                  MPN: 107/A BL 65718
                                                                                                  OUTER LEFT FRONT HEADLAMP FOR FRANCE
                                                                                                  # 044
                                                                                                  MPN: 107/A BL 66269
                                                                                                  GASKET OR SEAL
                                                                                                  # 044
                                                                                                  MPN: 107/A BL 66270
                                                                                                  GASKET OR SEAL

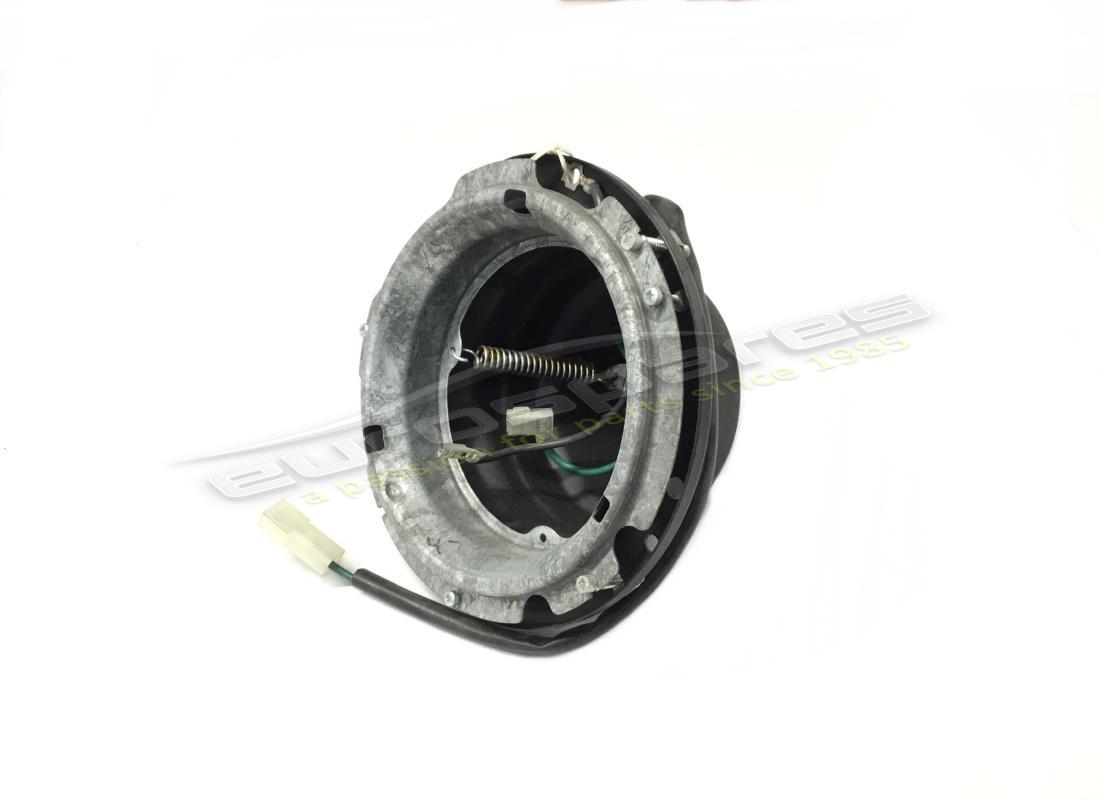

                                                                                                  # 045
                                                                                                  MPN: 107/A BL 66271
                                                                                                  BOX FOR RIGHT LOW BEAM AND LEFT HIGH BEAM.
                                                                                                  from £50.40
                                                                                                  from £50.40
                                                                                                  # 045
                                                                                                  MPN: 107/ABL66272
                                                                                                  BOX FOR RIGHT LOW BEAM AND LEFT HIGH BEAM.
                                                                                                  from £38.85
                                                                                                  from £38.85

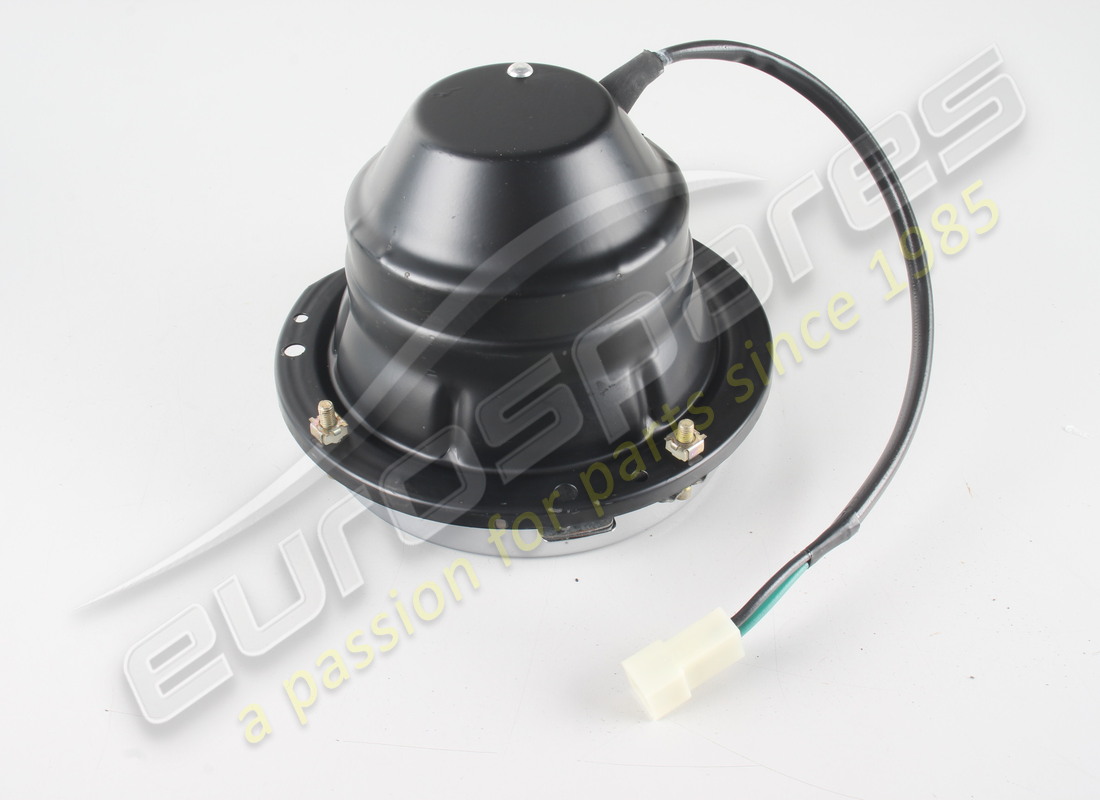

                                                                                                  # 046
                                                                                                  MPN: 101/10 BL 60393
                                                                                                  LIGHT UNIT FOR LOW BEAM HEADLIGHTS FOR RIGHT HAND DRIVE
                                                                                                  # 046
                                                                                                  MPN: 101/10 BL 66279
                                                                                                  LIGHT UNIT FOR HIGH BEAM HEADLIGHTS FOR RIGHT HAND DRIVE
                                                                                                  # 046
                                                                                                  MPN: 107 BL 59581
                                                                                                  LIGHT UNIT FOR LOW BEAM HEADLIGHTS FOR SODIUM US
                                                                                                  # 046
                                                                                                  MPN: 107 BL 59582
                                                                                                  LIGHT UNIT FOR HIGH BEAM HEADLIGHTS FOR SODIUM USA
                                                                                                  # 046
                                                                                                  MPN: 107/ABL64591
                                                                                                  LIGHT UNIT FOR JODIUM HIGH BEAM HEADLIGHTS
                                                                                                  # 046
                                                                                                  MPN: 115 BL 64592
                                                                                                  LIGHT UNIT FOR JODIUM LOW BEAM HEADLIGHTS
                                                                                                  # 047
                                                                                                  MPN: 107/A BL 66273
                                                                                                  HEADLIGHT HEADLIGHT SEALING FRAME
                                                                                                  from £38.85
                                                                                                  from £38.85
                                                                                                  # 048
                                                                                                  MPN: LPN 63257
                                                                                                  Lampade 12V 55W allo jodio per fari anteriori
                                                                                                  # 048
                                                                                                  MPN: LPN/48921
                                                                                                  BULBS 12V 40+45W FOR HEADLIGHTS FOR CARS. RIGHT DRIVE
                                                                                                  # 049
                                                                                                  MPN: 115 BL 65245
                                                                                                  METHACRYLATE FOR SIDE LIGHTS
