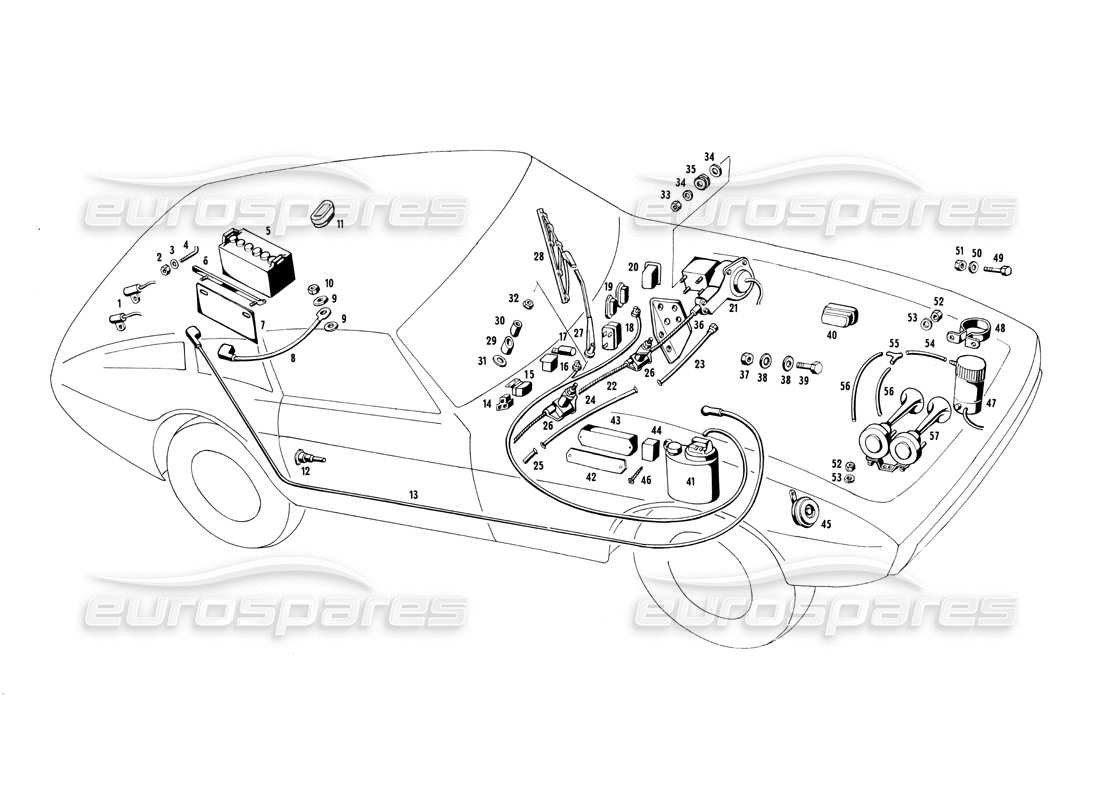

Maserati Ghibli 4.7 / 4.9 Electrical Equipment Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                    #
                                                                                                                    Part number
                                                                                                                    Description
                                                                                                                    Key
                                                                                                                    Price
                                                                                                                    # 001
                                                                                                                    MPN: 101/7 ME-52898
                                                                                                                    CONDENSOR
                                                                                                                    CONDENSOR Genuine Maserati Part - New (to order)
                                                                                                                    # 002
                                                                                                                    MPN: DNT 47047
                                                                                                                    NUT
                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                    # 003
                                                                                                                    MPN: RN 32025
                                                                                                                    WASHER
                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                    # 004
                                                                                                                    MPN: 107 - BL 56622
                                                                                                                    TIE ROD
                                                                                                                    TIE ROD Genuine Maserati Part - New (to order)
                                                                                                                    # 005
                                                                                                                    MPN: 101/9 BL 54977
                                                                                                                    Batteria d'alimentazione FIAMM 6 DE 4
                                                                                                                    Batteria d'alimentazione FIAMM 6 DE 4 Genuine Maserati Part - New (to order)
                                                                                                                    # 006
                                                                                                                    MPN: 101/10 BL 58001
                                                                                                                    FRAME HOLDS BATTERY TO FRAME
                                                                                                                    FRAME HOLDS BATTERY TO FRAME Genuine Maserati Part - New (to order)
                                                                                                                    # 007
                                                                                                                    MPN: 101/10 BL 58553
                                                                                                                    SPARE WHEEL PROTECTIVE BULKHEAD
                                                                                                                    SPARE WHEEL PROTECTIVE BULKHEAD Genuine Maserati Part - New (to order)
                                                                                                                    # 008
                                                                                                                    MPN: 109 BL 56619
                                                                                                                    CAVO COMPLETO PER MASSA BATTERIA SUL TELAIO
                                                                                                                    CAVO COMPLETO PER MASSA BATTERIA SUL TELAIO Genuine Maserati Part - New (to order)
                                                                                                                    # 011
                                                                                                                    MPN: 107 BL 56064
                                                                                                                    LAMP HOLDER FOR INTERIOR LIGHTING
                                                                                                                    Lamp holder for bonnet lighting Genuine Maserati Part - New (to order)
                                                                                                                    # 012
                                                                                                                    MPN: 115 BL 64600
                                                                                                                    DOOR OPENING LIGHT
                                                                                                                    DOOR OPENING LIGHT Genuine Maserati Part - New (to order)
                                                                                                                    # 013
                                                                                                                    MPN: 107 BL 57185
                                                                                                                    CABLE FROM THE BATTERY TO THE STARTER MOTOR
                                                                                                                    Cable from battery to starter motor Genuine Maserati Part - New (to order)
                                                                                                                    # 014
                                                                                                                    MPN: 107 ME 58024
                                                                                                                    BLOCCHETTO COLLEGAMENTO REGOLATORE ALTERNAT.
                                                                                                                    Connector for vacuum control solenoid valve Genuine Maserati Part - New (to order)
                                                                                                                    # 015
                                                                                                                    MPN: 107 - ME 58568
                                                                                                                    REGOLATORE PER ALTERNATORE TIPO BOSCH
                                                                                                                    VOLTAGE REGULATOR FOR BOSCH ALTERNATOR Genuine Maserati Part - New (to order)
                                                                                                                    # 016
                                                                                                                    MPN: 107 BL 57631
                                                                                                                    RELAY PER COMANDO TROMBE PNEUMATICHE
                                                                                                                    Relay per trombe pneumatiche Genuine Maserati Part - New (to order)
                                                                                                                    # 017
                                                                                                                    MPN: 107 - BL 57278
                                                                                                                    INTERMITTENT DIRECTION LIGHT CONTROL
                                                                                                                    Intermittenza per luci di direzione Genuine Maserati Part - New (to order)
                                                                                                                    # 018
                                                                                                                    MPN: 107 BL 56288
                                                                                                                    HIGH BEAM HEADLIGHT CONTROL RELAY WITH FLASH
                                                                                                                    Rele per ventole benzlna e avviamento motore Genuine Maserati Part - New (to order)
                                                                                                                    # 019
                                                                                                                    MPN: 107 BC 54807
                                                                                                                    Regolatori tensione per strumenti SMITHS
                                                                                                                    Regolatori tensione per strumenti SMITHS Genuine Maserati Part - New (to order)
                                                                                                                    # 020
                                                                                                                    MPN: 107 BL 56288
                                                                                                                    RELAY COMANDO MEZZE LUCI CON FARI ALTO JODIO
                                                                                                                    Rele per ventole benzlna e avviamento motore Genuine Maserati Part - New (to order)
                                                                                                                    # 021
                                                                                                                    MPN: 107 BL 59648
                                                                                                                    Motorino comando tergicristallo (fino Genn. ' 68)
                                                                                                                    Motorino comando tergicristallo (fino Genn. ' 68) Genuine Maserati Part - New (to order)
                                                                                                                    # 021
                                                                                                                    MPN: 107/A BL 65745
                                                                                                                    Motorino comando tergicristallo completo di staffe a accessori (da Febbraio ' 68)
                                                                                                                    from £888.27
                                                                                                                    from £888.27
                                                                                                                    Motorino comando tergicristallo completo di staffe a accessori (da Febbraio ' 68) Genuine Maserati Part - New (to order)
                                                                                                                    # 022
                                                                                                                    MPN: 107 BL 59643
                                                                                                                    FLEXIBLE HOUSING FOR WINDSHIELD WIPER CONTROL
                                                                                                                    FLEXIBLE HOUSING FOR WINDSHIELD WIPER CONTROL Genuine Maserati Part - New (to order)
                                                                                                                    # 023
                                                                                                                    MPN: 115BL64426
                                                                                                                    HOSE COMPLETE WITH NUT FOR FLEXIBLE SHEATH
                                                                                                                    HOSE COMPLETE WITH NUT FOR FLEXIBLE SHEATH Genuine Maserati Part - New (to order)
                                                                                                                    # 024
                                                                                                                    MPN: 115 BL 63965
                                                                                                                    CENTRAL TUBE FOR FLEXIBLE SHEATH
                                                                                                                    CENTRAL TUBE FOR FLEXIBLE SHEATH Genuine Maserati Part - New (to order)
                                                                                                                    # 025
                                                                                                                    MPN: 107BL59640
                                                                                                                    TERMINAL TUBE FOR FLEXIBLE SHEATH
                                                                                                                    TERMINAL TUBE FOR FLEXIBLE SHEATH Genuine Maserati Part - New (to order)
                                                                                                                    # 026
                                                                                                                    MPN: 107 BL 59490
                                                                                                                    BOX WITH WIPER ARMS CONTROL SHAFT
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    Genuine Maserati Part (no longer available to order)
                                                                                                                    # 027
                                                                                                                    MPN: 115BL64116
                                                                                                                    15 ARM FOR WIPER BLADES
                                                                                                                    from £129.12
                                                                                                                    from £129.12
                                                                                                                    15 ARM FOR WIPER BLADES Genuine Maserati Part - New (to order)
                                                                                                                    # 028
                                                                                                                    MPN: 115 BL 64702
                                                                                                                    15 WIPER BLADE
                                                                                                                    from £84.78
                                                                                                                    from £84.78
                                                                                                                    15 WIPER BLADE Genuine Maserati Part - New (to order)
                                                                                                                    # 029
                                                                                                                    MPN: 109 - BL 59473
                                                                                                                    EXTERNAL HUBCOVER FOR WINDSHIELD WIPER CONTROL SHAFT
                                                                                                                    EXTERNAL HUBCOVER FOR LUCAS WIPER CONTROL SHAFT Genuine Maserati Part - New (to order)
                                                                                                                    # 030
                                                                                                                    MPN: 109 BL 59474
                                                                                                                    Distanziale sull'alberino comando tergicristalli
                                                                                                                    Distanziale sull'alberino comando tergicristalli Genuine Maserati Part - New (to order)
                                                                                                                    # 032
                                                                                                                    MPN: DNT 59475
                                                                                                                    NUT
                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                    # 034
                                                                                                                    MPN: RN 58406
                                                                                                                    WASHER
                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                    # 035
                                                                                                                    MPN: GOM 58407
                                                                                                                    Gommino sul motorino tergicristalli (fino Genn. ' 68)
                                                                                                                    Gommino sul motorino tergicristalli (fino Genn. ' 68) Genuine Maserati Part - New (to order)
                                                                                                                    # 036
                                                                                                                    MPN: 115 BL 65690
                                                                                                                    SUPPORT
                                                                                                                    SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                    # 037
                                                                                                                    MPN: DNT 47047
                                                                                                                    NUT
                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                    # 038
                                                                                                                    MPN: RNT 47074
                                                                                                                    WASHER
                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                    # 040
                                                                                                                    MPN: 107 BL 56064
                                                                                                                    Lamp holder for bonnet lighting
                                                                                                                    Lamp holder for bonnet lighting Genuine Maserati Part - New (to order)
                                                                                                                    # 041
                                                                                                                    MPN: 115 BL 65969
                                                                                                                    TANK WITH Tubi AND WINDSHIELD WASHER SPRAYERS
                                                                                                                    from £241.18
                                                                                                                    from £241.18
                                                                                                                    This part replaces part number 115 BL 69815

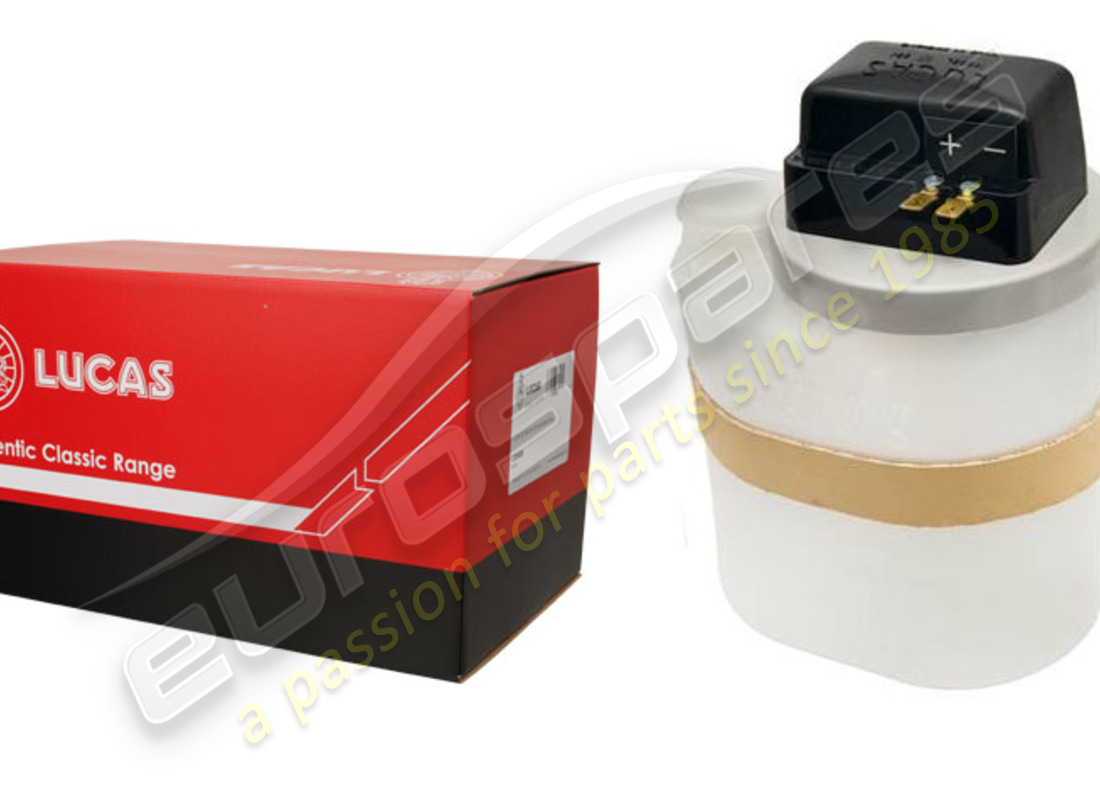

                                                                                                                    LUCAS SCREENJET WASHER Genuine Maserati Part - New (to order)
                                                                                                                    LUCAS SCREENJET WASHER Eurospares Approved Part - New In stock
                                                                                                                    # 042
                                                                                                                    MPN: 107/A BL 62995
                                                                                                                    VALVE BOX PROTECTION BASE
                                                                                                                    VALVE BOX PROTECTION BASE Genuine Maserati Part - New (to order)
                                                                                                                    # 043
                                                                                                                    MPN: 107/A BL 61963
                                                                                                                    VALVE BOX FOR ELECTRICAL SYSTEM
                                                                                                                    VALVE BOX FOR ELECTRICAL SYSTEM Genuine Maserati Part - New (to order)
                                                                                                                    # 044
                                                                                                                    MPN: 115 BL 64574
                                                                                                                    VALVE BOX FOR HEADLIGHT MOTOR
                                                                                                                    VALVE BOX FOR HEADLIGHT MOTOR Genuine Maserati Part - New (to order)
                                                                                                                    # 045
                                                                                                                    MPN: 60 - 17338 50343
                                                                                                                    DIAPHRAGM HORN FOR CITIES
                                                                                                                    Avvisatore acustico di citta' (solo a richiesta) Genuine Maserati Part - New (to order)
                                                                                                                    # 046
                                                                                                                    MPN: VAT 56752
                                                                                                                    SCREW
                                                                                                                    SCREW Genuine Maserati Part - New (to order)
                                                                                                                    # 047
                                                                                                                    MPN: 101/7 17349 52102
                                                                                                                    ONE SOUND PNEUMATIC HORN COMPRESSOR
                                                                                                                    ONE SOUND PNEUMATIC HORN COMPRESSOR Genuine Maserati Part - New (to order)
                                                                                                                    # 048
                                                                                                                    MPN: 107 - BL 58685
                                                                                                                    Fascetta per fissaggio compressore trombe
                                                                                                                    Fascetta per fissaggio compressore trombe Genuine Maserati Part - New (to order)
                                                                                                                    # 049
                                                                                                                    MPN: BNT 54584
                                                                                                                    BOLT
                                                                                                                    SCREW Genuine Maserati Part - New (to order)
                                                                                                                    # 050
                                                                                                                    MPN: RNT 47074
                                                                                                                    WASHER
                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                    # 051
                                                                                                                    MPN: DNT 47047
                                                                                                                    NUT
                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                    # 053
                                                                                                                    MPN: RSN 3 2 6 3 5
                                                                                                                    WASHER
                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                    # 054
                                                                                                                    MPN: TPN 58683
                                                                                                                    PLASTIC HOSE FROM THE COMPRESSOR TO THE THREE WAY
                                                                                                                    Tubo plasttCa dal compressors al 3 vie Genuine Maserati Part - New (to order)
                                                                                                                    # 055
                                                                                                                    MPN: 107 - BL 58684
                                                                                                                    UNION
                                                                                                                    UNION Genuine Maserati Part - New (to order)
                                                                                                                    # 056
                                                                                                                    MPN: TPN 58683
                                                                                                                    PLASTIC PIPE FROM THE THREE WAY TO THE HORNS
                                                                                                                    Tubo plasttCa dal compressors al 3 vie Genuine Maserati Part - New (to order)
                                                                                                                    # 057
                                                                                                                    MPN: 101/7 17347 52101
                                                                                                                    COMPLETE PNEUMATIC HORNS WITH ONE SOUND
                                                                                                                    COMPLETE PNEUMATIC HORNS WITH ONE SOUND Genuine Maserati Part - New (to order)
