maserati ghibli 4.7 / 4.9 body shell parts diagram

035 - Body Shell

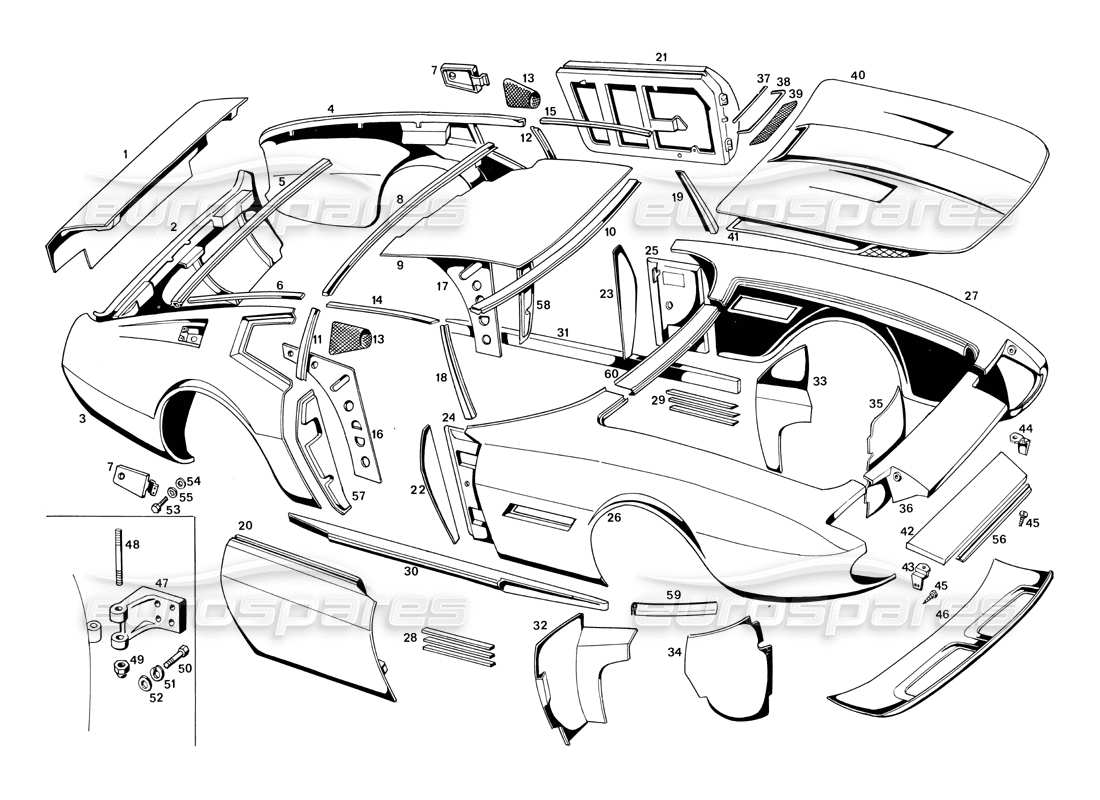

Maserati Ghibli 4.7 / 4.9 Body Shell Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                            #
                                                                                                                            Part number
                                                                                                                            Description
                                                                                                                            Price
                                                                                                                            # 000
                                                                                                                            MPN: 115 BM 66003

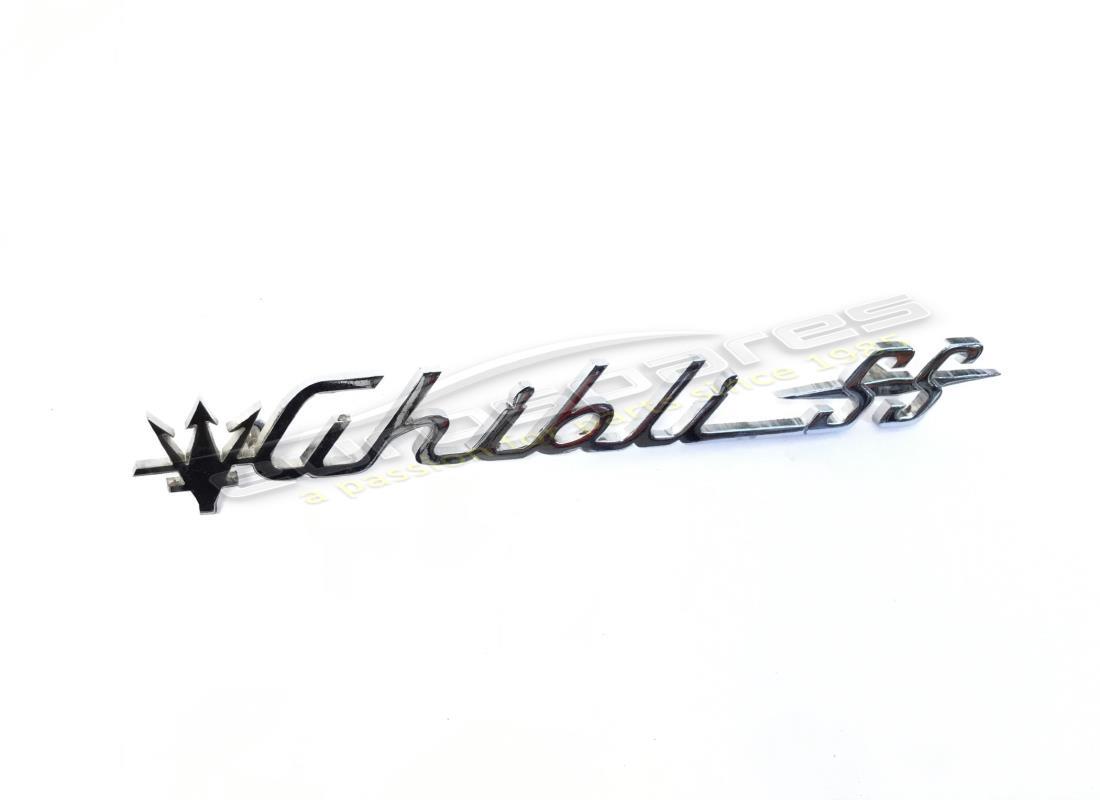

                                                                                                                            GHIBLI SS CHROME SCRIPT
                                                                                                                            from £89.25
                                                                                                                            from £89.25
                                                                                                                            # 001
                                                                                                                            MPN: 115 BM 66004

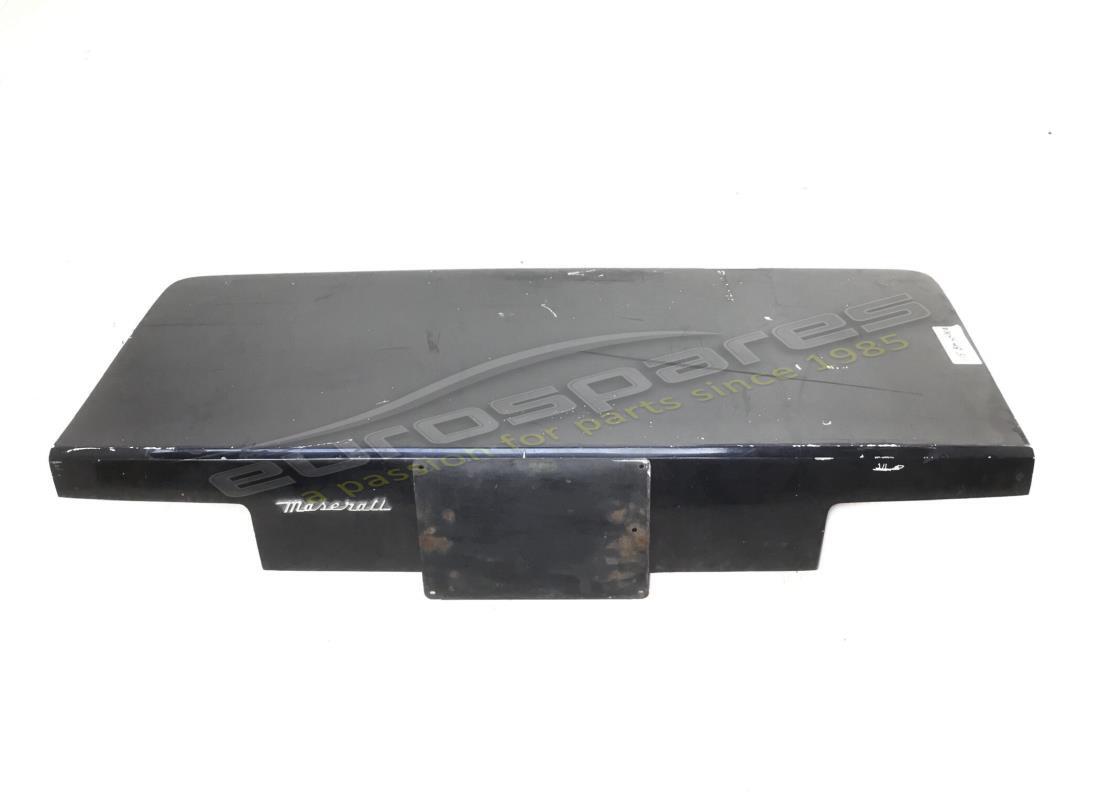

                                                                                                                            COVER
                                                                                                                            from £2,541.00
                                                                                                                            from £2,541.00
                                                                                                                            # 002
                                                                                                                            MPN: 115 BM 66005
                                                                                                                            REAR TRUNK BACK
                                                                                                                            # 003
                                                                                                                            MPN: 115 BM 66006
                                                                                                                            PARAFANGO POSTERIORE DESTRO
                                                                                                                            # 004
                                                                                                                            MPN: 115 BM 66007
                                                                                                                            PARAFANGO POSTERIORE SINISTRO
                                                                                                                            # 005
                                                                                                                            MPN: 115 BM 66008
                                                                                                                            TRUNK BONNET SUPPORT CROSSBAR
                                                                                                                            # 006
                                                                                                                            MPN: 115 BT 66009
                                                                                                                            LEFT REAR FENDER LONGITUDINAL BEAM
                                                                                                                            # 006
                                                                                                                            MPN: 115 BT 66010
                                                                                                                            RIGHT REAR FENDER LONGITUDINAL BEAM
                                                                                                                            # 007
                                                                                                                            MPN: 115 BM 65565
                                                                                                                            COVER
                                                                                                                            from £326.28
                                                                                                                            from £326.28
                                                                                                                            # 007
                                                                                                                            MPN: 115 BM 65566
                                                                                                                            COVER
                                                                                                                            from £326.28
                                                                                                                            from £326.28
                                                                                                                            # 008
                                                                                                                            MPN: 115 BT 66011
                                                                                                                            REAR HOOD CROSS MEMBER
                                                                                                                            # 009
                                                                                                                            MPN: 115 BT 66012
                                                                                                                            ROOF PANEL
                                                                                                                            # 010
                                                                                                                            MPN: 115 BT 66013
                                                                                                                            FRONT HOOD CROSS MEMBER
                                                                                                                            # 011
                                                                                                                            MPN: 115 BT 66014
                                                                                                                            RIGHT REAR DEFLECTOR POST
                                                                                                                            # 012
                                                                                                                            MPN: 115 BT 66015
                                                                                                                            LEFT REAR DEFLECTOR POST
                                                                                                                            # 013
                                                                                                                            MPN: 115 BM 65564
                                                                                                                            FUNNEL DUCT FOR INTERIOR VACUUM
                                                                                                                            # 014
                                                                                                                            MPN: 115 BT 66016
                                                                                                                            RIGHT LONGITUDINAL BEAM OF HOOD
                                                                                                                            # 015
                                                                                                                            MPN: 115 BT 66017
                                                                                                                            LEFT LONGITUDINAL BEAM OF HOOD
                                                                                                                            # 016
                                                                                                                            MPN: 115 BT 66018
                                                                                                                            FIANCHETTO SOPRA PASSARUOTA DESTRO
                                                                                                                            # 017
                                                                                                                            MPN: 115 BT 66019
                                                                                                                            FIANCHETTO SOPRA PASSARUOTA SINISTRO
                                                                                                                            # 018
                                                                                                                            MPN: 115 BT 66020
                                                                                                                            RIGHT DASHBOARD pillar
                                                                                                                            # 019
                                                                                                                            MPN: 115 BT 66021
                                                                                                                            LEFT DASHBOARD POST
                                                                                                                            # 020
                                                                                                                            MPN: 115 BO 64920
                                                                                                                            RIGHT DOOR WITH HINGES
                                                                                                                            # 021
                                                                                                                            MPN: 115 BO 64921
                                                                                                                            LEFT DOOR WITH HINGES
                                                                                                                            # 022
                                                                                                                            MPN: 115 BO 66022
                                                                                                                            FRONT RIGHT DOOR BACKPLATE
                                                                                                                            # 023
                                                                                                                            MPN: 115 BO 66023
                                                                                                                            LEFT FRONT DOOR BACK
                                                                                                                            # 024
                                                                                                                            MPN: 115 BO 66024
                                                                                                                            RIGHT DOOR SUPPORT SIDE
                                                                                                                            # 025
                                                                                                                            MPN: 115 BO 66025
                                                                                                                            LEFT DOOR SUPPORT SIDE
                                                                                                                            # 026
                                                                                                                            MPN: 115 BM 66026
                                                                                                                            PARAFANGO ANTERIORE DESTRO
                                                                                                                            # 027
                                                                                                                            MPN: 115 BM 66027
                                                                                                                            PARAFANGO ANTERIORE SINISTRO
                                                                                                                            # 028
                                                                                                                            MPN: 115 BM 65562
                                                                                                                            RIGHT FRONT FENDER AIR INTAKE BARRIER
                                                                                                                            from £225.75
                                                                                                                            from £225.75
                                                                                                                            # 029
                                                                                                                            MPN: 115 BM 65563
                                                                                                                            LEFT FRONT FENDER AIR INTAKE BARRIER
                                                                                                                            from £225.75
                                                                                                                            from £225.75
                                                                                                                            # 030
                                                                                                                            MPN: 115 BM 66028
                                                                                                                            RIGHT FENDER ASSEMBLY SECTION
                                                                                                                            from £1,226.28
                                                                                                                            from £1,226.28
                                                                                                                            # 031
                                                                                                                            MPN: 115 BM 66029
                                                                                                                            LEFT FENDER ASSEMBLY SECTION
                                                                                                                            from £1,226.28
                                                                                                                            from £1,226.28
                                                                                                                            # 032
                                                                                                                            MPN: 115 BM 66030
                                                                                                                            PARASASSI POSTERIORE PARAFANGO ANTERIORE D.
                                                                                                                            # 033
                                                                                                                            MPN: 115 BM 66031
                                                                                                                            PARASASSI POSTERIORE PARAFANGO ANTERIORE S.
                                                                                                                            # 034
                                                                                                                            MPN: 115 BM 66032
                                                                                                                            PARASASSI ANTERIORE PARAFANGO ANTERIORE D.
                                                                                                                            # 035
                                                                                                                            MPN: 115 BM 66033
                                                                                                                            PARASASSI ANTERIORE PARAFANGO ANTERIORE S.
                                                                                                                            # 036
                                                                                                                            MPN: 115 BM 66037
                                                                                                                            FRONT FENDER ASSEMBLY FRONT
                                                                                                                            # 037
                                                                                                                            MPN: 115 BM 66038
                                                                                                                            CROSSPIECE FOR ENGINE BONNET AIR INTAKE FRAME
                                                                                                                            # 038
                                                                                                                            MPN: 115 BM 64990
                                                                                                                            ENGINE BONNET AIR INTAKE FRAME
                                                                                                                            # 039
                                                                                                                            MPN: 115 BM 64992
                                                                                                                            GRIGLIA PER PRESA ARIA COFANO MOTORE
                                                                                                                            # 040
                                                                                                                            MPN: 115 BM 64977
                                                                                                                            COVER
                                                                                                                            # 041
                                                                                                                            MPN: 115 BP 66039
                                                                                                                            RIVESTIMENTO COFANO MOTORE
                                                                                                                            # 042
                                                                                                                            MPN: 115 BM 64985
                                                                                                                            COVER
                                                                                                                            # 043
                                                                                                                            MPN: 115 BM 64986
                                                                                                                            SUPPORT
                                                                                                                            # 044
                                                                                                                            MPN: 115 BM 64987
                                                                                                                            SUPPORT
                                                                                                                            # 045
                                                                                                                            MPN: VAT 65601
                                                                                                                            SCREW
                                                                                                                            # 045
                                                                                                                            MPN: VAT 65601
                                                                                                                            SCREW
                                                                                                                            # 046
                                                                                                                            MPN: 115 BM 66040
                                                                                                                            LOWER CROSSPIECE FOR FRONT FENDER ASSEMBLY
                                                                                                                            # 047
                                                                                                                            MPN: 115 BO 66041
                                                                                                                            CERNIERA FISAGGIO PORTIERE
                                                                                                                            # 048
                                                                                                                            MPN: 115 BO 66124
                                                                                                                            THREADED PIVOT
                                                                                                                            # 049
                                                                                                                            MPN: DST 56574
                                                                                                                            DODO STOP BLIND Ø 8 X1,25 FOR SAID
                                                                                                                            # 050
                                                                                                                            MPN: BNT/47396
                                                                                                                            BOLT
                                                                                                                            # 051
                                                                                                                            MPN: RSN 3 2 6 3 5
                                                                                                                            WASHER
                                                                                                                            # 053
                                                                                                                            MPN: BNT/47370
                                                                                                                            BOLT
                                                                                                                            from £3.24
                                                                                                                            from £3.24
                                                                                                                            This part replaces part number 47370
                                                                                                                            # 055
                                                                                                                            MPN: RDI 58544
                                                                                                                            WASHER
                                                                                                                            # 056
                                                                                                                            MPN: 115 BM 64988
                                                                                                                            HINGE FOR RADIATOR COMPARTMENT AIR CONTAINER LID
                                                                                                                            # 057
                                                                                                                            MPN: 115 BO 66046
                                                                                                                            RIGHT DOOR REAR BACKPLATE
                                                                                                                            # 058
                                                                                                                            MPN: 115 BO 66047
                                                                                                                            REAR LEFT DOOR BACKPACK
                                                                                                                            # 059
                                                                                                                            MPN: PR N 66221
                                                                                                                            PROFILATO SPUGNOSO CON GRAFFETTA TENUTA SUPERIORE PARASASSI 1=1900 MM (DA SPEZZONARE)
                                                                                                                            # 060
                                                                                                                            MPN: 115 BM 66238
                                                                                                                            FRONT CROSS CROSS MUDGUARD ASSEMBLY
                                                                                                                            from £1,227.28
                                                                                                                            from £1,227.28
