maserati ghibli 4.7 / 4.9 bumpers and glasses parts diagram

036 - Bumpers and Glasses

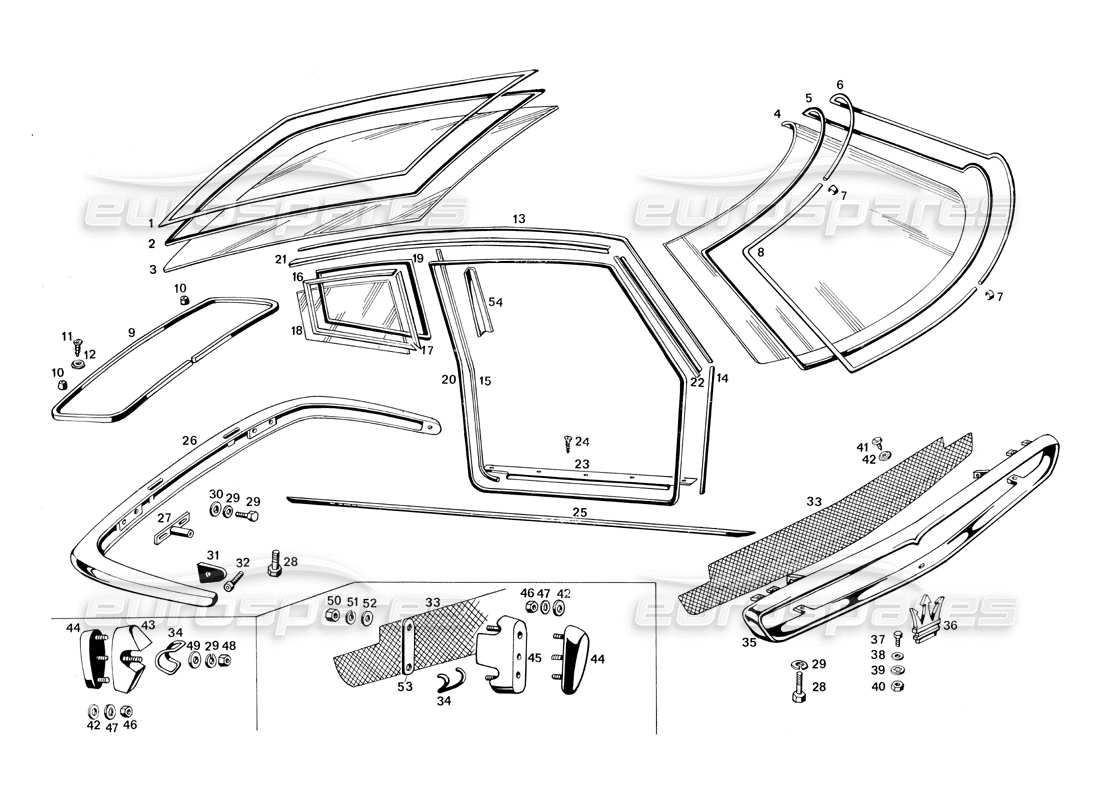

Maserati Ghibli 4.7 / 4.9 Bumpers and Glasses Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Price
                                                                                                            # 000
                                                                                                            MPN: BA 43512
                                                                                                            REAR VIEW MIRROR
                                                                                                            from £519.75
                                                                                                            from £519.75
                                                                                                            # 001
                                                                                                            MPN: 115 BT 65018
                                                                                                            CHROME FRAME AROUND THE REAR WINDOW
                                                                                                            from £960.68
                                                                                                            from £960.68
                                                                                                            # 002
                                                                                                            MPN: 115 BT 65017
                                                                                                            REAR SCREEN RUBBER
                                                                                                            USE PART No: 15317110
                                                                                                            # 002
                                                                                                            MPN: 15317110
                                                                                                            REAR SCREEN RUBBER
                                                                                                            from £459.48
                                                                                                            from £459.48
                                                                                                            # 003
                                                                                                            MPN: 115 BT 65011
                                                                                                            VETRO LUNOTTO POSTERIORE TERMOVIS - IGM 0591 VT (OMOLOGATO U.S.A.: PLATE AS2)
                                                                                                            # 003
                                                                                                            MPN: 115 BT 65518
                                                                                                            VETRO LUNOTTO POSTERIORE VISATERM (IGM-0591-VT)
                                                                                                            # 005
                                                                                                            MPN: 15317100
                                                                                                            FRONT SCREEN RUBBER
                                                                                                            from £545.64
                                                                                                            from £545.64
                                                                                                            # 006
                                                                                                            MPN: 115 BC 65003
                                                                                                            CORNICE GIRO PARABREZZA (ELEMENTO SINISTRO)
                                                                                                            # 007
                                                                                                            MPN: 115 BC 65065
                                                                                                            JOINT COVER FOR WINDSHIELD FRAME
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 008
                                                                                                            MPN: 115 BC 65004
                                                                                                            CORNICE GIRO PARABREZZA (ELEMENTO DESTRO)
                                                                                                            # 009
                                                                                                            MPN: PRN 66143
                                                                                                            PROFILATO GOMMA SPUGNA BATTUTA COFANO BAULE 1=3200 MM. (SINO AL 10-7-68)
                                                                                                            # 010
                                                                                                            MPN: PCN 65589
                                                                                                            RUBBER BUMPERS FOR THE BONNET, TRUNK AND ENGINE
                                                                                                            # 011
                                                                                                            MPN: VAT 65596
                                                                                                            SCREW
                                                                                                            # 012
                                                                                                            MPN: SVT 56865
                                                                                                            Sottovite Ø 3,5 per detto
                                                                                                            # 013
                                                                                                            MPN: 115 BO 64951
                                                                                                            POLISHED FRAME UPPER INTERNAL ROUND OF LEFT DOOR
                                                                                                            # 013
                                                                                                            MPN: 115 BO 64952
                                                                                                            POLISHED FRAME UPPER INTERNAL ROUND OF RIGHT DOOR
                                                                                                            # 014
                                                                                                            MPN: 115 BO 64955
                                                                                                            POLISHED FRONT FRAME INSIDE LEFT DOOR
                                                                                                            # 014
                                                                                                            MPN: 115 BO 64956
                                                                                                            POLISHED FRONT FRAME INTERNAL RIGHT DOOR
                                                                                                            # 015
                                                                                                            MPN: 115 BO 64953
                                                                                                            GASKET OR SEAL
                                                                                                            # 015
                                                                                                            MPN: 115 BO 64954
                                                                                                            GASKET OR SEAL
                                                                                                            # 016
                                                                                                            MPN: 115 BT 65019
                                                                                                            REAR EXTERNAL FRAME LEFT REAR GLASS
                                                                                                            # 016
                                                                                                            MPN: 115 BT 65020
                                                                                                            REAR EXTERNAL FRAME RIGHT REAR GLASS
                                                                                                            # 017
                                                                                                            MPN: 115 BT 65021
                                                                                                            OUTER UPRIGHT FOR LEFT REAR GLASS FRAME
                                                                                                            # 017
                                                                                                            MPN: 115 BT 65022
                                                                                                            OUTER UPRIGHT FOR RIGHT REAR GLASS FRAME
                                                                                                            # 018
                                                                                                            MPN: 115 BT 65015
                                                                                                            VETRO POSTERIORE LATERALE SINISTRO VISATERM (IGM 0591 VT)
                                                                                                            from £367.50
                                                                                                            from £367.50
                                                                                                            # 018
                                                                                                            MPN: 115 BT 65016
                                                                                                            VETRO POSTERIORE LATERALE DESTRO VISATERM (IGM 0591 VT)
                                                                                                            # 018
                                                                                                            MPN: 115 BT 65516
                                                                                                            Vetro posteriore laterale destro (omologato US.A.: Plate AS2)
                                                                                                            # 018
                                                                                                            MPN: 115 BT 65517
                                                                                                            VETRO POSTERIORE LATERALE SINISTRO (OMOLOGATO US.A.: PLATE AS 2)
                                                                                                            # 019
                                                                                                            MPN: PRN 66151
                                                                                                            VELVETY PROFILE SEALING THE REAR SIDE GLASSES. 1=1250 MM.
                                                                                                            # 020
                                                                                                            MPN: PRN 66179
                                                                                                            RUBBER PROFILE INTERNAL DOOR ROUND 1=3600 MM
                                                                                                            # 021
                                                                                                            MPN: 115 BT 65013
                                                                                                            COPRIGRONDA DESTRA
                                                                                                            # 021
                                                                                                            MPN: 115 BT 65014
                                                                                                            COPRIGRONDA SINISTRA
                                                                                                            # 022
                                                                                                            MPN: 115 BC 65006
                                                                                                            COPRIMONTANTE ANTERIORE DESTRO
                                                                                                            # 022
                                                                                                            MPN: 115 BC 65007
                                                                                                            COPRIMONTANTE ANTERIORE SINISTRO
                                                                                                            # 023
                                                                                                            MPN: 115 BO 64949
                                                                                                            BATTICALCAGNO PORTA DESTRA
                                                                                                            # 023
                                                                                                            MPN: 115 BO 64950
                                                                                                            BATTICALCAGNO PORTA SINISTRA
                                                                                                            # 025
                                                                                                            MPN: 115 BA 64967
                                                                                                            Mollura sottoporta

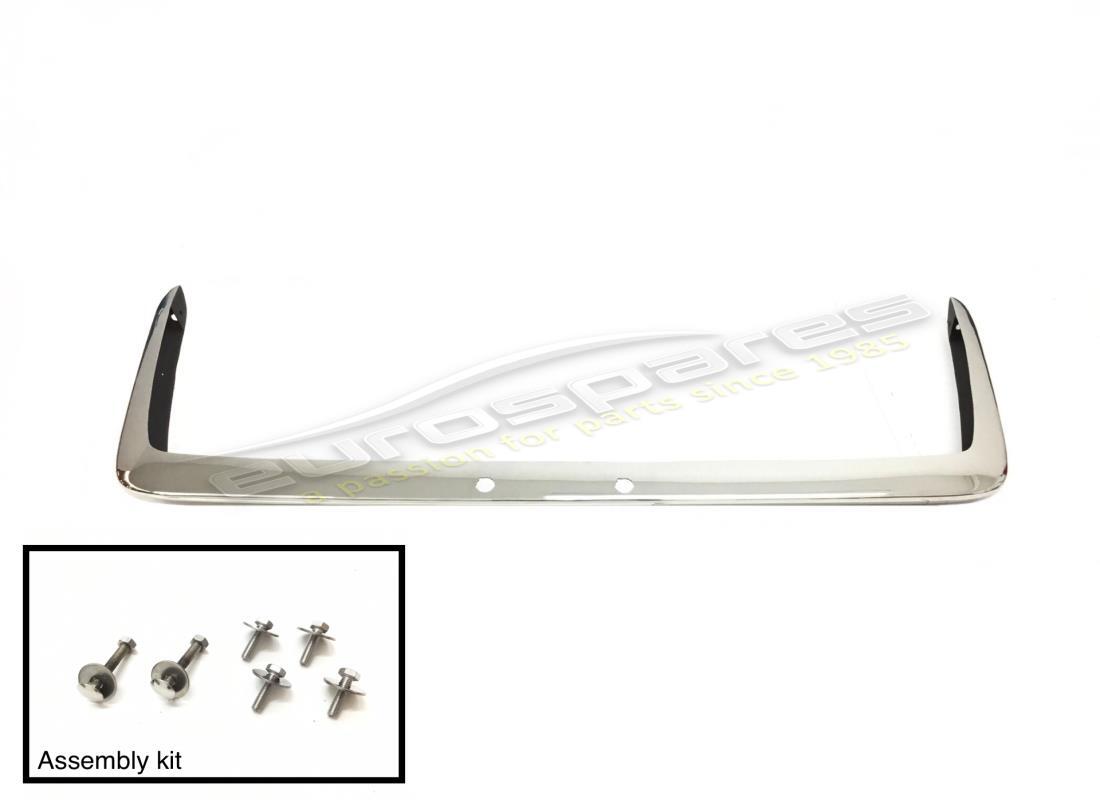

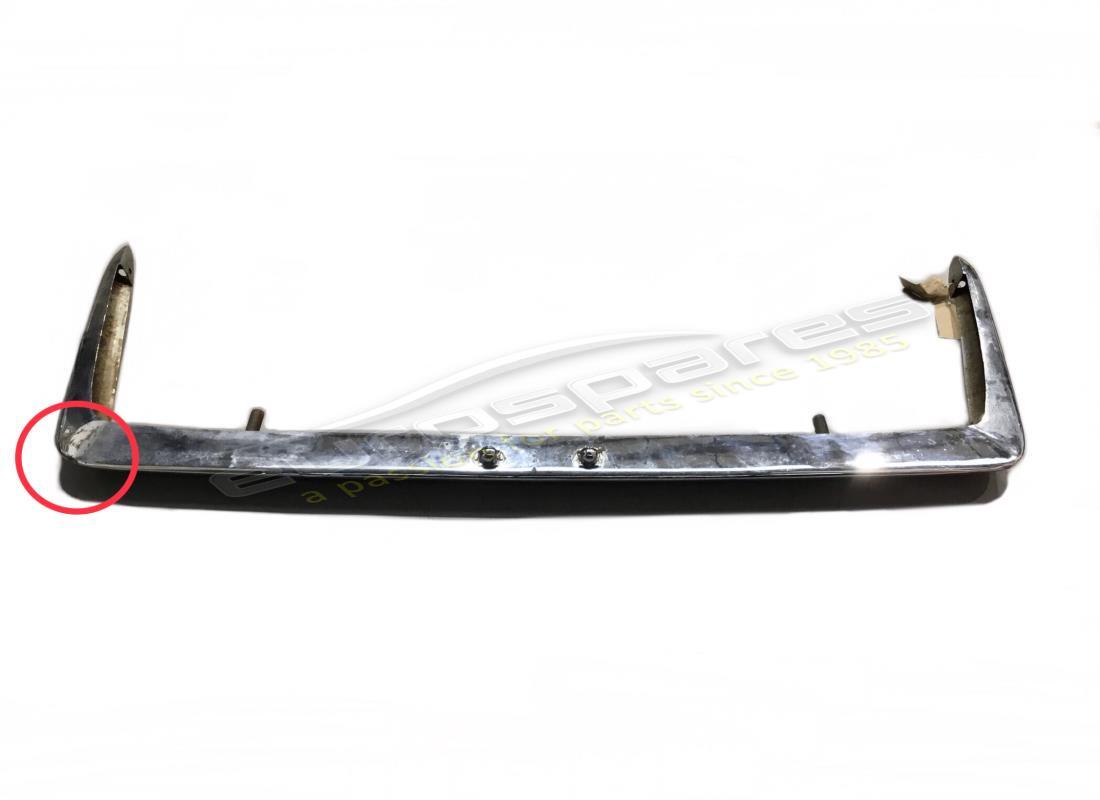

                                                                                                            # 026
                                                                                                            MPN: 115 BA 64970
                                                                                                            REAR CHROME BUMPER
                                                                                                            from £2,094.75
                                                                                                            from £2,094.75
                                                                                                            # 027
                                                                                                            MPN: 115 BA 64971
                                                                                                            Attacco per paraurti posteriore
                                                                                                            # 029
                                                                                                            MPN: RSN 3 2 6 3 5
                                                                                                            WASHER
                                                                                                            # 029
                                                                                                            MPN: RSN 3 2 6 3 5
                                                                                                            WASHER
                                                                                                            # 029
                                                                                                            MPN: RSN 3 2 6 3 5
                                                                                                            WASHER
                                                                                                            # 030
                                                                                                            MPN: RNT47075
                                                                                                            WASHER
                                                                                                            This part replaces part number 47075
                                                                                                            # 031
                                                                                                            MPN: 115 BA 66152
                                                                                                            PARACOLPO PARAURTI POSTERIORE
                                                                                                            # 033
                                                                                                            MPN: 115 BA 64963
                                                                                                            Bete per maschera anteriore
                                                                                                            # 034
                                                                                                            MPN: PRN 66153
                                                                                                            PROFILATO GOMMA SOTTO ROSTRI 1=400 MM. (SOLO U.S.A.)

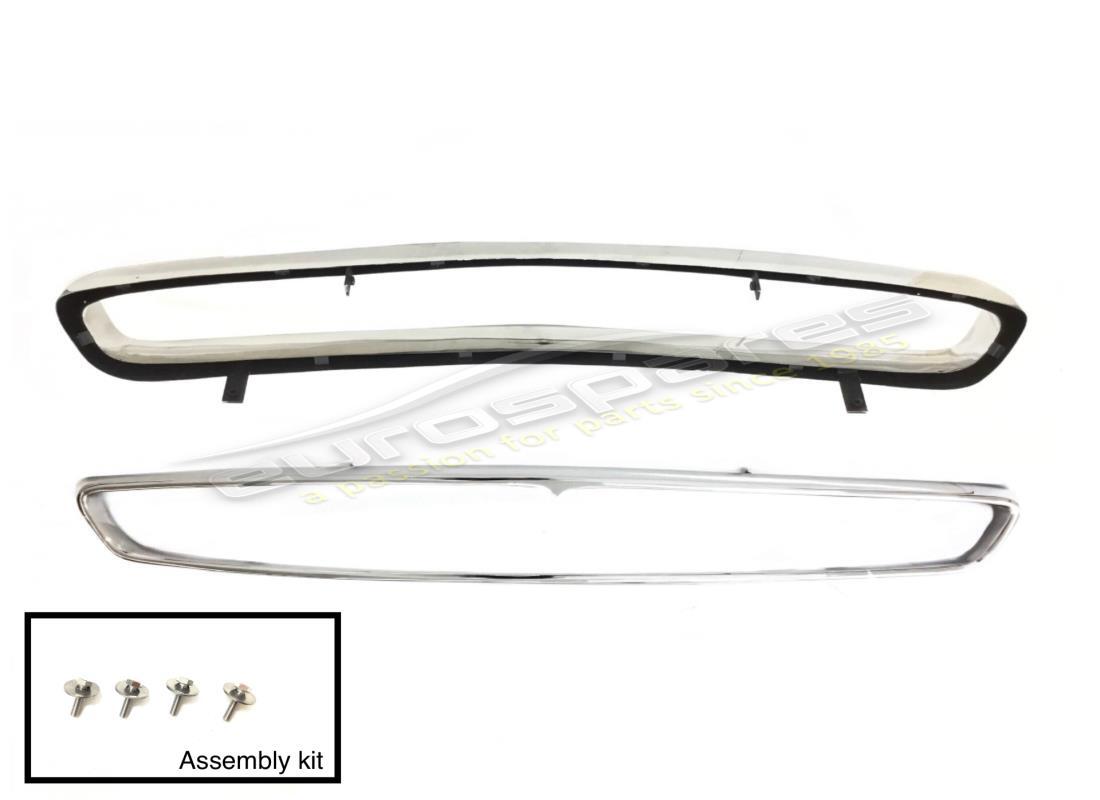

                                                                                                            # 035
                                                                                                            MPN: BA 64965
                                                                                                            FRONT CHROME BUMPER
                                                                                                            from £1,569.75
                                                                                                            from £1,569.75
                                                                                                            # 036
                                                                                                            MPN: 115 BA 64024
                                                                                                            TRIDENT COAT OF ARMS Maserati
                                                                                                            # 040
                                                                                                            MPN: DNT/62557
                                                                                                            NUT
                                                                                                            # 041
                                                                                                            MPN: VAT 63605
                                                                                                            SCREW
                                                                                                            # 042
                                                                                                            MPN: RNT 35345
                                                                                                            WASHER
                                                                                                            # 042
                                                                                                            MPN: RNT 35345
                                                                                                            WASHER
                                                                                                            # 043
                                                                                                            MPN: 115 BA 65577
                                                                                                            Rostro paraurto posteriore (Solo U.S.A.)
                                                                                                            # 044
                                                                                                            MPN: 115 BA 65580
                                                                                                            Paracolpi gomma per rostri (Solo U.S.A.)
                                                                                                            # 045
                                                                                                            MPN: 115 BA 65578
                                                                                                            Rostro per maschera anteriore (Solo U.S.A.)
                                                                                                            # 046
                                                                                                            MPN: DNT 47046
                                                                                                            NUT
                                                                                                            from £0.86
                                                                                                            from £0.86
                                                                                                            This part replaces part number 47046
                                                                                                            # 047
                                                                                                            MPN: RDI 58544
                                                                                                            WASHER
                                                                                                            # 048
                                                                                                            MPN: DNT. 47031
                                                                                                            NUT 8 X 1.25
                                                                                                            # 050
                                                                                                            MPN: DNT 47047
                                                                                                            NUT
                                                                                                            # 051
                                                                                                            MPN: RSN/32690
                                                                                                            WASHER
                                                                                                            # 052
                                                                                                            MPN: RNT 47074
                                                                                                            WASHER
                                                                                                            # 053
                                                                                                            MPN: 115 BA 66045
                                                                                                            SUPPORT
                                                                                                            # 054
                                                                                                            MPN: PRN 66130
                                                                                                            RUBBER PROFILE ON THE REAR GLASS UPRIGHT 1=350 MM.
                                                                                                            from £84.63
                                                                                                            from £84.63
