maserati ghibli 2.0 cup pop off valve system parts diagram

004 - Pop Off Valve System

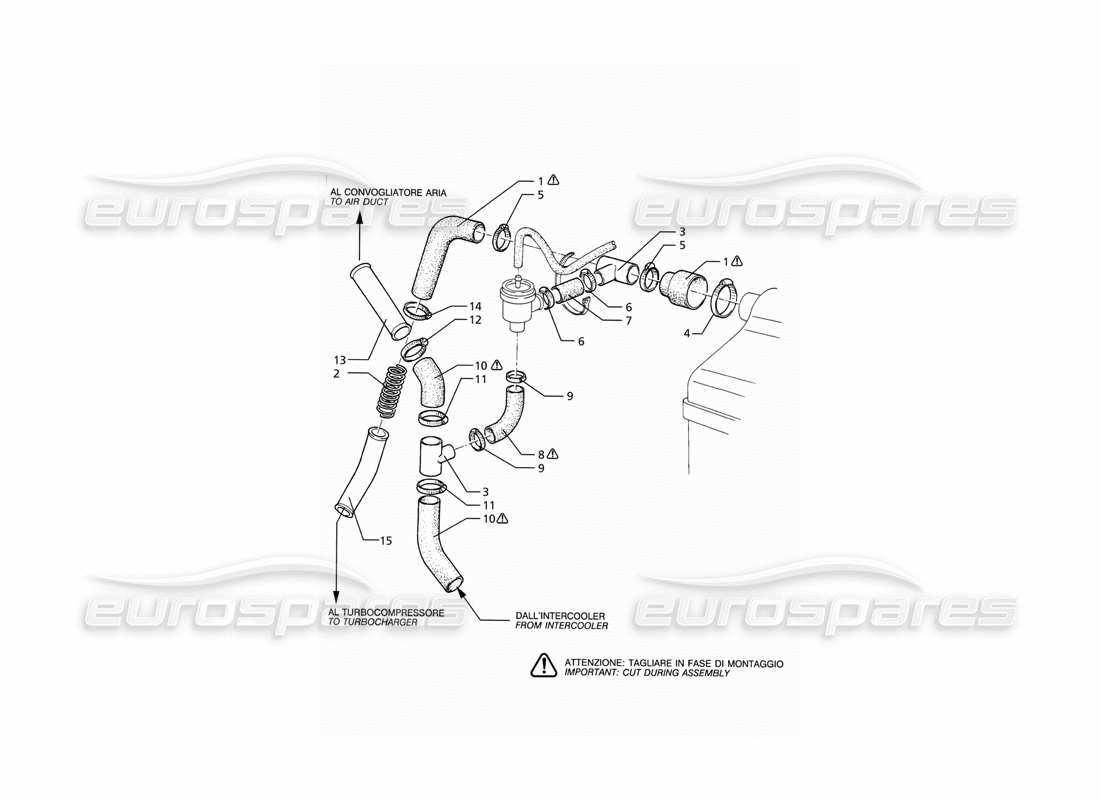

Maserati Ghibli 2.0 Cup Pop off Valve System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 002
                                MPN: 328253331
                                SLEEVE SPRING
                                from £4.00
                                from £4.00
                                # 003
                                MPN: 577057000
                                3 WAY UNION
                                from £72.91
                                from £72.91
                                # 004
                                MPN: 312020136
                                CLAMP
                                Supersession
                                Supersession
                                # 005
                                MPN: 13128470
                                CLAMP
                                from £1.11
                                from £1.11
                                # 006
                                MPN: 13129070
                                CLAMP
                                from £2.39
                                from £2.39
                                # 007
                                MPN: 571363500
                                SLEEVE
                                from £26.29
                                from £26.29
                                # 008
                                MPN: 96033
                                SLEEVE
                                from £10.38
                                from £10.38
                                # 010
                                MPN: 362000470
                                LH SLEEVE
                                Supersession
                                Supersession
                                # 010
                                MPN: 495361600
                                RH SLEEVE
                                from £13.87
                                from £13.87
                                # 010
                                MPN: 495363800
                                LH SLEEVE
                                from £13.87
                                from £13.87
                                This part replaces part number 362000470
                                # 011
                                MPN: 98039
                                CLAMP
                                from £2.39
                                from £2.39
                                # 012
                                MPN: 312020136
                                CLAMP
                                Supersession
                                Supersession
                                # 014
                                MPN: 312420106
                                CLAMP
                                Supersession
                                Supersession

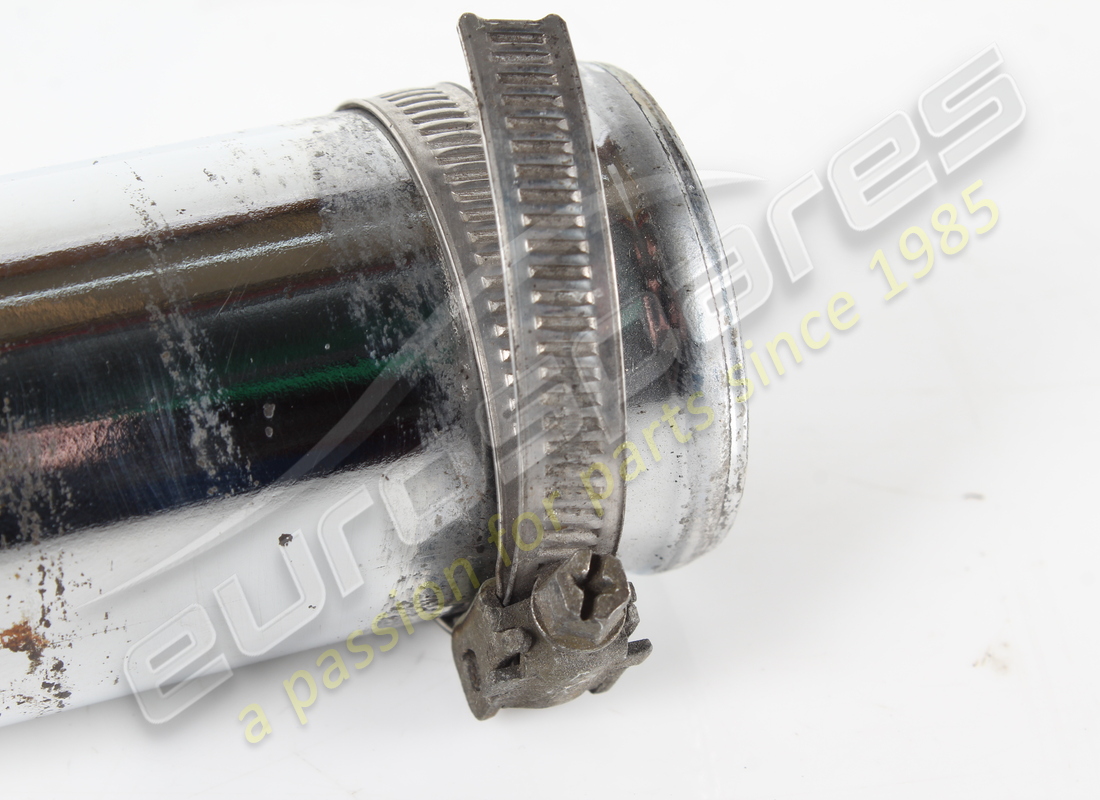

                                # 015
                                MPN: 495363100
                                METAL PIPE TO LH TURBO CHARGER
                                from £21.81
                                from £21.81

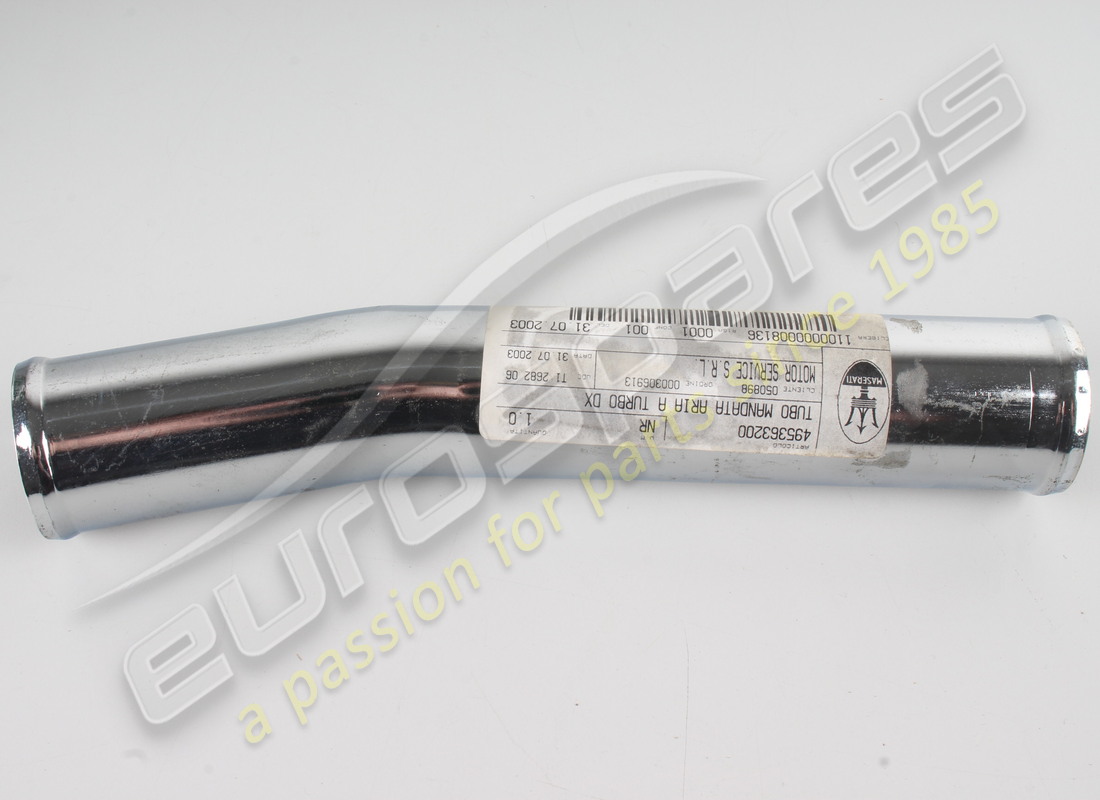

                                # 015
                                MPN: 495363200
                                METAL PIPE TO RH TURBO CHARGER
                                from £21.81
                                from £21.81
