maserati ghibli 2.0 cup internal finishings parts diagram

009 - Internal Finishings

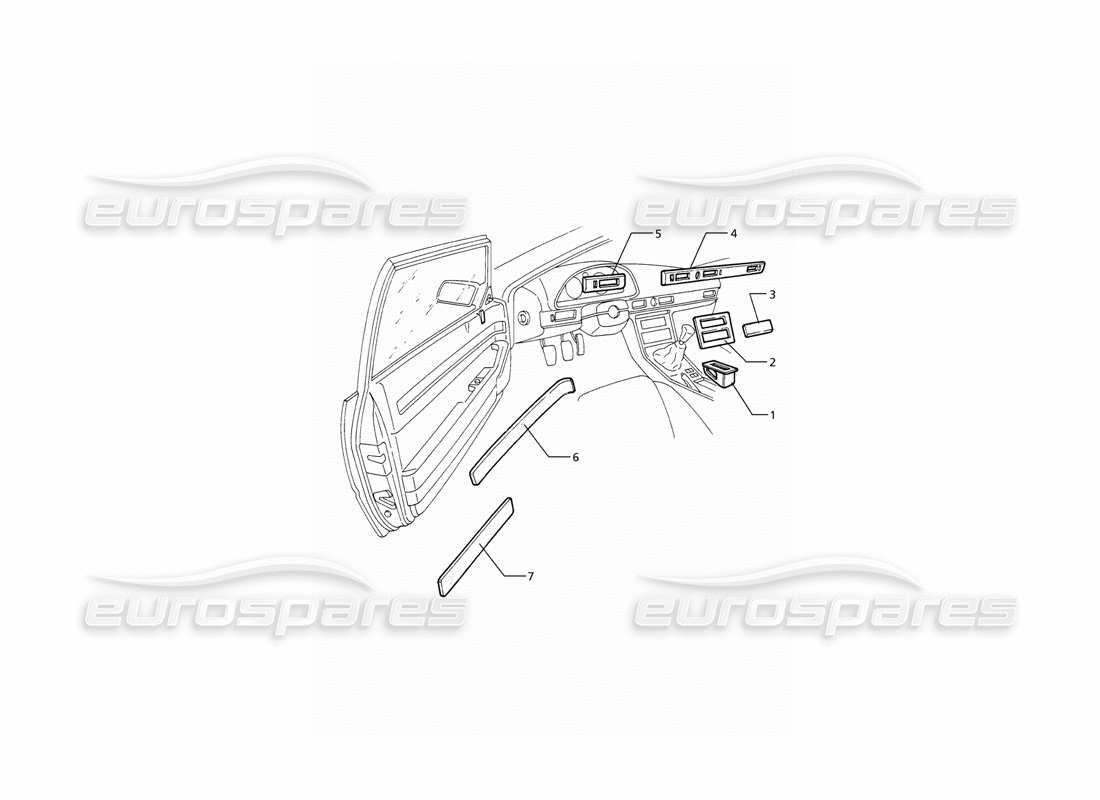

Maserati Ghibli 2.0 Cup Internal Finishings Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 001
                MPN: 368103022
                COMPLETE ASH TRAY
                from £223.50
                from £223.50
                # 002
                MPN: 368303278
                RADIO CONDIT. COMPART. FRAME
                from £320.06
                from £320.06
                # 003
                MPN: 368303284
                flap
                from £68.76
                from £68.76
                # 004
                MPN: 362303136
                RH DASHBOARD TRIM
                from £520.60
                from £520.60
                # 005
                MPN: 362303135
                LH DASHBOARD TRIM
                from £138.09
                from £138.09
                # 006
                MPN: 368303231
                FRONT LH DOOR PANEL TRIM
                from £485.04
                from £485.04
                # 006
                MPN: 368303232
                FRONT RH DOOR PANEL TRIM
                from £485.04
                from £485.04
                # 007
                MPN: 368303235
                REAR LH DOOR PANEL TRIM
                from £199.90
                from £199.90
                # 007
                MPN: 368303236
                REAR RH DOOR PANEL TRIM
                from £199.90
                from £199.90
