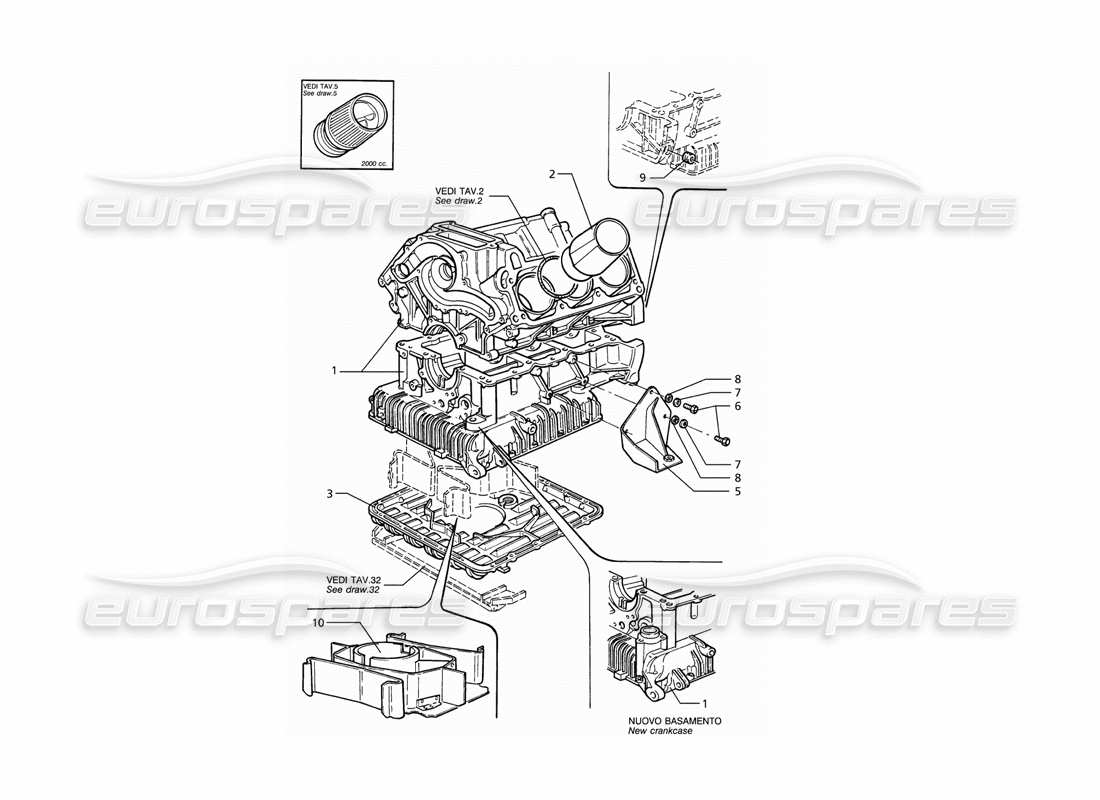

003 - cylinder block and oil sump
Maserati Ghibli 2.8 (ABS) Cylinder Block and Oil Sump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 310453017
BLOCK
- Valid for 02 version
from £2,714.78
from £2,714.78
# 001
MPN: 340402018
BLOCK
- Valid for 22, 21, 09, 10 version
# 001

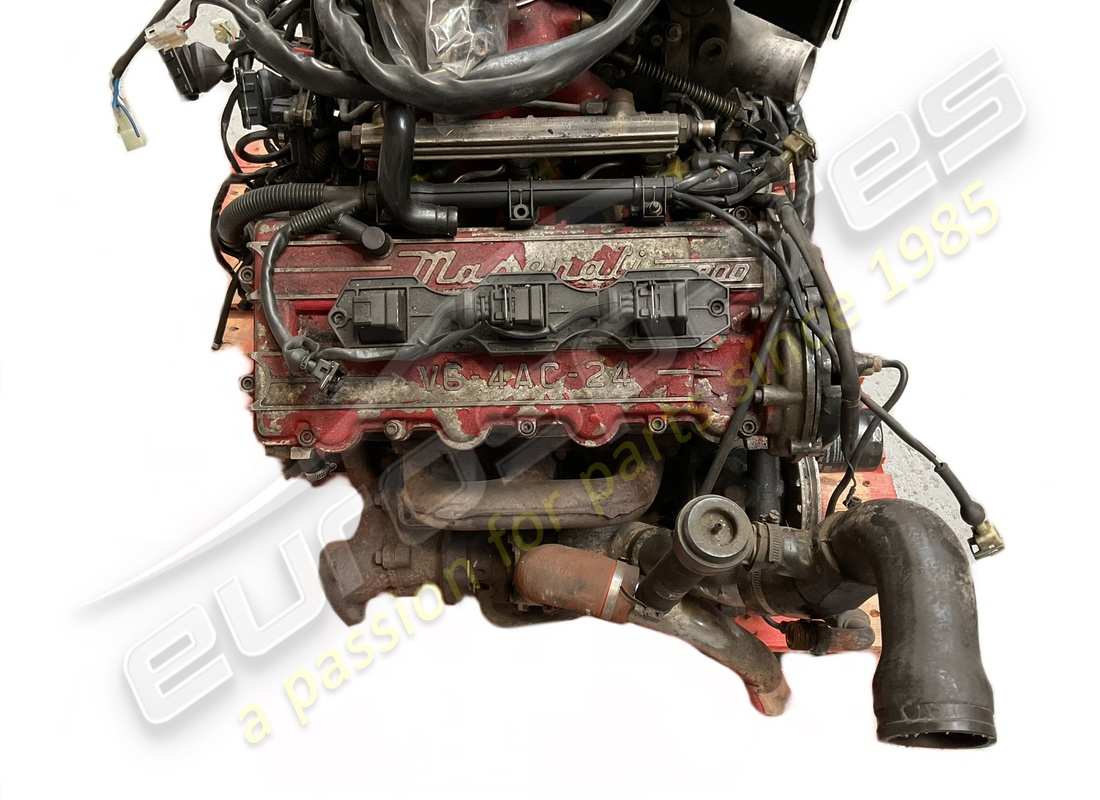

MPN: MASENG028
COMPLETE ENGINE
2.8cc ENGINE
from £4,089.75
from £4,089.75
# 002
MPN: 464010100
LINER FOR CYLINDERS
- Valid for 22, 21, 09, 10 version
from £282.08
from £282.08
This part replaces part number 340600316
# 003
MPN: 470010900
engine oil sump
Supersession
Supersession
# 005
MPN: 331244800
RH ENGINE SUPPORT
from £16.42
from £16.42
# 005
MPN: 331244900
L. H. ENGINE SUPPORT
from £15.71
from £15.71
# 006
MPN: 101210025
BOLT
# 007
MPN: 14496601
FLAT WASHER
Supersession
Supersession
# 008
MPN: 134700105
LOCK WASHER
from £1.09
from £1.09
# 009
MPN: 312020368
WIRE INLET
from £0.57
from £0.57
# 010
MPN: 310452105
OIL SUMP PLATE
- Pre modification
from £14.81
from £14.81
# 010
MPN: 571983900
OIL SUMP PLATE
- Post modification Supplied for new blocks
Supersession
Supersession
