006 - Cylinder Heads

Maserati Ghibli 2.8 (ABS) Cylinder Heads Parts Diagram

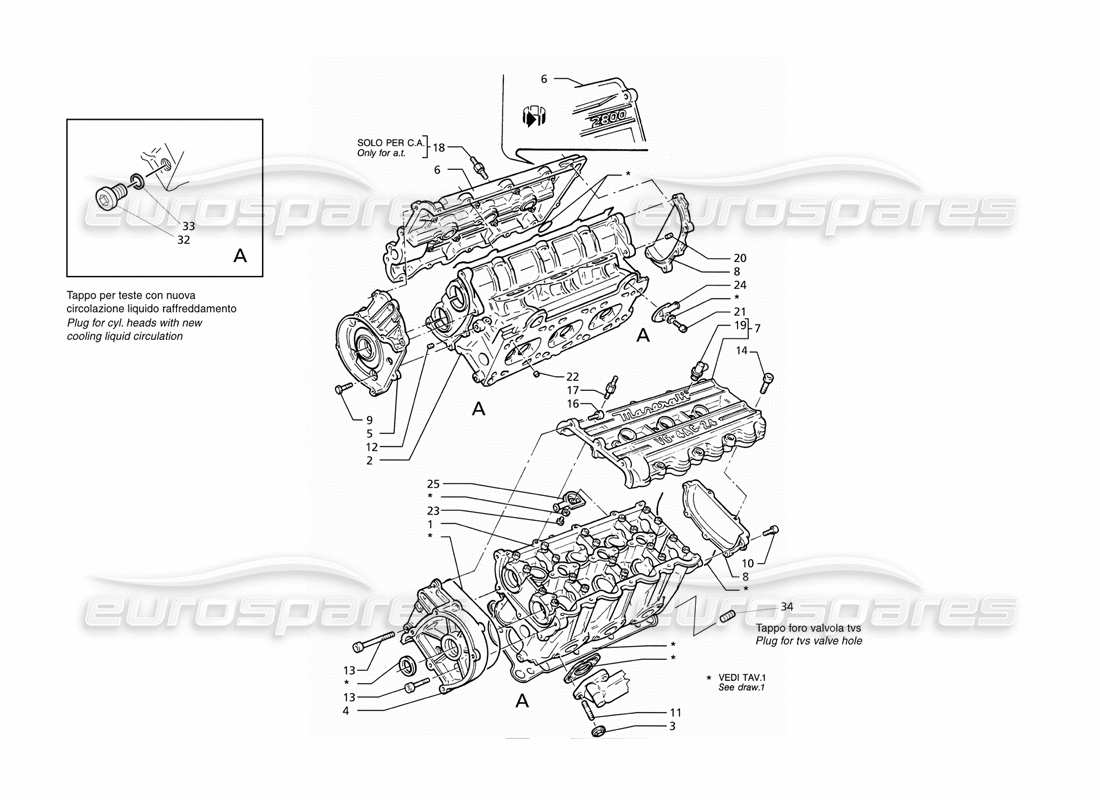

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Price
                                                # 001
                                                MPN: 490003300
                                                LH cylinder head
                                                - Valid for 02 version
                                                from £3,014.95
                                                from £3,014.95
                                                This part replaces part number 310653007
                                                # 001
                                                MPN: 588003300
                                                LH cylinder head
                                                - Valid for 22, 21, 09, 10 version
                                                from £4,384.63
                                                from £4,384.63
                                                This part replaces part number 477003300
                                                # 002
                                                MPN: 490003200
                                                RH cylinder head
                                                - Valid for 02 version
                                                from £2,815.93
                                                from £2,815.93
                                                This part replaces part number 310653006
                                                # 002
                                                MPN: 588003200
                                                RH cylinder head
                                                - Valid for 22, 21, 09, 10 version
                                                from £5,700.02
                                                from £5,700.02
                                                This part replaces part number 477003200
                                                # 003
                                                MPN: 210971
                                                COPPER PLATED NUT
                                                from £0.92
                                                from £0.92
                                                This part replaces part number 279628 - and 1 more. Click to view details
                                                # 004
                                                MPN: 571000600
                                                LH FRONT COVER, ASSY
                                                from £134.01
                                                from £134.01
                                                # 005
                                                MPN: 571000700
                                                RH FRONT COVER, ASSY
                                                from £139.31
                                                from £139.31
                                                # 006
                                                MPN: 571008802
                                                RH UPPER COVER
                                                - Valid for 02 version
                                                from £88.86
                                                from £88.86
                                                # 006
                                                MPN: 574008801
                                                RH UPPER COVER
                                                - Valid for 22, 21, 09, 10 version
                                                from £132.45
                                                from £132.45
                                                # 007
                                                MPN: 571008701
                                                LH UPPER COVER
                                                from £78.11
                                                from £78.11
                                                # 009
                                                MPN: 311053391
                                                SCREW
                                                from £3.18
                                                from £3.18
                                                # 010
                                                MPN: 311453300
                                                SCREW
                                                from £3.26
                                                from £3.26
                                                # 011
                                                MPN: 310620370
                                                STUD BOLT
                                                from £14.82
                                                from £14.82
                                                # 012
                                                MPN: 600009700
                                                PLUG
                                                from £1.08
                                                from £1.08
                                                # 013
                                                MPN: 311053390
                                                SCREW
                                                from £6.05
                                                from £6.05
                                                # 017
                                                MPN: 310653435
                                                CABLES REPLACEMENT STUD BOLT
                                                # 018
                                                MPN: 479009120
                                                SCREW
                                                - Valid for 22, 09 version
                                                from £23.04
                                                from £23.04
                                                # 019
                                                MPN: 311053384
                                                OIL BLOWER
                                                # 020
                                                MPN: 311053312
                                                DOWEL
                                                from £1.94
                                                from £1.94
                                                # 021
                                                MPN: 14305924
                                                SCREW
                                                from £0.53
                                                from £0.53
                                                This part replaces part number 14305921 - and 1 more. Click to view details
                                                # 022
                                                MPN: 310653366
                                                OIL CALIBRATION DOWEL
                                                # 024
                                                MPN: 452009901
                                                UNION
                                                from £2.33
                                                from £2.33
                                                # 025
                                                MPN: 470009900
                                                UNION
                                                from £9.70
                                                from £9.70
                                                # 028
                                                MPN: 571945000
                                                R. H. CYLINDER HEAD WITH VALVE DRIVE
                                                - Valid for 02 version - Not illustrated
                                                from £4,744.25
                                                from £4,744.25
                                                # 029
                                                MPN: 571945100
                                                L. H. CYLINDER HEAD WITH VALVE DRIVE
                                                - Valid for 02 version - Not illustrated
                                                from £4,744.25
                                                from £4,744.25
                                                # 030
                                                MPN: 574945000
                                                R. H. CYLINDER HEAD WITH VALVE DRIVE
                                                - Valid for 22, 21, 09, 10 version - Not illustrated
                                                from £4,200.97
                                                from £4,200.97
                                                # 031
                                                MPN: 574945100
                                                L. H. CYLINDER HEAD WITH VALVE DRIVE
                                                - Valid for 22, 21, 09, 10 version - Not illustrated
                                                from £4,200.97
                                                from £4,200.97
                                                # 032
                                                MPN: 571044400
                                                PLUG
                                                from £8.69
                                                from £8.69
                                                # 033
                                                MPN: 571044500
                                                GASKET
                                                from £1.94
                                                from £1.94
                                                # 034
                                                MPN: 585411800
                                                PLUG
                                                from £2.54
                                                from £2.54
