maserati ghibli 2.8 (abs) timing parts diagram

007 - timing

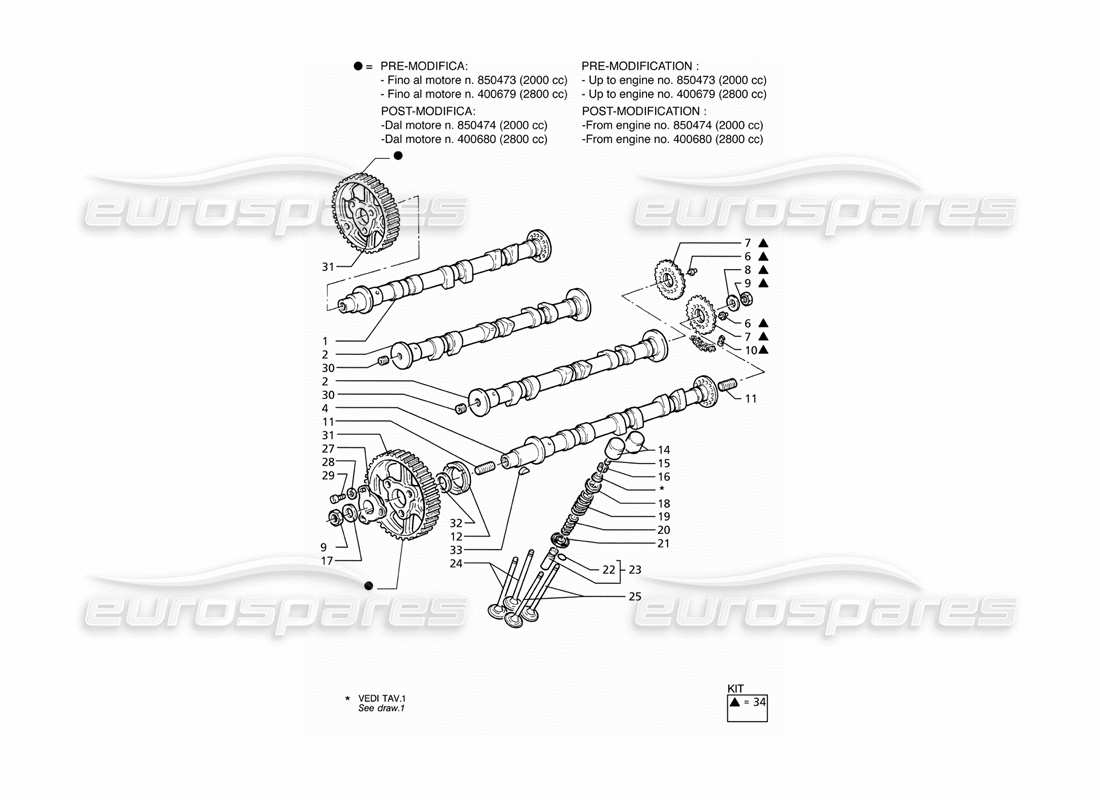

Maserati Ghibli 2.8 (ABS) Timing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 001
                                                            MPN: 311053116
                                                            EXHAUST CAMSHAFT, RH HEAD ASSY
                                                            from £657.20
                                                            from £657.20
                                                            # 002
                                                            MPN: 311053118
                                                            INTAKE CAMSHAFT, ASSY
                                                            from £551.25
                                                            from £551.25
                                                            # 004
                                                            MPN: 311053115
                                                            EXHAUST CAMSHAFT, LH HEAD ASSY
                                                            from £295.74
                                                            from £295.74
                                                            # 006
                                                            MPN: 311053308
                                                            DOWEL
                                                            from £12.23
                                                            from £12.23
                                                            This part replaces part number 475037900 - and 1 more. Click to view details
                                                            # 007
                                                            MPN: 311053450
                                                            PINION
                                                            Supersession
                                                            Supersession
                                                            # 009
                                                            MPN: 311053393
                                                            NUT
                                                            Supersession
                                                            Supersession
                                                            # 010
                                                            MPN: 311053377
                                                            CAM CONTROL CHAIN
                                                            Use : 310253062 chain kit
                                                            Supersession
                                                            Supersession
                                                            # 011
                                                            MPN: 311053402
                                                            STUD BOLT
                                                            Supersession
                                                            Supersession
                                                            # 012
                                                            MPN: 311053304
                                                            CENTERING RING
                                                            # 014
                                                            MPN: 311053330
                                                            VALVES CONTROL BOWL
                                                            # 015
                                                            MPN: 310620336
                                                            VALVE ADJUSTING PIN 2.850
                                                            # 015
                                                            MPN: 310620337
                                                            VALVE ADJUSTING PIN 2.900
                                                            # 015
                                                            MPN: 310620338
                                                            VALVE ADJUSTING PIN 2.950
                                                            # 015
                                                            MPN: 310620339
                                                            VALVE ADJUSTING PIN 3.000
                                                            Supersession
                                                            Supersession
                                                            # 015
                                                            MPN: 310620340
                                                            VALVE ADJUSTING PIN 3.050
                                                            # 015
                                                            MPN: 310620341
                                                            VALVE ADJUSTING PIN 3.100
                                                            # 015
                                                            MPN: 310620342
                                                            VALVE ADJUSTING PIN 3.150
                                                            # 015
                                                            MPN: 310620343
                                                            VALVE ADJUSTING PIN 3.200
                                                            # 015
                                                            MPN: 310620344
                                                            VALVE ADJUSTING PIN 3.250
                                                            # 015
                                                            MPN: 310620345
                                                            VALVE ADJUSTING PIN 3.300
                                                            # 015
                                                            MPN: 310620346
                                                            VALVE ADJUSTING PIN 3.350
                                                            # 015
                                                            MPN: 310620347
                                                            VALVE ADJUSTING PIN 3.400
                                                            # 015
                                                            MPN: 310620348
                                                            VALVE ADJUSTING PIN 3.450
                                                            # 015
                                                            MPN: 310620349
                                                            VALVE ADJUSTING PIN 3.500
                                                            # 015
                                                            MPN: 310620350
                                                            VALVE ADJUSTING PIN 3.550
                                                            # 015
                                                            MPN: 310620351
                                                            VALVE ADJUSTING PIN 3.600
                                                            # 015
                                                            MPN: 310620352
                                                            VALVE ADJUSTING PIN 4.000
                                                            # 015
                                                            MPN: 310620373
                                                            VALVE ADJUSTING PIN 3.650
                                                            # 015
                                                            MPN: 310620374
                                                            VALVE ADJUSTING PIN 3.700
                                                            # 015
                                                            MPN: 310620375
                                                            VALVE ADJUSTING PIN 3.750
                                                            # 015
                                                            MPN: 310620376
                                                            VALVE ADJUSTING PIN 3.800
                                                            from £2.12
                                                            from £2.12
                                                            # 015
                                                            MPN: 310620377
                                                            VALVE ADJUSTING PIN 3.850
                                                            from £1.65
                                                            from £1.65
                                                            # 015
                                                            MPN: 310620378
                                                            VALVE ADJUSTING PIN 3.900
                                                            # 015
                                                            MPN: 310620379
                                                            VALVE ADJUSTING PIN 3.950
                                                            # 015
                                                            MPN: 310620380
                                                            VALVE ADJUSTING PIN 2.125
                                                            from £11.07
                                                            from £11.07
                                                            # 015
                                                            MPN: 310620381
                                                            VALVE ADJUSTING PIN 2.175
                                                            from £2.33
                                                            from £2.33
                                                            # 015
                                                            MPN: 310620382
                                                            VALVE ADJUSTING PIN 2.225
                                                            from £0.83
                                                            from £0.83
                                                            # 015
                                                            MPN: 310620383
                                                            VALVE ADJUSTING PIN 2.275
                                                            from £3.08
                                                            from £3.08
                                                            # 015
                                                            MPN: 310620384
                                                            VALVE ADJUSTING PIN 2.325
                                                            # 015
                                                            MPN: 310620385
                                                            VALVE ADJUSTING PIN 2.375
                                                            # 015
                                                            MPN: 310620386
                                                            VALVE ADJUSTING PIN 2.425
                                                            from £1.31
                                                            from £1.31
                                                            # 015
                                                            MPN: 310620387
                                                            VALVE ADJUSTING PIN 2.475
                                                            # 015
                                                            MPN: 310620388
                                                            VALVE ADJUSTING PIN 2.525
                                                            # 015
                                                            MPN: 310620389
                                                            VALVE ADJUSTING PIN 2.575
                                                            # 015
                                                            MPN: 310620390
                                                            VALVE ADJUSTING PIN 2.625
                                                            # 015
                                                            MPN: 310620391
                                                            VALVE ADJUSTING PIN 2.675
                                                            # 015
                                                            MPN: 310620392
                                                            VALVE ADJUSTING PIN 2.725
                                                            # 015
                                                            MPN: 310620393
                                                            VALVE ADJUSTING PIN 2.775
                                                            # 015
                                                            MPN: 310620395
                                                            VALVE ADJUSTING PIN 2.875
                                                            # 015
                                                            MPN: 310620396
                                                            VALVE ADJUSTING PIN 2.925
                                                            # 015
                                                            MPN: 310620397
                                                            VALVE ADJUSTING PIN 2.975
                                                            # 015
                                                            MPN: 310620398
                                                            VALVE ADJUSTING PIN 3.025
                                                            # 015
                                                            MPN: 310620399
                                                            VALVE ADJUSTING PIN 3.075
                                                            # 015
                                                            MPN: 310620400
                                                            VALVE ADJUSTING PIN 3.125
                                                            # 015
                                                            MPN: 310620401
                                                            VALVE ADJUSTING PIN 3.175
                                                            # 015
                                                            MPN: 310620402
                                                            VALVE ADJUSTING PIN 3.225
                                                            # 015
                                                            MPN: 310620403
                                                            VALVE ADJUSTING PIN 3.275
                                                            # 015
                                                            MPN: 310620404
                                                            VALVE ADJUSTING PIN 3.325
                                                            # 015
                                                            MPN: 310620405
                                                            VALVE ADJUSTING PIN 3.375
                                                            # 015
                                                            MPN: 452032964
                                                            VALVE ADJUSTING PIN 2.825
                                                            from £3.90
                                                            from £3.90
                                                            # 016
                                                            MPN: 310620456
                                                            HALF CONE FOR VALVES
                                                            Supersession
                                                            Supersession
                                                            # 018
                                                            MPN: 475032101
                                                            UPPER PLATE
                                                            from £50.14
                                                            from £50.14
                                                            This part replaces part number 475032100 - and 1 more. Click to view details
                                                            ENGINE RETAINING UPPER DISC Genuine Maserati Part - New (other) In stock
                                                            - Up to engine no. 200359 (2000 cc) - Up to engine no. 400827 (2800 cc)
                                                            # 019
                                                            MPN: 310653356
                                                            EXTERNAL VALVE SPRING
                                                            # 020
                                                            MPN: 310653358
                                                            INTERNAL VALVE SPRING
                                                            # 021
                                                            MPN: 475032200
                                                            LOWER PLATE
                                                            from £2.08
                                                            from £2.08
                                                            # 022
                                                            MPN: 310620314
                                                            STOP RING
                                                            from £0.76
                                                            from £0.76
                                                            # 023
                                                            MPN: 310653010
                                                            INLET VALVE GUIDE WITH RING
                                                            # 023
                                                            MPN: 490007000
                                                            EXHAUST VALVE GUIDE WITH RING
                                                            from £66.26
                                                            from £66.26
                                                            This part replaces part number 475007000
                                                            # 024
                                                            MPN: 571031900
                                                            INLET VALVE
                                                            from £52.18
                                                            from £52.18
                                                            # 025
                                                            MPN: 571032000
                                                            EXHAUST VALVE
                                                            from £52.18
                                                            from £52.18
                                                            # 028
                                                            MPN: 312220411
                                                            WASHER
                                                            from £0.71
                                                            from £0.71
                                                            # 029
                                                            MPN: 311053394
                                                            SCREW
                                                            Supersession
                                                            Supersession
                                                            # 030
                                                            MPN: 311053392
                                                            PLUG
                                                            from £0.80
                                                            from £0.80
                                                            # 031
                                                            MPN: 571035402
                                                            SHIM PULLEY
                                                            from £169.81
                                                            from £169.81
                                                            # 032
                                                            MPN: 311053314
                                                            SHIM WASHER
                                                            from £9.71
                                                            from £9.71
                                                            # 033
                                                            MPN: 311053460
                                                            WOODRUFF KEY
                                                            from £0.74
                                                            from £0.74
                                                            # 034
                                                            MPN: 310253062
                                                            TIMING SYSTEM CHAINS SET
                                                            from £924.56
                                                            from £924.56
