009 - oil pump and water pump

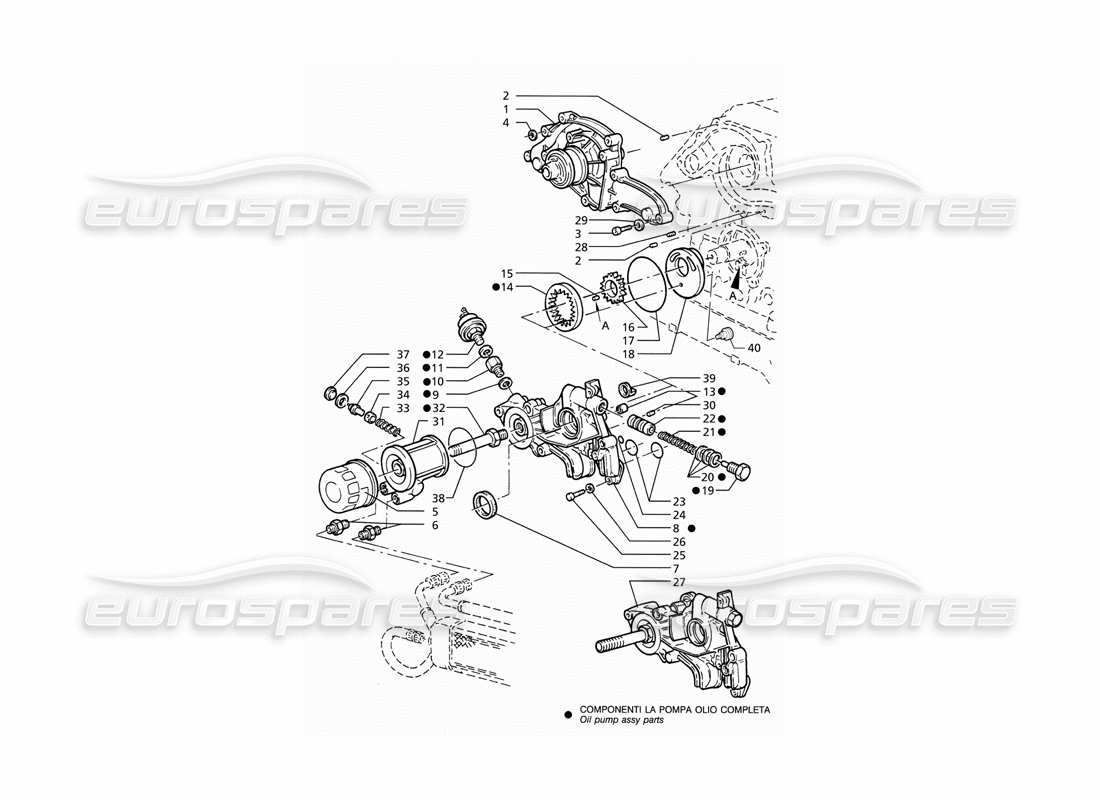

Maserati Ghibli 2.8 (ABS) Oil Pump and Water Pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 470045900
WATER PUMP + GASKET
from £309.75
from £309.75
This part replaces part number 314020012
# 002
MPN: 314020329
CENTERING ROLLER
from £1.93
from £1.93
# 003
MPN: 108006030
SCREW
# 004
MPN: 138410060
RETAINING WASHER
# 005
MPN: 470040900
OIL FILTER
from £42.50
from £42.50
# 006
MPN: 362802306
NIPPLE
from £10.97
from £10.97
# 007
MPN: 311020368
SEAL RING
from £9.72
from £9.72
This part replaces part number 190400351
# 008
MPN: 455040101
OIL CONTROL UNIT
- Post modification Gear height 12 mm: - 2000 cc. engine: from no. 850028 - 2800 cc. engine: from no. 400116
from £47.69
from £47.69
# 008
MPN: 571040100
OIL CONTROL UNIT
- Pre modification Gear height 11 mm: - 2000 cc. engine: up to no. 850027 - 2800 cc. engine: up to no. 400115 - Not supplied
from £174.82
from £174.82
This part replaces part number 311820326 - and 1 more. Click to view details
# 009
MPN: 311820302
GASKET
from £1.93
from £1.93
# 010
MPN: 311820303
ADAPTER
from £22.49
from £22.49
# 011
MPN: 311820304
GASKET
from £1.55
from £1.55
# 012
MPN: 313650105
OIL PRESSURE SWITCH
USE 313620105
# 013
MPN: 311820309
DOWEL (12MM DIA)
from £16.70
from £16.70
# 014
MPN: 311820324
DRIVEN GEAR (11 MM THICK)
- Pre modification Gear height 11 mm: - 2000 cc. engine: up to no. 850027 - 2800 cc. engine: up to no. 400115
from £4.50
from £4.50
# 014
MPN: 391850324
DRIVEN GEAR (12 MM THICK)
- Post modification Gear height 12 mm: - 2000 cc. engine: from no. 850028 - 2800 cc. engine: from no. 400116
# 016
MPN: 391850323
DRIVING GEAR (12 MM THICK)
- Post modification Gear height 12 mm: - 2000 cc. engine: from no. 850028 - 2800 cc. engine: from no. 400116
# 017
MPN: 14465881
SEAL RING
from £4.63
from £4.63
# 018
MPN: 571982100
OIL PUMP COVER
from £72.65
from £72.65
This part replaces part number 311820321
# 019
MPN: 311820101
PLUG
# 020
MPN: 311820317
GASKET
from £0.69
from £0.69
# 021
MPN: 311820318
SPRING
# 022
MPN: 311820319
OIL PRESSURE ADJUSTING VALVE
from £12.19
from £12.19
# 023
MPN: 14454181
SEAL RING
from £1.16
from £1.16
# 024
MPN: 14452981
SEAL RING
from £0.69
from £0.69
# 025
MPN: 108008030
SCREW
# 026
MPN: 138410080
RETAINING WASHER
from £2.28
from £2.28
# 027
-
OIL PUMP, ASSY
- Pre modification Gear height 11 mm: - 2000 cc. engine: up to no. 850027 - 2800 cc. engine: up to no. 400115 - Not supplied
# 027
MPN: 573040000
OIL PUMP, ASSY
- Post modification Gear height 12 mm: - 2000 cc. engine: from no. 850028 - 2800 cc. engine: from no. 400116
from £222.60
from £222.60
# 028
MPN: 311820340
DOWEL
# 029
MPN: 314020337
COPPER GASKET
# 030
MPN: 311820315
CENTERING ROLLER, OIL PUMP (L = 10 MM)
from £1.16
from £1.16
# 031
MPN: 571041200
THERMOSTATIC VALVE BODY
from £288.73
from £288.73
# 032
MPN: 571041300
NIPPLE
from £34.16
from £34.16
# 033
MPN: 571044600
SPRING
from £1.41
from £1.41
# 034
MPN: 571044200
BULB VALVE
from £6.13
from £6.13
# 035
MPN: 571044100
BULB
from £13.60
from £13.60
# 036
MPN: 571044500
WASHER (0.30 MM THICK)
from £1.93
from £1.93
# 037
MPN: 571044400
PLUG
from £8.66
from £8.66
# 038
MPN: 14465881
RUBBER GASKET
from £4.63
from £4.63
# 039
MPN: 97730
RETAINING WASHER
from £4.64
from £4.64
# 040
MPN: 501047800
PIN
from £33.63
from £33.63
