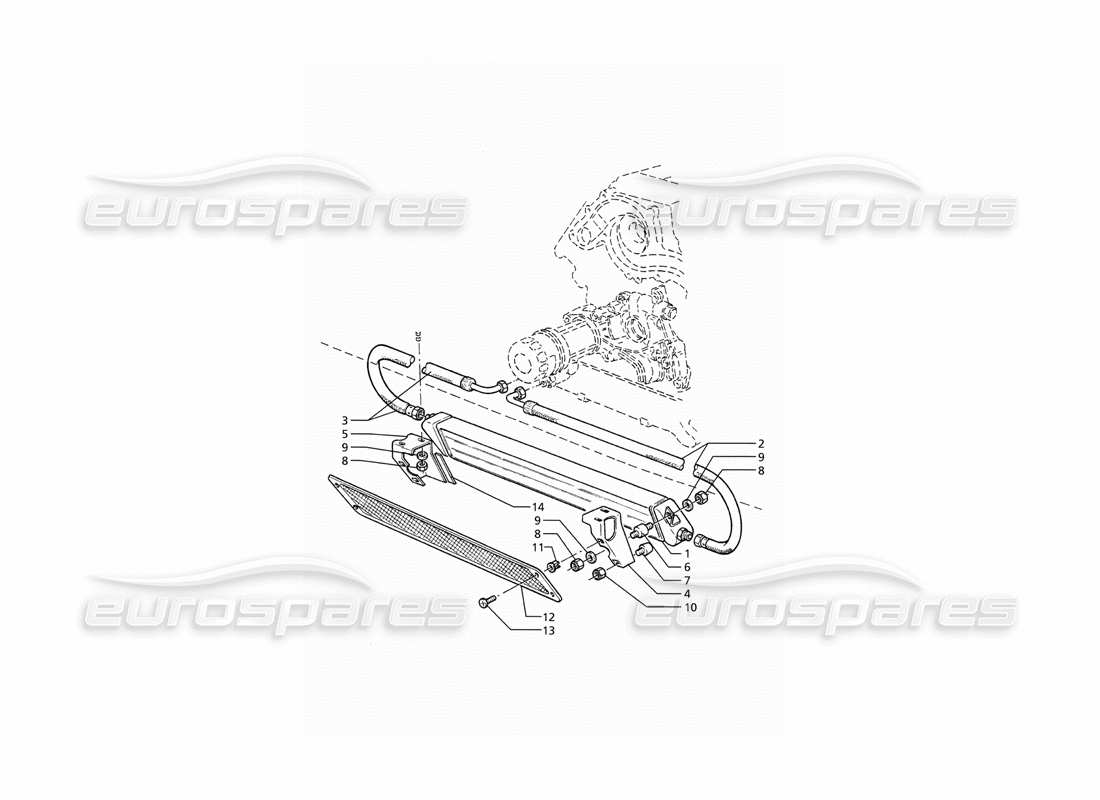

009.1 - Engine Oil Cooling

Maserati Ghibli 2.8 (ABS) Engine Oil Cooling Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            MPN: 362802108
                            ENGINE OIL RADIATOR
                            from £346.31
                            from £346.31
                            # 002
                            MPN: 362802104
                            OIL DELIVERY LINE
                            from £134.30
                            from £134.30
                            # 003
                            MPN: 362802105
                            oil return line
                            from £76.88
                            from £76.88
                            # 004
                            MPN: 362802107
                            LH BRACKET
                            from £141.51
                            from £141.51
                            This part replaces part number 362802301
                            # 005
                            MPN: 362802302
                            RH BRACKET
                            from £18.09
                            from £18.09
                            # 006
                            MPN: 319220139
                            FLEXIBLE SUPPORT
                            from £2.97
                            from £2.97
                            # 007
                            MPN: 314320124
                            VIBRATION DAMPER
                            from £1.53
                            from £1.53
                            # 008
                            MPN: 128350060
                            SELF LOCKING NUT
                            # 011
                            MPN: 318320341
                            NUT SCREW
                            from £0.69
                            from £0.69
                            This part replaces part number 14229280
                            # 012
                            MPN: 362802303
                            RADIATOR GRILLE
                            from £123.05
                            from £123.05
                            # 013
                            MPN: 97739
                            SELF TAPPING SCREW
                            # 014
                            -
                            GASKET
                            - Not supplied separately
                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
