011.1 - Vacuum Sustem (RH Drive)

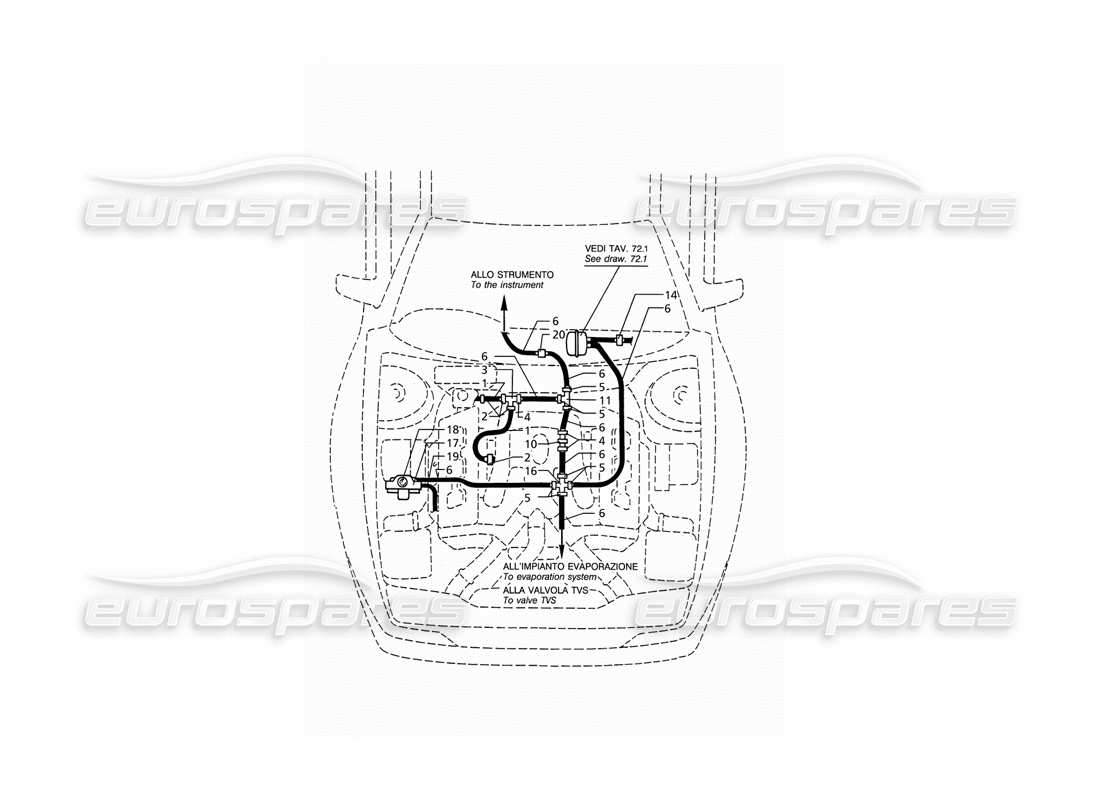

Maserati Ghibli 2.8 (ABS) Vacuum Sustem (R.H.Drive) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 95742
    SLEEVE
    - Valid for 22, 21 version - Section in metres - order minimum amount of 1 m or multiples
    from £10.47
    from £10.47
    This part replaces part number 312048302 - and 5 more. Click to view details
    # 002
    MPN: 312020404
    CLAMP
    - Valid for 22, 21 version - WAY UNION - Valid for 22, 21 version
    from £4.18
    from £4.18
    # 004
    MPN: 312050310
    CLAMP
    - Valid for 22, 21 version
    from £1.08
    from £1.08
    # 005
    MPN: 312020371
    CLAMP
    - Valid for 22, 21 version
    # 006
    MPN: 300100803
    SLEEVE
    - Valid for 22, 21 version - Section in metres - order minimum amount of 1 m or multiples
    from £55.18
    from £55.18
    This part replaces part number 318720329
    # 010
    MPN: 315520169
    CHECK VALVE
    - Valid for 22, 21 version
    from £7.01
    from £7.01
    # 011
    MPN: 312020336
    THREE WAY UNION
    - Valid for 22, 21 version
    from £0.86
    from £0.86
    # 014
    MPN: 165010100
    WIRE INLET
    - Valid for 22, 21 version
    from £0.99
    from £0.99
    # 016
    MPN: 312030422
    FOUR WAY UNION
    - Valid for 22, 21 version
    from £0.99
    from £0.99
    # 017
    MPN: 325520172
    VACUUM PUMP
    - Valid for 22, 21 version
    from £99.75
    from £99.75
    # 018
    MPN: 325520345
    GROMMET
    - Valid for 22, 21 version
    from £1.08
    from £1.08
    # 019
    MPN: 325520348
    SLEEVE L = 200 MM
    - Valid for 22, 21 version
    from £0.57
    from £0.57
    # 020
    MPN: 313620303
    UNION
    - Valid for 22, 21 version
    from £0.79
    from £0.79
