maserati ghibli 2.8 (abs) injection system accessories parts diagram

013 - injection system accessories

Maserati Ghibli 2.8 (ABS) Injection System Accessories Parts Diagram

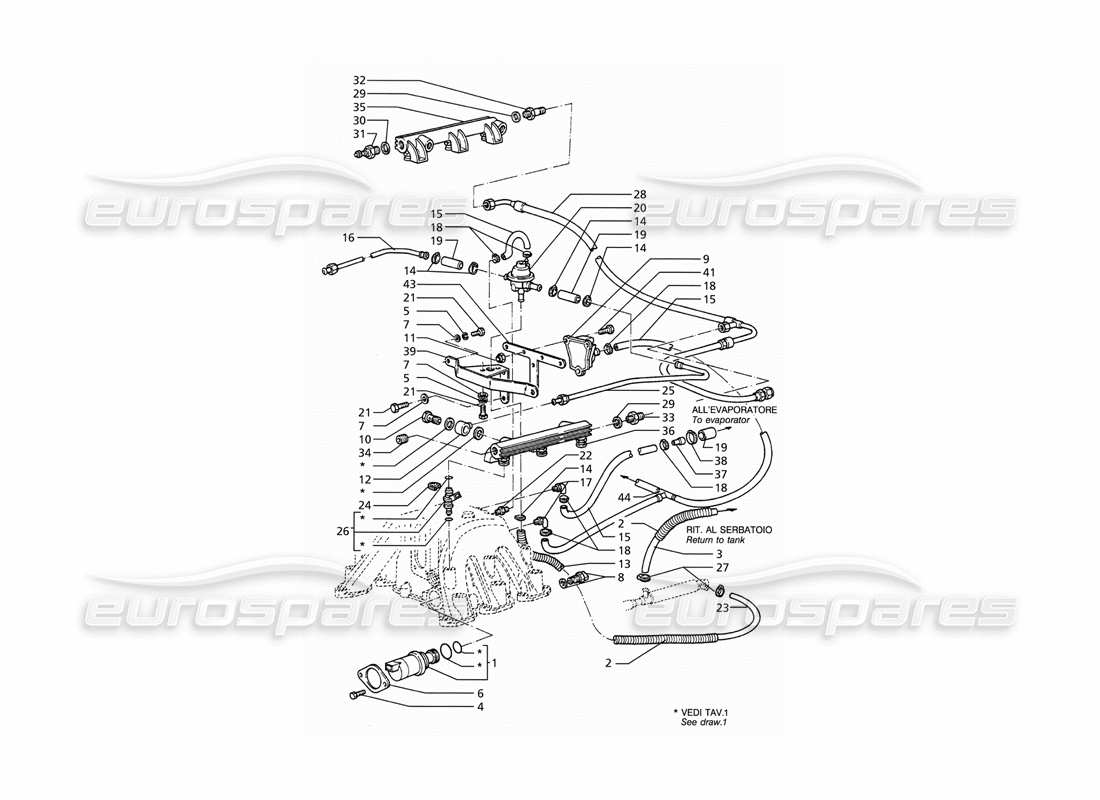

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 001
                                                                              MPN: 571063900
                                                                              AIR MODULATING SOLENOID VALVE
                                                                              from £219.62
                                                                              from £219.62
                                                                              # 002
                                                                              MPN: 329254526
                                                                              CORRUGATED PIPE
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 003
                                                                              MPN: 329254403
                                                                              SLEEVE
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 004
                                                                              MPN: 311053394
                                                                              SCREW
                                                                              Supersession
                                                                              Supersession
                                                                              # 007
                                                                              MPN: 312220411
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 008
                                                                              MPN: 470079700
                                                                              AIR TEMPERATURE SENSOR
                                                                              from £100.71
                                                                              from £100.71
                                                                              # 009
                                                                              MPN: 571079600
                                                                              PRESSURE SENSOR
                                                                              from £154.25
                                                                              from £154.25
                                                                              # 010
                                                                              MPN: 312020510
                                                                              UNION SCREW
                                                                              from £2.68
                                                                              from £2.68
                                                                              This part replaces part number 193520 - and 1 more. Click to view details
                                                                              # 013
                                                                              MPN: 398750984
                                                                              CORRUGATED PIPE
                                                                              - Section in metres - order minimum amount of 1 m or multiples
                                                                              # 014
                                                                              MPN: 559221343
                                                                              CLAMP
                                                                              Supersession
                                                                              Supersession
                                                                              # 015
                                                                              MPN: 300100803
                                                                              PIPING
                                                                              - Section in metres - order minimum amount of 1 m or multiples
                                                                              from £54.96
                                                                              from £54.96
                                                                              This part replaces part number 318720329
                                                                              # 016
                                                                              MPN: 495061000
                                                                              RH PETROL RETURN PIPE
                                                                              Supersession
                                                                              Supersession
                                                                              # 017
                                                                              MPN: 585064500
                                                                              UNION
                                                                              from £95.01
                                                                              from £95.01
                                                                              This part replaces part number 578064500
                                                                              # 018
                                                                              MPN: 312050310
                                                                              CLAMP
                                                                              from £1.08
                                                                              from £1.08
                                                                              # 019
                                                                              MPN: 97982
                                                                              SLEEVE
                                                                              - Section in metres - order minimum amount of 1 m or multiples
                                                                              # 020
                                                                              MPN: 477073601
                                                                              PRESSURE ADJUSTER
                                                                              from £510.72
                                                                              from £510.72
                                                                              This part replaces part number 349202140
                                                                              # 021
                                                                              MPN: 108006012
                                                                              SCREW
                                                                              from £0.54
                                                                              from £0.54
                                                                              # 022
                                                                              MPN: 95517
                                                                              UNION SCREW
                                                                              Supersession
                                                                              Supersession
                                                                              # 023
                                                                              MPN: 97982
                                                                              SLEEVE
                                                                              - Section in metres - order minimum amount of 1 m or multiples
                                                                              # 024
                                                                              MPN: 313720313
                                                                              INJECTOR RETAINING SPRING
                                                                              # 025
                                                                              MPN: 495060700
                                                                              LH PETROL RETURN PIPE
                                                                              Supersession
                                                                              Supersession
                                                                              # 026
                                                                              MPN: 470063003
                                                                              INJECTOR
                                                                              from £95.90
                                                                              from £95.90
                                                                              # 027
                                                                              MPN: 559221343
                                                                              CLAMP
                                                                              Supersession
                                                                              Supersession
                                                                              # 028
                                                                              MPN: 479064203
                                                                              FUEL DELIVERY PIPE
                                                                              from £140.43
                                                                              from £140.43
                                                                              # 029
                                                                              MPN: 97348
                                                                              GASKET
                                                                              from £2.85
                                                                              from £2.85
                                                                              # 030
                                                                              MPN: 97347
                                                                              GASKET
                                                                              from £5.96
                                                                              from £5.96
                                                                              # 031
                                                                              MPN: 495984900
                                                                              BREATHER VALVE
                                                                              from £19.45
                                                                              from £19.45
                                                                              # 032
                                                                              MPN: 495062300
                                                                              RH UNION
                                                                              from £4.23
                                                                              from £4.23
                                                                              # 033
                                                                              MPN: 495062400
                                                                              LH UNION
                                                                              from £2.75
                                                                              from £2.75
                                                                              # 034
                                                                              MPN: 312020495
                                                                              PLUG
                                                                              from £1.55
                                                                              from £1.55
                                                                              # 035
                                                                              MPN: 495060000
                                                                              RH MANIFOLD FOR PETROL
                                                                              from £35.24
                                                                              from £35.24
                                                                              # 036
                                                                              MPN: 495060100
                                                                              LH MANIFOLD FOR PETROL
                                                                              from £35.24
                                                                              from £35.24
                                                                              # 037
                                                                              MPN: 312230461
                                                                              UNION
                                                                              from £0.99
                                                                              from £0.99
                                                                              # 038
                                                                              MPN: 96115
                                                                              CLAMP
                                                                              from £1.08
                                                                              from £1.08
                                                                              # 039
                                                                              MPN: 495083100
                                                                              BRACKET
                                                                              from £8.20
                                                                              from £8.20
                                                                              # 043
                                                                              MPN: 571084700
                                                                              PRESSURE VALVE SUPPORT
                                                                              from £5.57
                                                                              from £5.57
                                                                              # 044
                                                                              MPN: 312030448
                                                                              THREE WAY UNION
                                                                              from £0.56
                                                                              from £0.56
                                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
