014.1 - Oil Vapour Recovery

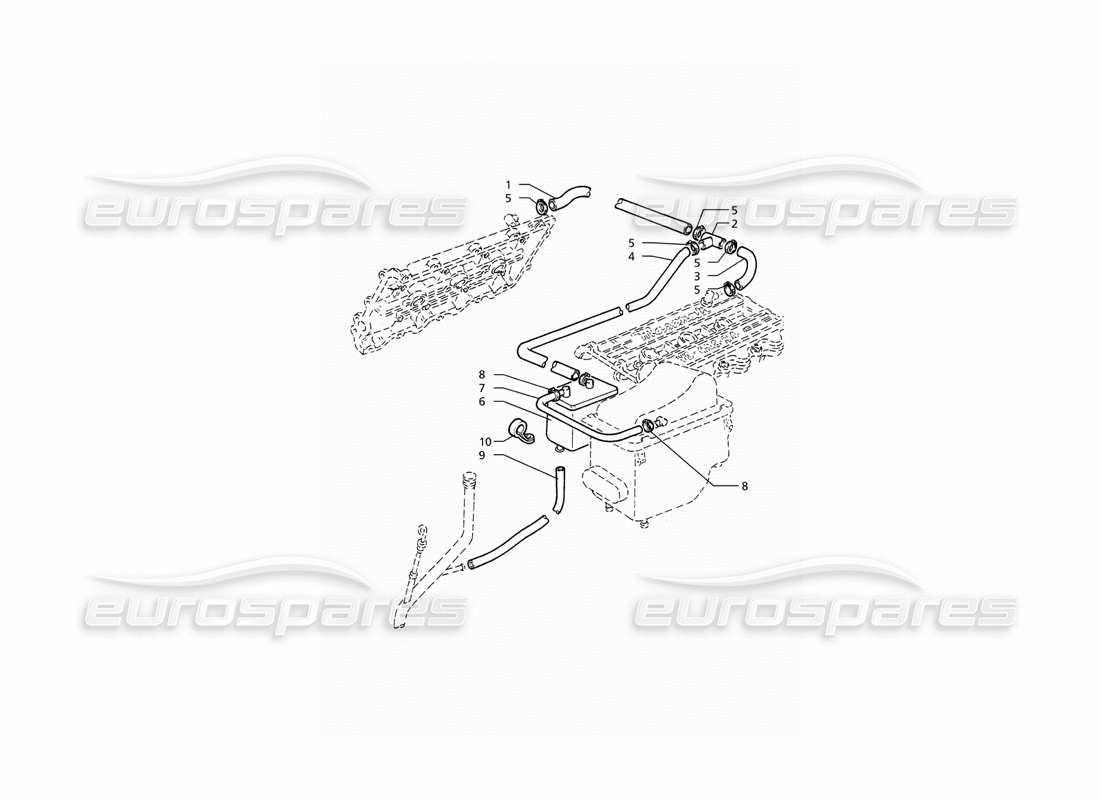

Maserati Ghibli 2.8 (ABS) Oil Vapour Recovery Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 573003400
SLEEVE
from £10.71
from £10.71
# 002
MPN: 97594
THREE WAY UNION
from £2.32
from £2.32
# 003
MPN: 573003500
SLEEVE
from £11.51
from £11.51
# 004
MPN: 573042300
SLEEVE
from £23.61
from £23.61
# 005
MPN: 312030442
CLAMP
Supersession
Supersession
# 006
MPN: 573984900
oil separator
from £154.02
from £154.02
# 007
MPN: 573042500
SLEEVE
from £9.37
from £9.37
# 008
MPN: 312030442
CLAMP
Supersession
Supersession
# 009
MPN: 318753387
SLEEVE
- Section in metres - order minimum amount of 1 m or multiples
# 010
MPN: 573009400
WIRE INLET, COMPLETE
from £8.66
from £8.66
