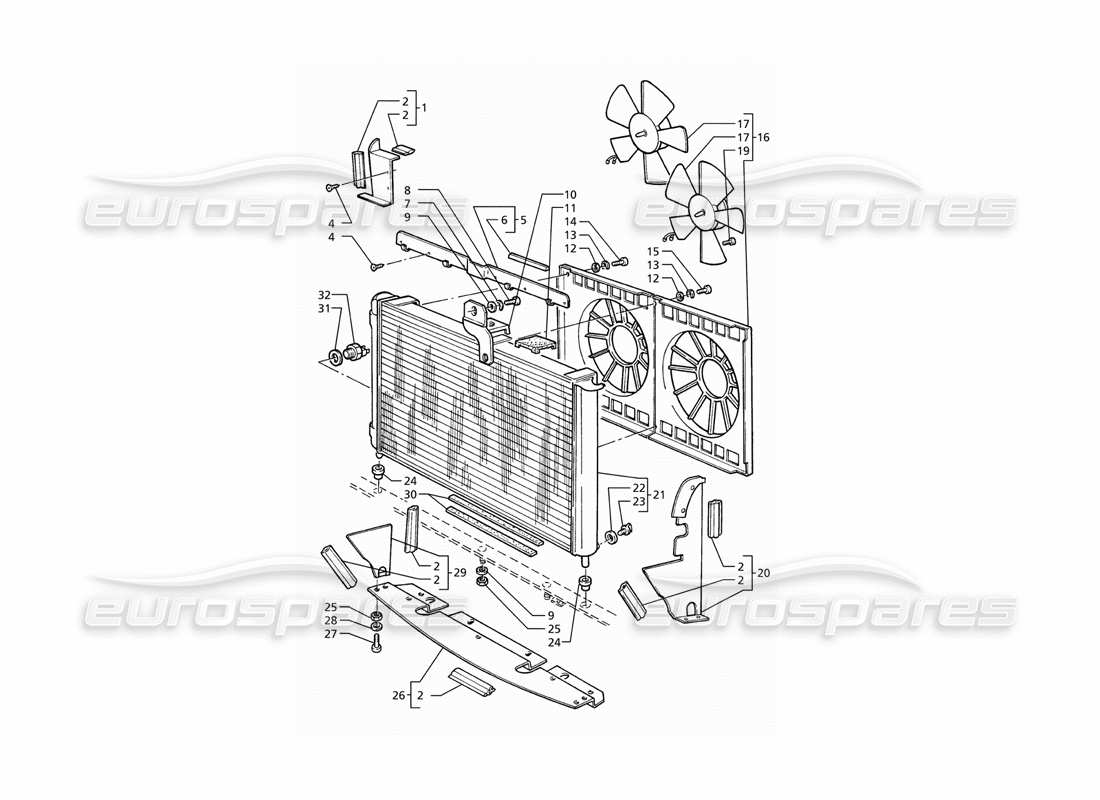

020 - radiator and cooling fans
Maserati Ghibli 2.8 (ABS) Radiator and Cooling Fans Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 394050152
RH UPPER AIR DEFLECTOR, ASSY
from £10.97
from £10.97
# 002
-
GASKET
- Not supplied separately
# 004
MPN: 97207
SELF TAPPING SCREW
Supersession
Supersession
# 005
MPN: 394050018
UPPER PLATE
from £19.01
from £19.01
# 006
-
GASKET
- Not supplied separately
# 007
MPN: 135300064
SPRING WASHER
# 008
MPN: 101206016
SCREW
# 009
MPN: 163010060
FLAT WASHER
# 010
MPN: 394050154
UPPER BRACKET
from £12.44
from £12.44
# 011
MPN: 394050308
BUFFER FOR BRACKET
from £9.66
from £9.66
# 012
MPN: 169020406
WASHER
from £0.77
from £0.77
# 013
MPN: 138410060
SPRING WASHER
# 014
MPN: 101206025
SCREW
# 015
MPN: 101206030
SCREW
# 016
MPN: 393350105
AIR CONVEYOR, ASSY
from £157.50
from £157.50
# 017
MPN: 313354102
FAN MOTOR (AP6)
Supersession
Supersession
# 019
MPN: 119142130
SCREW
# 020
MPN: 364000128
LH SIDE AIR DEFLECTOR, ASSY
Supersession
Supersession
# 021
MPN: 394050100
RADIATOR
from £476.39
from £476.39
# 022
MPN: 314020327
GASKET
Supersession
Supersession
# 023
MPN: 314037326
WATER DRAIN COCK
from £10.05
from £10.05
# 024
MPN: 189453
BUSH
from £1.08
from £1.08
This part replaces part number 374030312
# 025
MPN: 128350060
SELF LOCKING NUT
# 026
MPN: 364000133
LOWER AIR DEFLECTOR
from £144.68
from £144.68
# 027
MPN: 108006012
SCREW
from £0.54
from £0.54
# 028
MPN: 135000064
FLAT WASHER
# 029
MPN: 364000129
DEFLECTOR
from £8.84
from £8.84
# 030
-
GASKET
- Not supplied separately
# 031
MPN: 53331300
WASHER
from £1.08
from £1.08
# 032
MPN: 363310172
FAN ACTUATING THERMAL SWITCH
from £6.11
from £6.11
