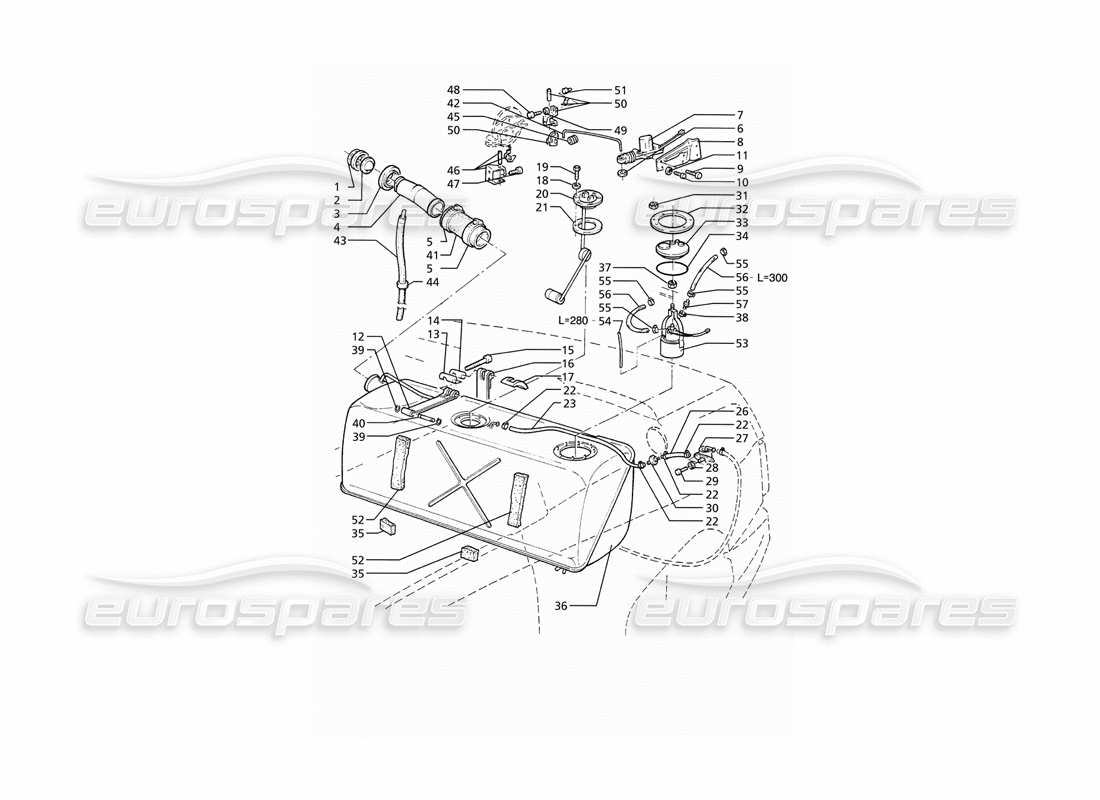

023 - FUEL TANK

Maserati Ghibli 2.8 (ABS) Fuel Tank Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                          #
                                                                                                          Part number
                                                                                                          Description
                                                                                                          Price
                                                                                                          # 001
                                                                                                          MPN: 319220354
                                                                                                          FUEL TANK CAP
                                                                                                          from £9.87
                                                                                                          from £9.87
                                                                                                          This part replaces part number 319220007
                                                                                                          # 002
                                                                                                          MPN: 329232355
                                                                                                          GASKET
                                                                                                          from £10.47
                                                                                                          from £10.47
                                                                                                          # 003
                                                                                                          MPN: 319250411
                                                                                                          SEAL RING
                                                                                                          from £4.05
                                                                                                          from £4.05
                                                                                                          This part replaces part number 329232410 - and 1 more. Click to view details
                                                                                                          # 004
                                                                                                          MPN: 369200117
                                                                                                          FILLER NECK
                                                                                                          from £71.92
                                                                                                          from £71.92
                                                                                                          # 004
                                                                                                          MPN: 369200118
                                                                                                          FILLER
                                                                                                          - Valid for 09, 10 version - Specific for non -catalysed vehicles for Saudi Arabia
                                                                                                          from £42.40
                                                                                                          from £42.40
                                                                                                          # 005
                                                                                                          MPN: 186404087
                                                                                                          CLAMP
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 006
                                                                                                          MPN: 53451389
                                                                                                          SPRING CLIP
                                                                                                          from £1.11
                                                                                                          from £1.11
                                                                                                          # 007
                                                                                                          MPN: 313320195
                                                                                                          ACTUATOR
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 008
                                                                                                          MPN: 313320196
                                                                                                          SUPPORT
                                                                                                          from £1.59
                                                                                                          from £1.59
                                                                                                          # 011
                                                                                                          MPN: 135700050
                                                                                                          LOCK WASHER
                                                                                                          from £1.11
                                                                                                          from £1.11
                                                                                                          # 012
                                                                                                          MPN: 319220385
                                                                                                          TANK FASTENING UPPER STRIP
                                                                                                          from £6.98
                                                                                                          from £6.98
                                                                                                          # 013
                                                                                                          MPN: 53921332
                                                                                                          STRIP PIN
                                                                                                          from £2.38
                                                                                                          from £2.38
                                                                                                          # 014
                                                                                                          MPN: 53921331
                                                                                                          STRIP PIN
                                                                                                          from £1.59
                                                                                                          from £1.59
                                                                                                          # 015
                                                                                                          MPN: 53921333
                                                                                                          SCREW
                                                                                                          from £1.90
                                                                                                          from £1.90
                                                                                                          # 016
                                                                                                          MPN: 319220106
                                                                                                          FUEL TANK LOWER FASTENING STRIP
                                                                                                          from £7.93
                                                                                                          from £7.93
                                                                                                          # 017
                                                                                                          MPN: 319220337
                                                                                                          STRIP RETAINING PAD
                                                                                                          from £1.98
                                                                                                          from £1.98
                                                                                                          # 018
                                                                                                          MPN: 136220043
                                                                                                          FLAT WASHER
                                                                                                          # 019
                                                                                                          MPN: 53361308
                                                                                                          SCREW
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 020
                                                                                                          MPN: 313620111
                                                                                                          FUEL LEVEL GAUGE
                                                                                                          from £54.60
                                                                                                          from £54.60
                                                                                                          # 021
                                                                                                          MPN: 33331300
                                                                                                          GASKET
                                                                                                          from £1.98
                                                                                                          from £1.98
                                                                                                          # 022
                                                                                                          MPN: 30921110
                                                                                                          CLAMP
                                                                                                          # 023
                                                                                                          MPN: 318720336
                                                                                                          PIPING
                                                                                                          - Section in metres - order minimum amount of 1 m or multiples
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          This part replaces part number 319220391
                                                                                                          # 027
                                                                                                          MPN: 379200102
                                                                                                          CHECK VALVE FOR VEHICLE TURNOVER
                                                                                                          from £17.35
                                                                                                          from £17.35
                                                                                                          This part replaces part number 319220102 - and 1 more. Click to view details
                                                                                                          # 029
                                                                                                          MPN: 119142160
                                                                                                          SCREW
                                                                                                          from £0.87
                                                                                                          from £0.87
                                                                                                          # 030
                                                                                                          MPN: 319220134
                                                                                                          LIMITING VALVE
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 032
                                                                                                          MPN: 399250446
                                                                                                          FLANGE
                                                                                                          from £14.21
                                                                                                          from £14.21
                                                                                                          # 033
                                                                                                          MPN: 393750130
                                                                                                          FUEL PUMP COVER
                                                                                                          from £5.64
                                                                                                          from £5.64
                                                                                                          # 034
                                                                                                          MPN: 393750309
                                                                                                          GASKET
                                                                                                          from £2.39
                                                                                                          from £2.39
                                                                                                          # 035
                                                                                                          MPN: 319220399
                                                                                                          FELT PAD
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 036
                                                                                                          MPN: 369202006
                                                                                                          FUEL TANK
                                                                                                          from £2,331.91
                                                                                                          from £2,331.91
                                                                                                          This part replaces part number 399250006
                                                                                                          # 038
                                                                                                          MPN: 559221337
                                                                                                          CLAMP
                                                                                                          from £0.71
                                                                                                          from £0.71
                                                                                                          # 039
                                                                                                          MPN: 150800050
                                                                                                          SNAP RING
                                                                                                          # 040
                                                                                                          MPN: 30921336
                                                                                                          PIN
                                                                                                          from £3.74
                                                                                                          from £3.74
                                                                                                          # 041
                                                                                                          MPN: 329232383
                                                                                                          SLEEVE
                                                                                                          from £45.26
                                                                                                          from £45.26
                                                                                                          # 042
                                                                                                          MPN: 362500520
                                                                                                          CONTROL TIE ROD
                                                                                                          from £31.16
                                                                                                          from £31.16
                                                                                                          # 043
                                                                                                          MPN: 30871325
                                                                                                          DRAINING PIPE
                                                                                                          from £1.31
                                                                                                          from £1.31
                                                                                                          # 044
                                                                                                          MPN: 319220361
                                                                                                          FAIRLEAD
                                                                                                          from £2.38
                                                                                                          from £2.38
                                                                                                          # 045
                                                                                                          MPN: 30211310
                                                                                                          FAIRLEAD
                                                                                                          from £1.08
                                                                                                          from £1.08
                                                                                                          # 046
                                                                                                          MPN: 362500143
                                                                                                          FUEL FLAP
                                                                                                          from £14.53
                                                                                                          from £14.53
                                                                                                          # 047
                                                                                                          MPN: 167570512
                                                                                                          SCREW
                                                                                                          from £1.59
                                                                                                          from £1.59
                                                                                                          # 048
                                                                                                          MPN: 119142160
                                                                                                          SCREW
                                                                                                          from £0.87
                                                                                                          from £0.87
                                                                                                          # 049
                                                                                                          MPN: 135900043
                                                                                                          FLAT WASHER
                                                                                                          from £1.11
                                                                                                          from £1.11
                                                                                                          This part replaces part number 14496207
                                                                                                          # 050
                                                                                                          MPN: 312520144
                                                                                                          RATCHET
                                                                                                          from £5.71
                                                                                                          from £5.71
                                                                                                          # 051
                                                                                                          MPN: 312520499
                                                                                                          NUT SCREW
                                                                                                          from £0.71
                                                                                                          from £0.71
                                                                                                          # 052
                                                                                                          MPN: 319220398
                                                                                                          GASKET
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 053
                                                                                                          MPN: 393750135
                                                                                                          PLUNGED PUMP
                                                                                                          from £147.82
                                                                                                          from £147.82
                                                                                                          This part replaces part number 393750134
                                                                                                          # 054
                                                                                                          MPN: 97470
                                                                                                          RUBBER GASKET
                                                                                                          from £43.68
                                                                                                          from £43.68
                                                                                                          This part replaces part number 311053321 - and 1 more. Click to view details
                                                                                                          # 055
                                                                                                          MPN: 559221338
                                                                                                          CLAMP
                                                                                                          from £0.71
                                                                                                          from £0.71
                                                                                                          # 056
                                                                                                          MPN: 398750368
                                                                                                          PIPE
                                                                                                          - Section in metres - order minimum amount of 1 m or multiples
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 057
                                                                                                          MPN: 399250432
                                                                                                          UNION
                                                                                                          from £1.30
                                                                                                          from £1.30
