maserati ghibli 2.8 (abs) clutch parts diagram

025 - clutch

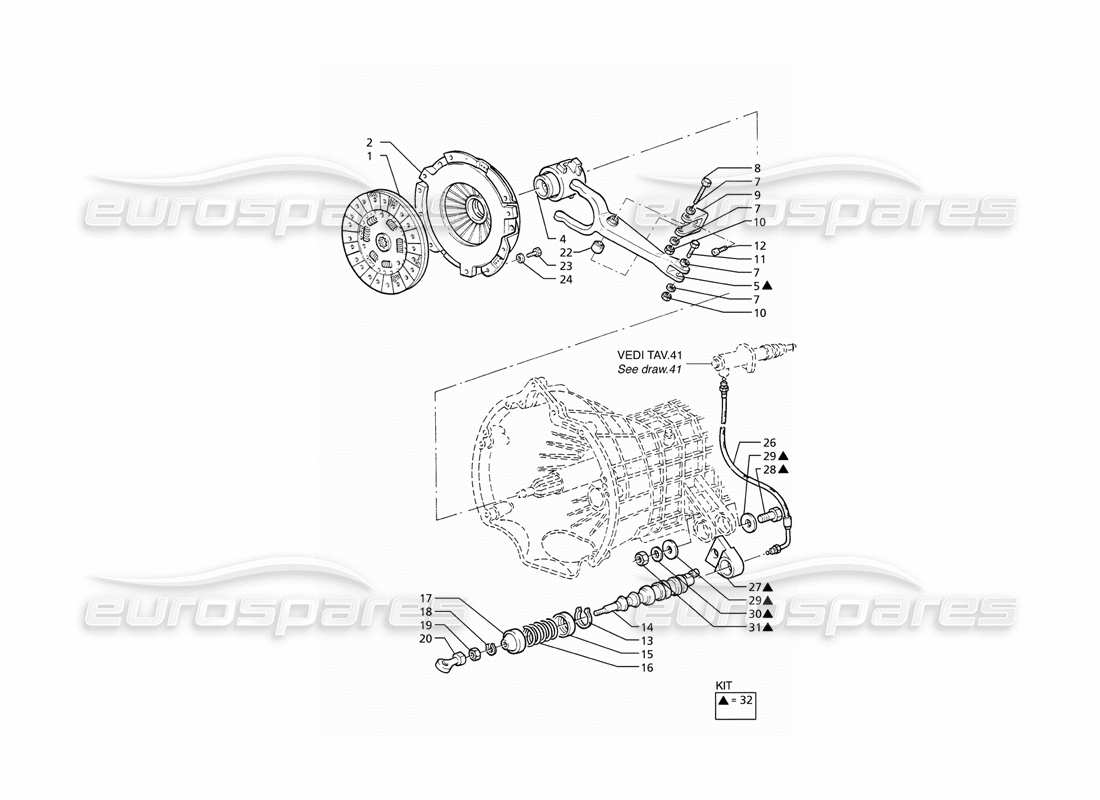

Maserati Ghibli 2.8 (ABS) Clutch Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 364602105
    CLUTCH DISC WITH DOUBLE ANTIVIBRATION ELEMENTS
    - Valid for 21, 10 and 02 version
    Supersession
    Supersession
    # 001
    MPN: 374640105
    CLUTCH DISC (2.0 LTR 4V. ONLY)
    from £1,330.61
    from £1,330.61
    This part replaces part number 374630105
    # 002
    MPN: 394650102
    CLUTCH DEVICE
    - Valid for 21, 10 and 02 version
    from £657.77
    from £657.77
    This part replaces part number 394650101
    # 004
    MPN: 384601108
    Clutch Bearing
    from £371.27
    from £371.27
    This part replaces part number 384600108
    # 005
    MPN: 364600318
    CLUTCH LEVER
    - Valid for 21, 10 and 02 version
    from £84.32
    from £84.32
    # 007
    MPN: 135100084
    WASHER
    - Valid for 21, 10 and 02 version
    # 008
    MPN: 364602330
    SCREW
    - Valid for 21, 10 and 02 version
    from £2.85
    from £2.85
    # 009
    MPN: 364602328
    FORK
    - Valid for 21, 10 and 02 version
    from £12.68
    from £12.68
    # 010
    MPN: 128350080
    SELF LOCKING NUT
    - Valid for 21, 10 and 02 version
    Supersession
    Supersession
    # 011
    MPN: 328253327
    SCREW
    - Valid for 21, 10 and 02 version
    from £2.85
    from £2.85
    # 012
    MPN: 108010025
    SCREW
    - Valid for 21, 10 and 02 version
    # 013
    MPN: 152100350
    SNAP RING
    - Valid for 21, 10 and 02 version
    # 014
    MPN: 378230104
    CLUTCH OPERATING CYLINDER
    - Valid for 21, 10 and 02 version
    from £239.66
    from £239.66
    This part replaces part number 328253104
    # 015
    MPN: 328253332
    CUP
    - Valid for 21, 10 and 02 version
    from £5.09
    from £5.09
    # 016
    MPN: 328253331
    SPRING
    - Valid for 21, 10 and 02 version
    from £3.88
    from £3.88
    # 017
    MPN: 328253333
    FRONT GUP
    - Valid for 21, 10 and 02 version
    from £37.11
    from £37.11
    # 018
    MPN: 150800080
    SNAP RING
    - Valid for 21, 10 and 02 version
    # 019
    MPN: 125300080
    NUT
    - Valid for 21, 10 and 02 version
    # 020
    MPN: 364602326
    BALL JOINT
    - Valid for 21, 10 and 02 version
    from £17.41
    from £17.41
    # 022
    MPN: 364602320
    BALL JOINT
    - Valid for 21, 10 and 02 version
    from £87.10
    from £87.10
    # 023
    MPN: 96890
    SCREW
    - Valid for 21, 10 and 02 version
    from £2.13
    from £2.13
    # 024
    MPN: 138200080
    WASHER
    - Valid for 21, 10 and 02 version
    # 026
    MPN: 378200112
    CLUTCH PUMP CONNECTING HOSE
    - Valid for 10 and 02 version
    from £48.77
    from £48.77
    # 026
    MPN: 378219112
    HOSE
    - Valid for 21 version
    from £45.68
    from £45.68
    # 027
    MPN: 364802405
    FORK
    - Valid for 21, 10 and 02 version
    from £4.17
    from £4.17
    # 028
    MPN: 97695
    STUD
    - Valid for 21, 10 and 02 version
    from £1.55
    from £1.55
    # 029
    MPN: 364802407
    WASHER
    - Valid for 21, 10 and 02 version
    from £11.28
    from £11.28
    # 030
    MPN: 14496601
    WASHER
    - Valid for 21, 10 and 02 version
    Supersession
    Supersession
    # 031
    MPN: 97658
    SELF LOCKING NUT
    - Valid for 21, 10 and 02 version
    from £1.31
    from £1.31
    # 032
    MPN: 360202052

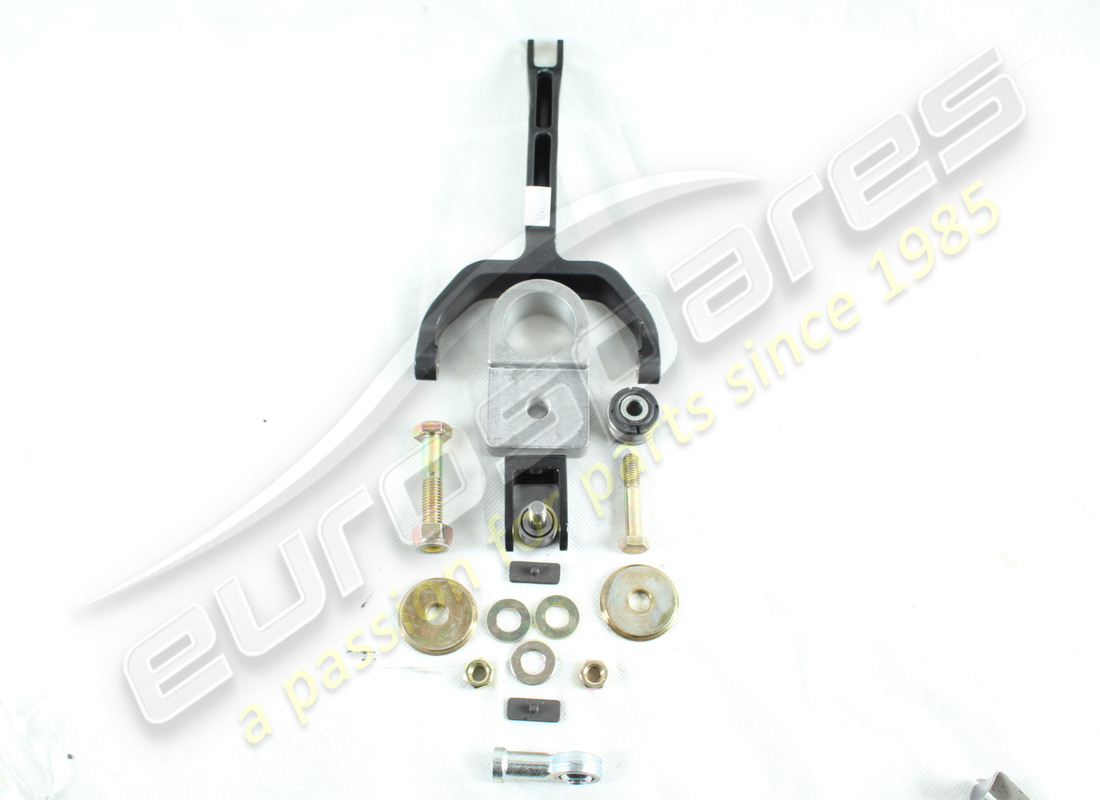

    CLUTCH LEVER KIT
    - Valid for 21, 10 and 02 version
    from £1,114.74
    from £1,114.74
