maserati ghibli 2.8 (abs) automatic transmission (4hp) oil radiator parts diagram

028.2 - Automatic Transmission (4Hp) Oil Radiator

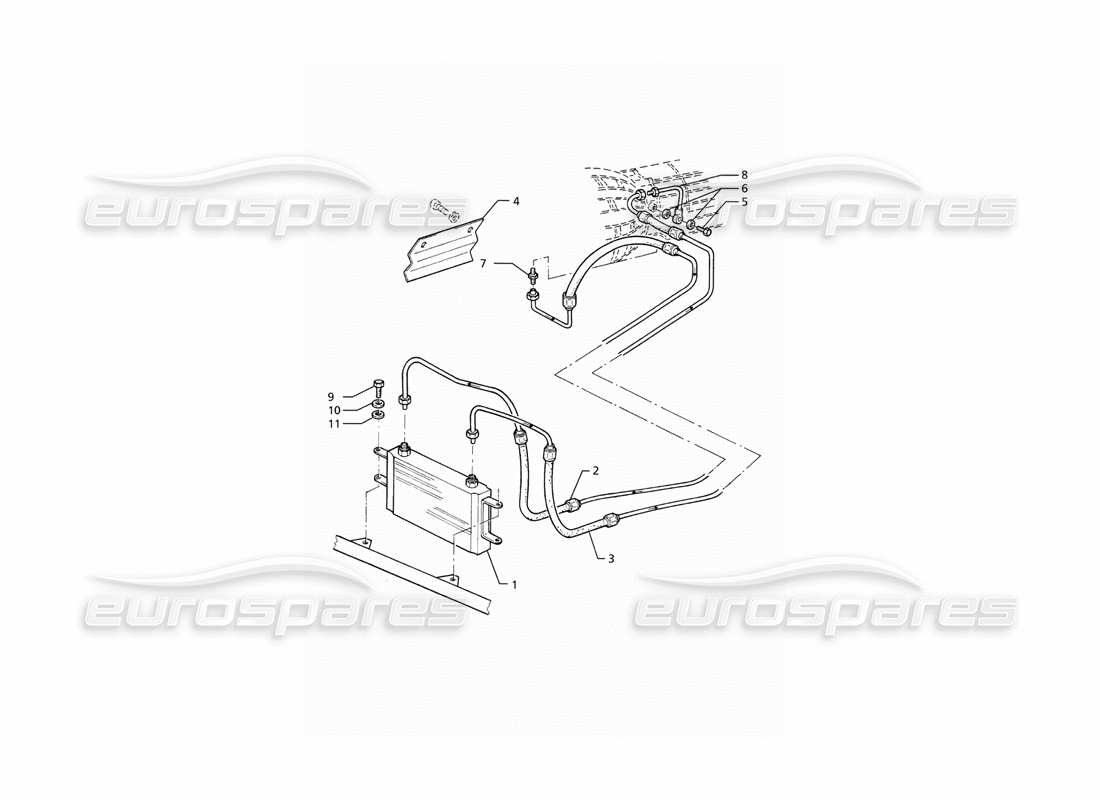

Maserati Ghibli 2.8 (ABS) Automatic Transmission (4Hp) Oil Radiator Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 361806103
RADIATOR
- Valid for 22, 09 version
from £74.52
from £74.52
# 002
MPN: 361806109
OIL DELIVERY PIPE
- Valid for 22, 09 version
from £97.23
from £97.23
# 003
MPN: 361806108
OIL RETURN PIPE
- Valid for 22, 09 version
from £91.74
from £91.74
# 004
MPN: 361806358
PIPE BULKHEAD
- Valid for 22, 09 version
from £13.60
from £13.60
# 005
MPN: 311832343
UNION
- Valid for 22, 09 version
from £1.55
from £1.55
# 006
MPN: 311855316
COPPER GASKET
- Valid for 22, 09 version
from £1.93
from £1.93
# 007
MPN: 311855344
THREADED NIPPLE
- Valid for 22, 09 version
from £6.42
from £6.42
# 008
MPN: 361806115
UNION
- Valid for 22, 09 version
from £12.40
from £12.40
# 009
MPN: 108008016
SCREW
- Valid for 22, 09 version
# 010
MPN: 138410080
SPRING WASHER
- Valid for 22, 09 version
# 011
MPN: 312225445
FLAT WASHER
- Valid for 22, 09 version
from £0.77
from £0.77
