maserati ghibli 2.8 (abs) differential with radiator parts diagram

030 - Differential With Radiator

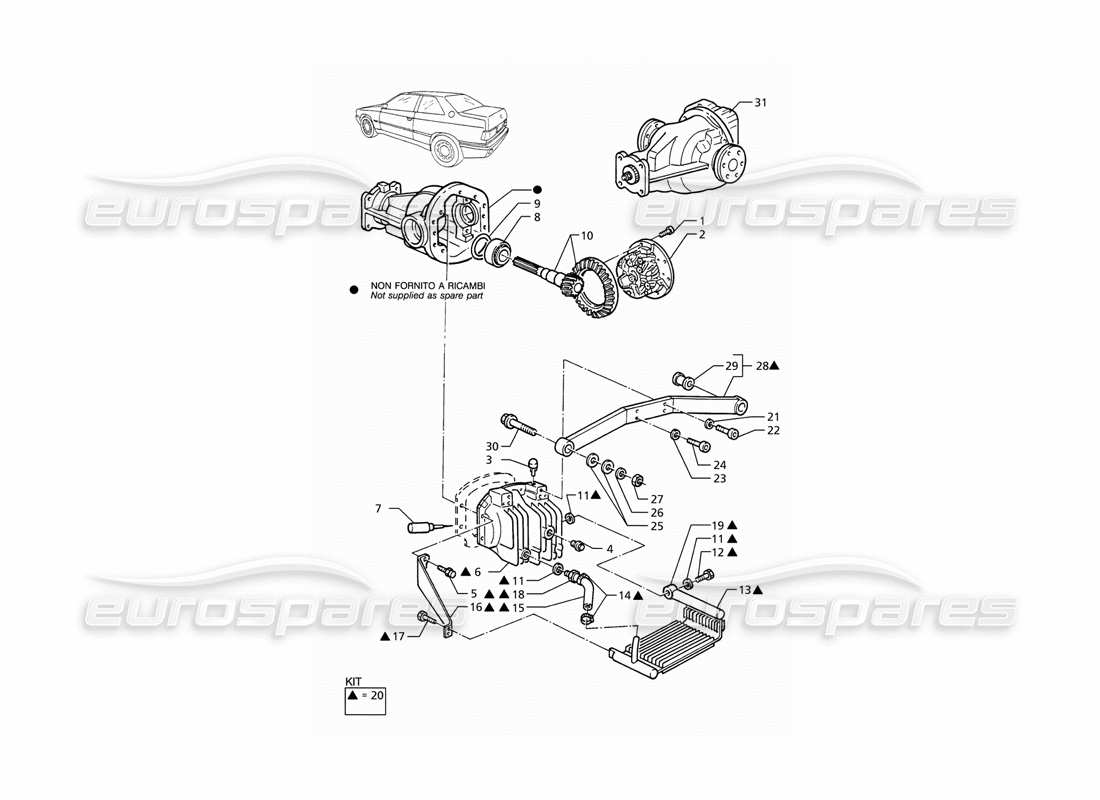

Maserati Ghibli 2.8 (ABS) Differential With Radiator Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 316220357
                                                      SCREW
                                                      from £1.92
                                                      from £1.92
                                                      # 002
                                                      MPN: 326256010
                                                      QUAIFE DIFFERENTIAL CASING
                                                      from £1,378.04
                                                      from £1,378.04
                                                      # 003
                                                      MPN: 316220107
                                                      BREATHER VALVE
                                                      from £17.55
                                                      from £17.55
                                                      # 004
                                                      MPN: 396250548
                                                      LEVEL PLUG
                                                      from £0.69
                                                      from £0.69
                                                      # 005
                                                      MPN: 316220364
                                                      SCREW AND WASHER
                                                      from £1.31
                                                      from £1.31
                                                      # 006
                                                      MPN: 396250525
                                                      COVER
                                                      from £240.83
                                                      from £240.83
                                                      # 007
                                                      MPN: 316220365
                                                      GASKET
                                                      from £3.63
                                                      from £3.63
                                                      # 007
                                                      MPN: 9441
                                                      HYLOSIL SILICONE
                                                      - As necessary
                                                      from £15.78
                                                      from £15.78
                                                      # 008
                                                      MPN: 316220123
                                                      BEARING
                                                      from £120.35
                                                      from £120.35
                                                      # 009
                                                      MPN: 316220348
                                                      003 SHIM WASHER
                                                      - As necessary
                                                      from £4.08
                                                      from £4.08
                                                      # 009
                                                      MPN: 316220349
                                                      005 SHIM WASHER
                                                      - As necessary
                                                      from £4.55
                                                      from £4.55
                                                      # 009
                                                      MPN: 316220350
                                                      010 SHIM WASHER
                                                      - As necessary
                                                      from £14.18
                                                      from £14.18
                                                      # 010
                                                      MPN: 316225025
                                                      CROWN WHEEL AND PINION (R=3.31)
                                                      - Valid for 21, 10 and 02 version
                                                      from £767.07
                                                      from £767.07
                                                      # 010
                                                      MPN: 326253025
                                                      CROWN WHEEL AND PINION (R=3.77)
                                                      - Valid for 22, 09 version
                                                      from £572.18
                                                      from £572.18
                                                      # 011
                                                      MPN: 396250545
                                                      WASHER
                                                      # 012
                                                      MPN: 396250543
                                                      CAPSTAN SCREW
                                                      from £8.40
                                                      from £8.40
                                                      # 013
                                                      MPN: 396250160
                                                      RADIATOR
                                                      Supersession
                                                      Supersession
                                                      # 014
                                                      MPN: 396250540
                                                      CLAMP
                                                      from £1.55
                                                      from £1.55
                                                      # 015
                                                      MPN: 396250537
                                                      HOSE
                                                      from £45.46
                                                      from £45.46
                                                      # 016
                                                      MPN: 396250538
                                                      BRACKET
                                                      Supersession
                                                      Supersession
                                                      # 018
                                                      MPN: 396250541
                                                      UNION
                                                      from £26.72
                                                      from £26.72
                                                      # 019
                                                      MPN: 396250546
                                                      EYE UNION
                                                      from £5.81
                                                      from £5.81
                                                      # 020
                                                      MPN: 396250876
                                                      DIFFERENTIAL RADIATOR KIT
                                                      from £617.96
                                                      from £617.96
                                                      # 022
                                                      MPN: 100810040
                                                      SCREW
                                                      from £1.31
                                                      from £1.31
                                                      # 023
                                                      MPN: 5405921
                                                      SCREW
                                                      from £0.77
                                                      from £0.77
                                                      # 025
                                                      MPN: 396250508
                                                      WASHER
                                                      - As necessary
                                                      from £5.08
                                                      from £5.08
                                                      # 026
                                                      MPN: 136110110
                                                      WASHER
                                                      from £2.16
                                                      from £2.16
                                                      # 028
                                                      MPN: 396250156
                                                      DIFFERENTIAL SUPPORT CROSS MEMBER
                                                      from £336.80
                                                      from £336.80
                                                      This part replaces part number 396250153
                                                      # 029
                                                      MPN: 396250101
                                                      VIBRATION DAMPING SUPPORT
                                                      from £9.23
                                                      from £9.23
                                                      # 030
                                                      MPN: 326656309
                                                      SCREW
                                                      from £2.85
                                                      from £2.85
                                                      # 031
                                                      MPN: 316259005
                                                      DIFFERENTIAL UNIT (R=3,77)
                                                      - Valid for 22, 09 version
                                                      from £1,031.66
                                                      from £1,031.66
                                                      This part replaces part number 326253009 - and 1 more. Click to view details
                                                      # 031
                                                      MPN: 376200001
                                                      DIFFERENTIAL UNIT (R=3,31)
                                                      - Valid for 21, 10 and 02 version
                                                      from £1,602.21
                                                      from £1,602.21
                                                      This part replaces part number 396250004
                                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
