033 - Power Steering System (LH Drive RH Drive)

Maserati Ghibli 2.8 (ABS) Power Steering System (L.H.Drive R.H. Drive) Parts Diagram

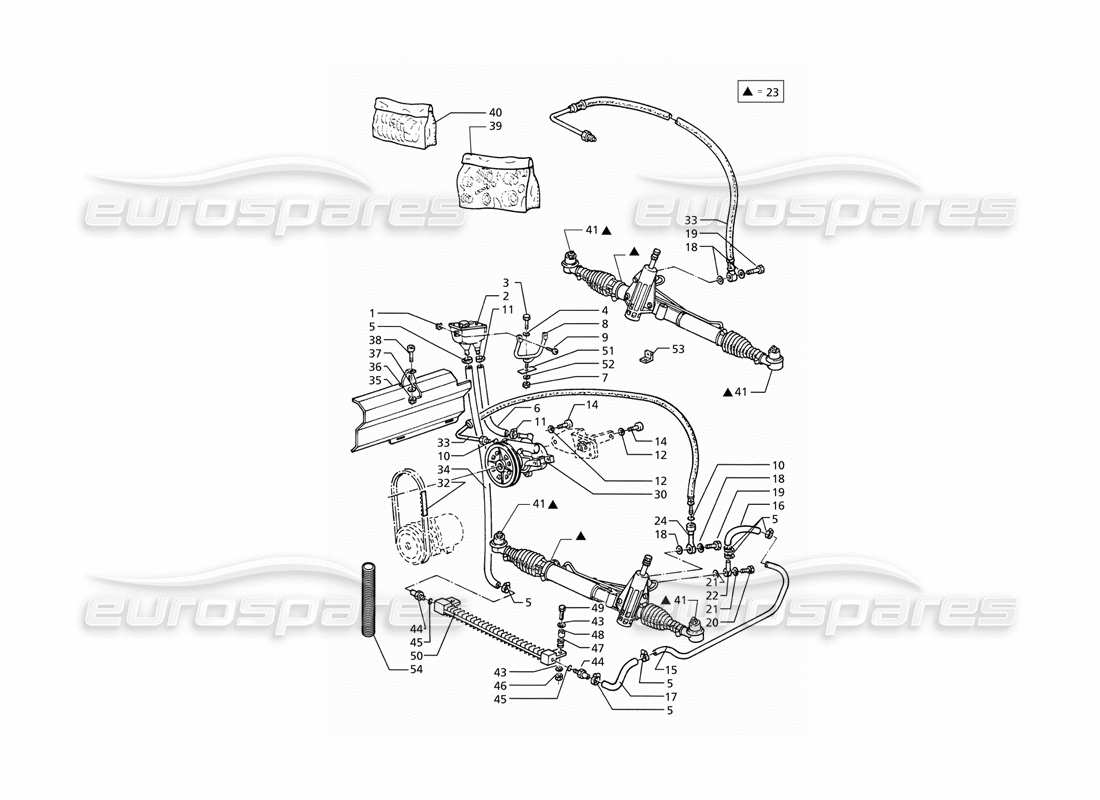

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price
                                                                                      # 001
                                                                                      MPN: 163610050
                                                                                      SPRING CLIP
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 002
                                                                                      MPN: 397850130
                                                                                      OIL TANK
                                                                                      from £21.01
                                                                                      from £21.01
                                                                                      This part replaces part number 317853130
                                                                                      # 005
                                                                                      MPN: 317832389
                                                                                      CLAMP
                                                                                      from £1.94
                                                                                      from £1.94
                                                                                      # 006
                                                                                      MPN: 367800370
                                                                                      SLEEVE
                                                                                      from £15.29
                                                                                      from £15.29
                                                                                      # 007
                                                                                      MPN: 125100080
                                                                                      NUT
                                                                                      from £0.86
                                                                                      from £0.86
                                                                                      # 008
                                                                                      MPN: 397870131
                                                                                      TANK FIXING BRACKET
                                                                                      from £14.04
                                                                                      from £14.04
                                                                                      # 010
                                                                                      MPN: 192415108
                                                                                      O RING
                                                                                      from £1.28
                                                                                      from £1.28
                                                                                      # 011
                                                                                      MPN: 186402028
                                                                                      CLAMP
                                                                                      from £1.55
                                                                                      from £1.55
                                                                                      # 014
                                                                                      MPN: 14306424
                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 14306421
                                                                                      # 015
                                                                                      MPN: 367801612
                                                                                      OIL RETURN BUNDY PIPE
                                                                                      from £19.31
                                                                                      from £19.31
                                                                                      # 016
                                                                                      MPN: 397850631
                                                                                      SLEEVE
                                                                                      - Valid for 09, 10 and 02 version
                                                                                      from £5.65
                                                                                      from £5.65
                                                                                      # 016
                                                                                      MPN: 397870629
                                                                                      SLEEVE
                                                                                      - Valid for 22, 21 version
                                                                                      # 017
                                                                                      MPN: 397850632
                                                                                      SLEEVE
                                                                                      from £0.71
                                                                                      from £0.71
                                                                                      # 018
                                                                                      MPN: 317851602
                                                                                      GASKET
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      # 019
                                                                                      MPN: 317832380
                                                                                      UNION SCREW
                                                                                      from £9.09
                                                                                      from £9.09
                                                                                      # 020
                                                                                      MPN: 317851387
                                                                                      UNION SCREW
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 021
                                                                                      MPN: 317851601
                                                                                      GASKET
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      # 022
                                                                                      MPN: 317851386
                                                                                      EYELET UNION
                                                                                      from £5.80
                                                                                      from £5.80
                                                                                      # 023
                                                                                      MPN: 367800225
                                                                                      POWER STEERING ASSY, LH STEERING
                                                                                      - Valid for 09, 10 and 02 version
                                                                                      Supersession
                                                                                      Supersession
                                                                                      This part replaces part number 367800125
                                                                                      # 023
                                                                                      MPN: 377819125
                                                                                      POWER STEERING ASSY, RH STEERIN
                                                                                      (RHD model)
                                                                                      from £525.00
                                                                                      from £525.00
                                                                                      # 024
                                                                                      MPN: 397850127
                                                                                      UNION PIPE
                                                                                      from £6.86
                                                                                      from £6.86
                                                                                      This part replaces part number 317832127
                                                                                      # 030
                                                                                      MPN: 317832104
                                                                                      PUMP WITH PULLEY
                                                                                      from £178.15
                                                                                      from £178.15
                                                                                      # 032
                                                                                      MPN: 317837372
                                                                                      POWER STEERING BELT
                                                                                      from £12.50
                                                                                      from £12.50
                                                                                      # 033
                                                                                      MPN: 397850207
                                                                                      OIL DELIVERY PIPE, LH STEERING
                                                                                      - Valid for 09, 10 and 02 version
                                                                                      from £100.96
                                                                                      from £100.96
                                                                                      # 033
                                                                                      MPN: 397870215
                                                                                      OIL DELIVERY PIPE, RH STEERING
                                                                                      - Valid for 22, 21 version
                                                                                      from £104.91
                                                                                      from £104.91
                                                                                      # 034
                                                                                      MPN: 397850636
                                                                                      SLEEVE
                                                                                      from £1.70
                                                                                      from £1.70
                                                                                      # 035
                                                                                      MPN: 367801200
                                                                                      BULKHEAD
                                                                                      from £94.00
                                                                                      from £94.00
                                                                                      This part replaces part number 317853350
                                                                                      # 036
                                                                                      MPN: 128380060
                                                                                      SELF LOCKING NUT
                                                                                      # 038
                                                                                      MPN: 108006012
                                                                                      SCREW
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      # 039
                                                                                      MPN: 310232040
                                                                                      KIT FOR PIPE AND UNION REPLACEMENT
                                                                                      from £31.98
                                                                                      from £31.98
                                                                                      # 040
                                                                                      MPN: 390250080
                                                                                      KIT FOR BELLOWS AND CLAMP REPLACEMENT
                                                                                      from £127.42
                                                                                      from £127.42
                                                                                      This part replaces part number 320250033
                                                                                      # 041
                                                                                      MPN: 377801133
                                                                                      STEERING HEAD
                                                                                      from £85.84
                                                                                      from £85.84
                                                                                      # 043
                                                                                      MPN: 135900064
                                                                                      FLAT WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 044
                                                                                      MPN: 397850609
                                                                                      UNION
                                                                                      from £1.77
                                                                                      from £1.77
                                                                                      # 045
                                                                                      MPN: 397850608
                                                                                      GASKET
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      # 046
                                                                                      MPN: 128300060
                                                                                      NUT
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 047
                                                                                      MPN: 315520375
                                                                                      RING
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 048
                                                                                      MPN: 397850624
                                                                                      SPACER
                                                                                      from £2.41
                                                                                      from £2.41
                                                                                      # 050
                                                                                      MPN: 397850618
                                                                                      OIL COOLER
                                                                                      from £131.37
                                                                                      from £131.37
                                                                                      # 051
                                                                                      MPN: 397850366
                                                                                      PLATE
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      # 053
                                                                                      MPN: 397870214
                                                                                      PLATE
                                                                                      - Valid for 22, 21 version
                                                                                      # 054
                                                                                      MPN: 397850645
                                                                                      CORRUGATED PIPE
                                                                                      from £2.26
                                                                                      from £2.26
