maserati ghibli 2.8 (abs) rear suspension parts diagram

036 - Rear Suspension

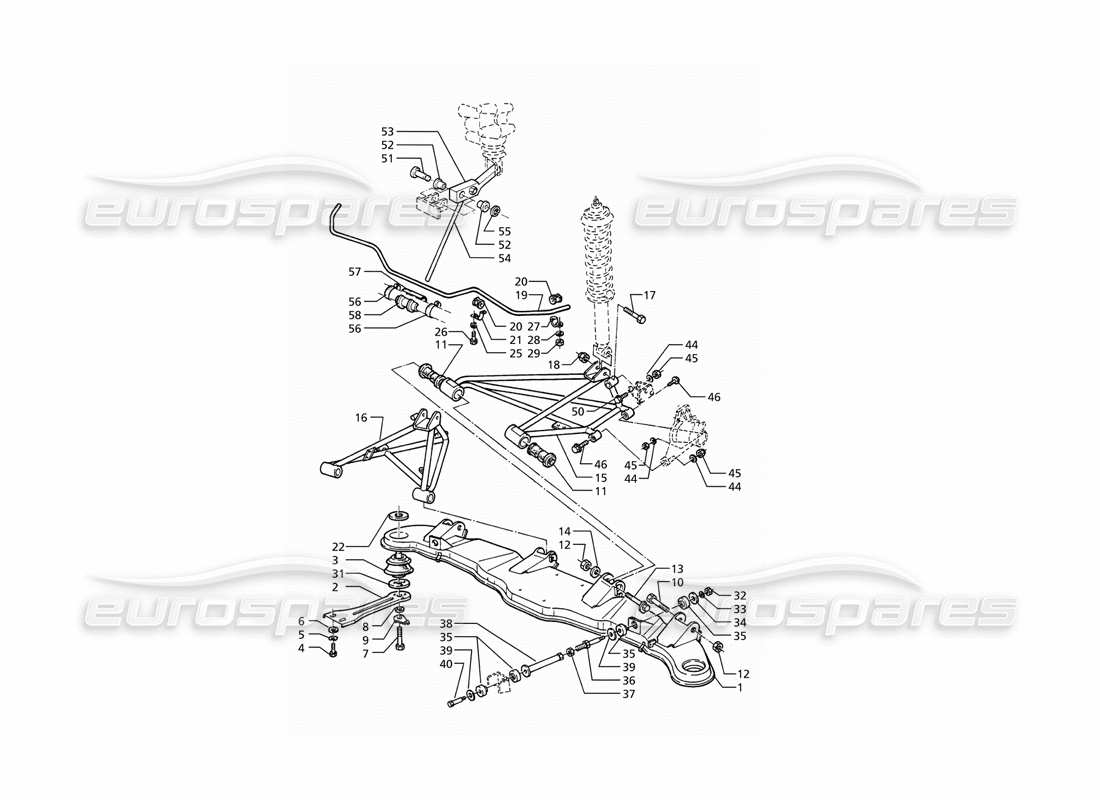

Maserati Ghibli 2.8 (ABS) Rear Suspension Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                          #
                                                                                                          Part number
                                                                                                          Description
                                                                                                          Price
                                                                                                          # 001
                                                                                                          MPN: 362702130
                                                                                                          REAR CROSS MEMBER
                                                                                                          from £212.31
                                                                                                          from £212.31
                                                                                                          # 002
                                                                                                          MPN: 312720336
                                                                                                          SIDE TIE ROD
                                                                                                          from £13.37
                                                                                                          from £13.37
                                                                                                          # 003
                                                                                                          MPN: 342700122
                                                                                                          RUBBER SUPPORT
                                                                                                          from £8.69
                                                                                                          from £8.69
                                                                                                          # 006
                                                                                                          MPN: 163020080
                                                                                                          WASHER
                                                                                                          from £1.08
                                                                                                          from £1.08
                                                                                                          # 007
                                                                                                          MPN: 312720355
                                                                                                          SCREW
                                                                                                          from £3.18
                                                                                                          from £3.18
                                                                                                          # 008
                                                                                                          MPN: 312720356
                                                                                                          SPECIAL WASHER
                                                                                                          from £2.18
                                                                                                          from £2.18
                                                                                                          # 009
                                                                                                          MPN: 312720357
                                                                                                          SAFETY PLATE
                                                                                                          from £0.47
                                                                                                          from £0.47
                                                                                                          # 011
                                                                                                          MPN: 317020100
                                                                                                          RUBBER MOUNT
                                                                                                          from £30.90
                                                                                                          from £30.90
                                                                                                          # 012
                                                                                                          MPN: 128310120
                                                                                                          SELF LOCKING NUT
                                                                                                          # 013
                                                                                                          MPN: 317020118
                                                                                                          SCREW
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 014
                                                                                                          MPN: 317020352
                                                                                                          ECCENTRIC WASHER
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 015
                                                                                                          MPN: 377000101
                                                                                                          LH ARM
                                                                                                          from £344.29
                                                                                                          from £344.29
                                                                                                          # 016
                                                                                                          MPN: 377000102
                                                                                                          RH ARM
                                                                                                          from £291.56
                                                                                                          from £291.56
                                                                                                          # 018
                                                                                                          MPN: 12575811
                                                                                                          SELF LOCKING NUT
                                                                                                          from £1.32
                                                                                                          from £1.32
                                                                                                          # 019
                                                                                                          MPN: 367002362
                                                                                                          STABILIZER BAR
                                                                                                          from £90.77
                                                                                                          from £90.77
                                                                                                          # 020
                                                                                                          MPN: 367002366
                                                                                                          RUBBER MOUNT
                                                                                                          from £34.56
                                                                                                          from £34.56
                                                                                                          # 021
                                                                                                          MPN: 397050374
                                                                                                          U BRACKET
                                                                                                          from £1.94
                                                                                                          from £1.94
                                                                                                          # 022
                                                                                                          MPN: 342700368
                                                                                                          NYLON CUP
                                                                                                          from £26.62
                                                                                                          from £26.62
                                                                                                          # 027
                                                                                                          MPN: 397050368
                                                                                                          U BRACKET
                                                                                                          from £2.87
                                                                                                          from £2.87
                                                                                                          # 029
                                                                                                          MPN: 128350080
                                                                                                          SELF LOCKING NUT
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 030
                                                                                                          MPN: 312120300
                                                                                                          BUFFER
                                                                                                          from £2.18
                                                                                                          from £2.18
                                                                                                          # 034
                                                                                                          MPN: 366200570
                                                                                                          WASHER
                                                                                                          from £1.63
                                                                                                          from £1.63
                                                                                                          # 035
                                                                                                          MPN: 366200573
                                                                                                          RUBBER MOUNT
                                                                                                          from £28.40
                                                                                                          from £28.40
                                                                                                          # 036
                                                                                                          MPN: 366200567
                                                                                                          STRUT
                                                                                                          from £8.23
                                                                                                          from £8.23
                                                                                                          # 038
                                                                                                          MPN: 366200163
                                                                                                          ARM
                                                                                                          from £14.57
                                                                                                          from £14.57
                                                                                                          # 039
                                                                                                          MPN: 366200569
                                                                                                          WASHER
                                                                                                          from £2.18
                                                                                                          from £2.18
                                                                                                          # 040
                                                                                                          MPN: 366200566
                                                                                                          SCREW
                                                                                                          from £14.82
                                                                                                          from £14.82
                                                                                                          # 044
                                                                                                          MPN: 397050358
                                                                                                          WASHER
                                                                                                          from £4.58
                                                                                                          from £4.58
                                                                                                          # 045
                                                                                                          MPN: 128300120
                                                                                                          SELF LOCKING NUT
                                                                                                          # 046
                                                                                                          MPN: 397050353
                                                                                                          SCREW
                                                                                                          from £24.76
                                                                                                          from £24.76
                                                                                                          # 050
                                                                                                          MPN: 397050354
                                                                                                          SCREW
                                                                                                          from £25.22
                                                                                                          from £25.22
                                                                                                          # 051
                                                                                                          MPN: 367402327
                                                                                                          PIN
                                                                                                          from £9.85
                                                                                                          from £9.85
                                                                                                          # 052
                                                                                                          MPN: 367402328
                                                                                                          BUSH
                                                                                                          from £5.97
                                                                                                          from £5.97
                                                                                                          # 053
                                                                                                          MPN: 367402334
                                                                                                          ROD LINK
                                                                                                          from £21.65
                                                                                                          from £21.65
                                                                                                          # 054
                                                                                                          MPN: 367402326
                                                                                                          LEVER
                                                                                                          from £18.16
                                                                                                          from £18.16
                                                                                                          # 055
                                                                                                          MPN: 71509
                                                                                                          SEEGER RING
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 056
                                                                                                          MPN: 312020136
                                                                                                          CLAMP
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 057
                                                                                                          MPN: 367002377
                                                                                                          SPOOL, UPP.
                                                                                                          from £34.53
                                                                                                          from £34.53
                                                                                                          # 058
                                                                                                          MPN: 367002378
                                                                                                          SPOOL, LOW.
                                                                                                          from £47.64
                                                                                                          from £47.64
