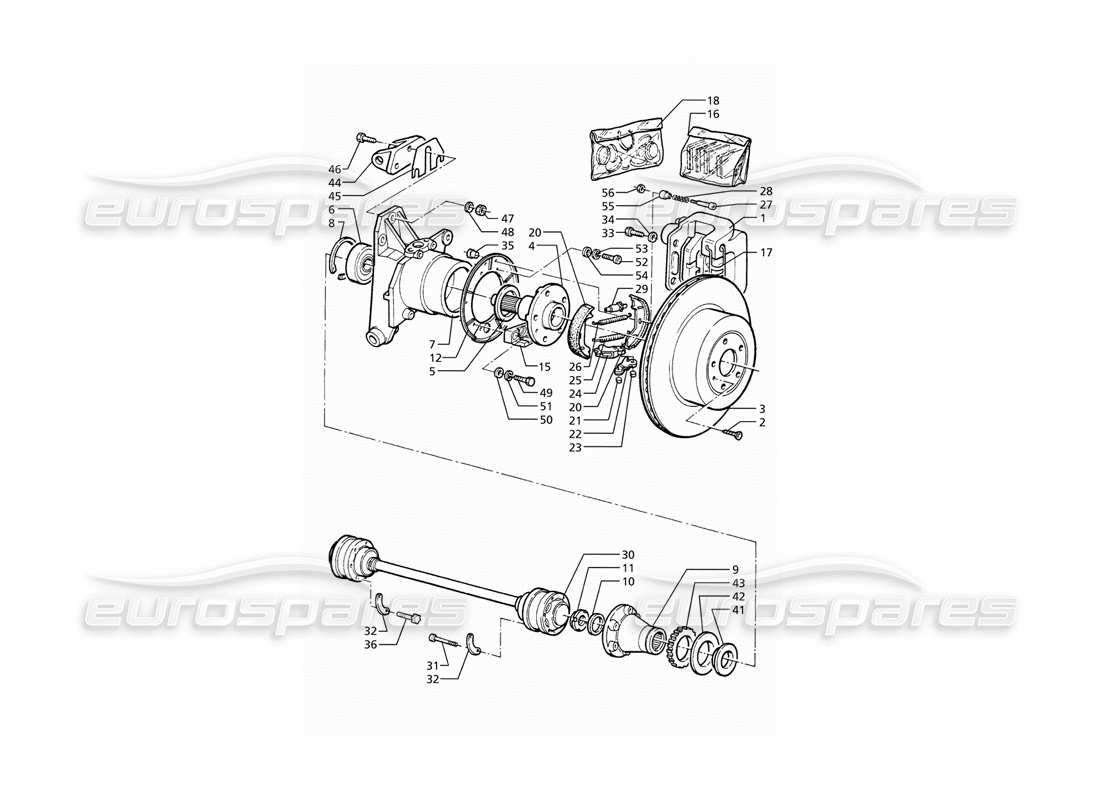

039 - Hubs, Rear Brakes With A.B.S. and Drive Shafts
Maserati Ghibli 2.8 (ABS) Hubs, Rear Brakes With A.B.S. and Drive Shafts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 377200111
REAR CALIPER LH ASSY
from £669.12
from £669.12
# 001
MPN: 377200112
REAR CALIPER RH ASSY
from £669.12
from £669.12
# 002
MPN: 89334
SCREW
# 003
MPN: 377200352
BRAKE DISC
Use on Exhaustion of 377200351
from £150.21
from £150.21
This part replaces part number 377200351
# 003
MPN: 377200352
REAR BRAKE DISC
from £150.21
from £150.21
This part replaces part number 377200351
# 004
MPN: 377230388
REAR WHEEL HUB
from £222.60
from £222.60
This part replaces part number 377200388
# 005
MPN: 397250346
CUP
from £19.86
from £19.86
# 006
MPN: 397250343
BEARING
from £58.77
from £58.77
# 007
MPN: 377000363
LH HUB CARRIER
from £210.00
from £210.00
# 007
MPN: 377000364
RH HUB CARRIER
from £210.00
from £210.00
# 008
MPN: 151700800
SEEGER RING
# 009
MPN: 377200385
SLEEVE
from £42.82
from £42.82
# 010
MPN: 397250354
SHIM RING
from £4.09
from £4.09
# 011
MPN: 397250373
SELF LOCKING RING NUT
from £72.81
from £72.81
This part replaces part number 397250340
# 012
MPN: 377000395
SHOE HOLDER DISC
from £5.65
from £5.65
# 015
MPN: 318020115
HAND BRAKE CABLE BRACKET
from £18.09
from £18.09
# 016
MPN: 370200042
REAR BRAKE PAD, SET (ASBESTOS FREE)
from £189.93
from £189.93
# 017
MPN: 377200320
SPRING
from £3.31
from £3.31
# 018
MPN: 377200032
REAR BRAKE CALIPER OVERHAUL KIT
from £16.87
from £16.87
# 020
MPN: 398050111
HANDBRAKE SHOES
Set of 4
from £150.00
from £150.00
# 021
MPN: 318020332
PIN
from £1.39
from £1.39
# 022
MPN: 318020330
CONTROL LEVER
from £1.08
from £1.08
# 023
MPN: 318020333
PIN
from £1.85
from £1.85
# 024
MPN: 318020331
SHOE
from £1.55
from £1.55
# 025
MPN: 398050334
LOWER DRAW SPRING
from £1.41
from £1.41
# 026
MPN: 398050335
UPPER DRAW SPRING
from £1.76
from £1.76
# 027
MPN: 378000336
PIN
from £2.47
from £2.47
# 028
MPN: 318020337
SPRING
from £8.48
from £8.48
# 029
MPN: 318020113
ADJUSTING DEVICE FOR HAND BRAKE
from £6.81
from £6.81
# 030
MPN: 396050105
DRIVE SHAFT ASSEMBLY
from £152.25
from £152.25
# 031
MPN: 396050338
SCREW
from £9.66
from £9.66
# 032
MPN: 316020310
PLATE
from £1.93
from £1.93
# 033
MPN: 97637
SCREW
# 034
MPN: 138410160
FLAT WASHER
# 035
MPN: 377000328
PLUG
from £0.68
from £0.68
# 036
MPN: 376000338
SCREW
Supersession
Supersession
# 041
MPN: 397250348
SHIM WASHER
from £9.12
from £9.12
# 042
MPN: 397250353
PROTECTION STRIP
from £3.63
from £3.63
# 043
MPN: 377200375
WHEEL SPEED SENSOR
from £24.35
from £24.35
# 044
MPN: 397050359
FORK
from £54.19
from £54.19
# 045
MPN: 397050357
SHIM 2 MM
from £3.63
from £3.63
# 045
MPN: 397050370
SHIM 1 MM
from £2.32
from £2.32
# 046
MPN: 100708035
BOLT
# 047
MPN: 128350080
SELF LOCKING NUT
Supersession
Supersession
# 048
MPN: 135910084
WASHER
# 049
MPN: 100708030
BOLT
# 050
MPN: 153102300
FLAT WASHER
# 051
MPN: 138200080
SPLIT WASHER
# 052
MPN: 108006016
ALLEN SCREW
# 053
MPN: 135300064
SPLIT WASHER
# 054
MPN: 312220411
FLAT WASHER
from £0.47
from £0.47
# 055
MPN: 378000338
SHIM
from £80.37
from £80.37
# 056
MPN: 312432329
NUT
from £0.77
from £0.77
