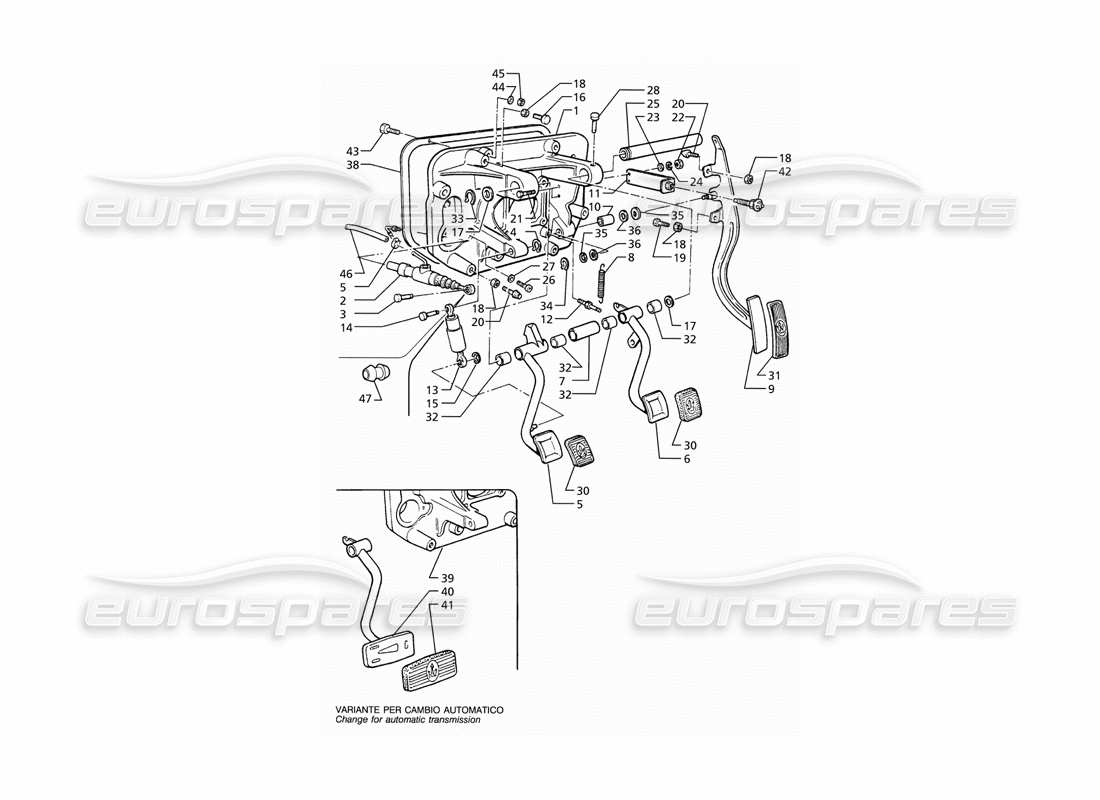

041.1 - Pedal Assy and Clutch Pump for RH Drive (Manual and Autom. Transmission)
Maserati Ghibli 2.8 (ABS) Pedal Assy and Clutch Pump for R.H. Drive (Manual and Autom. Transmission) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 378419304
SUPPORT
- Valid for 21 version
from £28.49
from £28.49
# 002
MPN: 378200101
PUMP
- Valid for 21 version
from £225.00
from £225.00
# 003
MPN: 378419358
PIN
- Valid for 21 version
from £21.89
from £21.89
# 004
MPN: 71509
SEEGER RING
- Valid for 22, 21 version
Supersession
Supersession
# 005
MPN: 378419104
CLUTCH PEDAL
- Valid for 21 version
from £68.25
from £68.25
# 006
MPN: 378419122
BRAKE PEDAL
- Valid for 21 version
from £211.80
from £211.80
# 007
MPN: 378419319
SPACER
- Valid for 21 version
from £8.68
from £8.68
# 008
MPN: 368402308
SPRING
- Valid for 22, 21 version
from £3.04
from £3.04
# 009
MPN: 328470113
SPEED PEDAL
- Valid for 22, 21 version
from £41.50
from £41.50
# 010
MPN: 470037700
BUSH
- Valid for 22, 21 version
from £4.74
from £4.74
This part replaces part number 311020336
# 011
MPN: 378400120
IDROSTOP SUPPORT
- Valid for 22, 21 version
from £22.52
from £22.52
# 012
MPN: 378400368
PIN
- Valid for 22, 21 version
from £83.26
from £83.26
# 013
MPN: 378400854
CLUTCH PEDAL SERVO CONTROL
- Valid for 21 version
from £42.27
from £42.27
# 014
MPN: 378419410
PIN
- Valid for 21 version
from £27.99
from £27.99
# 015
MPN: 150800090
SEEGER RING
- Valid for 21 version
from £0.47
from £0.47
# 016
MPN: 364700180
LIMIT STOP
- Valid for 21 version
from £2.90
from £2.90
# 017
MPN: 368402321
SPACER WASHER
- Valid for 21 version
from £1.11
from £1.11
# 018
MPN: 125100060
NUT
- Valid for 22, 21 version
# 019
MPN: 101206040
SCREW
- Valid for 22, 21 version
from £0.47
from £0.47
# 020
MPN: 318420114
LIMIT STOP
- Valid for 22, 21 version
from £1.96
from £1.96
# 021
MPN: 97370
SCREW
- Valid for 22, 21 version
# 022
MPN: 47046
NUT
- Valid for 22, 21 version
Supersession
Supersession
# 023
MPN: 135600050
SPRING WASHER
- Valid for 22, 21 version
from £0.79
from £0.79
# 024
MPN: 69021
FLAT WASHER
- Valid for 22, 21 version
Supersession
Supersession
# 025
MPN: 378419328
PIN
- Valid for 22, 21 version
from £38.51
from £38.51
# 026
MPN: 108006018
ALLEN SCREW
- Valid for 21 version
# 027
MPN: 378419378
WASHER
- Valid for 21 version
from £4.76
from £4.76
# 028
MPN: 378419377
PIN
- Valid for 22, 21 version
from £11.58
from £11.58
# 029
MPN: 58841309
SAFETY CLIP
- Valid for 22, 21 version
from £2.05
from £2.05
This part replaces part number 670000498 - and 2 more. Click to view details
# 030
MPN: 318420300
PEDAL COVER
- Valid for 21 version
from £3.33
from £3.33
# 031
MPN: 318420301
SPEED PEDAL COVER
- Valid for 22, 21 version
from £1.55
from £1.55
# 032
MPN: 318420320
BUSH
- Valid for 22, 21 version
from £9.91
from £9.91
# 033
MPN: 151100180
SEEGER RING
- Valid for 22, 21 version
from £0.71
from £0.71
# 034
MPN: 151100120
SEEGER RING
- Valid for 22, 21 version
# 035
MPN: 311020352
WASHER
- Valid for 22, 21 version
from £1.11
from £1.11
# 036
MPN: 318420346
NYLON WASHER
- Valid for 22, 21 version
from £1.11
from £1.11
# 038
MPN: 378419348
GASKET
- Valid for 22, 21 version
from £6.58
from £6.58
# 039
MPN: 378420304
PEDAL ASSY SUPPORT
- Valid for 22, 21 version
from £15.67
from £15.67
# 040
MPN: 378420104
BRAKE PEDAL
- Valid for 22 version
from £178.50
from £178.50
# 041
MPN: 318432300
BRAKE PEDAL COVER
- Valid for 22 version
from £2.47
from £2.47
# 042
MPN: 323850107
IDROSTOP
- Valid for 22, 21 version
Supersession
Supersession
# 043
MPN: 100708045
SCREW
- Valid for 22, 21 version
# 044
MPN: 135900084
WASHER
- Valid for 22, 21 version
# 045
MPN: 128350080
NUT
- Valid for 22, 21 version
Supersession
Supersession
# 046
MPN: 378200329
TUBE
- Valid for 22, 21 version
from £0.58
from £0.58
# 047
MPN: 9532
BUSHING SECURING CLUTCH PUMP
- Valid for 22, 21 version
from £2.38
from £2.38
