046.1 - Bonnet and Engine Compartment

Maserati Ghibli 2.8 (ABS) Bonnet and Engine Compartment Parts Diagram

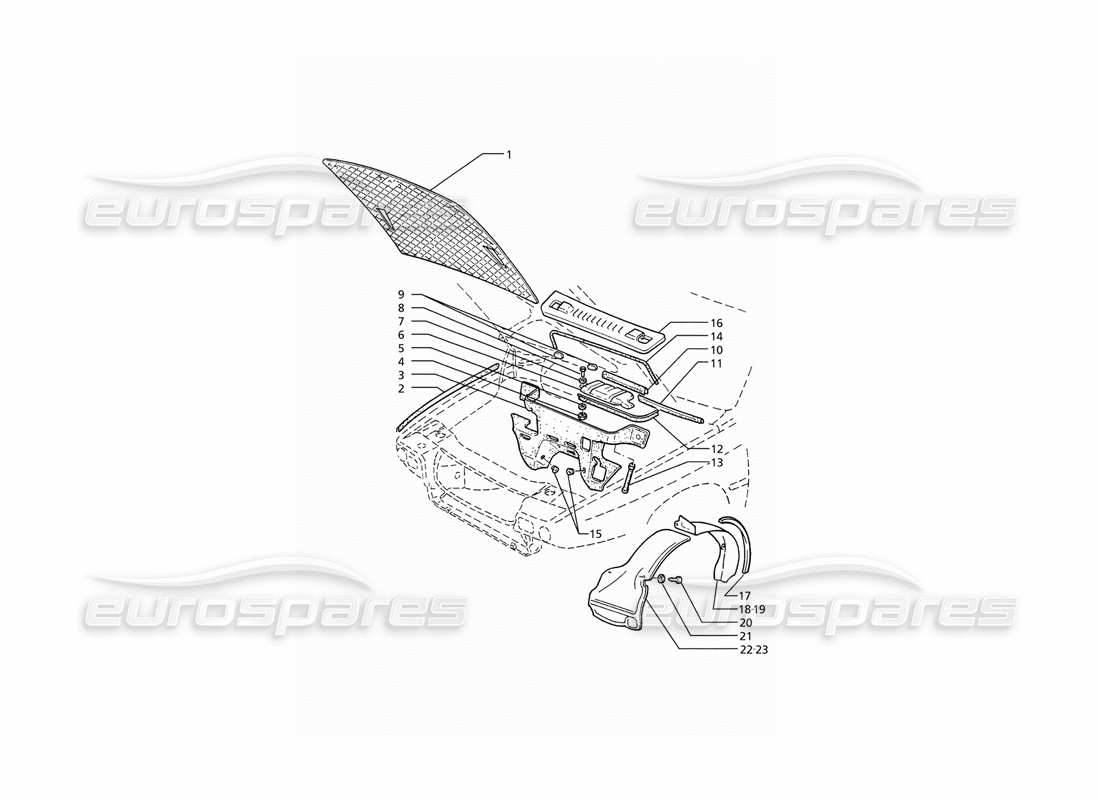

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 314320362
                                          INSULATING PADDING
                                          from £225.00
                                          from £225.00
                                          This part replaces part number 314320361
                                          # 002
                                          MPN: 314320359
                                          GASKET
                                          from £28.40
                                          from £28.40
                                          # 003
                                          MPN: 311553402
                                          SOUND DEADENING TRIM
                                          - Valid for 09, 10 and 02 version
                                          from £203.75
                                          from £203.75
                                          This part replaces part number 361500402 - and 1 more. Click to view details
                                          # 003
                                          MPN: 321570402
                                          SOUND DEADENING TRIM
                                          - Valid for 22, 21 version
                                          from £112.67
                                          from £112.67
                                          # 004
                                          MPN: 319220324
                                          NUT SCREW
                                          from £0.63
                                          from £0.63
                                          This part replaces part number 82457087
                                          # 005
                                          MPN: 312520511
                                          GASKET
                                          from £1.70
                                          from £1.70
                                          # 006
                                          MPN: 312520510
                                          WATER SHIELD
                                          from £2.82
                                          from £2.82
                                          # 007
                                          MPN: 169020005
                                          WASHER
                                          from £1.07
                                          from £1.07
                                          # 009
                                          MPN: 53211300
                                          PLUG
                                          Supersession
                                          Supersession
                                          # 010
                                          MPN: 312520513
                                          WATER PROOF CHANNEL FOR AIR CONDIT. AIR INTAKE
                                          from £0.68
                                          from £0.68
                                          # 011
                                          MPN: 314320357
                                          REAR GASKET FOR ENGINE HOOD COMPARTMENT
                                          from £6.38
                                          from £6.38
                                          This part replaces part number 318720301
                                          # 012
                                          MPN: 314320358
                                          GASKET
                                          from £4.15
                                          from £4.15
                                          # 013
                                          MPN: 312120321
                                          DRAINAGE PIPE
                                          from £1.40
                                          from £1.40
                                          # 014
                                          MPN: 368700302
                                          GASKET
                                          - Section in metres - order minimum amount of 1 m or multiples
                                          from £3.23
                                          from £3.23
                                          # 015
                                          MPN: 311553426
                                          RETAINER
                                          from £0.68
                                          from £0.68
                                          # 016
                                          MPN: 392570504
                                          ACCESSORY COMPARTMENT COVERY
                                          from £25.46
                                          from £25.46
                                          This part replaces part number 392550504
                                          # 017
                                          MPN: 374380424
                                          GASKET
                                          - Section in metres - order minimum amount of 1 m or multiples
                                          from £24.35
                                          from £24.35
                                          This part replaces part number 318720355
                                          # 018
                                          MPN: 362500505
                                          LH MUDGUARD
                                          from £38.53
                                          from £38.53
                                          # 019
                                          MPN: 362500506
                                          RH MUDGUARD
                                          from £61.12
                                          from £61.12
                                          # 021
                                          MPN: 312552529
                                          PVC WASHER
                                          Supersession
                                          Supersession
                                          # 022
                                          MPN: 362500525
                                          LH MUDGUARD
                                          from £93.84
                                          from £93.84
                                          # 023
                                          MPN: 362500526
                                          RH MUDGUARD
                                          from £120.59
                                          from £120.59
