maserati ghibli 2.8 (abs) windscreen wiper washer (lh drive) parts diagram

055 - Windscreen Wiper Washer (LH Drive)

Maserati Ghibli 2.8 (ABS) Windscreen Wiper Washer (L.H.Drive) Parts Diagram

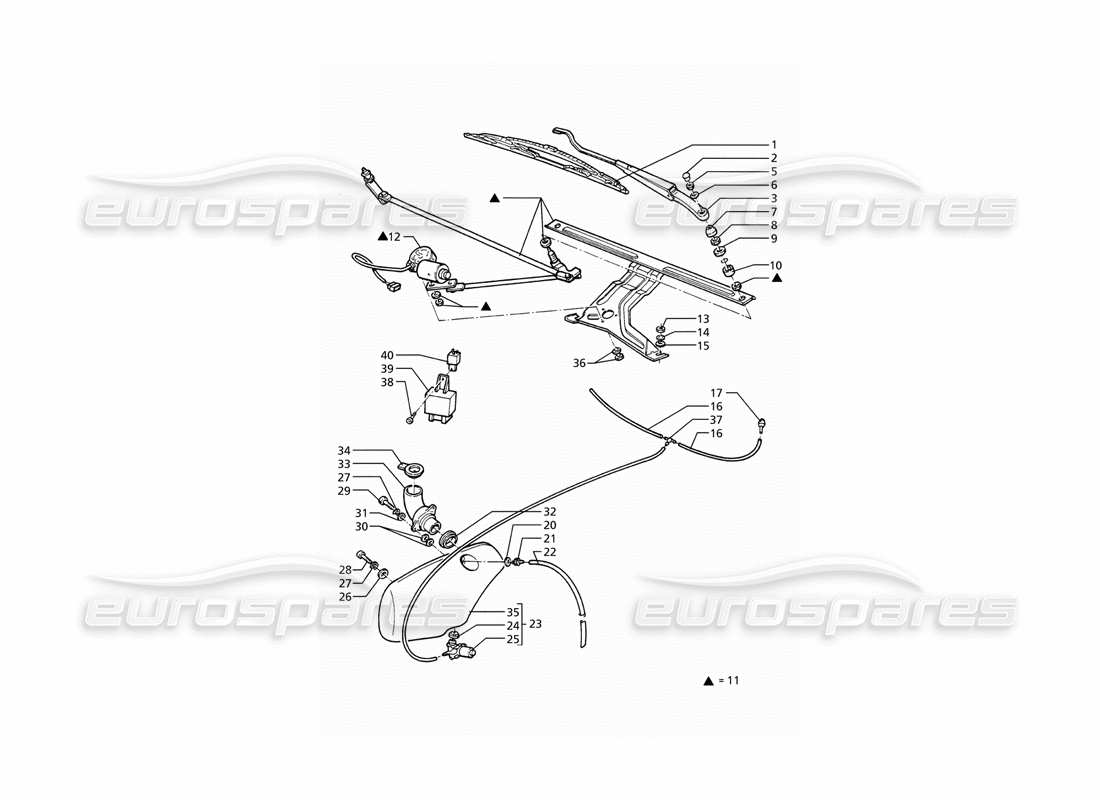

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 313352158
BLADE WITH SPOILER
- Valid for 09, 10 and 02 version
from £55.48
from £55.48
This part replaces part number 323356128 - and 2 more. Click to view details
# 002
MPN: 393350327
CUP
- Valid for 09, 10 and 02 version
from £2.39
from £2.39
# 003
MPN: 393350117
ARM
- Valid for 09, 10 and 02 version
from £79.87
from £79.87
# 005
MPN: 125300080
NUT
- Valid for 09, 10 and 02 version
# 006
MPN: 138410080
SPRING WASHER
- Valid for 09, 10 and 02 version
# 007
MPN: 313320405
CUP
- Valid for 09, 10 and 02 version
from £1.07
from £1.07
# 008
MPN: 313320402
NUT
- Valid for 09, 10 and 02 version
from £1.67
from £1.67
# 009
MPN: 393350329
EXTERNAL SPACER
- Valid for 09, 10 and 02 version
from £1.67
from £1.67
# 010
MPN: 313352327
INTERNAL SPACER
- Valid for 09, 10 and 02 version
# 011
MPN: 363300100
WINDSHIELD WIPER ASSY
- Valid for 09, 10 and 02 version
from £187.07
from £187.07
# 012
MPN: 313320201
GEARMOTOR
- Valid for 09, 10 and 02 version
from £99.13
from £99.13
# 013
MPN: 125100080
NUT
- Valid for 09, 10 and 02 version
from £0.86
from £0.86
# 014
MPN: 135300084
SPRING WASHER
- Valid for 09, 10 and 02 version
# 015
MPN: 169020508
WASHER
- Valid for 09, 10 and 02 version
# 016
MPN: 398150312
PIPING
- Valid for 09, 10 and 02 version
Supersession
Supersession
# 017
MPN: 53811109
NOZZLE
- Valid for 09, 10 and 02 version
# 019
MPN: 398150313
PIPING
- Valid for 09, 10 and 02 version
Supersession
Supersession
# 020
MPN: 330874000
GROMMET
- Valid for 09, 10 and 02 version
from £1.11
from £1.11
# 021
MPN: 312230461
UNION
- Valid for 09, 10 and 02 version
from £1.01
from £1.01
# 022
MPN: 54812330
PIPE
- Valid for 09, 10 and 02 version
# 023
MPN: 398150132
TANK WITH PUMP
- Valid for 09, 10 and 02 version
from £45.84
from £45.84
This part replaces part number 398150024
# 024
MPN: 30331302
GASKET
- Valid for 09, 10 and 02 version
from £0.71
from £0.71
# 025
MPN: 373300183
WINDSHIELD WASHER PUMP
- Valid for 09, 10 and 02 version
from £15.47
from £15.47
This part replaces part number 330907620
# 026
MPN: 135900064
FLAT WASHER
- Valid for 09, 10 and 02 version
from £0.47
from £0.47
# 027
MPN: 135300064
SPRING WASHER
- Valid for 09, 10 and 02 version
# 028
MPN: 112806016
SCREW
- Valid for 09, 10 and 02 version
# 029
MPN: 112806020
SCREW
- Valid for 09, 10 and 02 version
# 030
MPN: 398150324
SHIM
- Valid for 09, 10 and 02 version
from £1.59
from £1.59
# 031
MPN: 135000053
WASHER
- Valid for 09, 10 and 02 version
# 032
MPN: 398150328
GASKET
- Valid for 09, 10 and 02 version
from £23.55
from £23.55
# 033
MPN: 398150192
PIPE UNION
- Valid for 09, 10 and 02 version
from £4.25
from £4.25
This part replaces part number 398150329
# 034
MPN: 398150327
PLUG
- Valid for 09, 10 and 02 version
from £1.11
from £1.11
# 035
MPN: 398150132
Tank
- Valid for 09, 10 and 02 version
from £45.84
from £45.84
This part replaces part number 398150024
# 036
MPN: 313320401
SCREW AND WASHER
- Valid for 09, 10 and 02 version
# 037
MPN: 30811310
THREE WAY UNION
- Valid for 09, 10 and 02 version
from £0.80
from £0.80
# 038
MPN: 119148130
SCREW
- Valid for 09, 10 and 02 version
from £0.87
from £0.87
# 039
MPN: 313320116
WINDSHIELD WIPER TIMER
- Valid for 09, 10 and 02 version
from £26.71
from £26.71
# 040
MPN: 363302115
INTERMITTENCE
- Valid for 09, 10 and 02 version
from £7.38
from £7.38
This part replaces part number 313320115
