![maserati ghibli 2.8 (abs) borletti instrumentation parts diagram](/img/CxEAAETdFtv3GyzJUoacgQiKahmiUWiQ6XycSz8voqDxKOHVbWwZAw%3D%3D/maserati-ghibli-2.8-(abs)-part-diagram-060.webp)
060 - Borletti Instrumentation

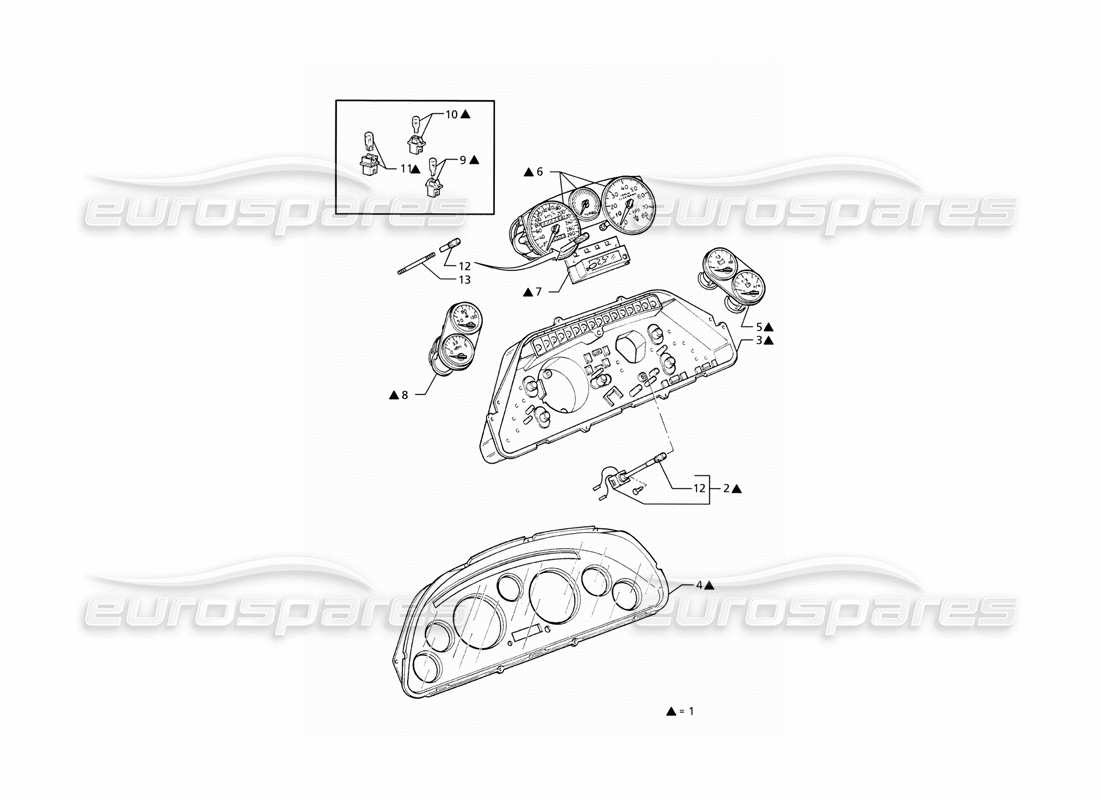

Maserati Ghibli 2.8 (ABS) Borletti Instrumentation Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 363602104
INSTRUMENT BOARD COMPLETE ASSY
- Valid for 02 version
from £464.70
from £464.70
# 001
MPN: 363609104
INSTRUMENTATION, ASSY (KM/H)
- Valid for 22, 09 version
from £464.70
from £464.70
# 001
MPN: 363610104
INSTRUMENTATION, ASSY (KM /H)
- Valid for 21, 10 version
from £464.70
from £464.70
# 001
MPN: 363621104
INSTRUMENTATION, ASSY (MPH)
- Valid for 21 version
Supersession
Supersession
# 001
MPN: 363622104
INSTRUMENTATION, ASSY (MPH)
- Valid for 22 version
# 002
MPN: 393650210
RHEOSTAT
from £90.57
from £90.57
# 003
MPN: 363602202
CIRCUIT BOX
from £32.66
from £32.66
# 004
MPN: 363602208
bezel
from £16.84
from £16.84
# 005
MPN: 363602206
FUEL LEVEL GAUGE AND VOLTMETER
from £16.85
from £16.85
# 006
MPN: 363602204
MULTIPURPOSE INSTRUMENT
- Valid for 02 version
from £210.46
from £210.46
# 006
MPN: 363609204
COMBINED INSTRUMENT (KM / H)
- Valid for 22, 09 version
from £226.15
from £226.15
# 006
MPN: 363610204
COMBINED INSTRUMENT (KM / H)
- Valid for 21, 10 version
from £226.15
from £226.15
# 006
MPN: 363622204
COMBINED INSTRUMENT (M P H)
- Valid for 22 version
Supersession
Supersession
# 006
MPN: 373619204
COMBINED INSTRUMENT (M P H)
- Valid for 21 version
from £267.64
from £267.64
This part replaces part number 363621204
# 007
MPN: 393650207
EXTERNAL TEMPERATURE INDICATOR
from £148.05
from £148.05
# 008
MPN: 363602203
WATER TEMPERATURE AND OIL PRESSURE INDICATOR
from £44.21
from £44.21
# 009
MPN: 393650215
LAMP HOLDER WITH LAMP 1.2 W
from £2.03
from £2.03
This part replaces part number 393650217
# 010
MPN: 393650216
LAMP HOLDER WITH LAMP 2 W
from £11.92
from £11.92
# 011
MPN: 393650217
LAMP HOLDER WITH LAMP 3 W
Supersession
Supersession
# 012
MPN: 373600305
KM RESET BUTTON/RHEOSTAT
from £1.40
from £1.40
# 013
MPN: 373600306
KM RESET SHAFT
from £1.17
from £1.17
