maserati ghibli 2.8 (abs) console parts diagram

063 - Console

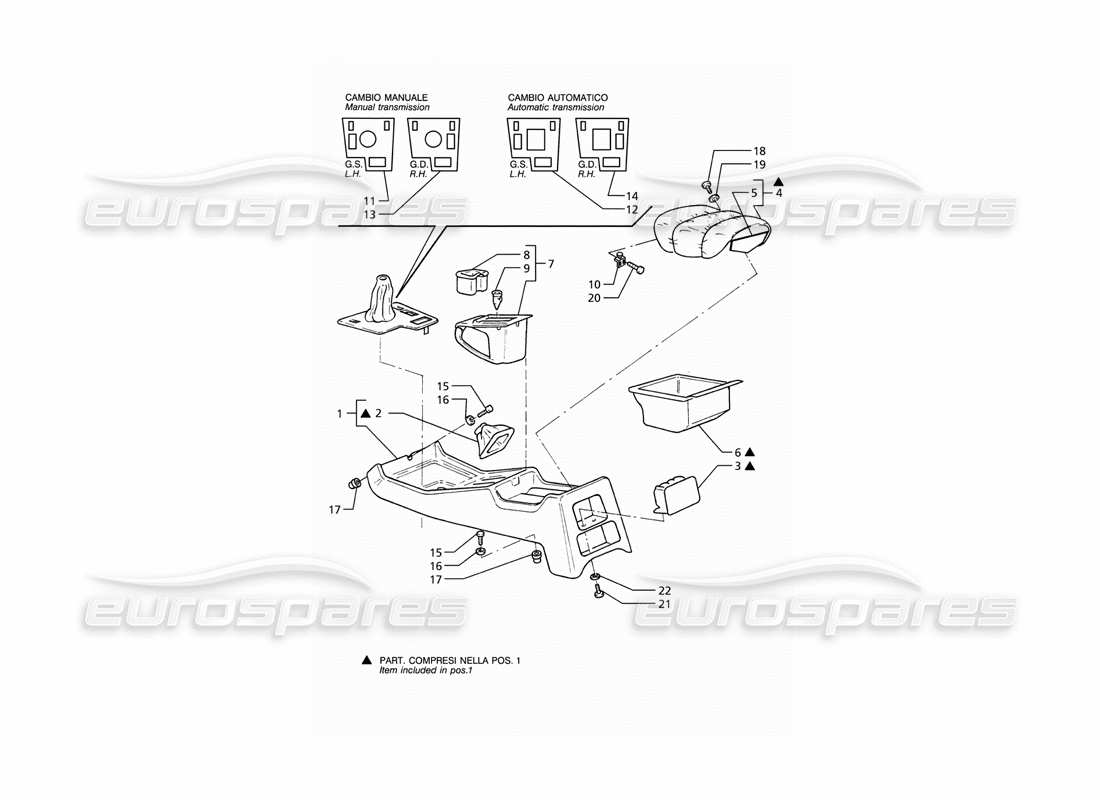

Maserati Ghibli 2.8 (ABS) Console Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 001
                                MPN: 318951148
                                CONSOLE (IVORY LEATHER)
                                from £535.61
                                from £535.61
                                # 001
                                MPN: 319953148
                                CONSOLE (GREY LEATHER)
                                from £535.61
                                from £535.61
                                # 001
                                MPN: 319953348
                                CONSOLE (BLACK LEATHER)
                                from £548.75
                                from £548.75
                                # 001
                                MPN: 339100148
                                CONSOLE (BEIGE LEATHER)
                                from £535.61
                                from £535.61
                                # 002
                                MPN: 328912247
                                HAND BRAKE LEVER BOOT (IVORY LEATHER)
                                from £18.47
                                from £18.47
                                # 002
                                MPN: 329956247
                                HAND BRAKE LEVER BOOT (GREY LEATHER)
                                from £12.26
                                from £12.26
                                # 002
                                MPN: 329956277
                                HAND BRAKE LEVER BOOT (BLACK LEATHER)
                                from £18.24
                                from £18.24
                                # 002
                                MPN: 399100277
                                HAND BRAKE LEVER BOOT (BEIGE LEATHER)
                                from £5.96
                                from £5.96
                                # 003
                                MPN: 328156137
                                REAR ASH TRAY (GREY LEATHER)
                                from £10.05
                                from £10.05
                                # 003
                                MPN: 328156139
                                REAR ASH TRAY (BLACK LEATHER)
                                from £21.56
                                from £21.56
                                # 003
                                MPN: 328912122
                                REAR ASH TRAY (IVORY LEATHER)
                                from £37.72
                                from £37.72
                                # 003
                                MPN: 339120122
                                REAR ASH TRAY (BEIGE LEATHER)
                                Supersession
                                Supersession
                                # 004
                                MPN: 318951181
                                CONSOLE CUSHION (IVORY LEATHER)
                                from £41.90
                                from £41.90
                                # 004
                                MPN: 319953181
                                CONSOLE CUSHION (GREY LEATHER)
                                from £28.31
                                from £28.31
                                # 004
                                MPN: 319953361
                                CONSOLE CUSHION (BLACK LEATHER)
                                from £81.11
                                from £81.11
                                # 004
                                MPN: 339100181
                                CONSOLE CUSHION (BEIGE LEATHER)
                                from £27.93
                                from £27.93
                                # 005
                                MPN: 318351556
                                HINGE
                                from £1.93
                                from £1.93
                                # 006
                                MPN: 318353511
                                OBJECT TRAY
                                from £10.68
                                from £10.68
                                # 007
                                MPN: 328153022
                                FRONT ASH TRAY
                                from £96.61
                                from £96.61
                                This part replaces part number 318153022
                                # 008
                                MPN: 318153334
                                CONTAINER
                                # 009
                                MPN: 53336115
                                CIGAR LIGHTER
                                from £34.47
                                from £34.47
                                # 010
                                MPN: 318353549
                                PUSH BUTTON
                                from £1.70
                                from £1.70
                                # 011
                                MPN: 368902182
                                M. GEAR LEVER PANEL (IVORY LEATHER)
                                - Valid for 10 and 02 version
                                from £64.02
                                from £64.02
                                # 011
                                MPN: 369100185
                                M. GEAR LEVER PANEL (BEIGE LEATHER)
                                - Valid for 10 and 02 version
                                from £22.21
                                from £22.21
                                # 011
                                MPN: 369900184
                                M. GEAR LEVER PANEL (GREY LEATHER)
                                - Valid for 10 and 02 version
                                from £64.02
                                from £64.02
                                # 011
                                MPN: 369900233
                                M. GEAR LEVER PANEL (BLACK LEATHER)
                                - Valid for 10 and 02 version
                                from £64.02
                                from £64.02
                                # 012
                                MPN: 368909182
                                A. GEAR LEVER PANEL (IVORY LEATHER)
                                - Valid for 09 version
                                from £64.02
                                from £64.02
                                # 012
                                MPN: 369106190
                                A. GEAR LEVER PANEL (BEIGE LEATHER)
                                - Valid for 09 version
                                from £45.94
                                from £45.94
                                # 012
                                MPN: 369906180
                                A. GEAR LEVER PANEL (GREY LEATHER)
                                - Valid for 09 version
                                from £64.02
                                from £64.02
                                # 012
                                MPN: 369906236
                                A. GEAR LEVER PANEL (BLACK LEATHER)
                                - Valid for 09 version
                                from £64.02
                                from £64.02
                                # 013
                                MPN: 368921282
                                M. GEAR LEVER PANEL (IVORY LEATHER)
                                - Valid for 21 version
                                from £64.02
                                from £64.02
                                # 013
                                MPN: 369115187
                                M. GEAR LEVER PANEL (BEIGE LEATHER)
                                - Valid for 21 version
                                from £64.02
                                from £64.02
                                # 013
                                MPN: 369915183
                                M. GEAR LEVER PANEL (GREY LEATHER)
                                - Valid for 21 version
                                from £13.43
                                from £13.43
                                # 013
                                MPN: 369915234
                                M. GEAR LEVER PANEL (BLACK LEATHER)
                                - Valid for 21 version
                                from £64.02
                                from £64.02
                                # 014
                                MPN: 368922282
                                A. GEAR LEVER PANEL (IVORY LEATHER)
                                - Valid for 22 version
                                # 014
                                MPN: 369116191
                                A. GEAR LEVER PANEL (BEIGE LEATHER)
                                - Valid for 22 version
                                from £64.02
                                from £64.02
                                # 014
                                MPN: 369916182
                                A. GEAR LEVER PANEL (GREY LEATHER)
                                - Valid for 22 version
                                from £64.02
                                from £64.02
                                # 014
                                MPN: 369916237
                                A. GEAR LEVER PANEL (BLACK LEATHER)
                                - Valid for 22 version
                                from £64.02
                                from £64.02
                                # 015
                                MPN: 119142160
                                SCREW
                                - As necessary
                                from £0.95
                                from £0.95
                                # 016
                                MPN: 135900043
                                WASHER
                                - As necessary
                                from £1.08
                                from £1.08
                                This part replaces part number 14496207
                                # 017
                                MPN: 318320341
                                NUT SCREW
                                - As necessary
                                from £0.69
                                from £0.69
                                This part replaces part number 14229280
                                # 018
                                MPN: 119342160
                                SCREW
                                # 019
                                MPN: 135000043
                                WASHER
                                from £1.08
                                from £1.08
                                # 020
                                MPN: 119529095
                                SCREW
                                # 021
                                MPN: 112805010
                                SCREW
                                # 022
                                MPN: 169020005
                                WASHER
                                from £1.08
                                from £1.08
