maserati ghibli 2.8 (abs) inner trims: panels parts diagram

065 - Inner Trims: Panels

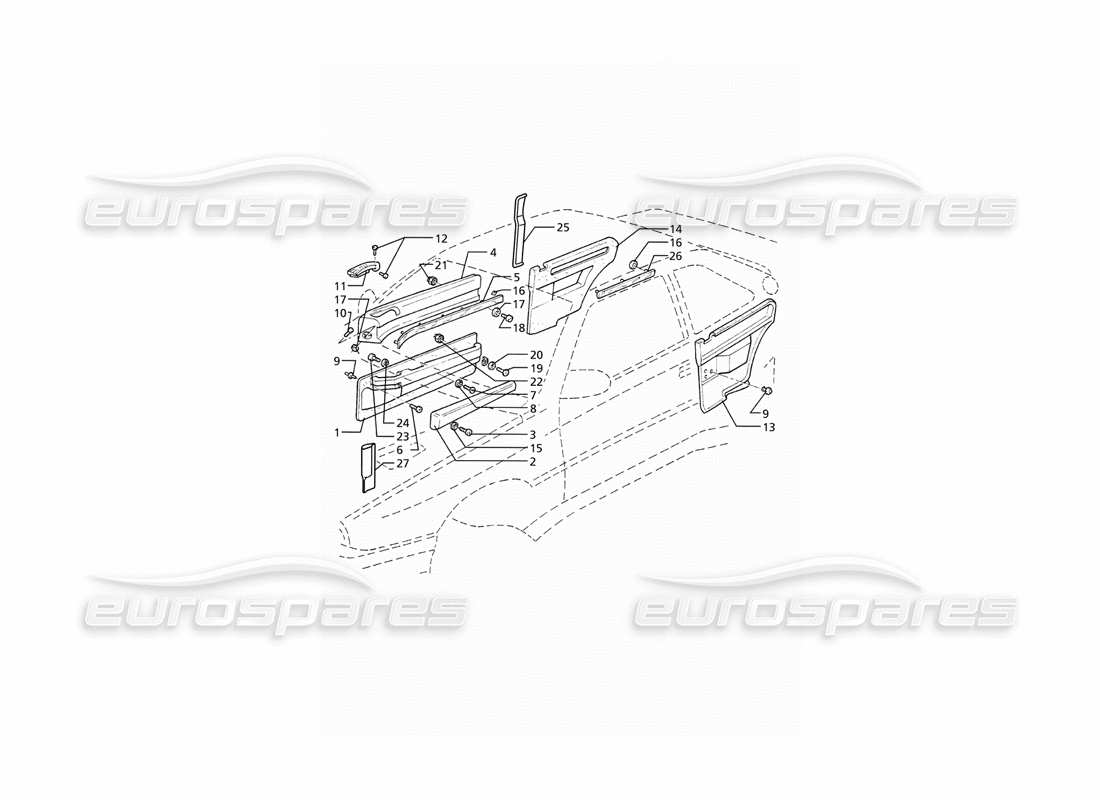

Maserati Ghibli 2.8 (ABS) Inner Trims: Panels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 368902141
                                        LH FRONT UNDER PANEL (IVORY)
                                        - Valid for 09, 10 and 02 version
                                        from £268.24
                                        from £268.24
                                        # 001
                                        MPN: 368902142
                                        RH FRONT UNDER PANEL (IVORY)
                                        - Valid for 09, 10 and 02 version
                                        from £246.97
                                        from £246.97
                                        # 001
                                        MPN: 368917141
                                        LH FRONT UNDER PANEL (IVORY)
                                        - Valid for 22, 21 version
                                        from £246.97
                                        from £246.97
                                        # 001
                                        MPN: 368917142
                                        RH FRONT UNDER PANEL (IVORY)
                                        - Valid for 22, 21 version
                                        from £254.35
                                        from £254.35
                                        # 001
                                        MPN: 369102141
                                        LH FRONT UNDER PANEL (BEIGE)
                                        from £254.35
                                        from £254.35
                                        # 001
                                        MPN: 369102142
                                        RH FRONT UNDER PANEL (BEIGE)
                                        - Valid for 09, 10 and 02 version
                                        from £254.35
                                        from £254.35
                                        # 001
                                        MPN: 369117141
                                        LH FRONT UNDER PANEL (BEIGE)
                                        - Valid for 22, 21 version
                                        from £246.97
                                        from £246.97
                                        # 001
                                        MPN: 369117142
                                        RH FRONT UNDER PANEL (BEIGE)
                                        - Valid for 22, 21 version
                                        from £254.35
                                        from £254.35
                                        # 001
                                        MPN: 369902321
                                        LH FRONT UNDER PANEL (GREY)
                                        - Valid for 09, 10 and 02 version
                                        from £254.35
                                        from £254.35
                                        # 001
                                        MPN: 369902322
                                        RH FRONT UNDER PANEL (GREY)
                                        - Valid for 09, 10 and 02 version
                                        from £246.97
                                        from £246.97
                                        # 001
                                        MPN: 369902341
                                        LH FRONT UNDER PANEL (BLACK)
                                        - Valid for 09, 10 and 02 version
                                        from £261.71
                                        from £261.71
                                        # 001
                                        MPN: 369902342
                                        RH FRONT UNDER PANEL (BLACK)
                                        - Valid for 09, 10 and 02 version
                                        from £246.97
                                        from £246.97
                                        # 001
                                        MPN: 369917141
                                        LH FRONT UNDER PANEL (GREY)
                                        - Valid for 22, 21 version
                                        from £246.97
                                        from £246.97
                                        # 001
                                        MPN: 369917142
                                        RH FRONT UNDER PANEL (GREY)
                                        - Valid for 22, 21 version
                                        from £254.35
                                        from £254.35
                                        # 001
                                        MPN: 369917211
                                        LH FRONT UNDER PANEL (BLACK)
                                        - Valid for 22, 21 version
                                        from £246.97
                                        from £246.97
                                        # 001
                                        MPN: 369917212
                                        RH FRONT UNDER PANEL (BLACK)
                                        - Valid for 22, 21 version
                                        from £254.35
                                        from £254.35
                                        # 002
                                        MPN: 318950159
                                        LH UNDER TRIMMING (IVORY LEATHER)
                                        from £43.08
                                        from £43.08
                                        # 002
                                        MPN: 318950160
                                        RH UNDER TRIMMING (IVORY LEATHER)
                                        from £43.08
                                        from £43.08
                                        # 002
                                        MPN: 319953159
                                        LH UNDER TRIMMING (GREY LEATHER)
                                        from £43.08
                                        from £43.08
                                        # 002
                                        MPN: 319953160
                                        RH UNDER TRIMMING (GREY LEATHER)
                                        from £43.08
                                        from £43.08
                                        # 002
                                        MPN: 319953223
                                        LH UNDER TRIMMING (BLACK LEATHER)
                                        from £85.61
                                        from £85.61
                                        # 002
                                        MPN: 319953224
                                        RH UNDER TRIMMING (BLACK LEATHER)
                                        from £64.26
                                        from £64.26
                                        # 002
                                        MPN: 339120159
                                        LH UNDER TRIMMING (BEIGE LEATHER)
                                        from £15.12
                                        from £15.12
                                        # 002
                                        MPN: 339120160
                                        RH UNDER TRIMMING (BEIGE LEATHER)
                                        from £43.08
                                        from £43.08
                                        # 003
                                        MPN: 119935190
                                        SCREW
                                        - As necessary
                                        from £1.07
                                        from £1.07
                                        # 004
                                        MPN: 368902247
                                        LH UPPER PANEL DOOR (IVORY LEATHER)
                                        from £180.80
                                        from £180.80
                                        # 004
                                        MPN: 368902248
                                        RH UPPER PANEL DOOR (IVORY LEATHER)
                                        from £180.80
                                        from £180.80
                                        # 004
                                        MPN: 369100247
                                        LH UPPER PANEL DOOR (BEIGE LEATHER)
                                        from £6.92
                                        from £6.92
                                        # 004
                                        MPN: 369100248
                                        RH UPPER PANEL DOOR (BEIGE LEATHER)
                                        from £180.80
                                        from £180.80
                                        # 004
                                        MPN: 369900337
                                        LH UPPER PANEL DOOR (GREY LEATHER)
                                        from £180.80
                                        from £180.80
                                        # 004
                                        MPN: 369900338
                                        R..H UPPER PANEL DOOR (GREY LEATHER)
                                        from £197.14
                                        from £197.14
                                        # 004
                                        MPN: 369900357
                                        LH UPPER PANEL DOOR (BLACK LEATHER)
                                        from £43.99
                                        from £43.99
                                        # 004
                                        MPN: 369900358
                                        RH UPPER PANEL DOOR (BLACK LEATHER)
                                        from £184.83
                                        from £184.83
                                        # 005
                                        MPN: 368300231
                                        LH DOOR BRIERWOOD FINISH
                                        from £238.84
                                        from £238.84
                                        # 005
                                        MPN: 368300232
                                        RH DOOR BRIERWOOD FINISH
                                        from £238.84
                                        from £238.84
                                        # 006
                                        MPN: 119148220
                                        SCREW
                                        from £1.07
                                        from £1.07
                                        # 008
                                        MPN: 136110055
                                        WASHER
                                        from £0.76
                                        from £0.76
                                        # 009
                                        MPN: 53833471
                                        SPRING CLIP
                                        - As necessary
                                        from £0.68
                                        from £0.68
                                        # 011
                                        MPN: 318353371
                                        LH FINISHER
                                        from £1.53
                                        from £1.53
                                        # 011
                                        MPN: 318353372
                                        RH FINISHER
                                        from £0.62
                                        from £0.62
                                        # 012
                                        MPN: 119529130
                                        SCREW
                                        from £1.07
                                        from £1.07
                                        # 013
                                        MPN: 368902255
                                        LH REAR PANEL (IVORY)
                                        from £249.48
                                        from £249.48
                                        # 013
                                        MPN: 369100239
                                        LH REAR PANEL (BEIGE)
                                        from £249.48
                                        from £249.48
                                        # 013
                                        MPN: 369900155
                                        LH REAR PANEL (GREY)
                                        from £255.18
                                        from £255.18
                                        # 013
                                        MPN: 369900219
                                        LH REAR PANEL (BLACK)
                                        from £255.18
                                        from £255.18
                                        # 014
                                        MPN: 368902256
                                        RH REAR PANEL (IVORY)
                                        Supersession
                                        Supersession
                                        # 014
                                        MPN: 369100240
                                        RH REAR PANEL (BEIGE)
                                        from £187.34
                                        from £187.34
                                        # 014
                                        MPN: 369900156
                                        RH REAR PANEL (GREY)
                                        from £249.48
                                        from £249.48
                                        # 014
                                        MPN: 369900220
                                        RH REAR PANEL (BLACK)
                                        from £83.27
                                        from £83.27
                                        # 015
                                        MPN: 30831442
                                        WASHER
                                        - As necessary
                                        # 016
                                        MPN: 128300050
                                        NUT
                                        - As necessary
                                        Supersession
                                        Supersession
                                        This part replaces part number 10718011
                                        # 017
                                        MPN: 136110055
                                        WASHER
                                        from £0.76
                                        from £0.76
                                        # 018
                                        MPN: 161600510
                                        SCREW
                                        from £4.86
                                        from £4.86
                                        # 020
                                        MPN: 30831442
                                        WASHER
                                        -As necessary
                                        # 021
                                        MPN: 318320341
                                        NUT SCREW
                                        - As necessary
                                        from £0.68
                                        from £0.68
                                        This part replaces part number 14229280
                                        # 022
                                        MPN: 53831380
                                        NUT SCREW
                                        - As necessary
                                        from £0.68
                                        from £0.68
                                        # 023
                                        MPN: 119148140
                                        SCREW
                                        # 024
                                        MPN: 163020060
                                        FLAT WASHER
                                        from £2.54
                                        from £2.54
                                        # 025
                                        MPN: 318950187
                                        LH REAR LINING STRIP (IVORY LEATHER)
                                        from £2.31
                                        from £2.31
                                        # 025
                                        MPN: 318950188
                                        RH REAR LINING STRIP (IVORY LEATHER)
                                        from £2.31
                                        from £2.31
                                        # 025
                                        MPN: 319120237
                                        LH REAR LINING STRIP (BEIGE LEATHER)
                                        from £2.31
                                        from £2.31
                                        # 025
                                        MPN: 319120238
                                        RH REAR LINING STRIP (BEIGE LEATHER)
                                        from £3.23
                                        from £3.23
                                        # 025
                                        MPN: 319953187
                                        LH REAR LINING STRIP (GREY LEATHER)
                                        from £2.84
                                        from £2.84
                                        # 025
                                        MPN: 319953188
                                        RH REAR LINING STRIP (GREY LEATHER)
                                        from £2.84
                                        from £2.84
                                        # 025
                                        MPN: 319953239
                                        LH REAR LINING STRIP (BLACK LEATHER)
                                        from £1.07
                                        from £1.07
                                        # 025
                                        MPN: 319953240
                                        RH REAR LINING STRIP (BLACK LEATHER)
                                        from £1.07
                                        from £1.07
                                        # 026
                                        MPN: 368300235
                                        REAR LH BRIERWOOD FINISHER
                                        from £66.70
                                        from £66.70
                                        # 026
                                        MPN: 368300236
                                        REAR RH BRIERWOOD FINISHER
                                        from £66.70
                                        from £66.70
                                        # 027
                                        MPN: 368902193
                                        FRONT LINING STRIP (IVORY LEATHER)
                                        from £9.15
                                        from £9.15
                                        # 027
                                        MPN: 369102193
                                        FRONT LINING STRIP (BEIGE LEATHER)
                                        from £7.70
                                        from £7.70
                                        # 027
                                        MPN: 369902193
                                        FRONT LINING STRIP (BLACK LEATHER)
                                        from £7.70
                                        from £7.70
                                        # 027
                                        MPN: 369902194
                                        FRONT LINING STRIP (GREY LEATHER)
                                        from £7.70
                                        from £7.70
