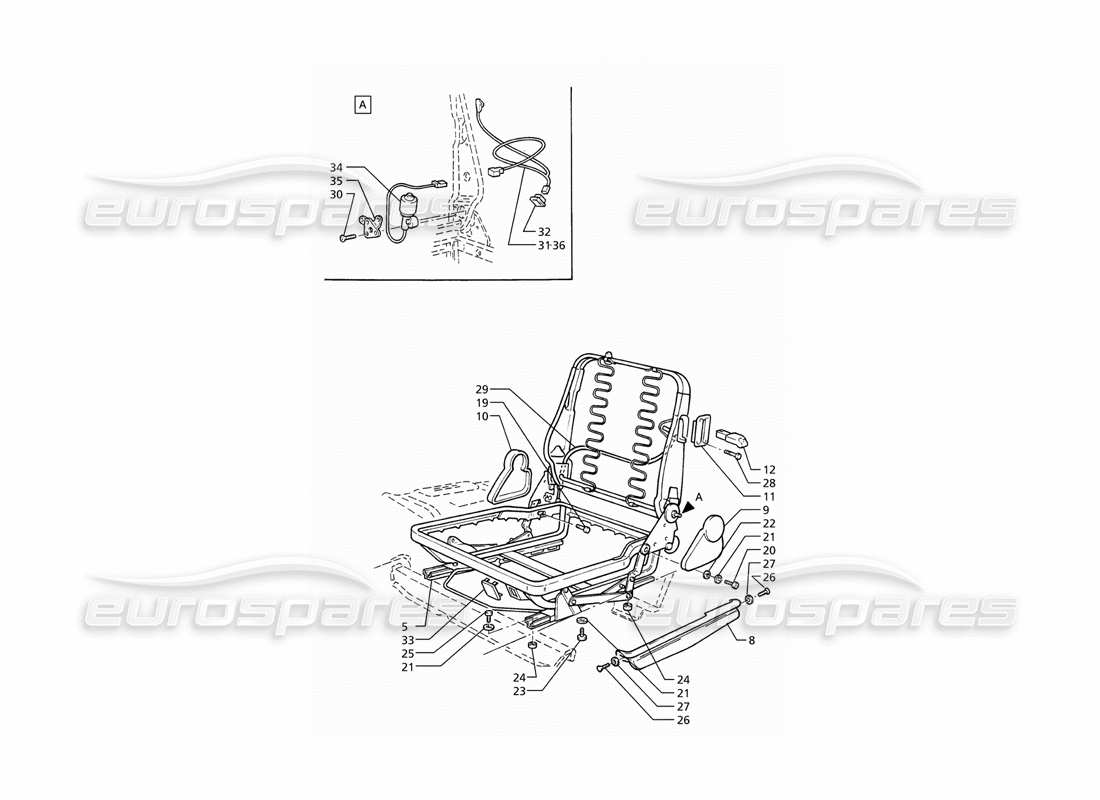

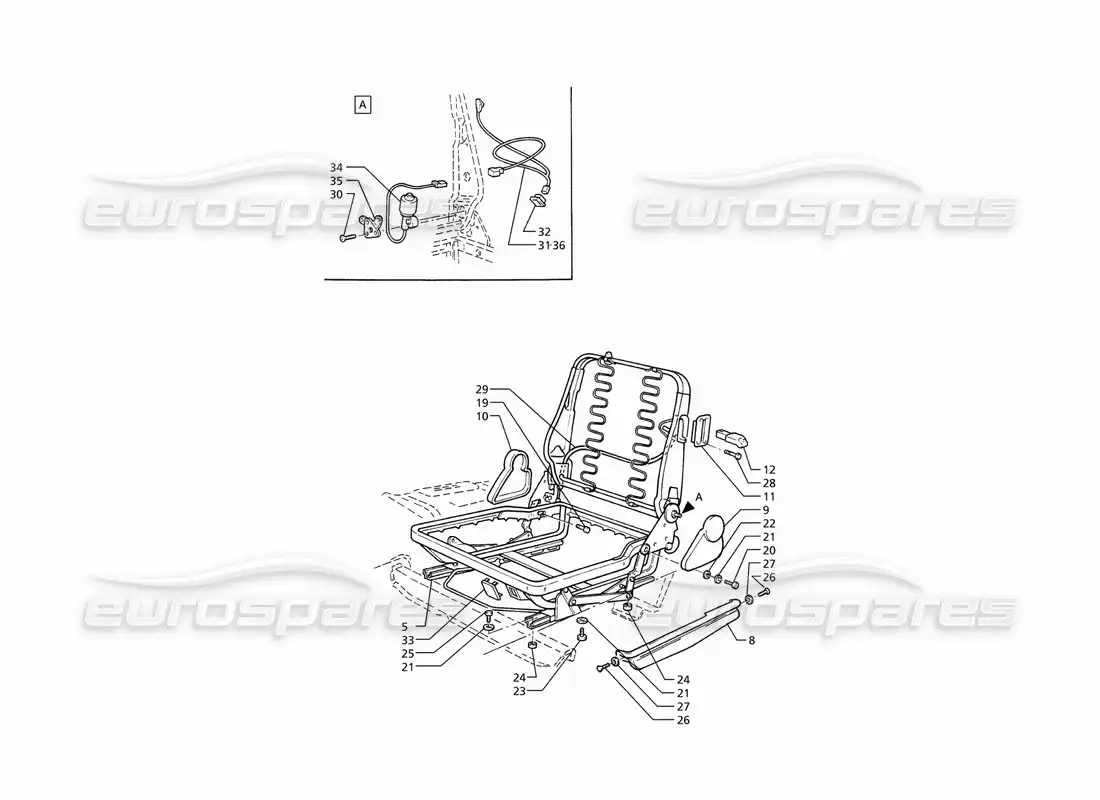

066.1 - Front Seats Structure
Maserati Ghibli 2.8 (ABS) Front Seats Structure Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search

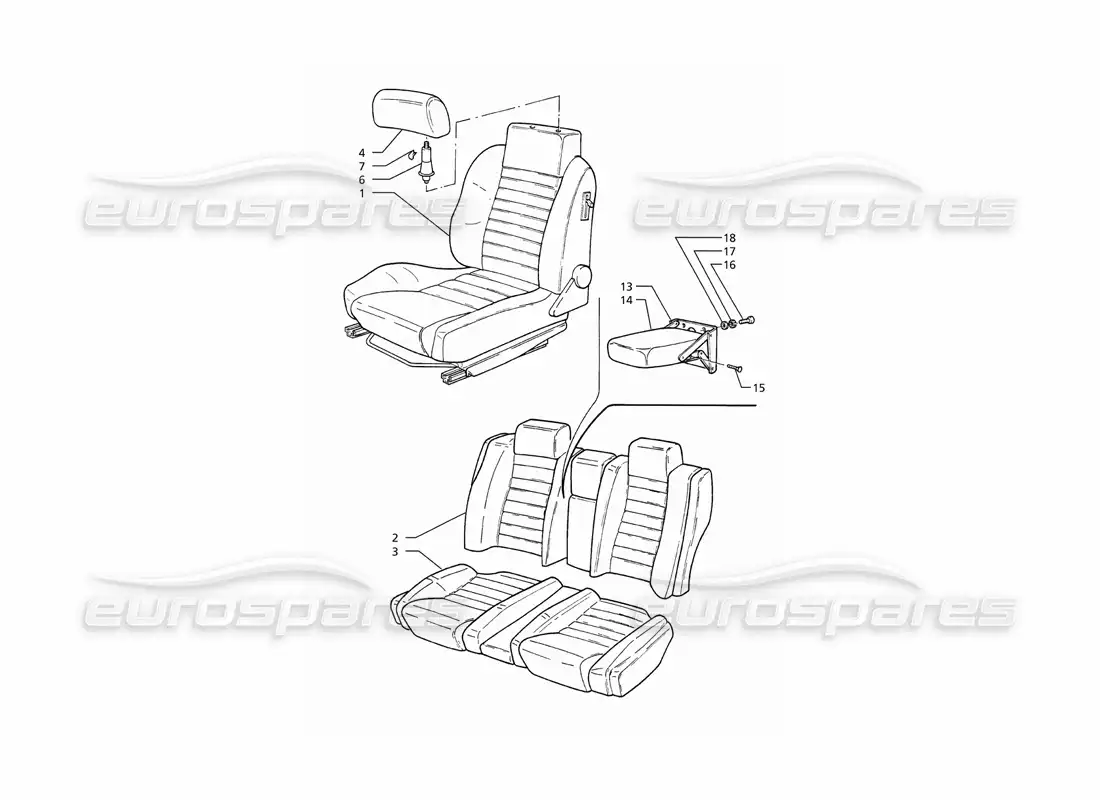

Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 005
MPN: 316930009
RH / LH FRONT SEAT SLIDING CONTROL
from £385.26
from £385.26
# 008
MPN: 316953439
LH DEVICE COVER
from £4.44
from £4.44
# 008
MPN: 316953440
RH DEVICE COVER
from £1.62
from £1.62
# 009
MPN: 316953446
LH FRONT COVER
Supersession
Supersession
This part replaces part number 316920443
# 010
MPN: 316953445
RH FRONT COVER
from £2.25
from £2.25
This part replaces part number 316920444 - and 1 more. Click to view details
# 011
MPN: 566905531
PLATE (BLACK )
from £0.76
from £0.76
# 012
MPN: 53696532
KNOB (BLACK )
from £1.83
from £1.83
# 019
MPN: 316920324
PIN
# 020
MPN: 101208018
SCREW
# 021
MPN: 135600080
LOCK WASHER
# 022
MPN: 135900084
WASHER
# 023
MPN: 108008016
SCREW
# 024
MPN: 316320334
SPACER (4.5 MM THICK)
from £1.16
from £1.16
# 024
MPN: 53691357
SPACER (10 MM THICK)
from £0.54
from £0.54
# 025
MPN: 108008035
SCREW
# 026
MPN: 119135130
SCREW
# 027
MPN: 136200037
FLAT WASHER
# 028
MPN: 119942190
SCREW
# 029
MPN: 316920025
CABLE, ASSY
from £13.71
from £13.71
# 030
MPN: 327720338
SCREW
from £1.55
from £1.55
# 031
MPN: 323020126
FRONT LH SEAT ADJUSTMENT CABLE UNIT
from £31.72
from £31.72
# 032
MPN: 323350130
SWITCH
from £8.94
from £8.94
This part replaces part number 330915700
# 033
MPN: 323350308
PLUG
from £1.08
from £1.08
This part replaces part number 323320308
# 034
MPN: 313352189
SEAT BACK TILTING MOTOR
Supersession
Supersession
This part replaces part number 313321190
# 035
MPN: 313352335
BRACKET
from £3.24
from £3.24
# 036
MPN: 313021134
FRONT RH SEAT ADJUSTMENT CABLE UNIT
from £8.57
from £8.57
