maserati ghibli 2.8 (abs) automatic air conditioner assy (rh drive) parts diagram

072.1 - Automatic Air Conditioner Assy (RH Drive)

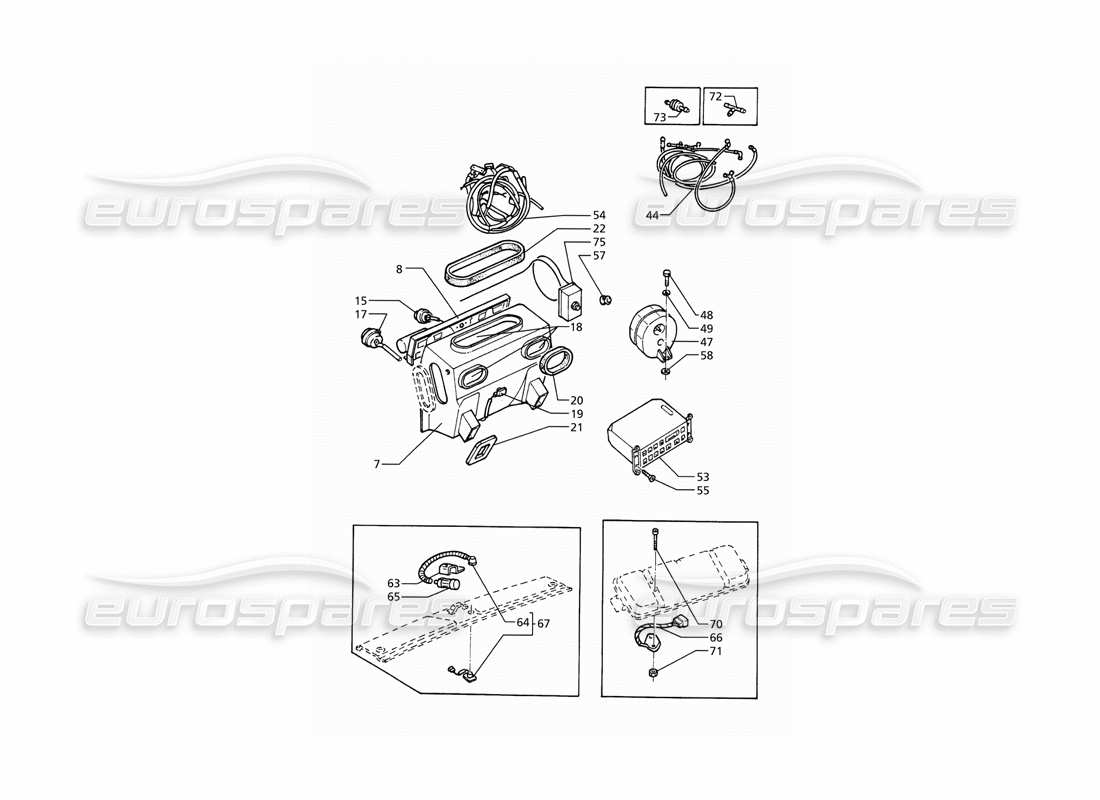

Maserati Ghibli 2.8 (ABS) Automatic Air Conditioner Assy (R.H.Drive) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 007
    MPN: 315520471
    FRONT BOX
    - Valid for 22, 21 version
    from £11.26
    from £11.26
    This part replaces part number 315520384
    # 008
    MPN: 315520472
    UPPER COVER
    - Valid for 22, 21 version
    # 015
    MPN: 315520162
    ACTUATOR WITH TWO POSITIONS
    - Valid for 22, 21 version
    from £4.67
    from £4.67
    # 017
    MPN: 315520159
    ACTUATOR
    - Valid for 22, 21 version
    from £13.15
    from £13.15
    # 018
    MPN: 315520134
    AIR DELIVERY DOOR
    - Valid for 22, 21 version
    # 019
    MPN: 315520206
    MIXED AIR TEMPERATURE SENSOR
    - Valid for 22, 21 version
    from £19.33
    from £19.33
    # 020
    MPN: 315520396
    NOZZLE GASKET
    - Valid for 22, 21 version
    # 021
    MPN: 315520397
    GASKET FOR NOZZLE
    - Valid for 22, 21 version
    from £3.57
    from £3.57
    # 022
    MPN: 315520398
    GASKET FOR NOZZLE
    - Valid for 22, 21 version
    from £3.57
    from £3.57
    # 044
    MPN: 315520208
    PNEUMATIC SYSTEM
    - Valid for 22, 21 version
    from £10.47
    from £10.47
    # 047
    MPN: 30551155
    Tank
    - Valid for 22, 21 version
    # 048
    MPN: 119148160
    SCREW
    - Valid for 22, 21 version
    # 049
    MPN: 169020005
    WASHER
    - Valid for 22, 21 version
    from £1.11
    from £1.11
    # 053
    MPN: 365500201
    CLIMATE CONTROL UNIT
    Supersession
    Supersession
    This part replaces part number 315550204
    # 053
    MPN: 365504201
    CLIMATE CONTROL UNIT
    from £1,303.69
    from £1,303.69
    This part replaces part number 365500201
    # 054
    MPN: 315520209
    WIRING HARNESS
    - Valid for 22, 21 version
    from £46.75
    from £46.75
    # 055
    MPN: 119529130
    SCREW
    - Valid for 22, 21 version
    from £1.11
    from £1.11
    # 057
    MPN: 53211308
    GROMMET
    - Valid for 22, 21 version
    from £0.58
    from £0.58
    # 058
    MPN: 312520511
    GASKET
    - Valid for 22, 21 version
    from £1.72
    from £1.72
    # 063
    MPN: 315520465
    SUPPORT
    - Valid for 22, 21 version
    from £3.33
    from £3.33
    # 064
    MPN: 315520467
    HOSE
    - Valid for 22, 21 version
    from £0.72
    from £0.72
    # 065
    MPN: 315520200
    FAN
    - Valid for 22, 21 version
    from £61.46
    from £61.46
    # 066
    MPN: 315520196
    OUTSIDE TEMPERATURE PROBE
    - Valid for 22, 21 version
    from £14.06
    from £14.06
    # 067
    MPN: 315520199
    INSIDE FEELER
    - Valid for 22, 21 version
    from £28.81
    from £28.81
    # 070
    MPN: 112804016
    SCREW
    - Valid for 22, 21 version
    # 071
    MPN: 122600040
    NUT
    - Valid for 22, 21 version
    from £0.47
    from £0.47
    # 072
    MPN: 315520424
    THREE WAY UNION
    - Valid for 22, 21 version
    from £0.51
    from £0.51
    # 073
    MPN: 315520153
    CHECK VALVE WITH BREATHER
    - Valid for 22, 21 version
    from £9.04
    from £9.04
    # 075
    MPN: 313350205
    DEFROSTING THERMOSTAT
    - Valid for 22, 21 version
    from £3.87
    from £3.87
