001.1 - catalyzed exhaust system (2800cc)

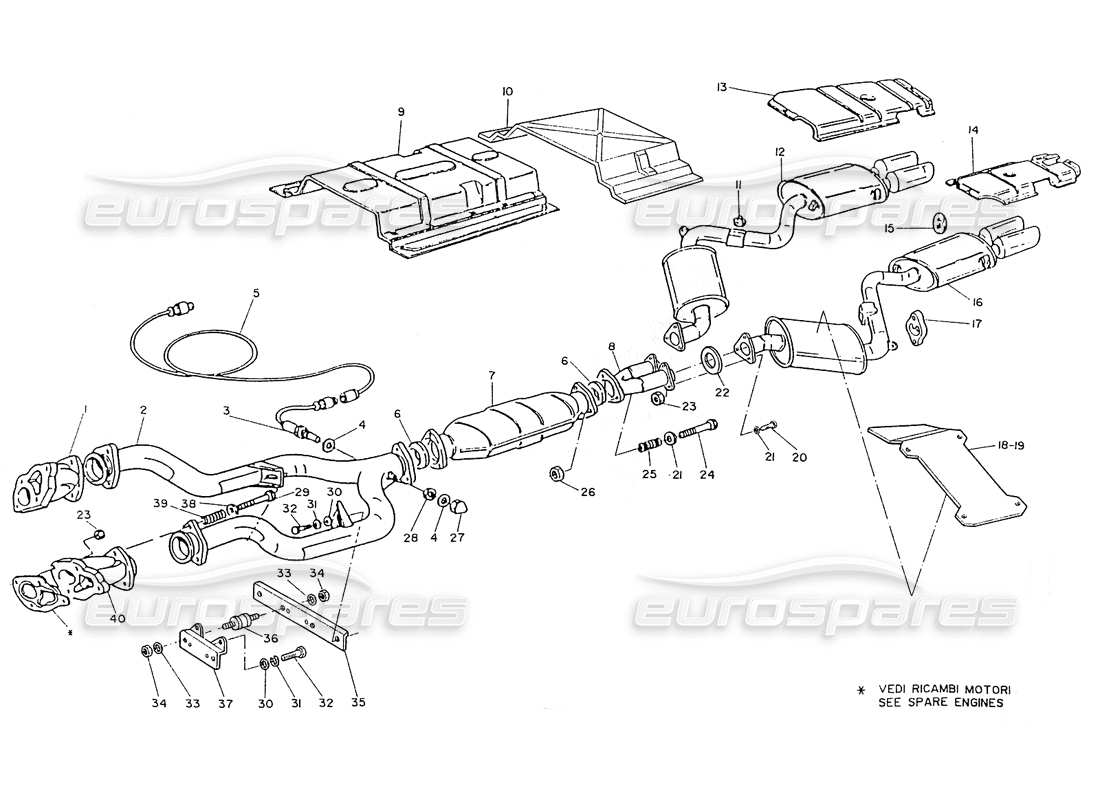

Maserati Ghibli 2.8 (Non ABS) Catalyzed Exhaust System (2800cc) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 467361801
RH MANIFOLD
Valid for 05
from £98.99
from £98.99
# 002
MPN: 319062104
FRONT EXHAUST PIPE
Valid for 05
from £406.63
from £406.63
# 003
MPN: 473082340
LAMBDA PROBE
Valid for 05
from £489.53
from £489.53
# 004
MPN: 134700105
WASHER
Valid for 05
from £1.08
from £1.08
# 005
MPN: 323760108
CABLE FOR LAMBDA FEELER
Valid for 05
from £8.98
from £8.98
# 006
MPN: 339050305
RING
Valid for 05
from £10.99
from £10.99
# 007
MPN: 319062105
SEALING RING CENTRAL PAINT CATALYST
Valid for 05
from £311.06
from £311.06
# 008
MPN: 369005106
MANIFOLD
Valid for 05
from £119.86
from £119.86
# 009
MPN: 399050118
FRONT PLATE
Valid for 05
from £18.47
from £18.47
# 010
MPN: 369000137
PLATE
Valid for 05
from £31.14
from £31.14
# 011
MPN: 312120300
BUFFER
Valid for 05
from £2.14
from £2.14
# 012
MPN: 319020300
RUBBER RING
Valid for 05
from £1.61
from £1.61
# 012
MPN: 369000120
RH PLATE
Valid for 05
from £32.28
from £32.28
# 012
MPN: 369012110
RH REAR SILENCER
Valid for 05
from £521.35
from £521.35
This part replaces part number 369005110 - and 1 more. Click to view details
# 014
MPN: 369000119
LH PLATE
Valid for 05
from £30.14
from £30.14
# 016
MPN: 369005109
LH REAR SILENCER
Valid for 05
Supersession
Supersession
# 017
MPN: 369000130
ELASTIC SUPPORT
Valid for 05
from £1.55
from £1.55
# 018
MPN: 369005139
LH SHIELD LITTLE SILENCER
Valid for 05
from £9.92
from £9.92
# 019
MPN: 369005140
RH SHIELD LITTLE SILENCER
Valid for 05
from £9.92
from £9.92
# 020
MPN: 108008045
SCREW
Valid for 05
# 021
MPN: 14496601
FLAT WASHER
Valid for 05
Supersession
Supersession
# 022
MPN: 399050305
SEAL RING
Valid for 05
from £88.88
from £88.88
# 023
MPN: 14058519
COPPER PLATED NUT
Valid for 05
from £0.49
from £0.49
This part replaces part number 312051309 which we have in stock
# 024
MPN: 14421074
SCREW
Valid for 05
from £4.88
from £4.88
This part replaces part number 14421071
# 025
MPN: 319030313
SPRING
Valid for 05
from £2.12
from £2.12
# 026
MPN: 125100100
NUT
Valid for 05
# 027
MPN: 319030328
CUP NUT
Valid for 05
from £1.63
from £1.63
# 028
MPN: 319030329
NUT
Valid for 05
from £0.77
from £0.77
# 029
MPN: 319020301
SCREW
Valid for 05/ AFTER CHANGE
Supersession
Supersession
# 030
MPN: 138200080
WASHER
Valid for 05
# 031
MPN: 163020080
WASHER
Valid for 05
from £1.08
from £1.08
# 032
MPN: 101208016
SCREW
Valid for 05
# 033
MPN: 369000341
WASHER
Valid for 05
from £1.08
from £1.08
# 034
MPN: 128350080
SELFLOCK1NG NUT SUPPORT
Valid for 05
Supersession
Supersession
# 035
MPN: 369005339
SUPPORT
Valid for 05
# 036
MPN: 324853120
SPRING MOUNT
Valid for 05
from £16.92
from £16.92
This part replaces part number 314855119 - and 1 more. Click to view details
# 037
MPN: 369005338
SUPPORT
Valid for 05
from £13.69
from £13.69
# 038
MPN: 14496601
FLAT WASHER
Valid for 05
Supersession
Supersession
# 039
MPN: 319020303
SPRING
Valid for 05
from £4.46
from £4.46
# 040
MPN: 467361901
L H MAIFOLD
Valid for 05
from £98.99
from £98.99
