004 - air conditioning system

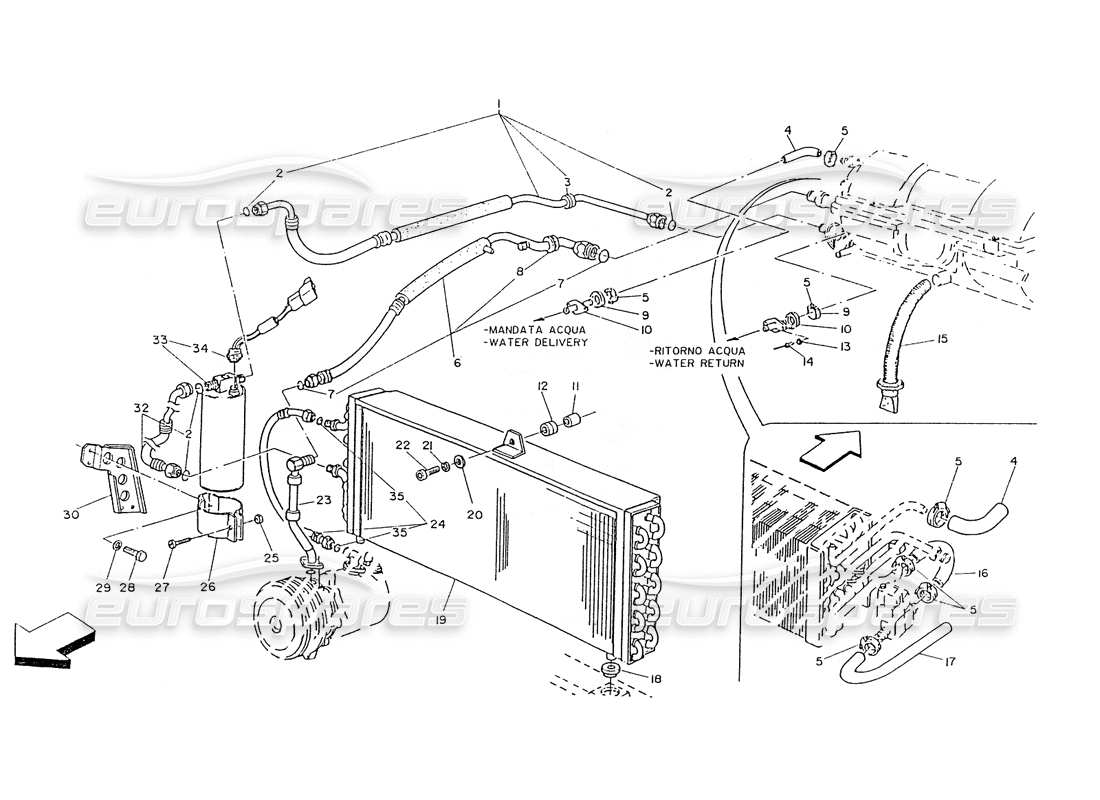

Maserati Ghibli 2.8 (Non ABS) Air Conditioning System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 395550180
FREON DELIVERY TUBE
from £28.46
from £28.46
# 002
MPN: 315520443
GASKET
from £0.69
from £0.69
# 003
MPN: 31331303
FAIRLEAD
from £1.06
from £1.06
# 004
MPN: 315520479
TUBE
from £8.18
from £8.18
# 005
MPN: 186402028
CLAMP
from £1.55
from £1.55
# 006
MPN: 315551173
FREON RETURN PIPE WITH GASOLINE COOLING
from £70.96
from £70.96
# 007
-
GASKET
Not supplied
# 008
MPN: 315520371
FAIRLEAD
from £0.63
from £0.63
# 009
MPN: 315520372
GASKET
from £0.69
from £0.69
# 010
MPN: 315520370
UNION
from £0.70
from £0.70
# 011
MPN: 315520376
SPACER
from £3.63
from £3.63
# 012
MPN: 315520375
RING
Supersession
Supersession
# 013
MPN: 169020005
WASHER
from £1.08
from £1.08
# 014
MPN: 164323413
RIVET
# 015
MPN: 315520017
CONDENSATE DRAINAGE TUBE
from £1.76
from £1.76
# 016
MPN: 315520480
TUBE
from £2.05
from £2.05
# 017
MPN: 315520481
TUBE
from £7.83
from £7.83
# 018
MPN: 189453
BUSH
from £1.08
from £1.08
This part replaces part number 374030312
# 019
MPN: 365500220
UPPER CONDENSATOR
Valid for 00
Supersession
Supersession
# 019
MPN: 395550220
BIRANGO CONDENSER
Valid for 01, 05/ 2800cc 4v
from £575.61
from £575.61
This part replaces part number 325555220 - and 1 more. Click to view details
# 020
MPN: 135900064
FLAT WASHER
from £0.47
from £0.47
# 021
MPN: 135300064
SPRING WASHER
# 022
MPN: 101206020
SCREW
# 023
MPN: 365500185
FREON RETURN TUBE
from £27.49
from £27.49
# 024
MPN: 365500179
FREON DELIVERY TUBE
Supersession
Supersession
# 025
MPN: 128300060
FREON DELIVERY TUBE
Supersession
Supersession
# 026
MPN: 315520301
NUT
from £17.16
from £17.16
# 027
MPN: 101206025
CLAMP
# 028
MPN: 108006012
SCREW
from £0.54
from £0.54
# 029
MPN: 135000064
SCREW

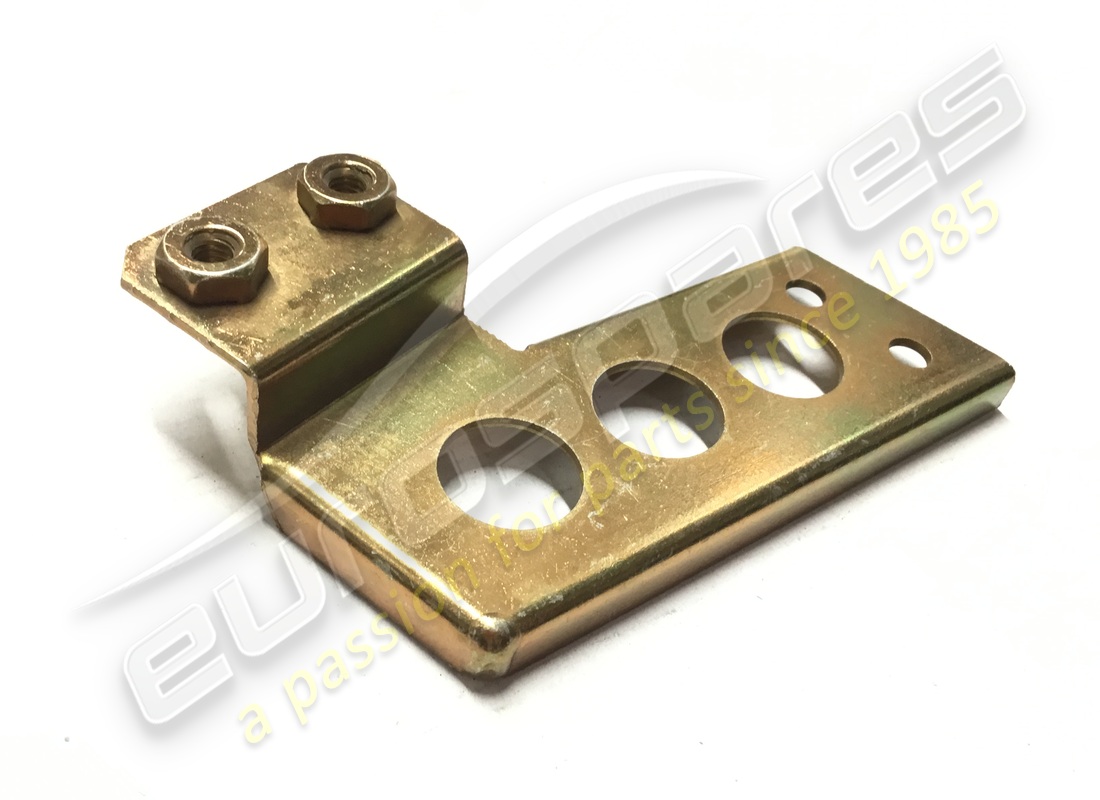

# 030
MPN: 365500263
FLAT WASHER PLATE
from £18.24
from £18.24
# 031
MPN: 128350060
SELF LOCKING NUT
# 032
MPN: 395550181
FREON DELIVERY TUBE
from £16.77
from £16.77
# 033
MPN: 365502174
FREON FILTER
from £103.99
from £103.99
This part replaces part number 315520174
# 034
MPN: 315520175
MAX. AND MIN. CAPACITY PRESSURE SWITCH
Supersession
Supersession
# 035
MPN: 315520445
GASKET
Not supplied
from £0.69
from £0.69
