maserati ghibli 2.8 (non abs) fuel pipes, (2800cc) parts diagram

006 - fuel pipes, (2800cc)

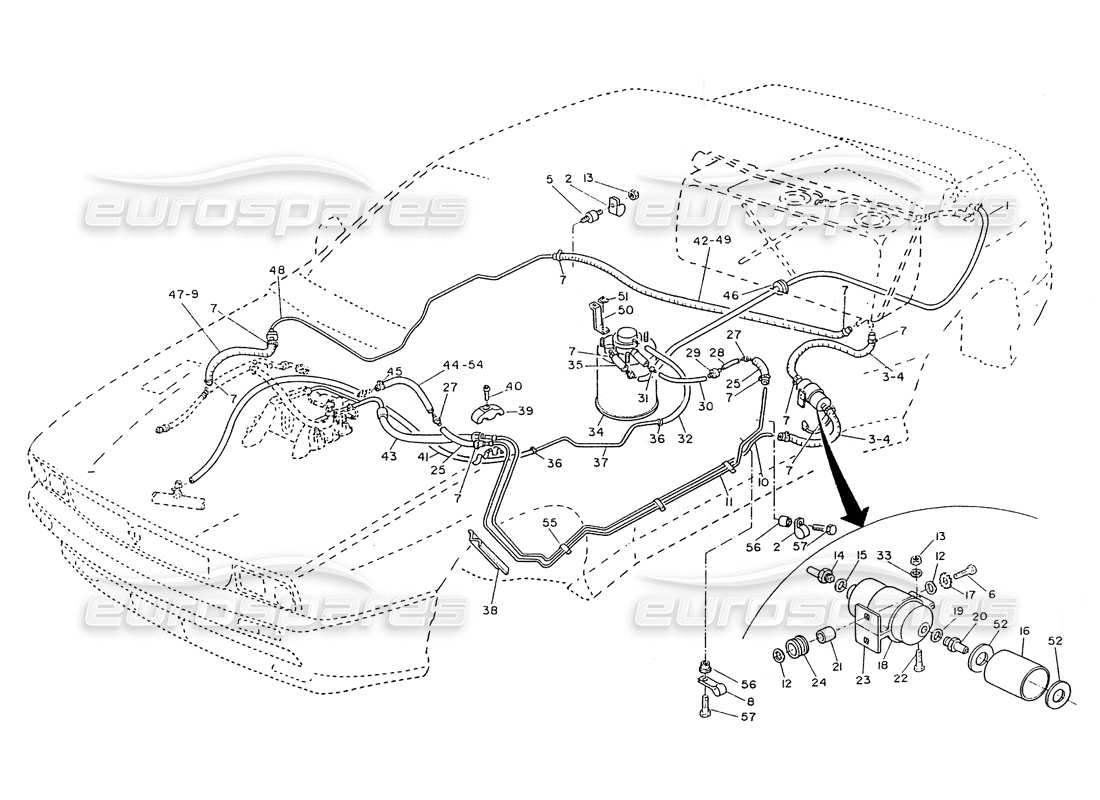

Maserati Ghibli 2.8 (Non ABS) Fuel Pipes, (2800cc) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 319220391
BREATHER VALVE PIPING
Valid for 00, 01
Supersession
Supersession
# 002
MPN: 312020356
CLAMP
Valid for 00, 01
from £1.08
from £1.08
# 003
MPN: 318753378
PIPE
Valid for 00, 01 (ORDER IN 5 METERS OR MULTIPLE)
Supersession
Supersession
# 004
MPN: 398750337
SLEEVE
Valid for 00, 01 (ORDER IN 5 METERS OR MULTIPLE)
from £1.27
from £1.27
# 005
MPN: 319220139
VIBRATION MOUNT
Valid for 00, 01
from £3.19
from £3.19
# 006
MPN: 108006030
SCREW
Valid for 00, 01
# 007
MPN: 559221343
CLAMP
Valid for 00, 01
Supersession
Supersession
# 008
MPN: 399250544
CLAMP
Valid for 00, 01
# 009
MPN: 398750337
SLEEVE
Valid for 00, 01 (ORDER IN 10 METERS OR MULTIPLE)
from £1.27
from £1.27
# 010
MPN: 369200121
FUEL DELIVERY PIPE
Valid for 00, 01
from £41.37
from £41.37
# 011
MPN: 369200123
VACUUM PIPE
Valid for 00, 01
from £41.57
from £41.57
# 012
MPN: 136110066
FLAT WASHER
Valid for 00, 01
# 013
MPN: 128350060
SELF LOCKING NUT
Valid for 00, 01
# 014
MPN: 470072900
UNION
Valid for 00, 01
from £2.89
from £2.89
# 015
MPN: 319220424
GASKET
Valid for 00, 01
from £0.69
from £0.69
# 016
MPN: 477073000
PROTECTION SHEATH
Valid for 00, 01
from £0.69
from £0.69
# 017
MPN: 135600060
SPRING WASHER
Valid for 00, 01
from £0.77
from £0.77
# 018
MPN: 319220141
FUEL FILTER
Valid for 00, 01
Supersession
Supersession
# 019
MPN: 319220424
GASKET
Valid for 00, 01
from £0.69
from £0.69
# 020
MPN: 470072800
UNION
Valid for 00, 01
from £0.63
from £0.63
# 021
MPN: 479052820
BUSHING
Valid for 00, 01
from £2.32
from £2.32
# 022
MPN: 314320345
SCREW
Valid for 00, 01
from £46.34
from £46.34
# 023
MPN: 479061700
CLAMP
Valid for 00, 01
from £23.79
from £23.79
# 024
MPN: 315520375
RING
Valid for 00, 01
Supersession
Supersession
# 025
MPN: 19058089
SLEEVE
Valid for 00, 01
from £9.66
from £9.66
This part replaces part number 379200379 - and 2 more. Click to view details
# 027
MPN: 312230461
UNION
Valid for 00, 01
from £0.99
from £0.99
# 028
MPN: 96319
PIPE
Valid for 00, 01 (ORDER IN 10 METERS OR MULTIPLE)
Supersession
Supersession
This part replaces part number 325520447
# 029
MPN: 319237109
CHECK VALVE
Valid for 00, 01
# 030
MPN: 300100803
SLEEVE
Valid for 00, 01
from £54.96
from £54.96
This part replaces part number 318720329
# 031
MPN: 312230461
UNION
Valid for 00, 01
from £0.99
from £0.99
# 032
MPN: 300100803
SLEEVE
Valid for 00, 01
from £54.96
from £54.96
This part replaces part number 318720329
# 033
MPN: 312220411
WASHER
Valid for 00, 01
from £0.47
from £0.47
# 034
MPN: 319260028
CARBON CANISTER COMPLETE ASSY
Valid for 00, 01
Supersession
Supersession
# 035
MPN: 319237518
PIPE
Valid for 00, 01
# 037
MPN: 399250352
BUNDY TUBE TO T.V.S. VALVE
Valid for 00, 01
from £6.76
from £6.76
# 038
MPN: 329250137
PROTECTION PLATE
Valid for 00, 01
from £4.63
from £4.63
# 039
MPN: 399250419
CLAMP
Valid for 00, 01
from £1.08
from £1.08
# 040
MPN: 108006020
SCREW
Valid for 00, 01
# 041
MPN: 96319
PIPE
Valid for 00, 01
Supersession
Supersession
This part replaces part number 325520447
# 042
MPN: 318753378
PIPE
Valid for 00, 01
Supersession
Supersession
# 043
MPN: 479064203
FUEL DELIVERY PIPE
Valid for 00, 01
from £140.43
from £140.43
# 044
MPN: 96319
PIPE
Valid for 00, 01
Supersession
Supersession
This part replaces part number 325520447
# 045
MPN: 312050310
CLAMP
Valid for 00, 01
from £1.08
from £1.08
# 046
MPN: 319220396
FAIRLEAD
Valid for 00, 01
from £1.55
from £1.55
# 047
MPN: 318753378
PIPE
Valid for 00, 01(ORDER IN 10 METERS OR MULTIPLE)
Supersession
Supersession
# 048
MPN: 369200122
RH FUEL RETURN PIPE
Valid for 00, 01
from £38.62
from £38.62
# 049
MPN: 96984
CORRUGATED PIPE
Valid for 00, 01 (ORDER IN 10 METERS OR MULTIPLE)
Supersession
Supersession
# 050
MPN: 399250368
BRACKET
Valid for 00, 01
from £1.93
from £1.93
# 051
MPN: 319237503
NUT
Valid for 00, 01
from £1.63
from £1.63
# 052
MPN: 477073100
FILTER PROTECTION
Valid for 00, 01
from £6.42
from £6.42
# 054
MPN: 398750332
CORRUGATED PIPE
Valid for 00, 01 (ORDER IN 10 METERS OR MULTIPLE)
# 055
MPN: 312053382
CLAMP
Valid for 00, 01
from £0.69
from £0.69
# 056
MPN: 315220303
BUSHING
Valid for 00, 01
from £0.69
from £0.69
# 057
MPN: 314620345
SCREW
Valid for 00, 01
